Light Carbon with Bafang M800
- Thread starter KaroKönig
- Start date
flarvb
New Member
Very nice!
Can you please share details about the build and your experience while riding? How does the m800 perform?
Can you please share details about the build and your experience while riding? How does the m800 perform?
- Thread starter
- #3
I built the bike especially so that i could go out with my buddies without an e-bike, it just makes up for my lack of fitness so that i can keep up with the boys ?The M800 is very quiet so that you do not disturb anyone in the group.The range with the small 280 Wh battery is around 60 km, and by increasing the voltage to 46.2 volts, the output increases to almost 400 watts
Last edited:
you appreciate more the M800 than M500 ?I built the bike especially so that i could go out with my buddies without an e-bike, it just makes up for my lack of fitness so that i can keep up with the boys ?The M800 is very quiet so that you do not disturb anyone in the group.The range with the small 280 Wh battery is around 60 km, and by increasing the voltage to 46.2 volts, the output increases to almost 400 watts
View attachment 52697
- Thread starter
- #5
No, in my opinion the M800 has too little power for a mtb, it was not designed for that. I just wanted to show how much weight you can save on an E-MTB. Never make the mistake and ride a minimal-assist bike with a group of normal e-bikes. On the first mountain you will regret it ?
OK thanks
ULEWZ
Active member

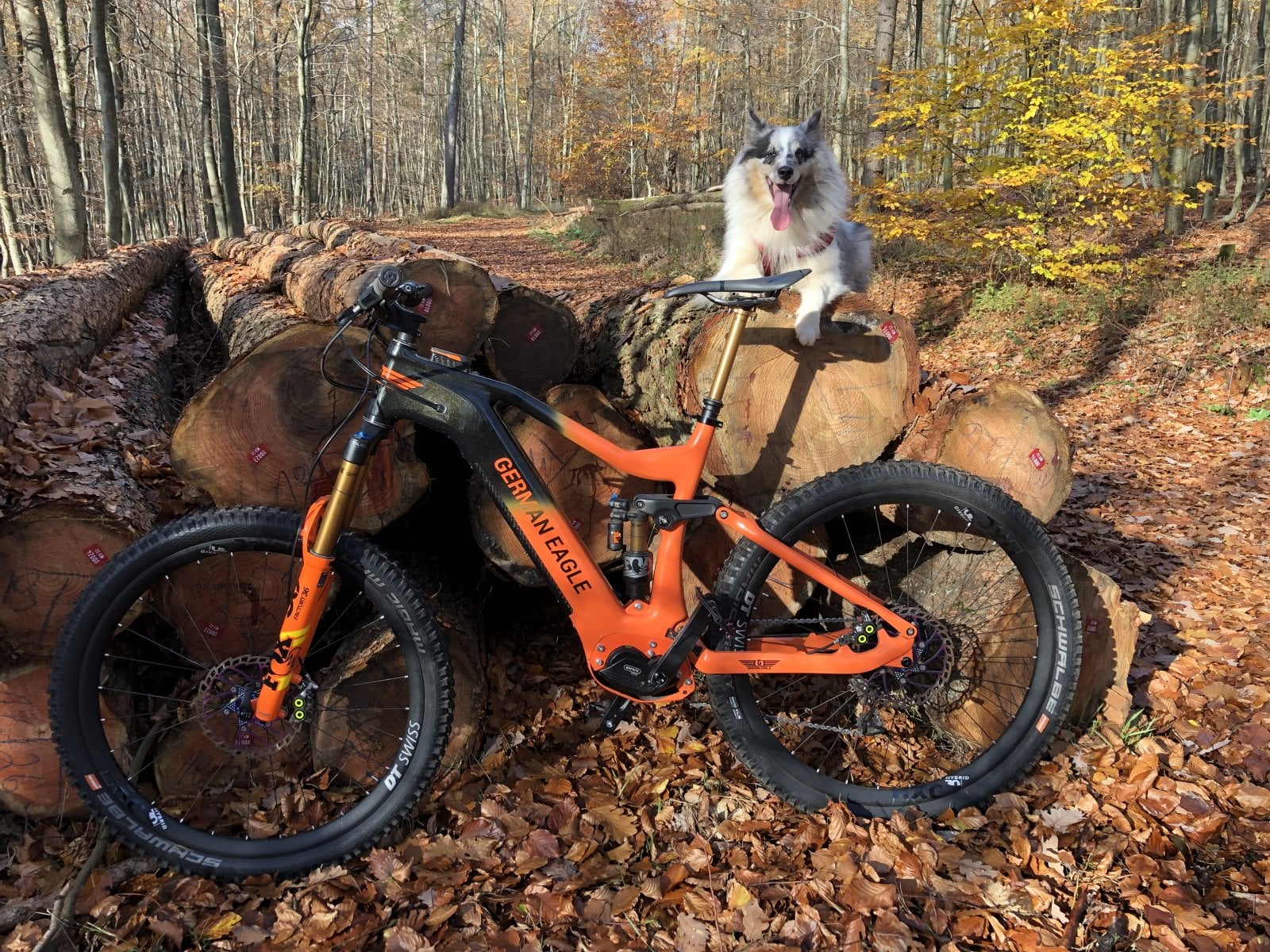

Somebody had to say it, Beautiful, wait for it, DOG.
I've just had a post ride glass of wine .. so the brain is probably not working well ... I don't get it ?? I know .. as @steve_sordy says, if you have to explain it. It's not funny ... can we have a clue ?
Crap .. I forgot about the first picture
steve_sordy
Wedding Crasher
M800 with 280W battery is probably similar to the Levo SL where you need to do some pedaling. Are you able to pack more battery into the frame? Boost mode should be pretty speedy!
- Thread starter
- #12

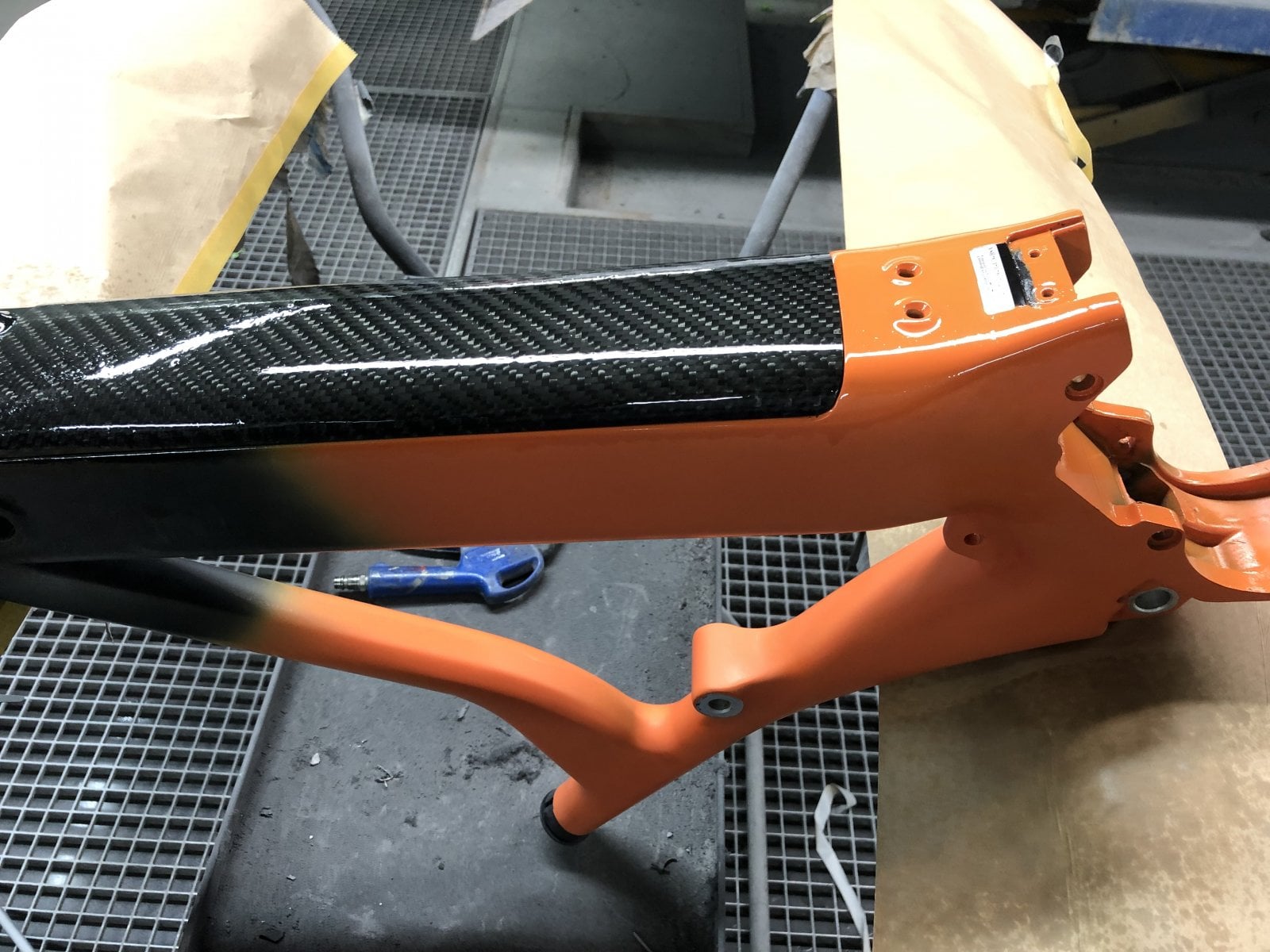

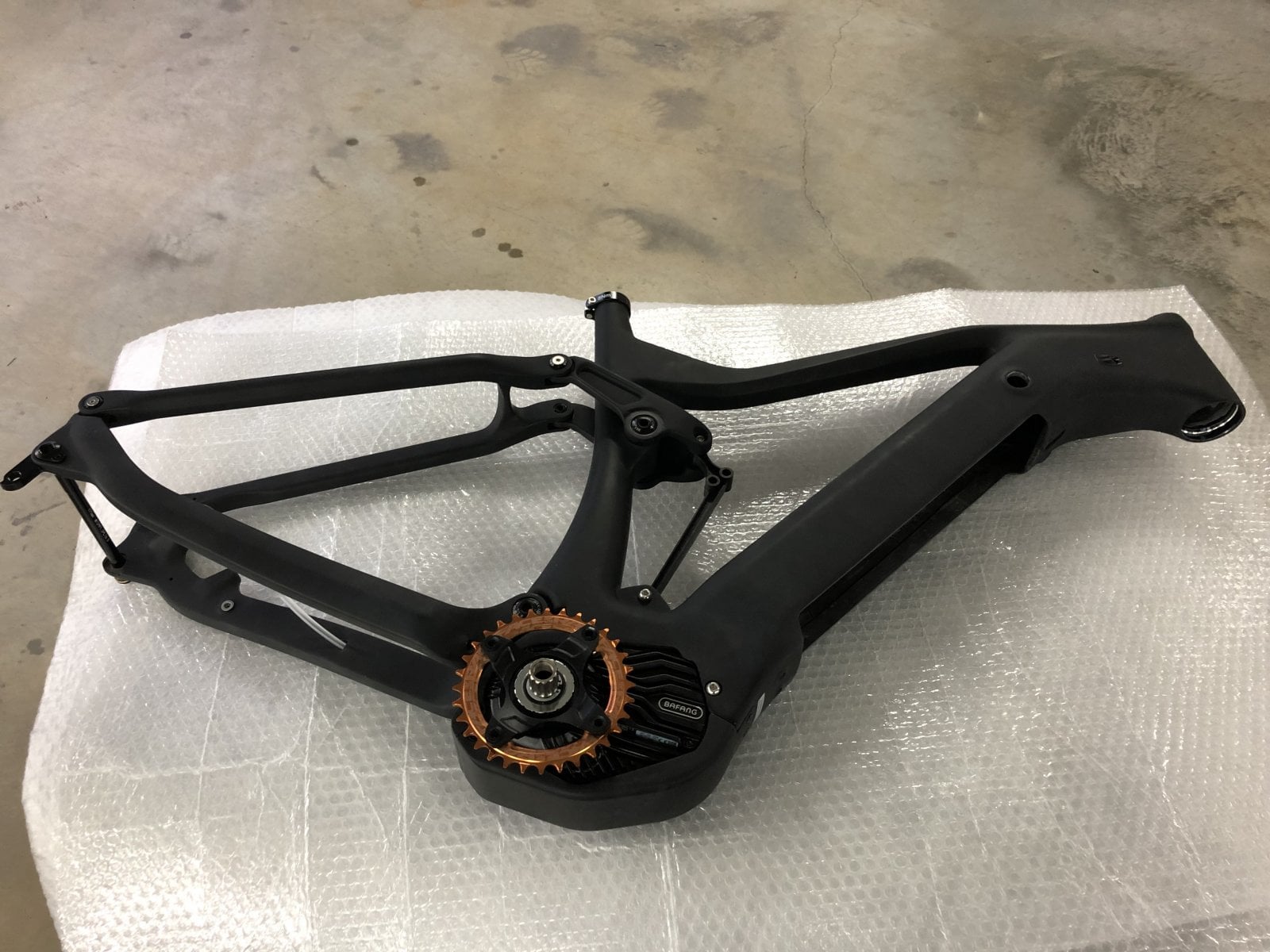

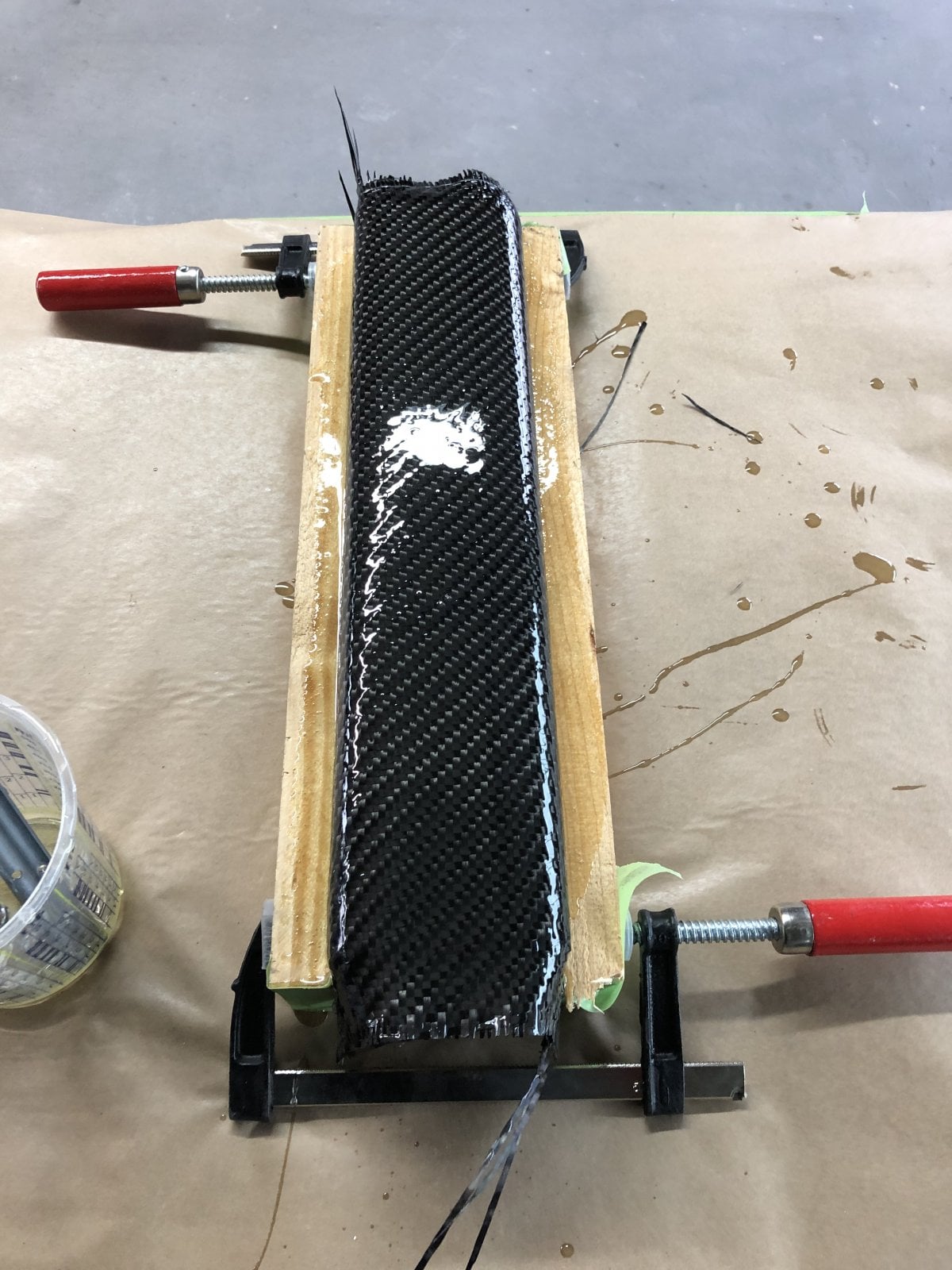

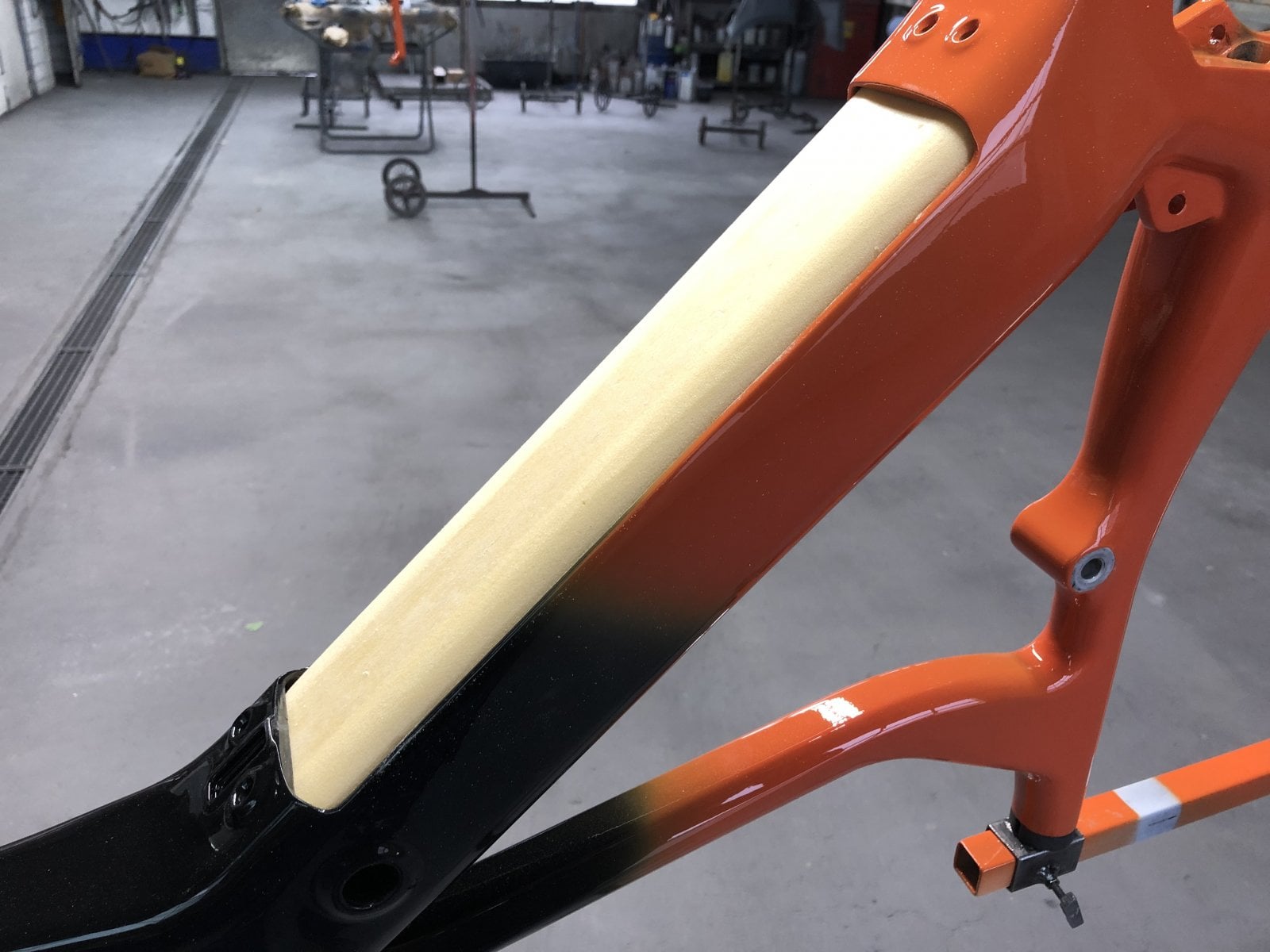

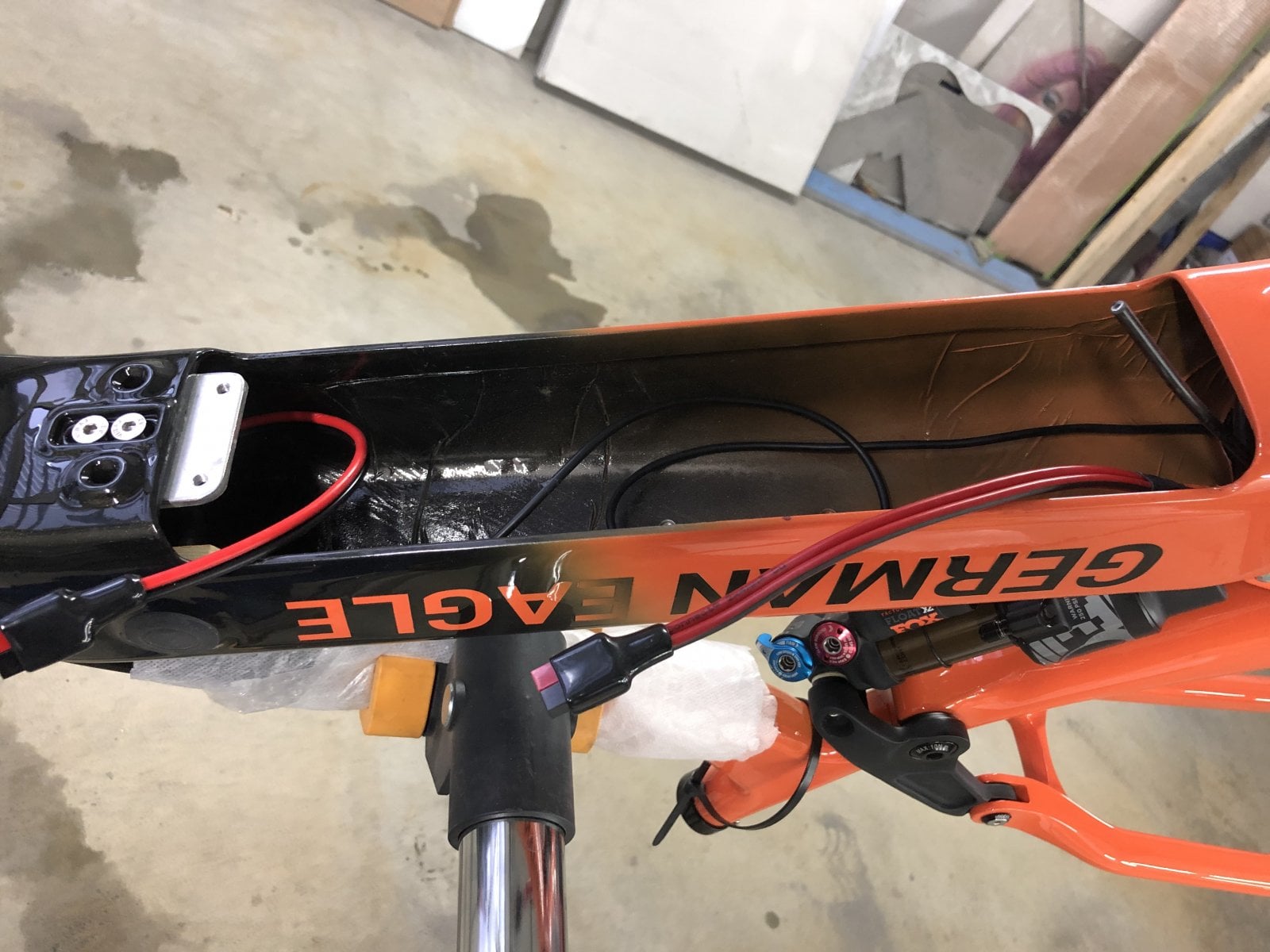

The small 280Wh battery is only to save weight, the frame is usually for the M500 / 600 motor and has space for up to 800 Wh. But you have to make the battery cover yourself
Last edited:
Your turning into the Mike Patey of the e-bike worldThe small 280Wh battery is only to save weight, the frame is usually for the M500 / 600 motor and has space for up to 800 Wh. But you have to make the battery cover yourself
View attachment 54297
View attachment 54295
View attachment 54296
View attachment 54298 View attachment 54299
View attachment 54305
- Thread starter
- #15

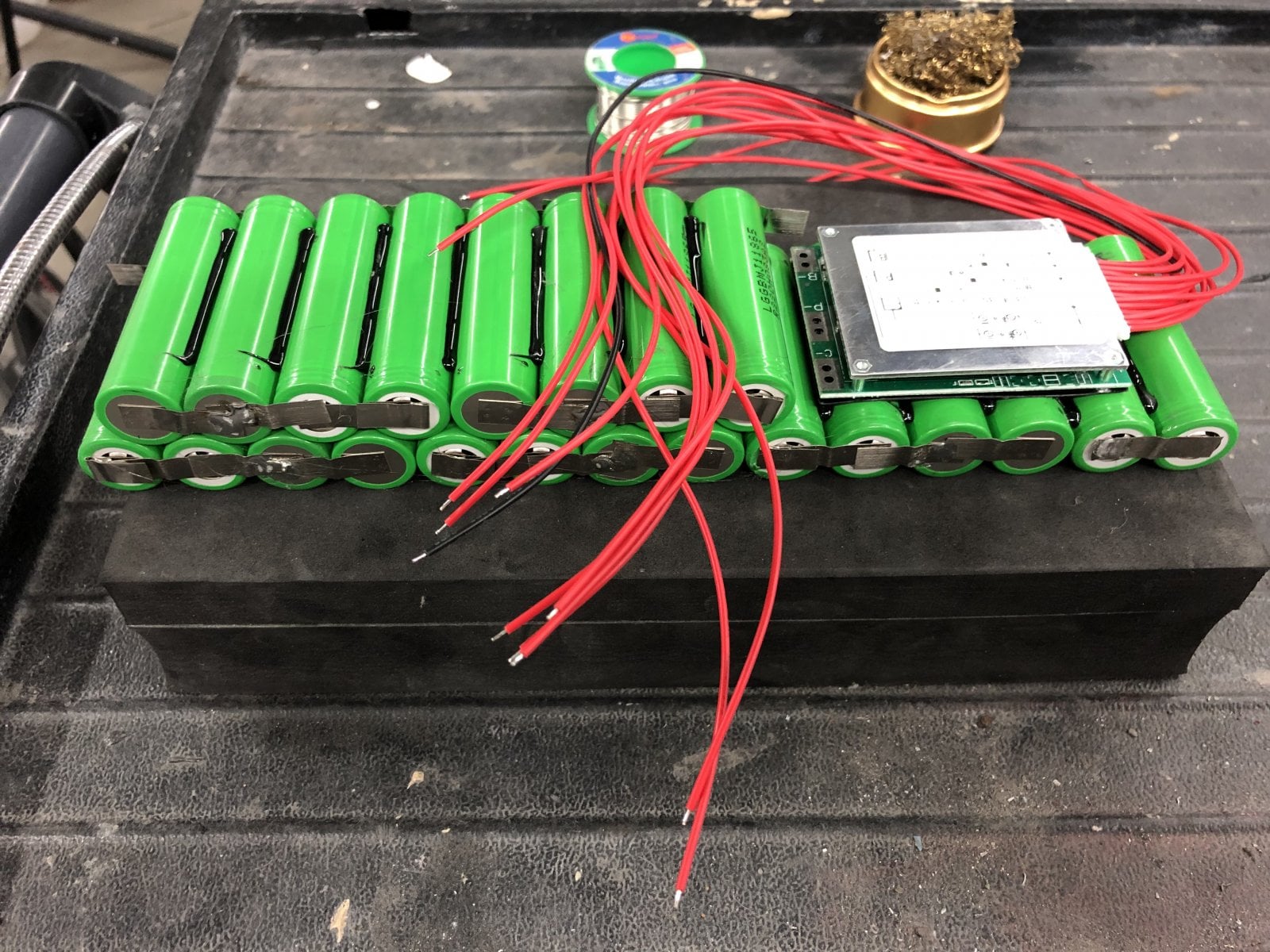

I tried a 12S3P battery first, but the controller of the M800 goes into Error 07 (overvoltage) from a voltage of 47.5 V
Hi Karokoenig,
so your version of the motor is 36v, i see they do have the 43 versions.Thinking of buying one.By the way i have bought the dengfu e10 with bafang m600, should come next week to me and was thinking to make something similar like you did.So i might have the best of the both worlds, when i need.Just a fast motor swap and voila.
Greets
Sava
so your version of the motor is 36v, i see they do have the 43 versions.Thinking of buying one.By the way i have bought the dengfu e10 with bafang m600, should come next week to me and was thinking to make something similar like you did.So i might have the best of the both worlds, when i need.Just a fast motor swap and voila.
Greets
Sava
Caio
Member
Congrats on this nice build, nice color combination, where did get this frame from?The small 280Wh battery is only to save weight, the frame is usually for the M500 / 600 motor and has space for up to 800 Wh. But you have to make the battery cover yourself
View attachment 54297
View attachment 54295
View attachment 54296
View attachment 54298 View attachment 54299
View attachment 54305
Thx
- Thread starter
- #19
- Thread starter
- #20

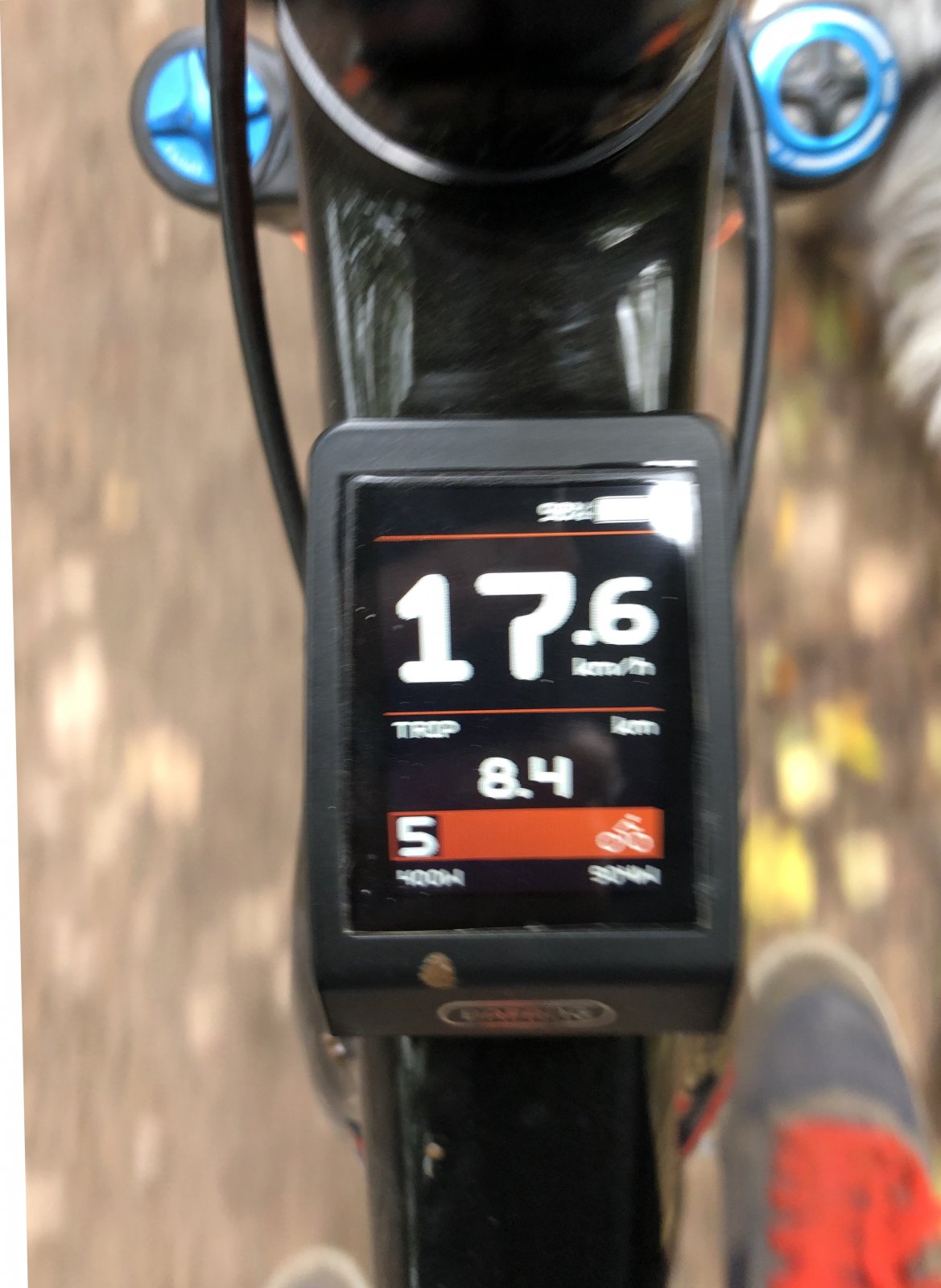

In the highest support level, the M800 delivers just over 400 watts and 55 Nm, a little more than the Mahle in the Levo SLKaroKonig,

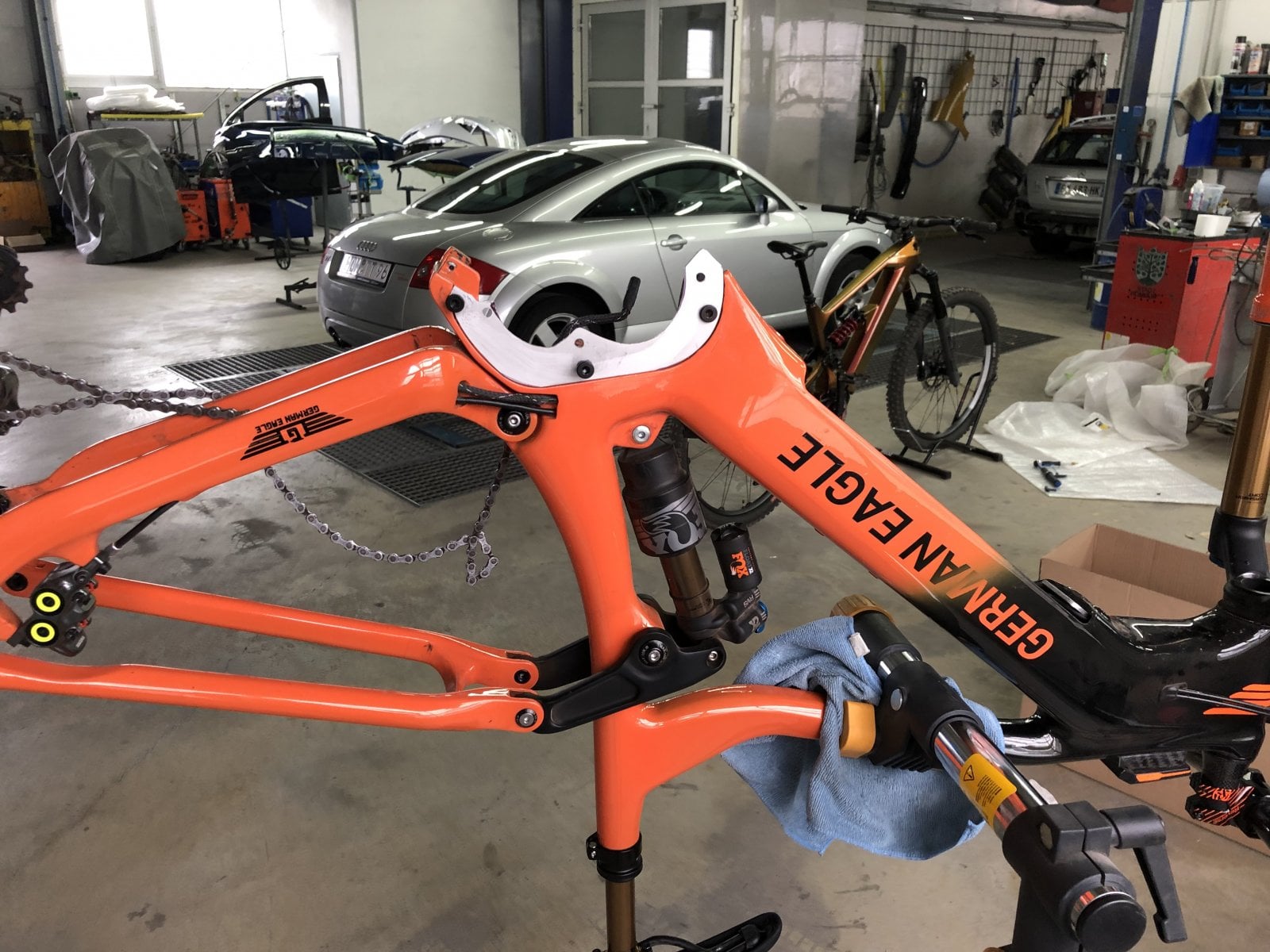

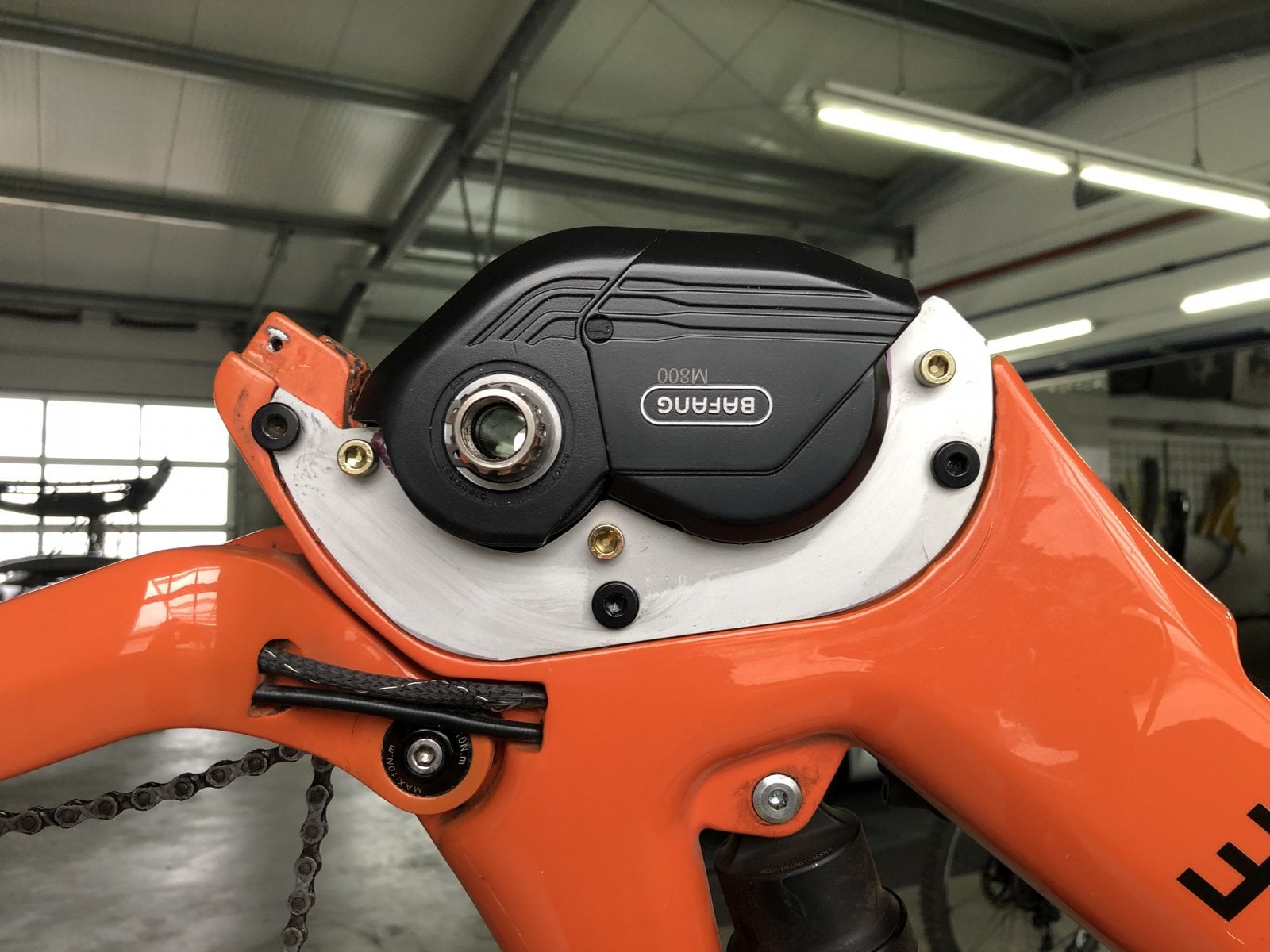

M800 is not a straight fit for this frame but only a clever machinist can do it, definitely not for us normal guys here
I'm wondering if you were able to run M800 in similar turbo boost mode of Levo SL?
KaroKonig - luv your innovation! Will you share the custom motor adapter dimension for M800 to fit on the M600 frame housing?
Savas - like your idea of swapping M800/M600 - I want to do the same if possible.
What mod is needed for M800 46v version to run on the same Bafang 48V battery for M600?
Savas - like your idea of swapping M800/M600 - I want to do the same if possible.
What mod is needed for M800 46v version to run on the same Bafang 48V battery for M600?
- Thread starter
- #22
you could only charge the battery up to 46.5 volts, but that would not be optimal because of the high weight and the higher cut-off voltage of the BMS
It's no fun pedaling a 22 kg bike with a weak engine up the mountain?
So it‘s better to built a light Battery for the M 800 to save another 2,5 Kg
Agree! This is perfect for a light 55kg rider. I usually ride less than 2 hrs for 32+km 700+m ele. With a levo SL, I doubled the fun with the same time ?
Lucky Luke
Member
The display DP C260.CAN is only compatible with M800 ?
$690 for M800 complete kit sample price plus shipping from Alibaba, not sure if it is 43V.
M800 Drive System Mm G530.200 200w Mid Drive Motor With Dp C260.can Display - Buy M800 Drive System Mm G530.200 200w 200w Mid Drive Motor with Dp C260.can Display Product on Alibaba.com
M800 Drive System Mm G530.200 200w Mid Drive Motor With Dp C260.can Display - Buy M800 Drive System Mm G530.200 200w 200w Mid Drive Motor with Dp C260.can Display Product on Alibaba.com
Do you think it would be an easy straight motor swap using KaroKonig's motor adapter plate?
- Thread starter
- #27
All Displays who works with the M800 are compatible with the M600/500 too.
Lucky Luke
Member
No puedo encontrar esta pantalla.
Por favor, ¿sabe dónde puedo comprar esta pantalla in Europe (DP C260.CAN)?
Thanks
Por favor, ¿sabe dónde puedo comprar esta pantalla in Europe (DP C260.CAN)?
Thanks

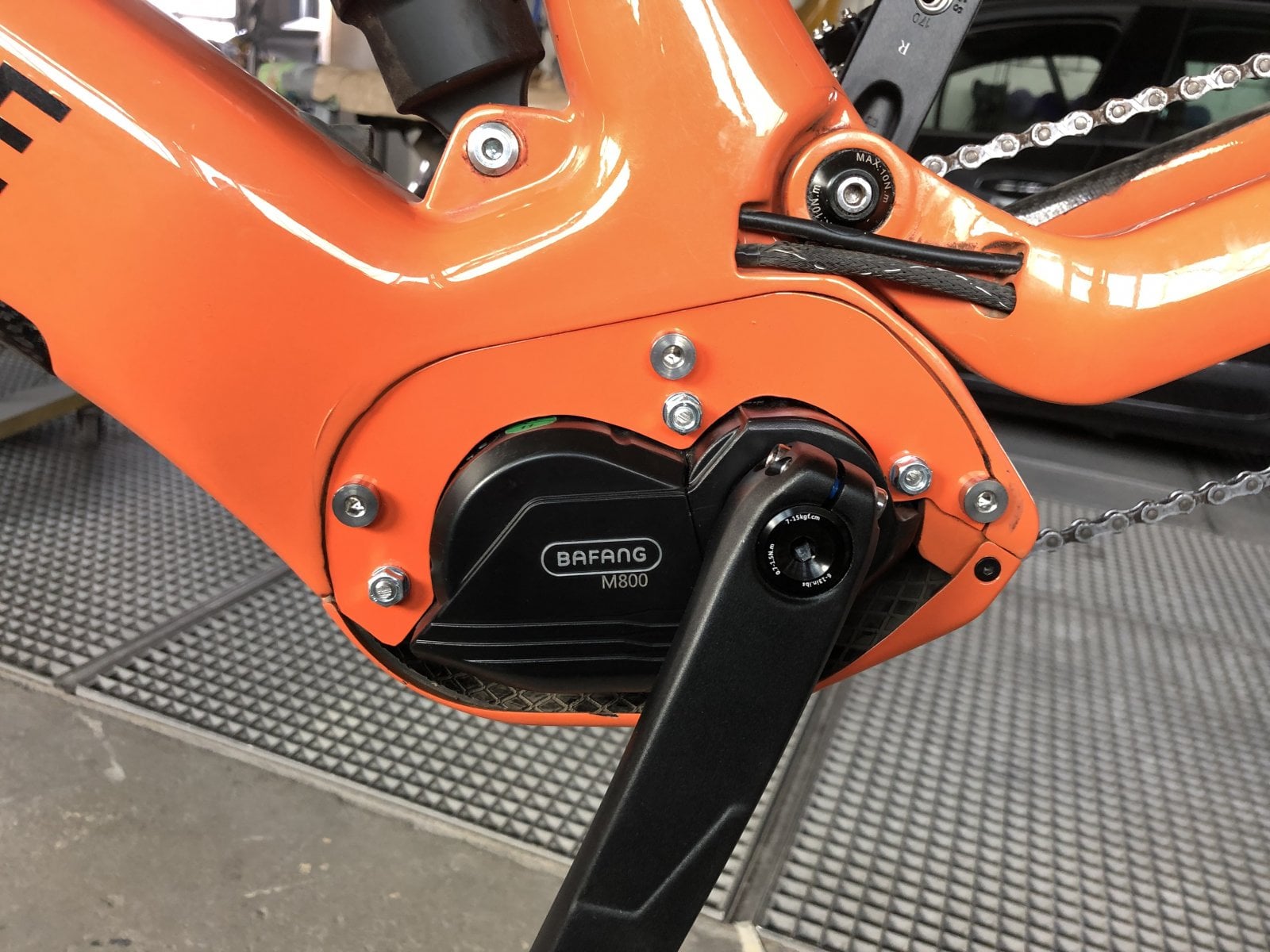

Did you fabricate the adapter M800/M500 yourself or is something one could buy?
regards,
Pelle
- Thread starter
- #30
Unfortunately, the adapter is not available to buy, you have to make it yourself
