Levo / Kenevo (gen1) Range Extender thread

[Gary]

TBF it has only ever happened to me in the air. But can be scary/dangerous as fuck when you go to straighten up/land with your leg attached to the bike.

If they had designed the yoke mount bore horizontal it would be trying to jacknife every compression. Shock yokes are a poor design altogether IMO. But yes. It is what it is



[ccrdave]

Yes good point i didnt think of that, now i can see a reason for funky bottom mount on the spesh yoke



[R120]

i always thought they did it like that to get space for the bottle cage



[HKP57]

How can this be ordered? I'm From Spain.

Contact Danny on Facebook is how I did it.

Danny De Neve



[StuR]

Found this .
Might help Piggy back shock and Kenevo owners

•
•
•
•
•
•
•
•

1/6
LEVOREX rev.04 - LEVO Range Extender Battery
€ 320
Sep 27, at 11:15 - Vicenza (VI)
ID: 232097428


Favorites


I sell Kit LEVOREX rev.04 (now also for CARBON and Kenevo).
This is a kit designed for the Specialized Turbo Levo (also adaptable to other e-bikes), consisting of an additional external battery and a device that uses "ideal" diodes (MOSFET technology) to connect this battery in parallel to the original without dissipating energy in heat.

The batteries proposed in the "light" version are of the "water bottle" type, from 224Wh (1250g) or 310Wh (1500g), or to "mini-bag" from 224Wh (about 1000g); this capacity is then added to that of your original battery but, increasing the available autonomy more than expected (from the increase proportional to the total capacity), due to the improved efficiency resulting from the reduction of the current supplied by the original battery.
Also available customized battery sizes.
The kit includes, in addition to the assembly instructions, the battery, the battery charger, pre-wiring and the "ideal" diode device that for the Turbo Levo and Kenevo has been designed to be contained inside the engine compartment.


Kit with "mini-bag" battery: 320 euro + shipping costs
Kit with "water bottle" battery: 380 euro (224Wh) or 480 euro (310Wh) + shipping costs
Possibility to install the kit at + 30 euro

NEW: at + € 85, POSSIBILITY OF SUPPLIED A CABLE "BATTERY - ENGINE" ORIGINAL ALREADY MODIFIED, WITHOUT THEREFORE TO CHANGE ITS OWN; the assembly becomes extremely easy and can be restored to the original very quickly by remounting its original cable.

More details on "power-faraday" dot "com"



[ginogino]

What compatibility is there with these batteries, with the new 2019 leve in size M.



[StuR]

Found this .
Might help Piggy back shock and Kenevo owners

•
•
•
•
•
•
•
•

1/6
LEVOREX rev.04 - LEVO Range Extender Battery
€ 320
Sep 27, at 11:15 - Vicenza (VI)
ID: 232097428


Favorites


I sell Kit LEVOREX rev.04 (now also for CARBON and Kenevo).
This is a kit designed for the Specialized Turbo Levo (also adaptable to other e-bikes), consisting of an additional external battery and a device that uses "ideal" diodes (MOSFET technology) to connect this battery in parallel to the original without dissipating energy in heat.

The batteries proposed in the "light" version are of the "water bottle" type, from 224Wh (1250g) or 310Wh (1500g), or to "mini-bag" from 224Wh (about 1000g); this capacity is then added to that of your original battery but, increasing the available autonomy more than expected (from the increase proportional to the total capacity), due to the improved efficiency resulting from the reduction of the current supplied by the original battery.
Also available customized battery sizes.
The kit includes, in addition to the assembly instructions, the battery, the battery charger, pre-wiring and the "ideal" diode device that for the Turbo Levo and Kenevo has been designed to be contained inside the engine compartment.


Kit with "mini-bag" battery: 320 euro + shipping costs
Kit with "water bottle" battery: 380 euro (224Wh) or 480 euro (310Wh) + shipping costs
Possibility to install the kit at + 30 euro

NEW: at + € 85, POSSIBILITY OF SUPPLIED A CABLE "BATTERY - ENGINE" ORIGINAL ALREADY MODIFIED, WITHOUT THEREFORE TO CHANGE ITS OWN; the assembly becomes extremely easy and can be restored to the original very quickly by remounting its original cable.

More details on "power-faraday" dot "com"

Ive sent this fella 2 emails but got no response.
Anyone had better luck ?
Anyone used this product ?



[Steady_eddy]

I have just ordered the Small bottle Levo range extender from the facebook group to test fit on my Large Kenevo, will post fitment photos.



[StuR]

I have just ordered the Small bottle Levo range extender from the facebook group to test fit on my Large Kenevo, will post fitment photos.

Is that from Danny or the other chap from my post ?



[Steady_eddy]

That's from Danny, from what I gather, this will be the first of his range extenders fitted to a Kenevo



[pgtips]

That's from Danny, from what I gather, this will be the first of his range extenders fitted to a Kenevo

Eddy did you order a Kenevo specific one, or a Levo one and you will try to retrofit?



[Steady_eddy]

Me and Danny exchanged some photo's with measurements and both agree that the small Levo bottle extender will 9/10 fit my Large Kenevo. I'm going to test fit it and if it doesn't, I will return to him for a refund.



[pgtips]

Me and Danny exchanged some photo's with measurements and both agree that the small Levo bottle extender will 9/10 fit my Large Kenevo. I'm going to test fit it and if it doesn't, I will return to him for a refund.

Cheers. I have ordered a small extender to try it on my medium Kenevo. Waiting for it to be here in the next few days. If wont fit, I will make it fit some how



[Steady_eddy]

Cheers. I have ordered a small extender to try it on my medium Kenevo. Waiting for it to be here in the next few days. If wont fit, I will make it fit some how

I really hope it fits for you, I think it will be a great addition.



[pgtips]

I really hope it fits for you, I think it will be a great addition.

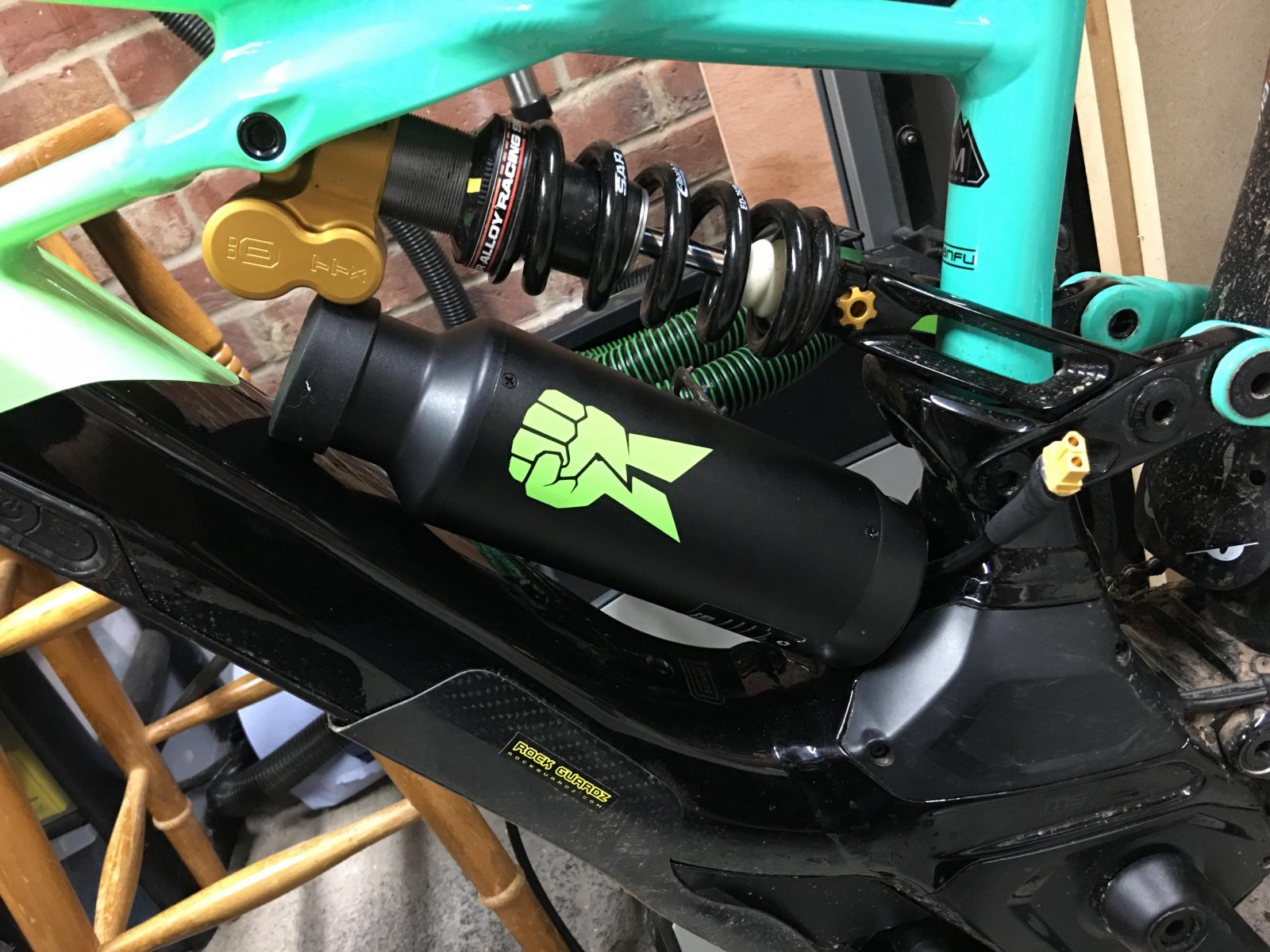

So mine turned up and unfortunately it wont fit where the bottle gauge is due to ohlins shock . Kinda I knew that would be the case, so looking another way to mount it. One way is at the seat post with some made up brackets.
Another way is to change the shock to something else more slimline and as good or better than the Ohlins 22m shock



[ccrdave]

why do you turn the shock round, you would need to buy a bike yoke but cheaper than new shock maybe
edit scrub that I forgot about the specialized shock mount wont fit in the frame



[Steady_eddy]

That's a shame, mine should also be here today. I hope there's a lot more space on the large! Danny said he will be making a kenevo specific one, will just have to be patient.



[pgtips]

That's a shame, mine should also be here today. I hope there's a lot more space on the large! Danny said he will be making a kenevo specific one, will just have to be patient.

You're right mate.....might have to move this on and wait.....might lol, I'm always up for a challenge



[ccrdave]

Hmmm interesting thanks. I'm not familiar with that procedure.......makes sense though if it's doable. What yoke would I need Dave?

I dont think you can make it work you would have to turn the shock from end to end and rotate it 180 degrees but the problem is what is now the bottom end of the shock is not an eye so it wont fit in the upper frame mount
tftuned might be ablr to change the shock shaft for a eye one and provide you with a bike yoke but its getting a bit expesive now



[Kiwi in Wales]

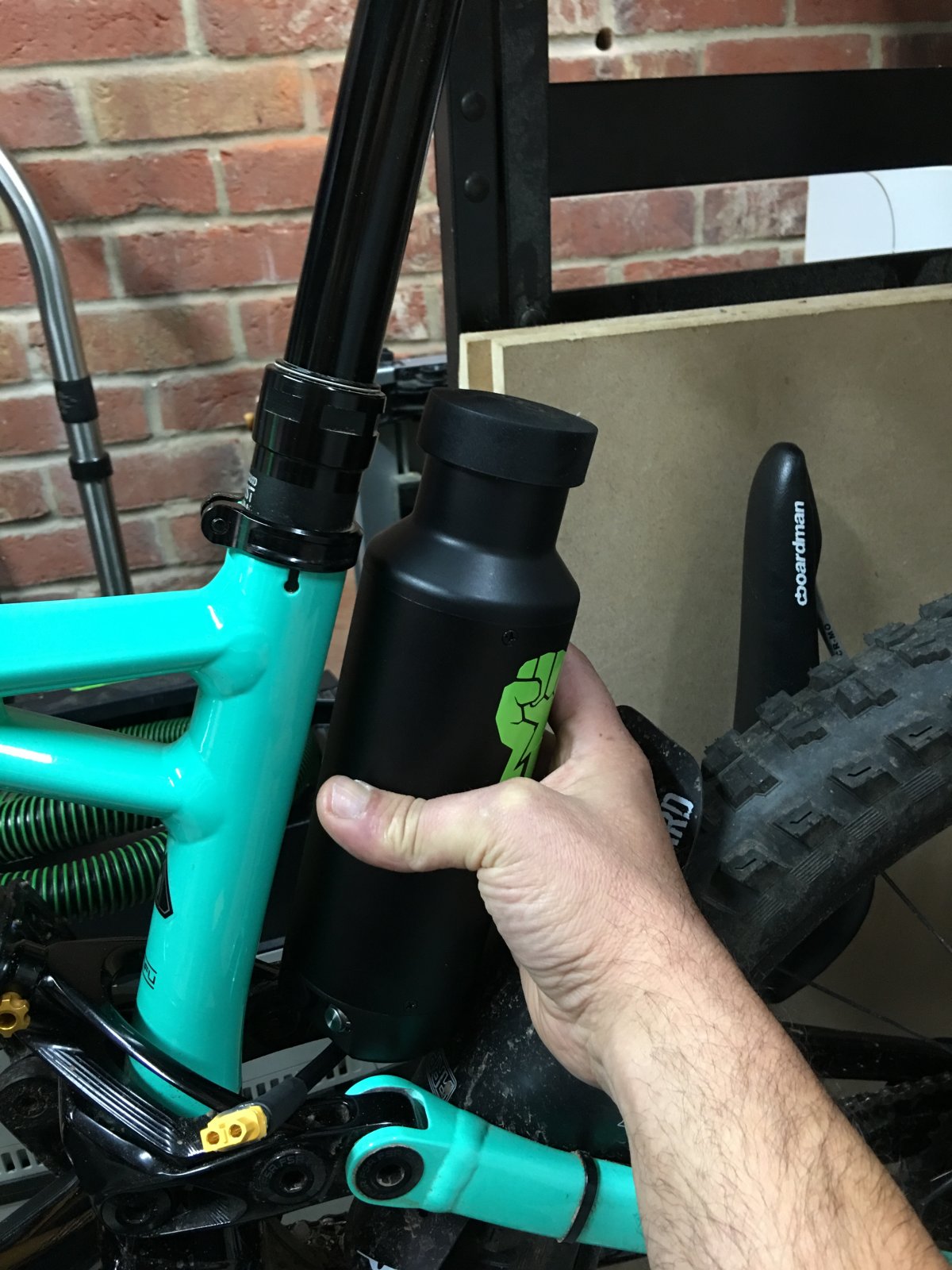

So mine turned up and unfortunately it wont fit where the bottle gauge is due to ohlins shock . Kinda I knew that would be the case, so looking another way to mount it. One way is at the seat post with some made up brackets.
Another way is to change the shock to something else more slimline and as good or better than the Ohlins 22m shock View attachment 6162 View attachment 6163 View attachment 6164

Putting it behind the seat post as pictured will end in a catastrophic event. Your rear wheel will hit it on the first big bump you go over ????? or am I missing something here?



[pgtips]

Putting it behind the seat post as pictured will end in a catastrophic event. Your rear wheel will hit it on the first big bump you go over ????? or am I missing something here?

No you're right, that's a silly idea. I'm working on a way to fit it in the bottle cage.....work in progress



[pgtips]

So after allot of measurement and allot of head scratching, I desided this can be fitted to the Kenevo with a bit of work. Removed the top cap from the extender and fitted the extender to the bottle gauge and got some more measurements.

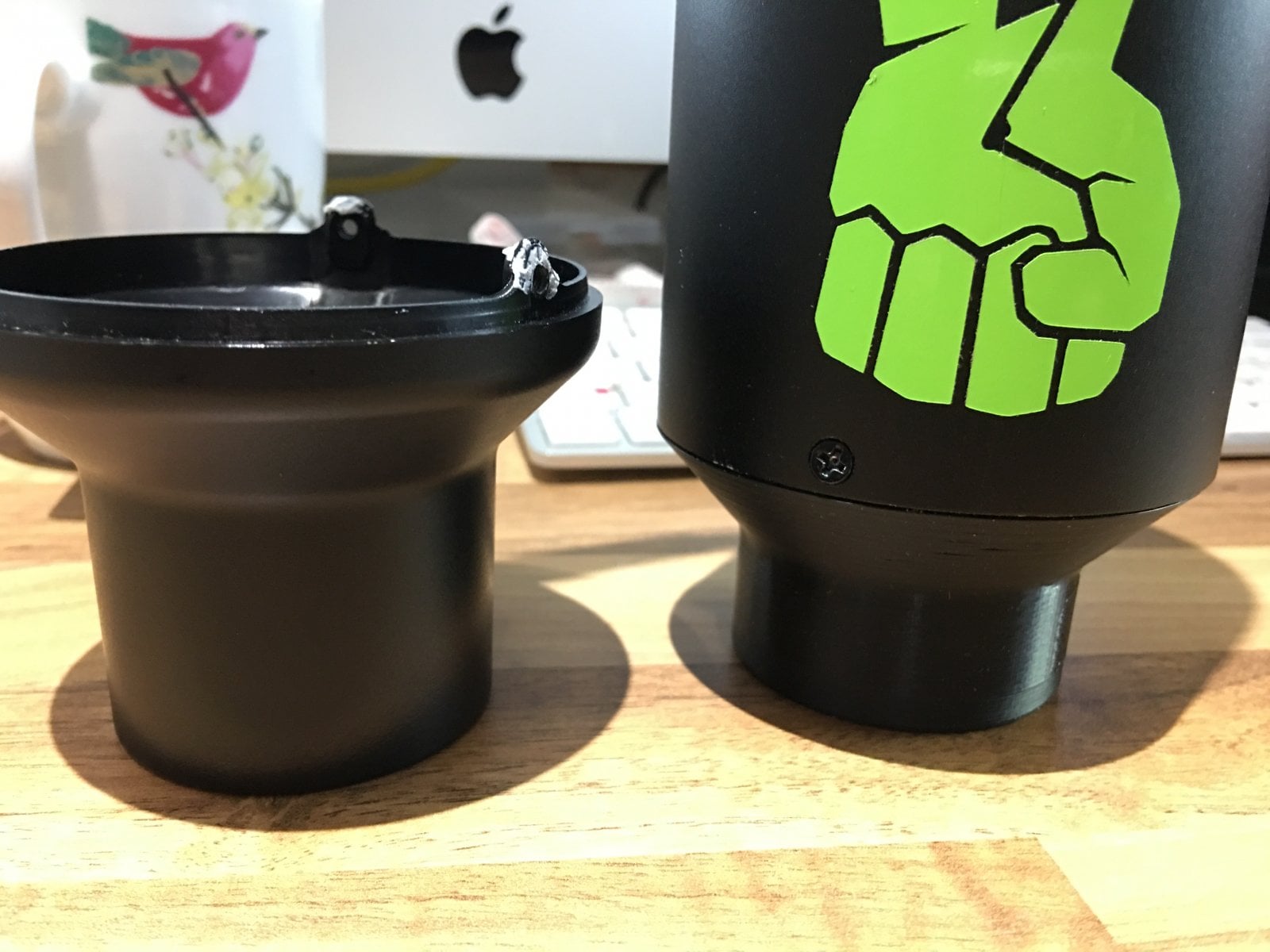

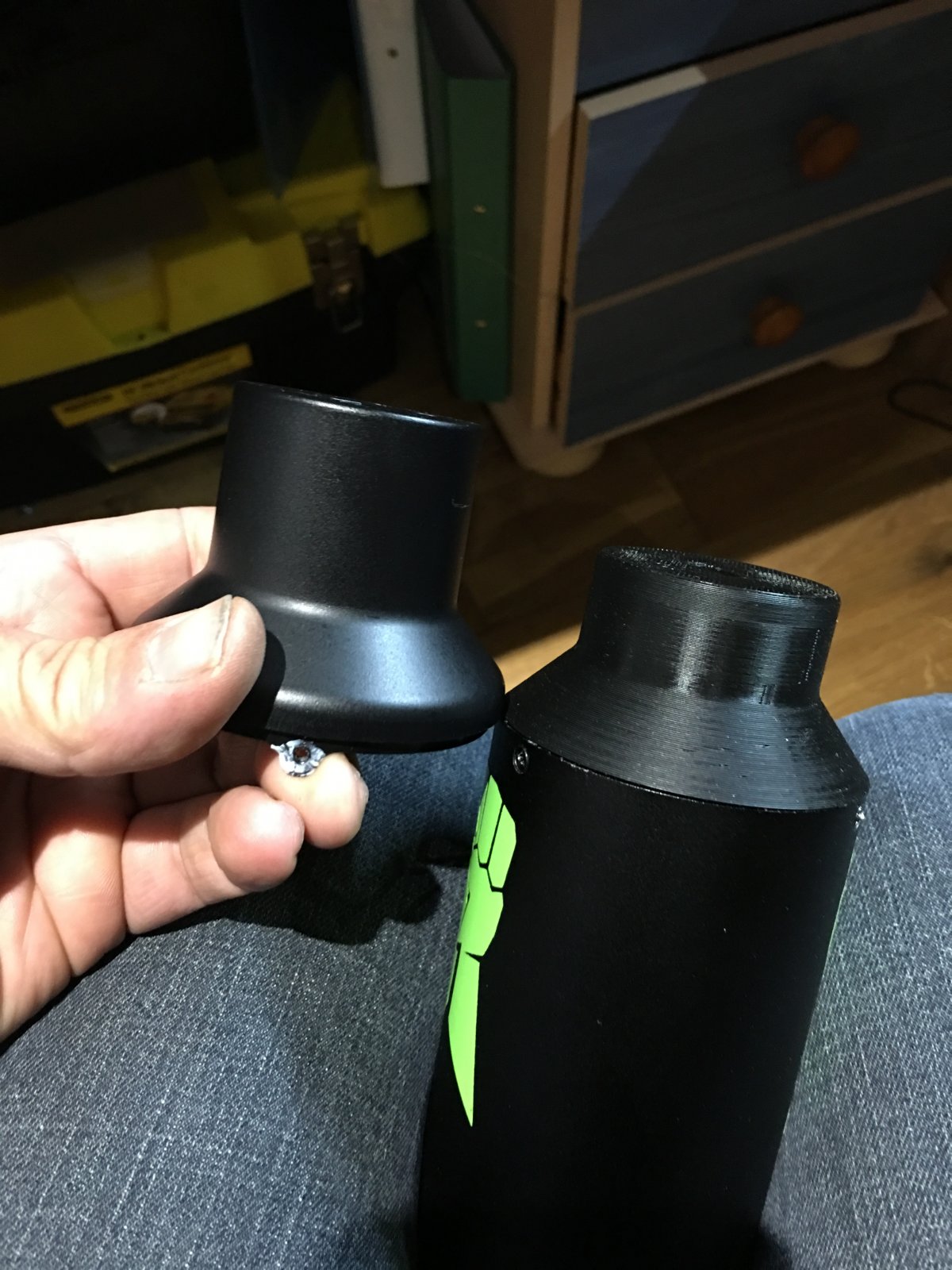

I decided that the cap comes with the extender is too long and there is unused space in there and could be allot shorter.

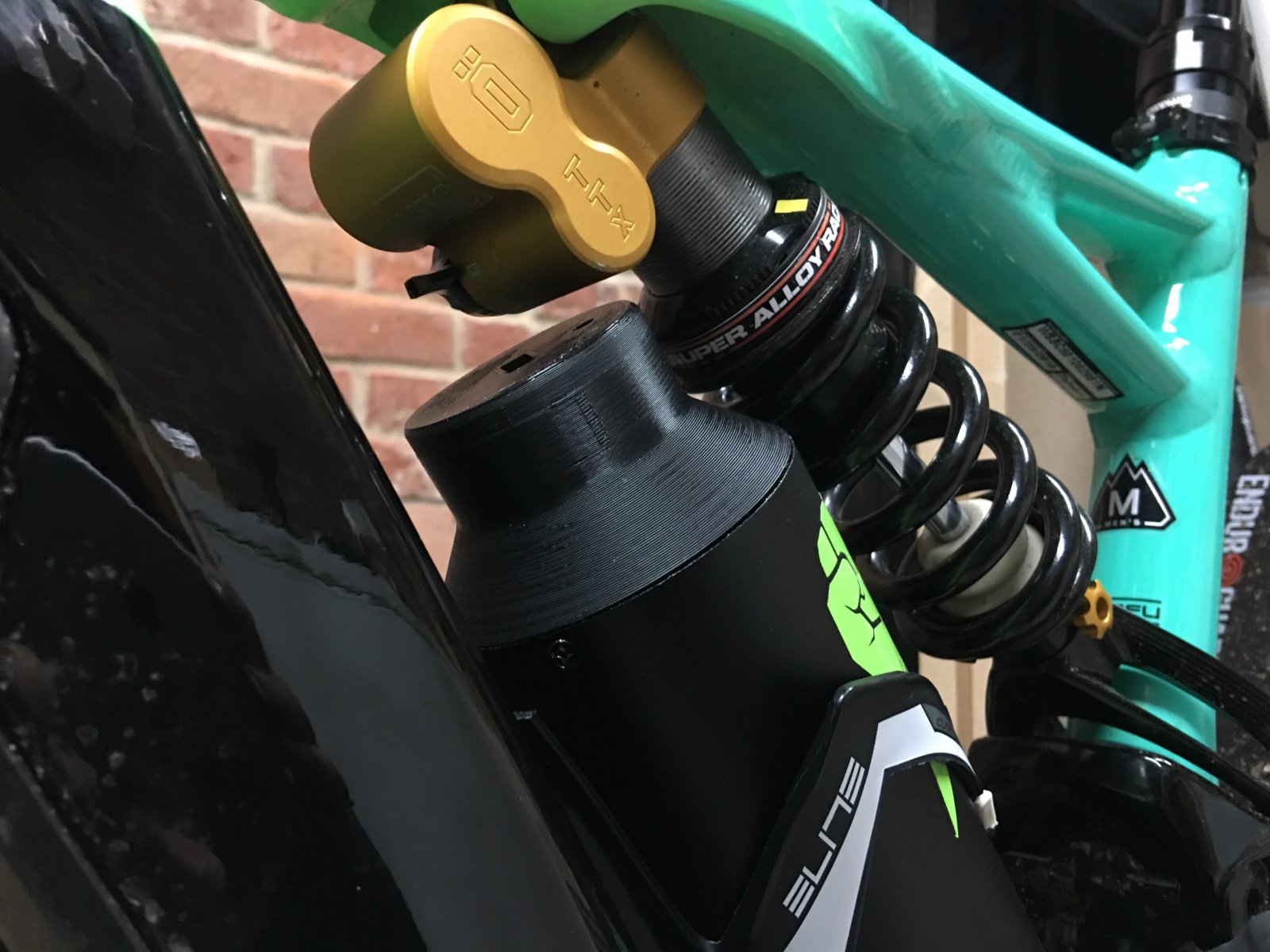

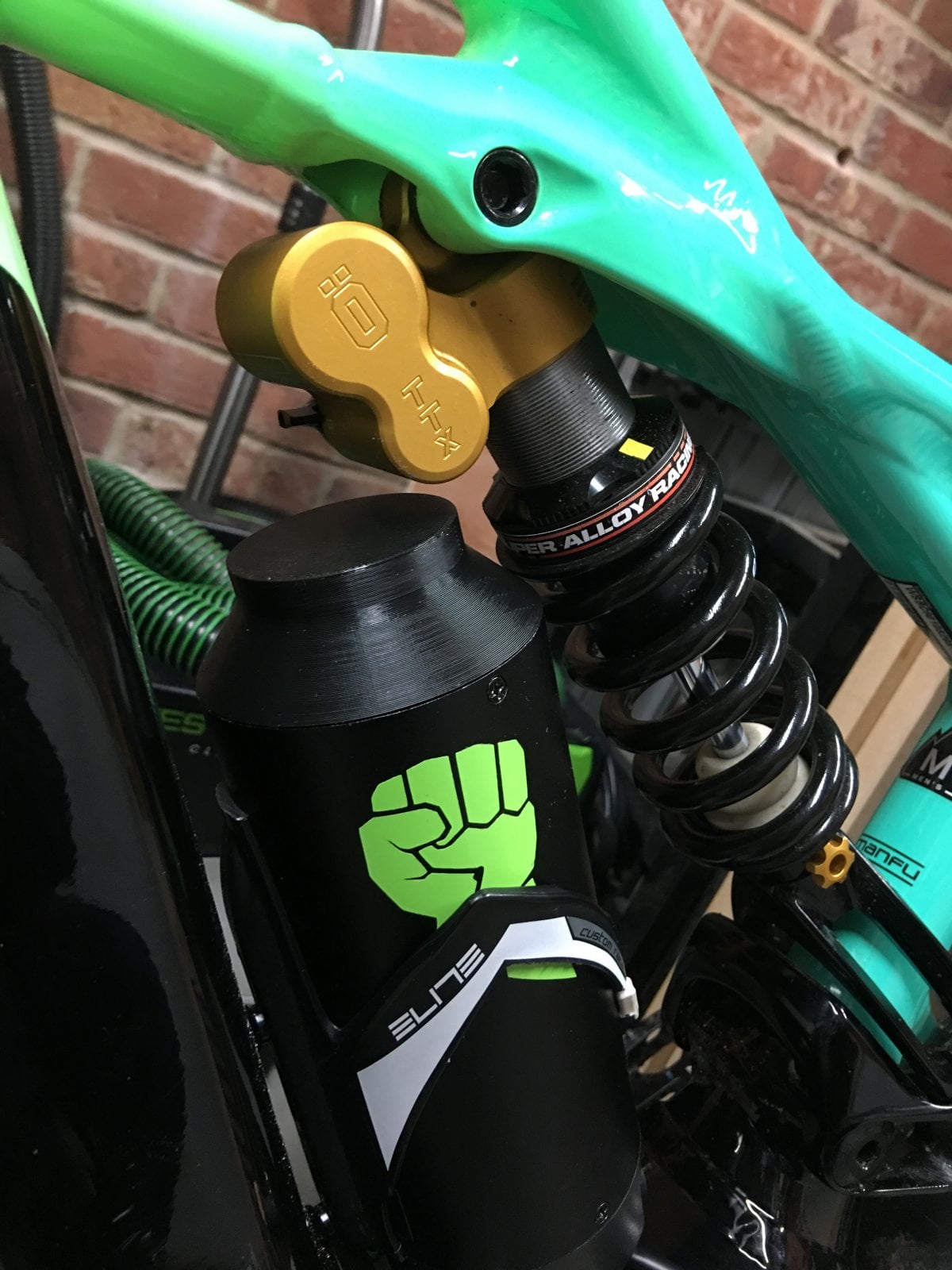

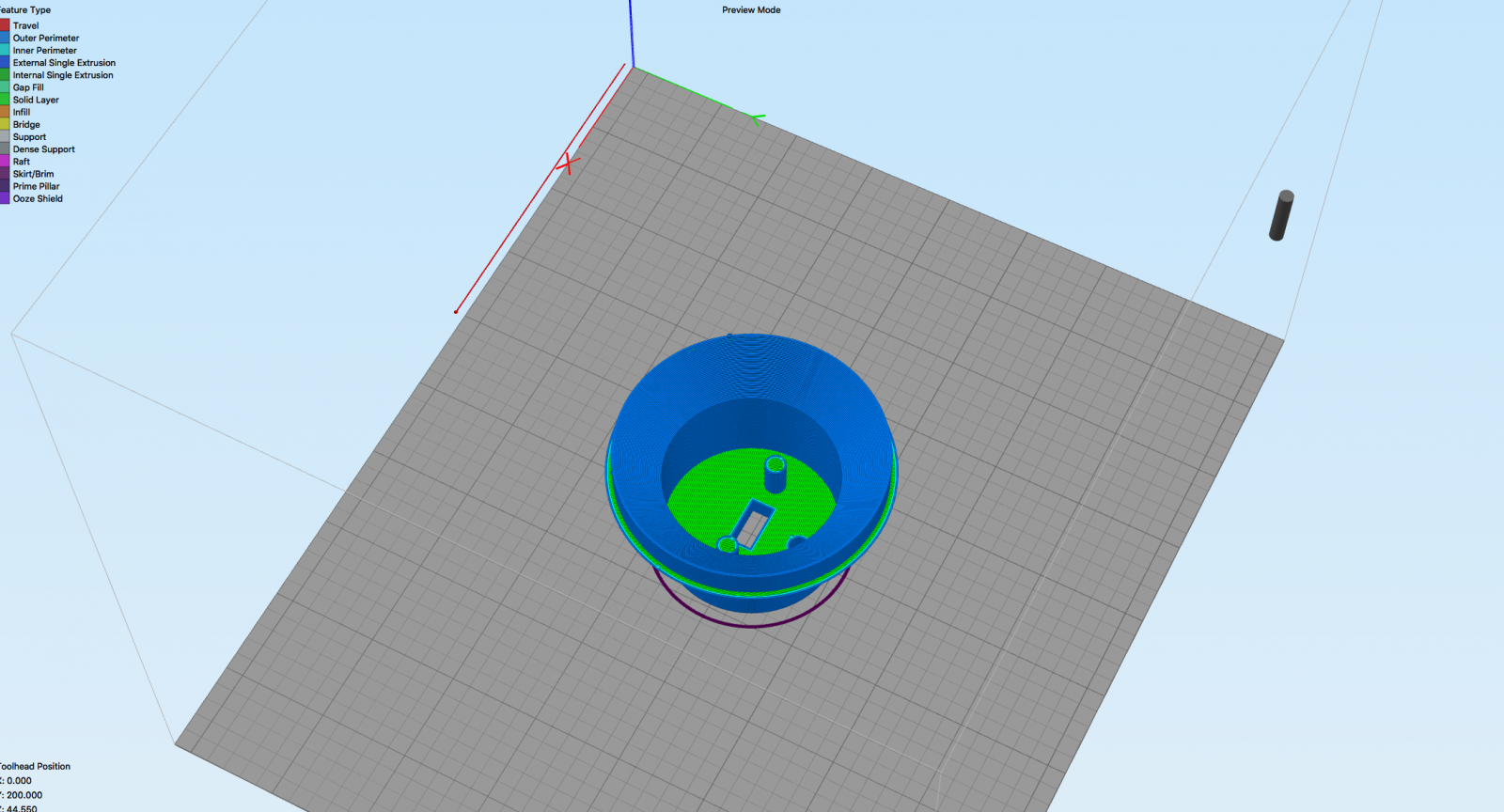

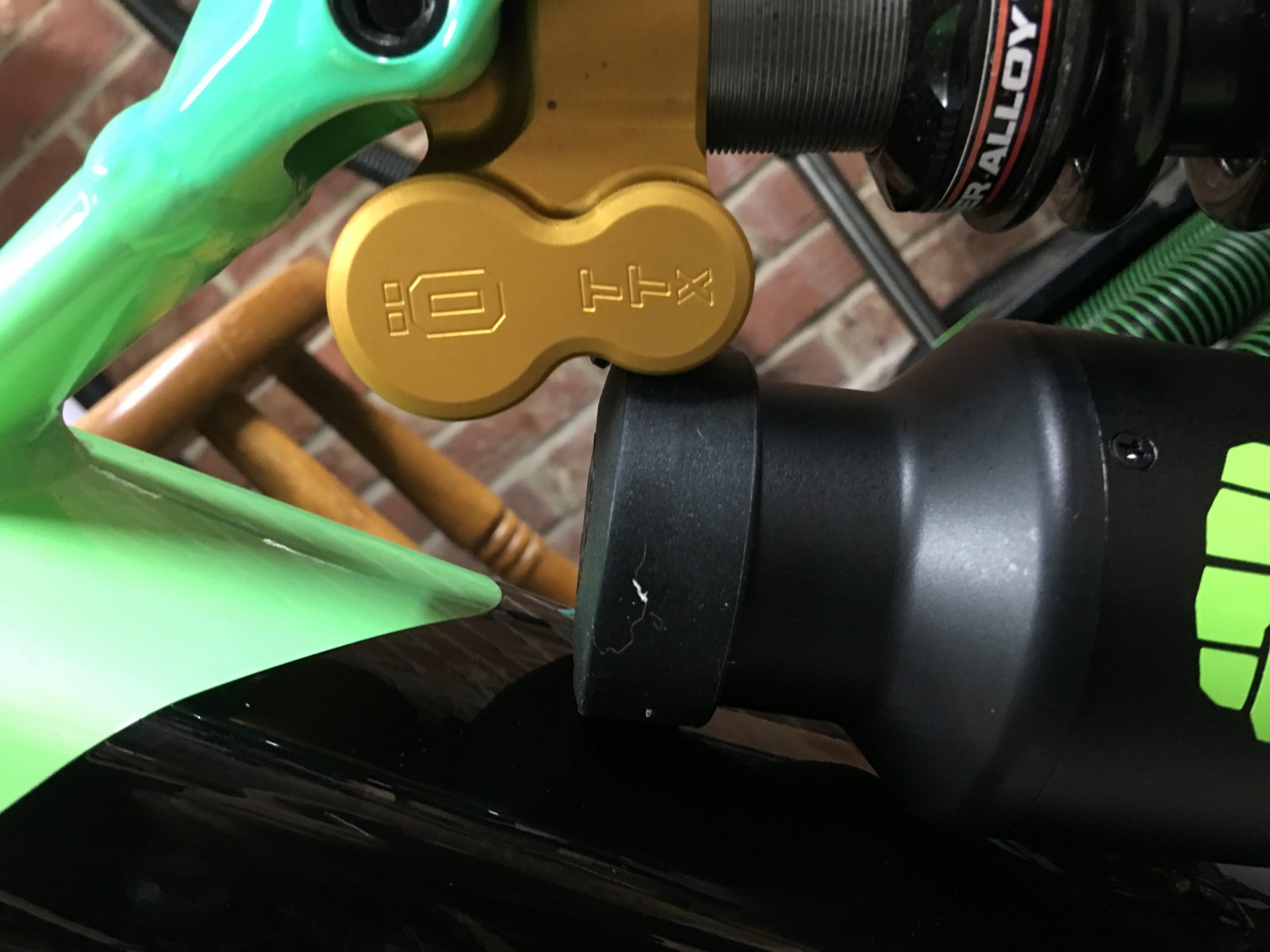

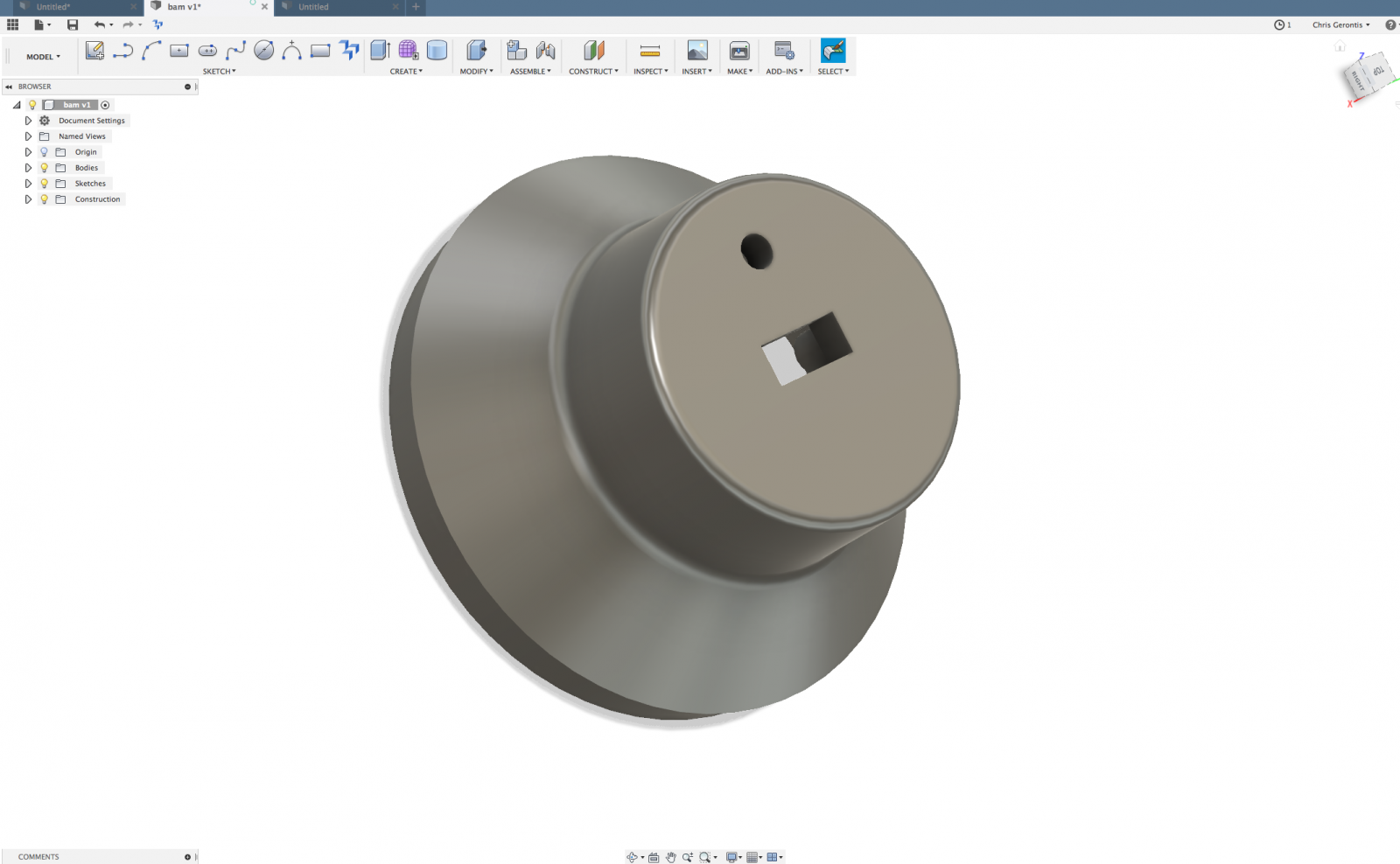

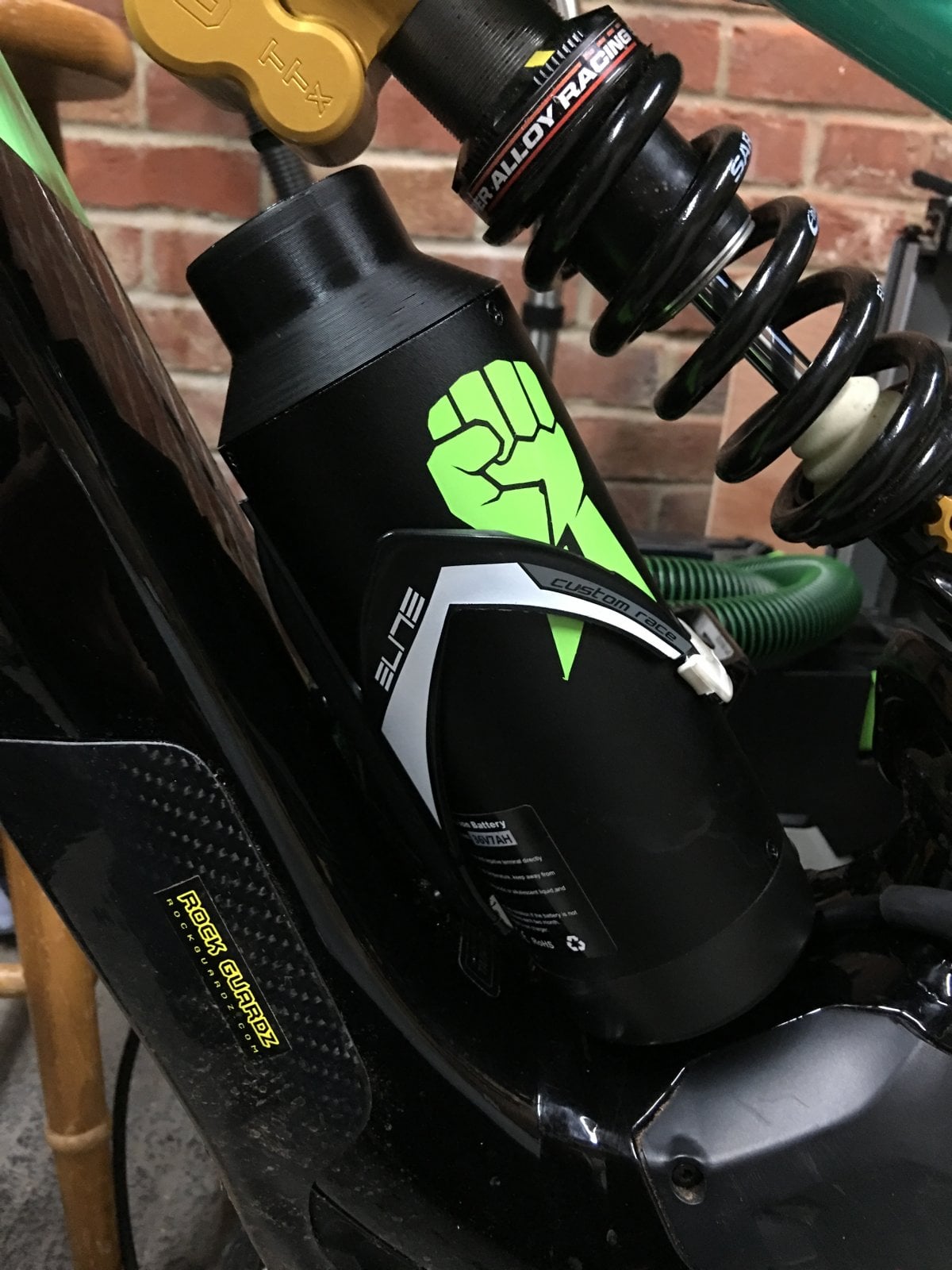

I put on my new E-Powha T-shirt and fired up Fusion 360 to designed my own cap with the right dimensions so it can clear the shock. Hour twenty to cook on the printer and....well, it worked, the extender fit's with plenty of clearance to the shock. There is a small gap left intentionally for an o ring that I have coming on the post.
Next the wiring

P.S I might print the cap again in a nice Kenevo green colour



[cfsmale]

Awesome work mate!



[pgtips]

Awesome work mate!

Thanks mate.
Few little changes to the design and should be good to go. I think I can make it slightly shorter so it can accommodate other bottle cages too.



[mymodel6]

[QUOTE="pgtips, post: 28784, member:
View attachment 6190
[/QUOTE]

You're gonna get orders for those



[Steady_eddy]

Looks awesome, great work! Maybe you should let Danny know about it so he can also make changes for Kenevo owners?



[pgtips]

Looks awesome, great work! Maybe you should let Danny know about it so he can also make changes for Kenevo owners?

I spoke with Danny already mate



[pgtips]

[QUOTE="pgtips, post: 28784, member:
View attachment 6190

You're gonna get orders for those [/QUOTE]
No mate, that was to help out Danny as he hasn't got a Kenevo to make any measurements. I wont be making this to sell. Danny is on the case and he will be making those soon for the Kenevo owners.



[pgtips]

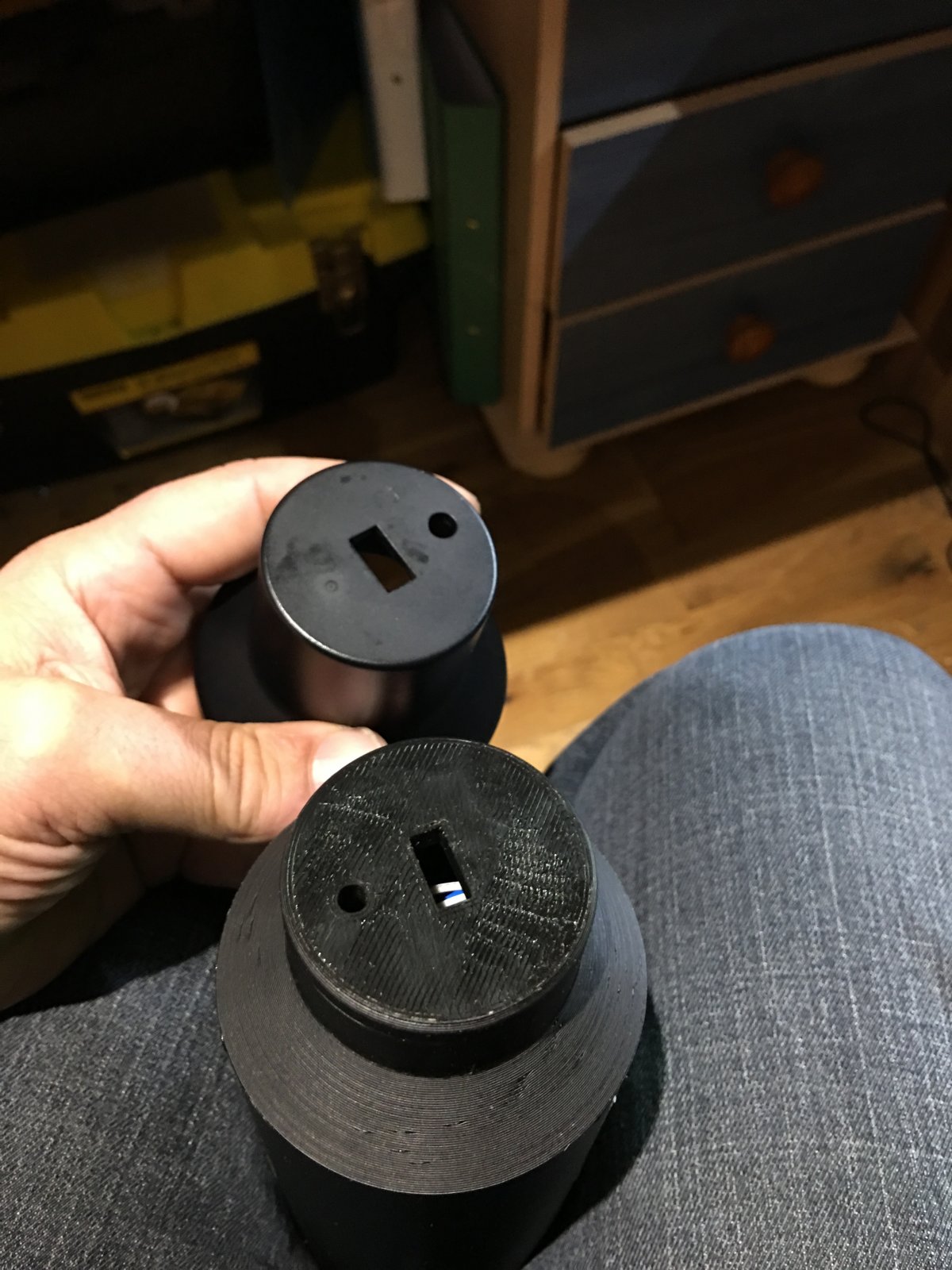

So I decided to redesign the top cap. After speaking with Danny I made it shorter so it can also fit a small size Kenevo. Also got rid the USB port for two reasons. One for been completely water proof with out it and second, I don't really need it. I always carry a small power bank in my back pack. Kenevo 756wh



[Mcharza]

Following....
