EMax tuning , ultimate EP801 solution , 4.3 FW ! over-run tune !

[SEBA]

Hey,

You can use EMax to deristrict your EP801 , works like a charm

Markus the programmer will take care of you, with a 30mn remote control session.

You got to have a pc, a PCE02, and an internet acess, ETUBE project, and of MiniMax the deristrict Windows app. Price is 119€

The deristrict can.work with Auto-shift, Free-shift, it's very easy really, only software, nothing hardware, simple, clean and effective.

The speed limit can be raise to 50 kmh, you can set the gears, the light, the circumferenve and others parameters.

Have fun



[Astro66]

An Update on EMax tuning on a EP801 or EP6. The new software update, (Ver2.5) allows for you to do the entire upgrade yourself with no remote session required.

This is the process :

You need to get a Shimano PCE02 interface cable. It has a USB-A port to plug into your laptop. And a SD300 Etube port to plug into your motor.

You need to download the ETube Professional software for windows on your laptop. Here is the link. It is free.

PROJECT Professional | E-TUBE PROJECT | E-TUBE | E-TUBE PROJECT-EU

E-TUBE PROJECT Professional is a Windows app created specifically for dealers and connection devices. By connecting your bicycle to a PC with a cable, you can perform detailed operational checks on the bicycle, perform maintenance, or get riding tips.

bike.shimano.com

With the PCE02 cable plugged into the motor ETube port, but not plugged into the laptop. Install the ETube Professional software for windows on your laptop. After installing it, open the programme. It will then prompt you to plug the USB cable into the PC. This will install the USB driver for the PCE02 cable.

When complete, you should be able to go online with your motor with the Shimano software.

You don't need the ETube Professional software. It was just needed to install the USB driver. So press disconnect, and close the software.

Download the MiniMax software from EMAX. It is free. Here is the link.

Home EN – eMax Tuning

www.emax-tuning.com

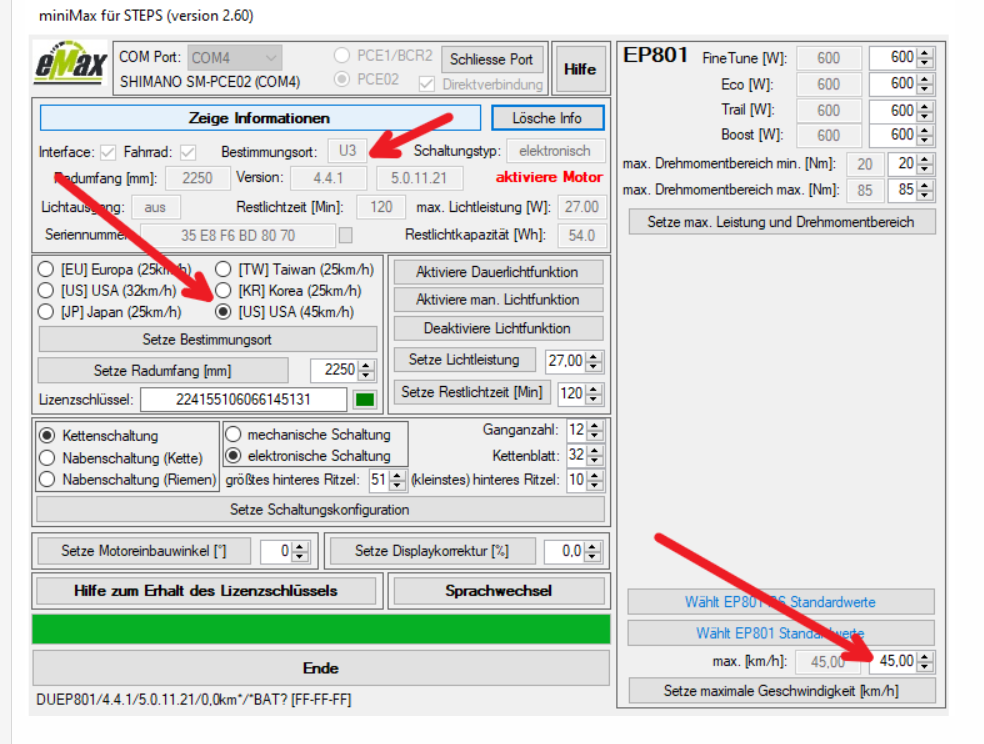

With the PCE02 cable plugged into the motor ETube port, and plugged into the laptop. Run the .exe file. You will get this screen.

Press the "Open Port" button, (Top right corner) Then the "Get Information" button. This will read your Serial Number to sent to EMax. When it's finished reading. Take a screenshot.

Send an Email to EMax with the screenshot. [email protected]

Tell them you want to license the software, to upgrade the speed limit to 50kph. They will reply with a Paypal account for you to transfer 119 Euros. Send Markus the 119 and he will send you back the License Number to activate the software.

On the motor. Disconnect the big battery cable.

Disconnect all the Etube Port cables. You can leave in the speed sensor cable.

Plug in the PCEO2 cable into any of the E-Tube ports on the motor. Plug the USB cable into the laptop.

Start the MiniMax software. Select the "Direct Connection" Box. (This will power the motor from the computers USB port). Press the "Open Port" button, (Top right corner) Then the "Get Information" button. Enter in the licence number in the Licience Key Box.

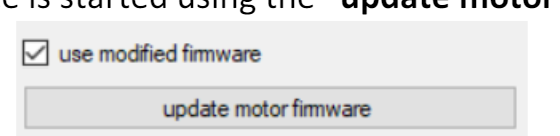

When you do this. In the Tab on the right, an Update Motor Firmware box will appear. Press it. It will take about 5 mins. (Do not touch anything whilst this is happening)

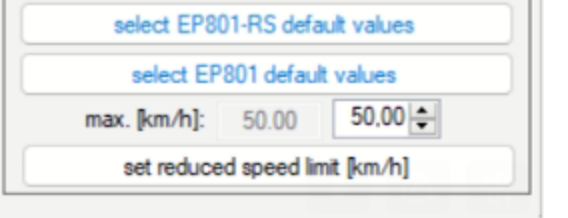

When this is done, you can enter a speed up to 50kph in the bottom right hand corner and press. "set speed limit" button.

When this finishes you are done.

Enjoy responsibly.



[monty1991]

Has this been tested with the latest software update?



[SEBA]

Has this been tested with the latest software update?

it's in progress, latest firmware is 2 days old ...



[SEBA]

So far so good , new emax 4.3 moded FW working, new features with overrun assist too ! give a sensible boost

Mandatory :

eMax MiniMax 2.55
eTube Project 5.32

a pc , SM-PCE02

some time ..

Need remote session , easy with Markus !



[r4yv3n]

Very good job

Tuned my bike in 4.3 FW
Remote season, very fast work.

Thx



[GeordieDownSouth]

Very good job

Tuned my bike in 4.3 FW
Remote season, very fast work.

Thx

View attachment 145260

My session tomorrow, can’t wait



[GeordieDownSouth]

Markus from Emax has done a great job for me, very prompt quick and professional, the bike is now alive!!

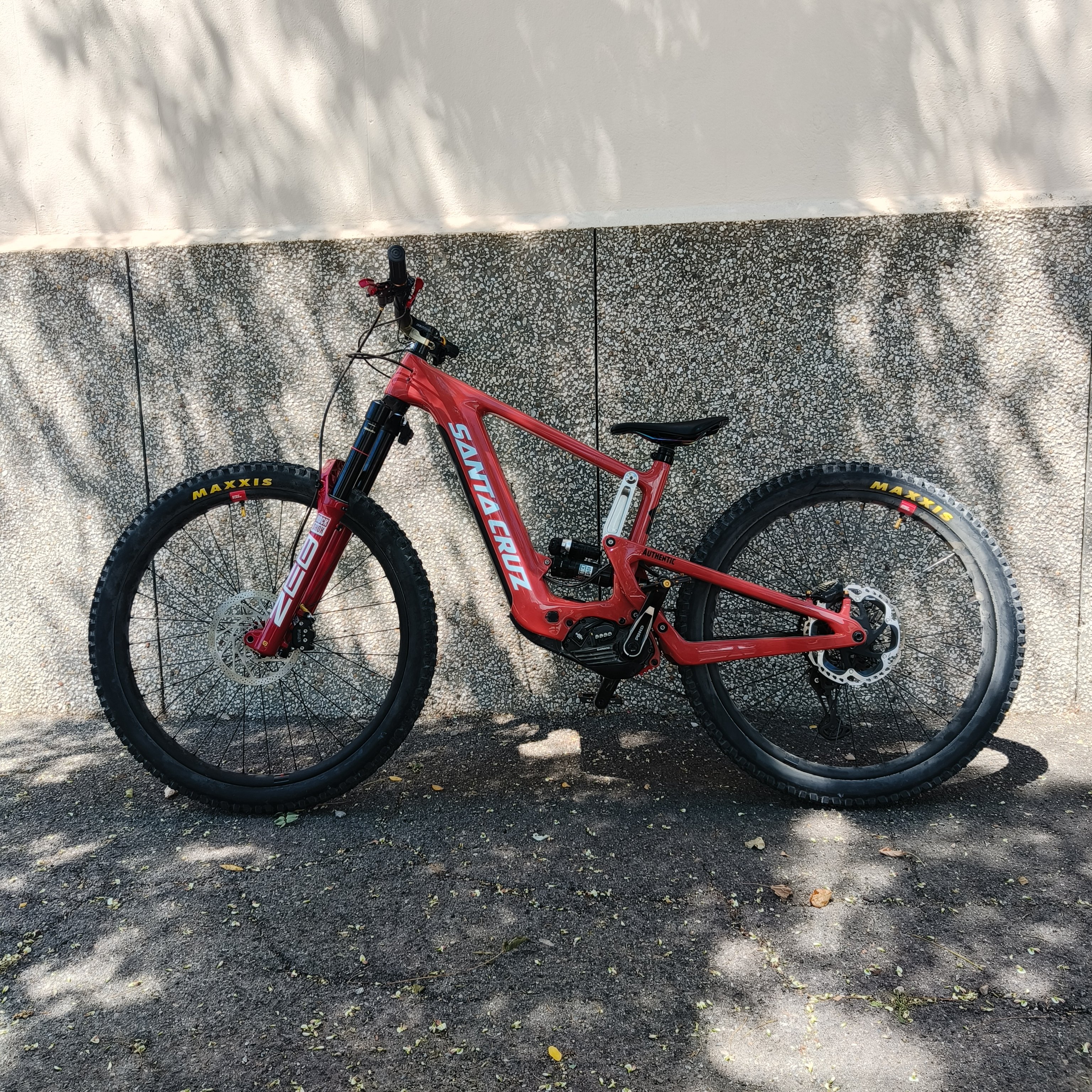

Big smiles all around, my Moterra SL is now the bike it should be!!!!



[wolfbane1967]

Where do you by the cable ?



[GeordieDownSouth]

Just online, lots of bike shops well them, PCE02 interface cable



[glixerd]

Where do you by the cable ?

SM-PCE02 PC Interface for STEPS/Di2

Features - Shimano SM-PCE02-B Functions Connection check - The function is to check that each unit is connected correctly and is recognized by PC Customize - This function allows you to customize the global functions and...

www.bike-discount.de

SHIMANO PC Interface/Diagnosegerät für Di2 und SHIMANO STEPS SM-PCE2 , 178,99 €

SHIMANO PC Interface/Diagnosegerät für Di2 und SHIMANO STEPS SM-PCE2 für EW-SD300 | EW-SD50 Kabelsystem Dieses PC Interface dient dazu, Shimano Di2 und STEP

r2-bike.com

Both in stock



[Winford]

Emax helped me install di2 on a mechanical motor, yes they program the motor from the factory to either electronic or mechanical. You need the pce2 cable/computer and minimax to reprogram the motor. Thank you to emax
