Dengfu E10 / Bafang - Buying/Pricing

[thaeber]

I think Your location is the problem. According to the comments of several users in this / other E10 related threads, Luna Cycles owns the exclusive rights to sell the Dengfu E10 in the US.



[mgx]

correct. Melody reply to me almost instantly, so beeing silent is the chinese polite way to say No. You have 2 options: go via Luna Cycles or find EU proxy who can do "proxy shipment" for you. Or find a EU forwarder/or another non-us forwarder. Maybe Canada?



[Sunburntwily]

correct. Melody reply to me almost instantly, so beeing silent is the chinese polite way to say No. You have 2 options: go via Luna Cycles or find EU proxy who can do "proxy shipment" for you. Or find a EU forwarder/or another non-us forwarder. Maybe Canada?

To be honest from an Australian perspective you already have a good deal in the Luna cycle. We have a company here "pirez" I believe is a re-badged Luna cycle complete bike with aluminium frame older style for $3995au. I have already spent $5036.53 for the cheeb. I still need tyres, brakes, handle bars dropper post, saddle, pedals and a bell. I'm sure thats not everything. I guess the piont is if we could by a Lune cycle here (we can't for the moment covid issues I guess) it would work out close to the same price as it is costing me to build. (Except for shipping)



[Afifz]

Finally made the plunge and ordered the E10 frameset kit. I was quoted the following price:

Item	Description	Quantity	Unit price(usd)	Amount(usd)
1	E10 15.5" in UD matt finish	1	$799.00	$799.00
2	headset for E10	1	$14.00	$14.00
3	rear thru axle for E10	1	$10.00	$10.00
4	M600 Bafang motor 48V 500W	1	$650.00	$650.00
5	Battery 48V 17.5Ah	1	$350.00	$350.00
6	postage to Italy including tax prepaid	1	$470.00	$470.00
Total	$2,293.00
4.2% extra fee for Paypal	$97.00
Amount	$2,390.00

Now its parts hunting time!

Can anyone share any of your favourite online bike store that delivers to Italy?

My original idea was to emulate Rob's mullet set up but as my frame is the small frame, I am not sure how that will end up.

Any suggestions on a good suspension set up for my small frame (15.5" frame) with me being 171 cm?

not planning to do any knarly stuff on the bike so maybe a 150mm travel front and back will suffice?

Thanks guys! I hope shipping won't take too long!

Cheers,
Afif



[markus datgloi]

Finally made the plunge and ordered the E10 frameset kit. I was quoted the following price:

Did you get an estimated delivery time ?

I quote Rob: "Bike-Discount.de - I noticed the price fluctuates a lot. I had time waiting for the frame to get the best prices."
Comparing prices is always needed and you may have to order from multiple-stores.
Two stores : www.bike-discount.de , www.bike24.com .



[Afifz]

Did you get an estimated delivery time ?

I quote Rob: "Bike-Discount.de - I noticed the price fluctuates a lot. I had time waiting for the frame to get the best prices."
Comparing prices is always needed and you may have to order from multiple-stores.
Two stores : www.bike-discount.de , www.bike24.com .

Unfortunately no. Melody always eluded this question eventhough I asked her in every email.

In the end the answer was, i quote:
"When shipping, I will keep you be informed of tracking number. "

Thats the best I got out of her. Since I only just ordered today and there are plenty of us here waiting for our frame sets I'm guessing mine will probably arrive in early summer?

More time to shop for parts now i guess.

Thanks for the links.

will monitor the prices regularly.

Thanks!



[Roy68]

Hello everyone I'm new on here.

I ordered E10 a couple of days ago. If you don't get a reply from Dengfu first time then try again, my first email went unanswered for a week, then I resent and received reply following morning. Melody said they will ship out my frame at end of April, Dengfu are prioritising shipping in order of when you pay, apparently a lot of people ordering right now, probably due to Rob's YT videos, hope you're on commission Rob

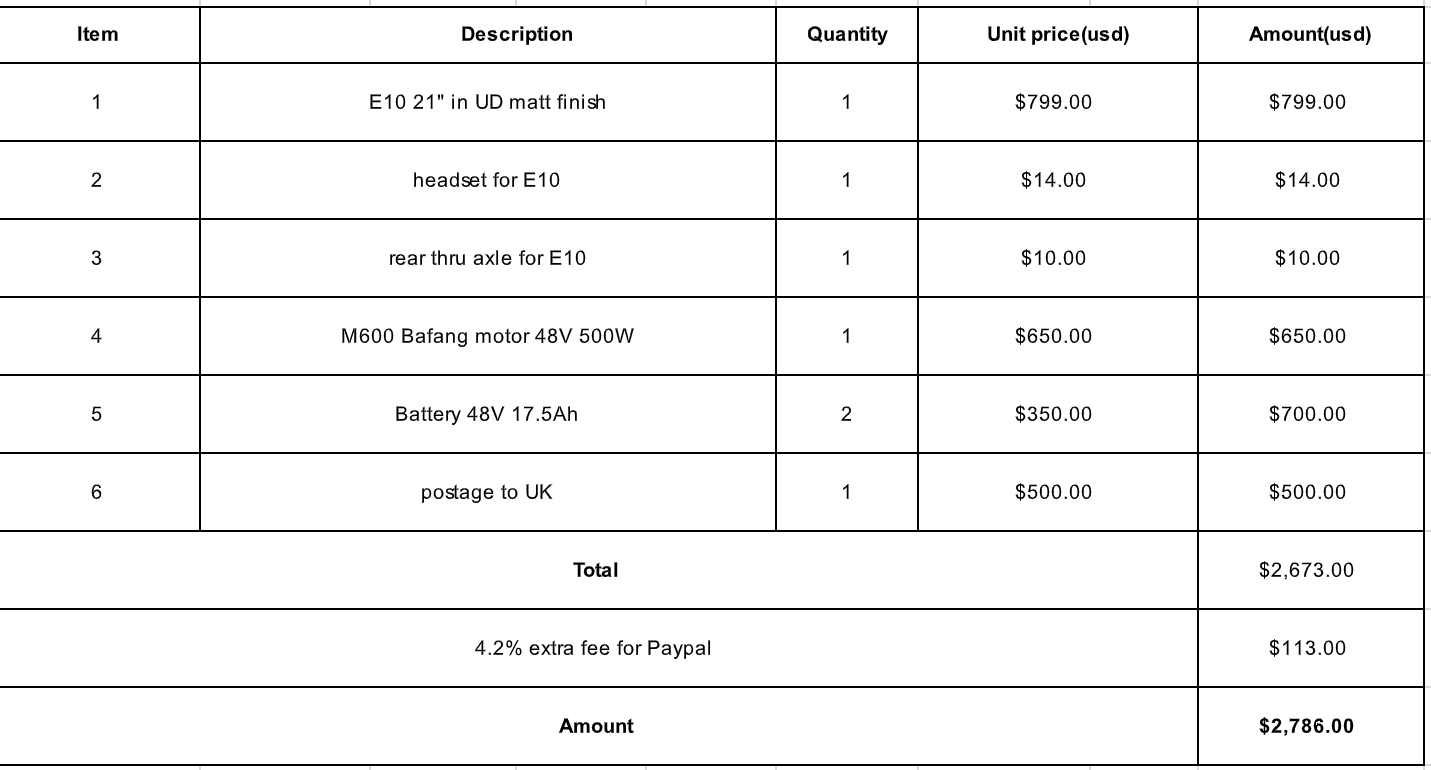

I ordered extra battery, which incurred additional $120 shipping charge, so second batt not quite the bargain I expected but still less than half the price of main brand batteries.

Going to call mine a 'Clevo'. People have done some gorgeous paint jobs in this thread, but I'll leave the matt UD finish because it's easier, looks stealth and doesn't collect stone chips like paint, I'll make up some nice decals.

I've done a couple of China carbon XC builds before which went very well, but this will be my first e-bike. Been looking around for forks, shock, wheels etc, not seeing much cheap around right now, and prices likely to rise as we come into Spring. I think Rob got some nice prices, he got in at the right time.

Thinking to order carbon 29" wheels on DT Swiss 350 hubs/Sapim CX Ray spokes from Carbonal, I already have a set from them which have been rock solid but they're not boost, PITA to have to buy another set.

Please hit me up if you see any good deals on components



[mgx]

Hi, maybe some ideas to simplify your buying

Here is rob buying list: prices are mentioned in GBP

ROB:

1 rear shock superdeluxe ultimate 210x55-293
2 shimano m4100 casette-35
3 shimano mech m5120 40
4 shimano hg54 chain -14
5 shimano rt rotors 36
6 shimano m4100 shifter
7 brakes m6120 4piston 149
8 one up v2 dropper -222
9 magic mary/big betty tyres
10 wtb volt saddle
11 nukeproof am bars/stem - 66 45x35x1.1/8" - but on video I see raceface (turbine 35?)
12 nukeproof neuron v2 800mm 800x25x35mm
13 bushings -> extra order
14 ergon grips 21
15 chainring tool 14
16. wheels DT SWISS H1700 mullet (probably with 35mm, 29front, 27.5rear)
17. rockshock fork zeb ultimate, 44ofset, 170mm travel

My buying list is quite different, based on parts availability and probably quite different setup. Maybe wrong mabe right, time will tell . I order from bike24.de, hibike.de. ALso bike-discount.de is OK, but during my buying no extra prices. I also found that a lot of parts are quite cheaper on local market, so maybe Italy as strong cyclo country is same. Bike24.de delivery is 3-4 days (if in stock), bike-discount longer (said on item +1-2 week shipping, depend country 2 country).

Note, that due current covid situation the stocks are empty and ususal winter sale is not happening. Maybe something, f.e. bike24.de has a sale tommorow. But you need to access page daily.

Mgx:

1. rear shock rockshock ultimate 210x55 -> i bought rockshock ultimate 210x50 opened and refited to 210x55. 210x50 was on stock and cheaper, 210x55 delivery was 3 month (WTF?). I think also 216xXX will work with offset bushing, but i wait till somebody confirm/deny . 216x55(60) can be more available . Also there is way to use coil version ( i dont found any vivid on stock). Or cheaper shock (not from ultimate but select plus)-> ebay/discounts from 150e. OK when you dont run downhills for long
2-4 drivertrain - i found discount on XT family 2021 (12 speed) for 200eur, so i selected instead SLX (SLX was for 159, not available in slovakia due supply issues). I think that 10s can be better for motorized bike, but lets try and see...

• casette Shimano Deore XT CS-M8100 12sp 10-51 with microspline (new standard)
• chain Shimano Deore XT M8100 12sp 126 pcs
• rear derailer Shimano Deore XT RD-M8100 SGS 12sp -extra long

5. Shimano RT 66 6nuts, 203 front, 180mm rear - make sure you order proper (6 nuts version or whatever you use). I will change to 203 rear probably with adapter later
6 . shifter XT SL-M8100 1x12sp right ( I-Spec EV )
7. brakes m7120 4piston (SLX), I-Spec EV - cheaper, XT benefit is only 9 grams as far as i remember.XT was 100E plus!
8. same one up v2 dropper + i ordered Shimano-I-Spec EV mount - make sure the correct size- i think 150 for S size - better to check. For M i ordered 180mm and i will downsize to match frame.
9. magic mary 2.8. Maybe too match, later 2.6 maybe!
10. volt was gone, so i bought pure. I try to look for old laser V - but gone! WTB Pure ProGel Sattel. I bought basic WTB pure (no progel!)
11. i selected cheaper 31.8mm Truvativ Hussefelt
12. bars 31.8mm/720mm (trails in HT are narrow). This 31.8mm is OK for bafang display also. later i can upgrade to 35mm bars if needed
13. same bushings -> extra order (bafang, you need to know rear shock and geometry when ordering. From order 2 home 1 week.
14. fsi grips - extra chunky
15. same as rob-> ebay/local BB29
16. 27.5+27.5 DT SWISS H1700/35mm with microspline option
17. zeb ultimate 27.5x 44offset 190mm (i can reduce travel if needed). fork was -100e cheaper.
alternative - if you are friend of lower travels -f.e. this can be HOT SALE for you RockShox Lyrik Select Charger RC Debon Air 27.5 Inch Fork - 160mm - 46mm Offset - Tapered - Maxle Stealth - 15x110mm Boost - Special Offer
18. pedals-> rob does not mentioned -> i ordered One up composite blue.

I think 170mm is just right for 27.5 and also for mullet setup (29.0 front). I am not aware that size of bike make here big change, but i am not a setup expert, its just my feel.

Happy hunting



[mgx]

I think battery is "classic" 16S7P s 13s5p setup with 65cells per each, can be done for 150USD. Will not pay 350USD+shipment .



[Afifz]

Hi, maybe some ideas to simplify your buying

Here is rob buying list: prices are mentioned in GBP

ROB:
1 rear shock superdeluxe ultimate 210x55-293
2 shimano m4100 casette-35
3 shimano mech m5120 40
4 shimano hg54 chain -14
5 shimano rt rotors 36
6 shimano m4100 shifter
7 brakes m6120 4piston 149
8 one up v2 dropper -222
9 magic mary/big betty tyres
10 wtb volt saddle
11 nukeproof am bars/stem - 66 45x35x1.1/8" - but on video I see raceface (turbine 35?)
12 nukeproof neuron v2 800mm 800x25x35mm
13 bushings -> extra order
14 ergon grips 21
15 chainring tool 14
16. wheels DT SWISS H1700 mullet (probably with 35mm, 29front, 27.5rear)
17. rockshock fork zeb ultimate, 44ofset, 170mm travel

My buying list is quite different, based on parts availability and probably quite different setup. Maybe wrong mabe right, time will tell . I order from bike24.de, hibike.de. ALso bike-discount.de is OK, but during my buying no extra prices. I also found that a lot of parts are quite cheaper on local market, so maybe Italy as strong cyclo country is same. Bike24.de delivery is 3-4 days (if in stock), bike-discount longer (said on item +1-2 week shipping, depend country 2 country).

Note, that due current covid situation the stocks are empty and ususal winter sale is not happening. Maybe something, f.e. bike24.de has a sale tommorow. But you need to access page daily.

1. rear shock-> i bought rockshock ultimate 210x50 opened and refited to 210x55. 210x50 was on stock and cheaper, 210x55 delivery was 3 month. I think also 216xXX will work with offset bushing, but i wait till somebody confirm/deny . 216x55(60) can be more available. Also there is way to use coil version. Or cheaper shock (not from ultimate but select plus)
2-4. Rob selected SLX family, in slovakia i manage to have XT 12 price discount for 200e, so i have changed casette shifter and chain for XT (all is mentioned as XT 8100 here). Make sure which family you buy because mount is different. I selected Shimano-EV mount for all.
For cassette I selected Microspline option.
5. same - make sure you order proper (6 nuts version or whatever you use)
6 . shimano XT8100 shifter
7. brakes m7120 4piston (SLX) - cheaper, XT benefit is only 9 grams as far as i remember
8. same + i ordered Shimano-EV mount - make sure the correct size- i think 150 for S size - better to check
9. magic mary 2.8
10. volt was gone, so i bought pure. I try to look for old laser V - but gone! WTB Pure ProGel Sattel
11. i selected cheaper 31.8mm Truvativ Hussefelt
12. bars 31.8mm/720mm (trails in HT are narrow). This 31.8mm is OK for bafang display also.
13. same
14. fsi grips - extra chunky
15. will dissasembly something - aka DONOR
16. 27.5+27.5 DT SWISS H1700/35mm with microspline option
17. zeb ultimate 44off,190mm (i can reduce travel if needed). fork was -100e cheaper.
alternative - if you are friend of lower travels -f.e. this can be HOT SALE for you RockShox Lyrik Select Charger RC Debon Air 27.5 Inch Fork - 160mm - 46mm Offset - Tapered - Maxle Stealth - 15x110mm Boost - Special Offer
i think 170mm is just right for 27.5 and also for mullet setup (29.0 front). I am not aware that size of bike make here big change, but i am not a setup expert, its just my feel.

Happy hunting

Excellent response. Your input is very useful. It will be some time until my frame arrives so I will keep on hunting for the best deals! Thanks!



[Zimmerframe]

Dengfu are prioritising shipping in order of when you pay, apparently a lot of people ordering right now, probably due to Rob's YT videos, hope you're on commission Rob

He's not.

Suspecting it would be a success, I wrote to them when he first made the CHEEB. I explained that as a celebrity he didn't like to be bothered about financial matters and it embarrassed and offended him to talk about it. But, as his agent, they should send all commission payments to me instead and I would pass them along Thanks for the new house Rob



[Waynemarlow]

I think battery is "classic" 16S7P setup with 112 cells per 2500mAh

Its been quoted that the batteries are Samsung 35E's and no it won't be 16S.



[mgx]

true, corrected. even cheaper



[Sunburntwily]

I buy mostly from AliExpress. Rock shock Yari 160mm boost $488au. Very happy with my experience. I know they are only Yari but at my age I doubt I will notice the difference. It's like step son telling me to get 4k or 5k tv. I don't have 4k eyes so waste of money☺.



[RyeNiel]

Unfortunately no. Melody always eluded this question eventhough I asked her in every email.

In the end the answer was, i quote:
"When shipping, I will keep you be informed of tracking number. "

Thats the best I got out of her. Since I only just ordered today and there are plenty of us here waiting for our frame sets I'm guessing mine will probably arrive in early summer?

More time to shop for parts now i guess.

Thanks for the links.

will monitor the prices regularly.

Thanks!

ordered mine last january 1st week. She said frame will be finished middle of this month. Not sure though... Oh well, the waiting game.



[jtran69]

To be honest from an Australian perspective you already have a good deal in the Luna cycle. We have a company here "pirez" I believe is a re-badged Luna cycle complete bike with aluminium frame older style for $3995au. I have already spent $5036.53 for the cheeb. I still need tyres, brakes, handle bars dropper post, saddle, pedals and a bell. I'm sure thats not everything. I guess the piont is if we could by a Lune cycle here (we can't for the moment covid issues I guess) it would work out close to the same price as it is costing me to build. (Except for shipping)

I just contacted Luna and they sell the complete bike only, no frameset kit :-(. I'm still looking for any vendor willing to ship E10 frameset to CA, USA. Please ping me if you have a contact. thanks much!
BTW, I like the Luna X1 geo over E10 in size small, just fit me best.



[Waynemarlow]

true, corrected. even cheaper

And less batteries means less weight.

If you are going to build your own, you may want to look at

Can you build your own battery for the E10 ?

Yes is the answer, but with caveats here. The manufacturers use proprietory Can Bus signals and the likes to manage and interpret the battery to protect it from too much load and the total number of charges etc. But if you research and look around the internet its surprising how much info you...

www.emtbforums.com

Where if you go down the 21700 route, even cheaper, lighter and more power.



[jtran69]

I think battery is "classic" 16S7P s 13s5p setup with 65cells per each, can be done for 150USD. Will not pay 350USD+shipment .

How will you build the container box to keep all the batteries together for proper fitting inside the frame?



[Waynemarlow]

How will you build the container box to keep all the batteries together for proper fitting inside the frame?

Dengfu used to be able to supply a bare case, you may want to ask. It wasn’t expensive.



[Afifz]

Hi, maybe some ideas to simplify your buying

Here is rob buying list: prices are mentioned in GBP

ROB:

1 rear shock superdeluxe ultimate 210x55-293
2 shimano m4100 casette-35
3 shimano mech m5120 40
4 shimano hg54 chain -14
5 shimano rt rotors 36
6 shimano m4100 shifter
7 brakes m6120 4piston 149
8 one up v2 dropper -222
9 magic mary/big betty tyres
10 wtb volt saddle
11 nukeproof am bars/stem - 66 45x35x1.1/8" - but on video I see raceface (turbine 35?)
12 nukeproof neuron v2 800mm 800x25x35mm
13 bushings -> extra order
14 ergon grips 21
15 chainring tool 14
16. wheels DT SWISS H1700 mullet (probably with 35mm, 29front, 27.5rear)
17. rockshock fork zeb ultimate, 44ofset, 170mm travel

My buying list is quite different, based on parts availability and probably quite different setup. Maybe wrong mabe right, time will tell . I order from bike24.de, hibike.de. ALso bike-discount.de is OK, but during my buying no extra prices. I also found that a lot of parts are quite cheaper on local market, so maybe Italy as strong cyclo country is same. Bike24.de delivery is 3-4 days (if in stock), bike-discount longer (said on item +1-2 week shipping, depend country 2 country).

Note, that due current covid situation the stocks are empty and ususal winter sale is not happening. Maybe something, f.e. bike24.de has a sale tommorow. But you need to access page daily.

Mgx:

1. rear shock rockshock ultimate 210x55 -> i bought rockshock ultimate 210x50 opened and refited to 210x55. 210x50 was on stock and cheaper, 210x55 delivery was 3 month (WTF?). I think also 216xXX will work with offset bushing, but i wait till somebody confirm/deny . 216x55(60) can be more available . Also there is way to use coil version ( i dont found any vivid on stock). Or cheaper shock (not from ultimate but select plus)-> ebay/discounts from 150e. OK when you dont run downhills for long
2-4 drivertrain - i found discount on XT family 2021 (12 speed) for 200eur, so i selected instead SLX (SLX was for 159, not available in slovakia due supply issues). I think that 10s can be better for motorized bike, but lets try and see...

• casette Shimano Deore XT CS-M8100 12sp 10-51 with microspline (new standard)
• chain Shimano Deore XT M8100 12sp 126 pcs
• rear derailer Shimano Deore XT RD-M8100 SGS 12sp -extra long

5. Shimano RT 66 6nuts, 203 front, 180mm rear - make sure you order proper (6 nuts version or whatever you use). I will change to 203 rear probably with adapter later
6 . shifter XT SL-M8100 1x12sp right ( I-Spec EV )
7. brakes m7120 4piston (SLX), I-Spec EV - cheaper, XT benefit is only 9 grams as far as i remember.XT was 100E plus!
8. same one up v2 dropper + i ordered Shimano-I-Spec EV mount - make sure the correct size- i think 150 for S size - better to check. For M i ordered 180mm and i will downsize to match frame.
9. magic mary 2.8. Maybe too match, later 2.6 maybe!
10. volt was gone, so i bought pure. I try to look for old laser V - but gone! WTB Pure ProGel Sattel. I bought basic WTB pure (no progel!)
11. i selected cheaper 31.8mm Truvativ Hussefelt
12. bars 31.8mm/720mm (trails in HT are narrow). This 31.8mm is OK for bafang display also. later i can upgrade to 35mm bars if needed
13. same bushings -> extra order (bafang, you need to know rear shock and geometry when ordering. From order 2 home 1 week.
14. fsi grips - extra chunky
15. same as rob-> ebay/local BB29
16. 27.5+27.5 DT SWISS H1700/35mm with microspline option
17. zeb ultimate 27.5x 44offset 190mm (i can reduce travel if needed). fork was -100e cheaper.
alternative - if you are friend of lower travels -f.e. this can be HOT SALE for you RockShox Lyrik Select Charger RC Debon Air 27.5 Inch Fork - 160mm - 46mm Offset - Tapered - Maxle Stealth - 15x110mm Boost - Special Offer
18. pedals-> rob does not mentioned -> i ordered One up composite blue.

I think 170mm is just right for 27.5 and also for mullet setup (29.0 front). I am not aware that size of bike make here big change, but i am not a setup expert, its just my feel.

Happy hunting

I just noticed, any specific reason you're going for 27.5 vs a 29er?

Planning to do a mullet set up but my frame size is the smallest size so not sure how that will effect the handling.

Thanks.



[Geoff12a]

Hi has anyone received there bike yet in the UK I payed on the 11th January and all messages were sent on Skype not email just wondering if anyone else has done it through Skype and not email



[wxcopsey]

Ordered mine on the 25th Jan, frame delivered today, battery + motor should be end of March. Ordered through eBay.

Has anyone else considered anglesets instead of offset bushings?



[jtran69]

Ordered mine on the 25th Jan, frame delivered today, battery + motor should be end of March. Ordered through eBay.

Has anyone else considered anglesets instead of offset bushings?

Hi wxcopsey,
May I have a link to motor and battery items on ebay? And does the frame come with the battery case/container? Thank you for the info!



[Geoff12a]

Ordered mine on the 25th Jan, frame delivered today, battery + motor should be end of March. Ordered through eBay.

Has anyone else considered anglesets instead of offset bushings?

Are you in the UK



[wxcopsey]

In the UK, and you'll need to message them to provide a link for motor and battery as stock seems quite limited.



[Geoff12a]

In the UK, and you'll need to message them to provide a link for motor and battery as stock seems quite limited.

She told me the frame was not available 2 weeks ago started to think I've been scammed as I did it though Skype I'll give it another week and start a PayPal dispute. What do you think??



[wxcopsey]

No just they've had such a backlog, it's just taking them a long time to catch up I'd assume.



[m.john]

Hi everybody,

I am just starting to get my part list all together and I am looking for information concerning the dropper post length.
I ordered a seize M (17") frame and I see on the spec sheet that BB-to-top of seat post is 440mm.
My intention is to buy/install the OneUp 180mm Dropper V2 which requires 267mm insert. My usual seat length is 745mm.
From the pure figures I could even squeeze a 210 Dropper in (insert 297mm) if that works on frame seize M with one or two shims,
but that would be a little over the top.

Question: checking the spec sheet it looks that there is no restriction pretty much down to the motor limiting the dropper insert length.
Could someone having the bike(-frame) have a look what insert length there is, please. As spec is identical with regards to geometry,
frame seize will lengthen the top part of the seat tube only. And there are 40mm difference between seizes.

Thanks and have a nice week-end,
Martin



[jtran69]

I have a friend who lives in Shanghai, the eBay company selling the E10 tell me they will ship the frame,motor, battery to Shanghai at a cost of £1500, of course I then need to get it from Shanghai to the UK, So I imagine with shipping, VAT & import duty I am looking at £2000 plus.

HI Howz, I'd like to check out which Ebay company is selling E10 shipping to Shanghai. This might be a possible way to ship to USA afterward. Please help. Joe



[jtran69]

Thats a completely different frame.

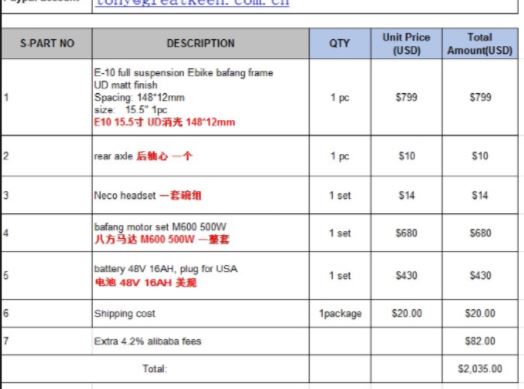

Finally I found the E10 frame here. Price is a bit more and $718 shipping to USA is crazy . I'm double checking to make sure that they can ship to North America.

Page Not Found - Aliexpress.com
