My Dengfu E10 with Bafang M600

[Geoff12a]

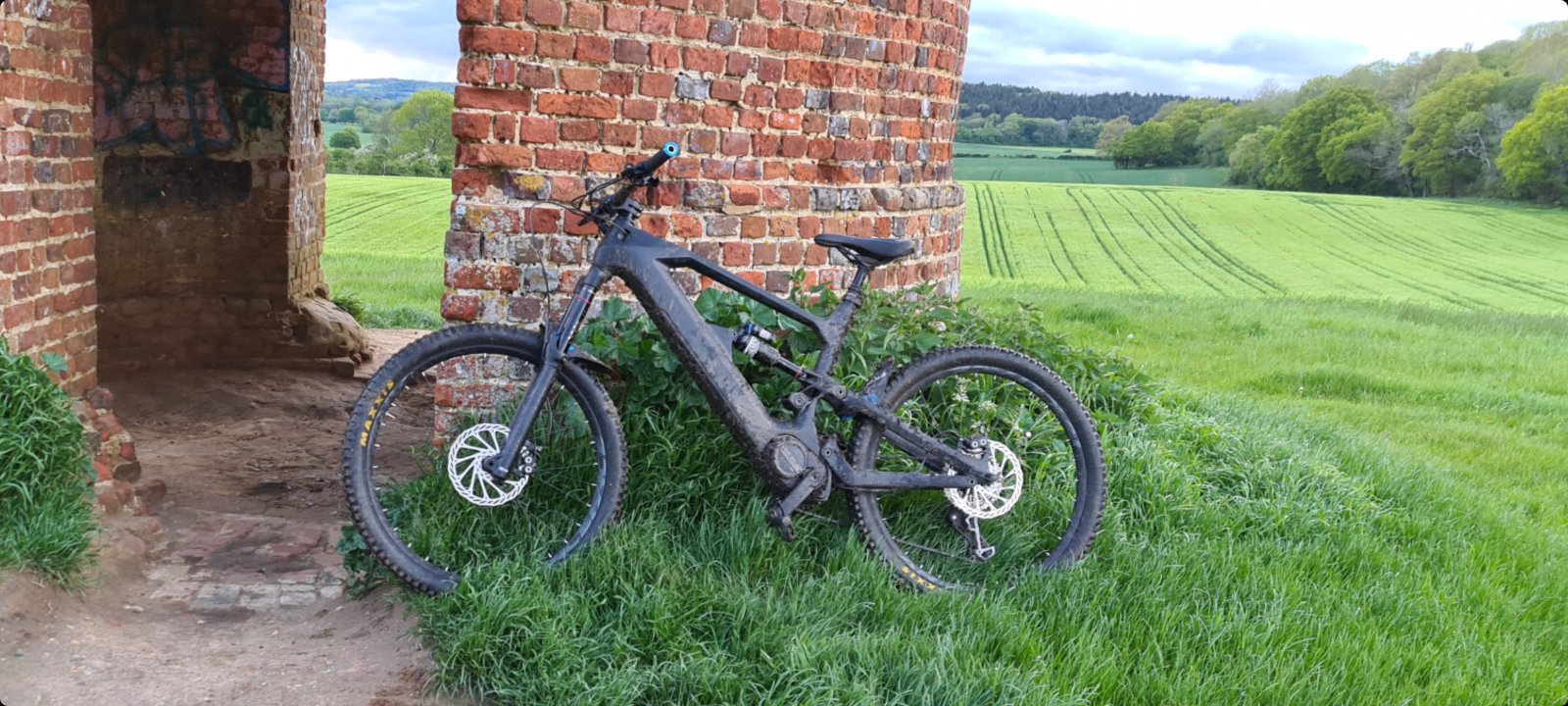

Putting it through its Pacers really enjoyable 20 miles done only about 600 feet of climbing lots of mud level 1 to 3 mostly some in Hi but not a lot 65% battery left



[Sunburntwily]

Putting it through its Pacers really enjoyable 20 miles done only about 600 feet of climbing lots of mud level 1 to 3 mostly some in Hi but not a lot 65% battery left

View attachment 62400

Looking good. Did you fit anything to the bottom triangle pivot piont (pinch piont) like I thought foam perhaps?



[Geoff12a]

Looking good. Did you fit anything to the bottom triangle pivot piont (pinch piont) like I thought foam perhaps?

No mate



[thaeber]

Hi I used RockShox yari 180mm RockShox rc3 216×63 Offset bushing front and rear for shock 27.5 dt swiss 370 wheels madura 05 brakes 200mm front and rear and matt black spray from Halfords 150mm dropper seatpost 31.6 and the only thing I brought brand new was the seatpost most of it off Facebook marketplace or eBay

Can You please tell me the weight of Your bike? Thanks!



[Geoff12a]

Can You please tell me the weight of Your bike? Thanks!

I'll weigh it tomorrow for you. you do you what derailleur hangers are used as I bent mine



[Geoff12a]

Hi does anybody know what derailleur hanger as I used as I managed bend mine



[thaeber]

Ohhh shit...I would recommend to ask Melody for the correct replacement item or spare part spec. It‘s hard to judge if this is a standard derailleur hanger!



[Geoff12a]

Thanks !

Do you have 10 or 11 speeds ? (or 12 ?) Did you keep the chainring from bafang ?

It's 11 speed but I may put 12 speed on soon and it's 32 front



[Geoff12a]

Can You please tell me the weight of Your bike? Thanks!

It's 25.8 on the weighing scales but they are very cheap weighing scales



[thaeber]

It's 25.8 on the weighing scales but they are very cheap weighing scales

Thanks mate! Same as mine...



[Sheff73]

Drives like a dream, had flattened the steering angle by 1.5 degrees and with the power of the 600er, things really get going! Here are a few more photos of the battery:
View attachment 54294
View attachment 54292
I connected it with PowerPole to the Motor

Hi Karl.
I'm building my own battery for the E10 - Did you come up with some clever way of mounting your battery in the frame using the cable clamp points? or is it just wedged in some how? I was thinking of some sort of mounting plate with tie wraps or velcro straps.
Cheers.



[Waynemarlow]

Hi Karl.
I'm building my own battery for the E10 - Did you come up with some clever way of mounting your battery in the frame using the cable clamp points? or is it just wedged in some how? I was thinking of some sort of mounting plate with tie wraps or velcro straps.
Cheers.

Simply put industrial velcro hook and loop on the battery base and cover. The battery cover is more than substantial enough to take the loading, the hook and loop acts as a vibration damper, you get to lower the battery down lower in the frame as you do not have the connector housing and you can simply unclip the cover to charge. Works really well as I have a smaller battery for the 1 hour blasts and an 800 W larger version for the 4 hour rides.



[Sheff73]

Thanks for the info.
My frame has the newer 'catch opening cover' not the screw attached of old, so not sure I'm happy mounting 3kgs to it...



[Hondy]

View attachment 52624 View attachment 52625 View attachment 52626
View attachment 52727

Hello Karokonig ,i have a problem with the controller(water inlet) ...i saw you have a luna display ...at some point had also a problem and exchange it ?or the complete motor ?



[SEBA]

The 500 and 600 use the same mountings. It's long, but there's an E10 Discussion thread in the DIY section which is worth a read.

do you know if e8000 are the same mounting ?



[Puschtrale]

do you know if e8000 are the same mounting ?

No, definitly not. Its just total different motor dimensions



[RyeNiel]

Hi. Would like to ask if aside from the stock lcd display the m600 comes with, is there any other display that can work with m600? plug and play. Thanks



[RyeNiel]

Page Not Found - Aliexpress.com



[PB Ski]

Page Not Found - Aliexpress.com

I have this controller on another Ebike & its excellent but alas here the Bafang M600 uses a CAN (bus) system. You need a CAN compatible display, can find on Luna Cycles website or Alibaba - see link

E Bike Display Canbus For Bafang M600 M500 M800 Middle Motor Ebike Display 860c With Triangle Connector Electric Bike Display - Buy E Bike Display,Ebike Display,Bafang M600 Display Product on Alibaba.com

E Bike Display Canbus For Bafang M600 M500 M800 Middle Motor Ebike Display 860c With Triangle Connector Electric Bike Display - Buy E Bike Display,Ebike Display,Bafang M600 Display Product on Alibaba.com

www.alibaba.com



[RyeNiel]

I have this controller on another Ebike & its excellent but alas here the Bafang M600 uses a CAN (bus) system. You need a CAN compatible display, can find on Luna Cycles website or Alibaba - see link

E Bike Display Canbus For Bafang M600 M500 M800 Middle Motor Ebike Display 860c With Triangle Connector Electric Bike Display - Buy E Bike Display,Ebike Display,Bafang M600 Display Product on Alibaba.com

E Bike Display Canbus For Bafang M600 M500 M800 Middle Motor Ebike Display 860c With Triangle Connector Electric Bike Display - Buy E Bike Display,Ebike Display,Bafang M600 Display Product on Alibaba.com

www.alibaba.com

thanks. ill try at alibaba



[Funfunfun]

95 US $ and 50 $ shipping ?

HI, Would an alibaba CAN M600 860c display work as well. Just read it may be limited to 25mph -> 69.8￡ 28% OFF|Ebike Display Bafang 860C for Mid Motor M300 M400 M600 M800 Electric Bike Display with Triangle Connector Male or Female|Electric Bicycle Accessories| - AliExpress



[Funfunfun]

thanks. ill try at alibaba

HI there....PLease can anyone confirm you are not confined to 25MPH with this controller and does it have bluetooth? - Thanks Nick



[Lucky Luke]

[QUOTE = "Funfunfun, publicación: 328627, miembro: 7329"]
Hola, ¿funcionaría también una pantalla alibaba CAN M600 860c? Solo lea, puede estar limitado a 25 mph -> 69.8 ￡ 28% DE DESCUENTO | Ebike Display Bafang 860C para motor medio M300 M400 M600 M800 Pantalla de bicicleta eléctrica con conector triangular macho o hembra | Accesorios para bicicletas eléctricas | - AliExpress
[/CITA]
Tengo esta pantalla (y otras), tengo bluetooth y es compatible con M600.
The limit of M600 is 45 km/h



[Funfunfun]

[QUOTE = "Funfunfun, publicación: 328627, miembro: 7329"]
Hola, ¿funcionaría también una pantalla alibaba CAN M600 860c? Solo lea, puede estar limitado a 25 mph -> 69.8 ￡ 28% DE DESCUENTO | Ebike Display Bafang 860C para motor medio M300 M400 M600 M800 Pantalla de bicicleta eléctrica con conector triangular macho o hembra | Accesorios para bicicletas eléctricas | - AliExpress
[/CITA]
Tengo esta pantalla (y otras), tengo bluetooth y es compatible con M600.
The limit of M600 is 45 km/h

ok, so this should also work. CAN m600 860c --> Bafang eBike Display LCD 860C 160 M620 M400 M200 Bicycle Controller Speedometer | eBay thanks



[Lucky Luke]

si

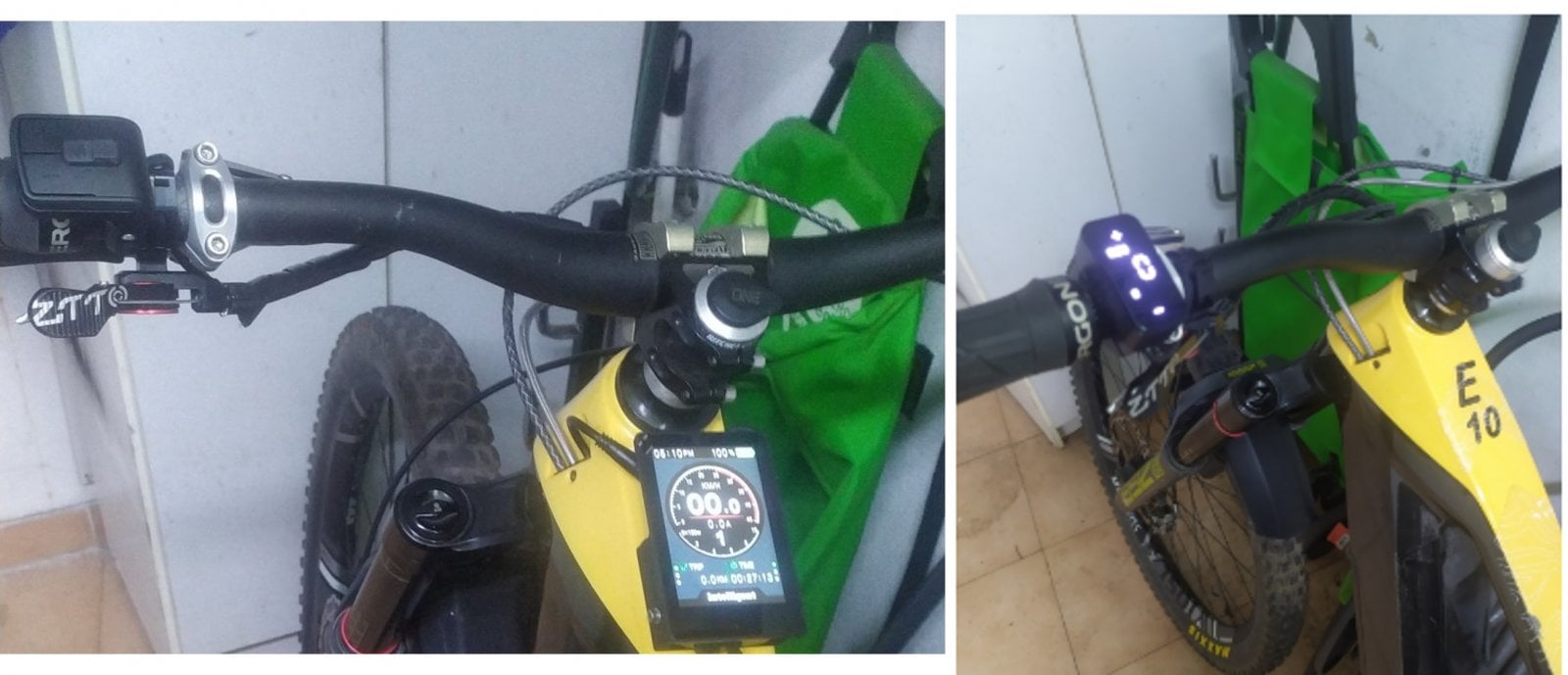

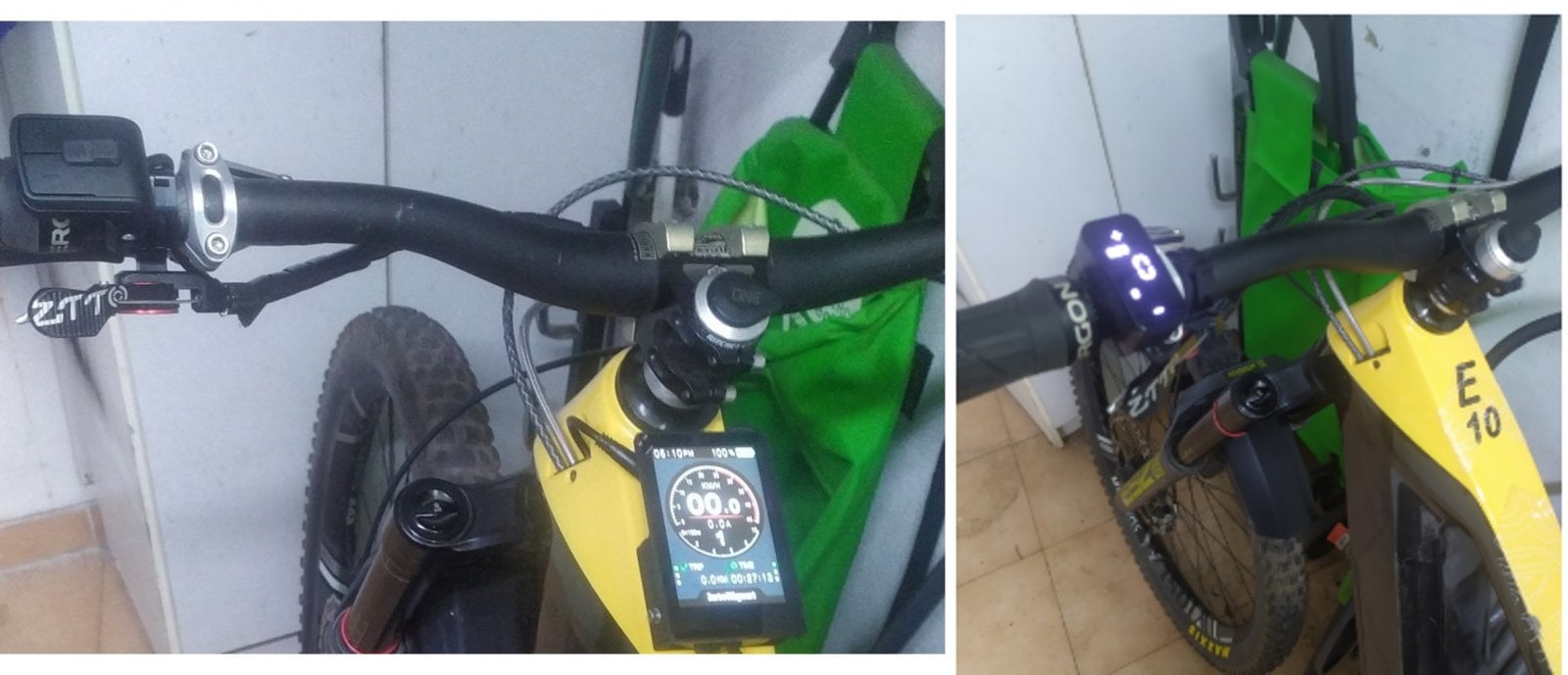

Tengo el 860C y el DPE160 y son compatibles con mi M600



[Funfunfun]

si
Tengo el 860C y el DPE160 y son compatibles con mi M600
View attachment 69619

Thanks, How did you mount the 860c on your frame?



[Lucky Luke]

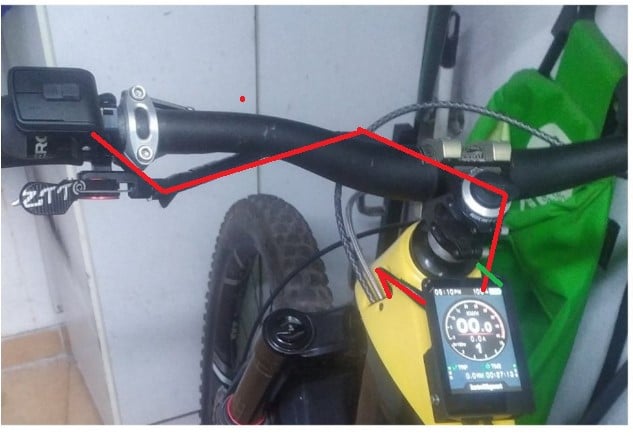

Cable verde del motor
Necesitará un extensor para el cable rojo.
[URL unfurl = "true"] 5.22￡ 29% de DESCUENTO|JULET Cable impermeable BAFANG Cable de extensión luz del Motor Ebrake Acelerador de 1T4 1T5 2 3 4 5 Pin conversión Ebike Cable|Accesorios de bicicleta eléctrica| - AliExpress [/ URL]
El modelo es de 5 pines macho hembra
hice una caja para la pantalla con la impresora 3 D
Puedo enviarte el archivo STL



[Funfunfun]

View attachment 69622
Cable verde del motor
Necesitará un extensor para el cable rojo.
[URL unfurl = "true"] 5.22￡ 29% de DESCUENTO|JULET Cable impermeable BAFANG Cable de extensión luz del Motor Ebrake Acelerador de 1T4 1T5 2 3 4 5 Pin conversión Ebike Cable|Accesorios de bicicleta eléctrica| - AliExpress [/ URL]
El modelo es de 5 pines macho hembra

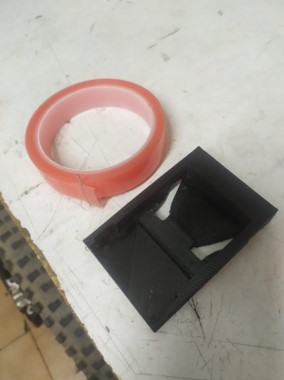

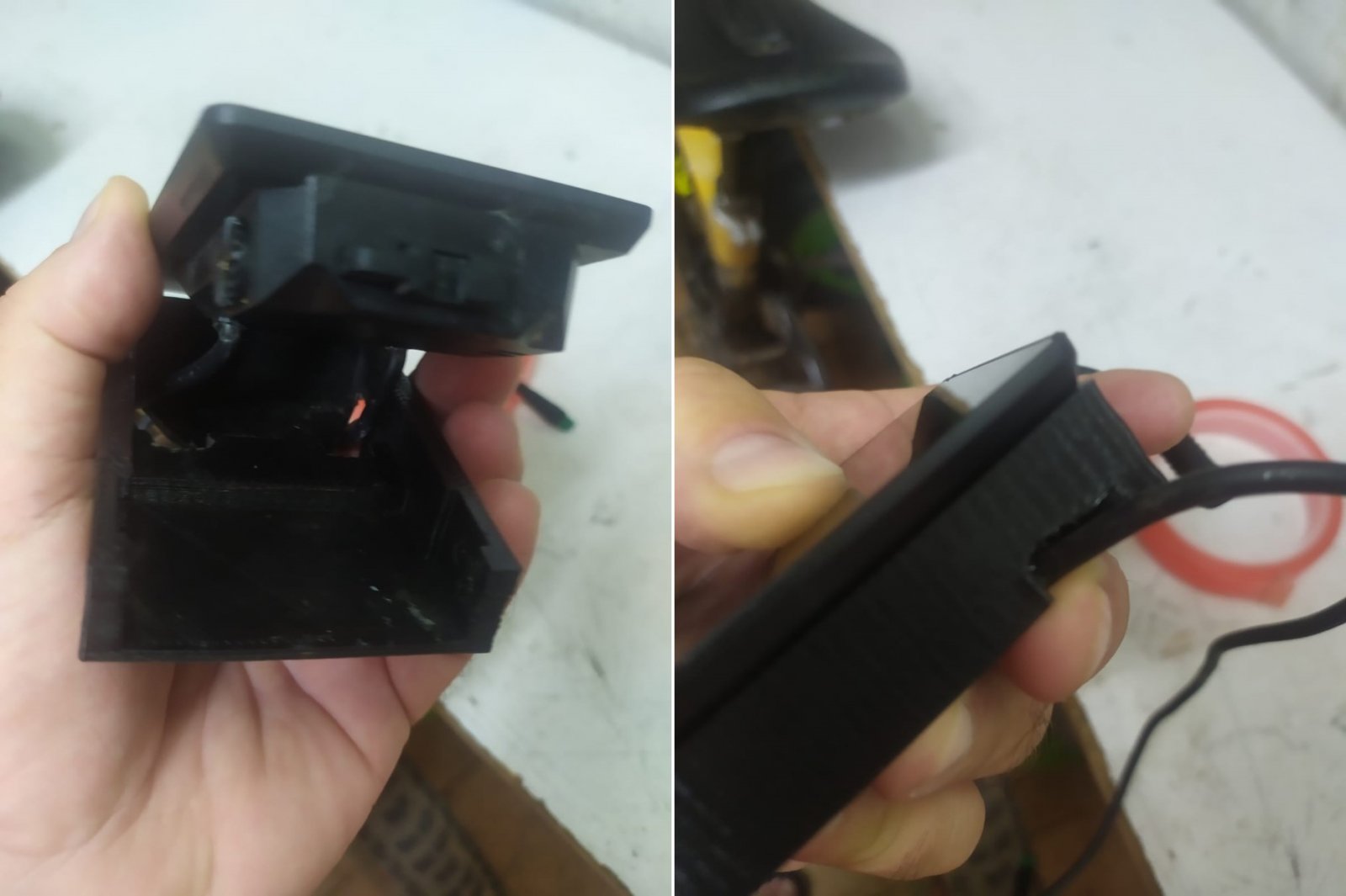

hice una caja para la pantalla con la impresora 3 D
Puedo enviarte el archivo STL

Thanks...and how did you attach the 760c unit to your stem of the bike? Cheers



[Lucky Luke]

[/QUOTE]Cinta de dos lados. Esto es lo mejor:
[MEDIA = amazon] id = B008OEFWLQ; tld = es [/ MEDIA] = 7786646270548473941 & hvtargid = kwd-646351791000 & hydadcr = 10914_1790924 & keywords = ceys + montack & qid = 1629789845 & sbo = RZvFAn% 2FH50% 2 % 3D & sr = 8-1

Si quieres el archivo de la caja debes cambiar ".pdf" por ".stl"



[deserthi]

View attachment 52624 View attachment 52625 View attachment 52626
View attachment 52727

This bike looks a lot like my X2 EMTB that I bought from LUNA. Carbon fiber frame with a 2000 watt controller.
