Decathlon Rockrider E-ST900

[RonnieX]



[BeBiker]

Thanks for the warning !
I will have a look immediately this evening.

On mine it's the least washed spot of the whole bike.
A wipe on both sides of the wheel, but too lazy to clean between the spokes.



[RonnieX]

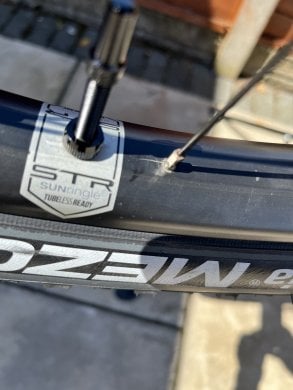

Of the 32 spoke holes in rim, 14 have small cracks!



[crunchie]

What car mounts are people using for this bike? Thinking of getting a Thule fastride.

Thule FastRide | Thule | United Kingdom

Thule FastRide - Sleek and versatile fork-mounted bike rack that offers convenient transport for Quick-release bikes.

www.thule.com

hoping it would be OK if the battery is removed. concern is will it fit the axel and how to protect the battery contacts when removed.



[Maxiek]

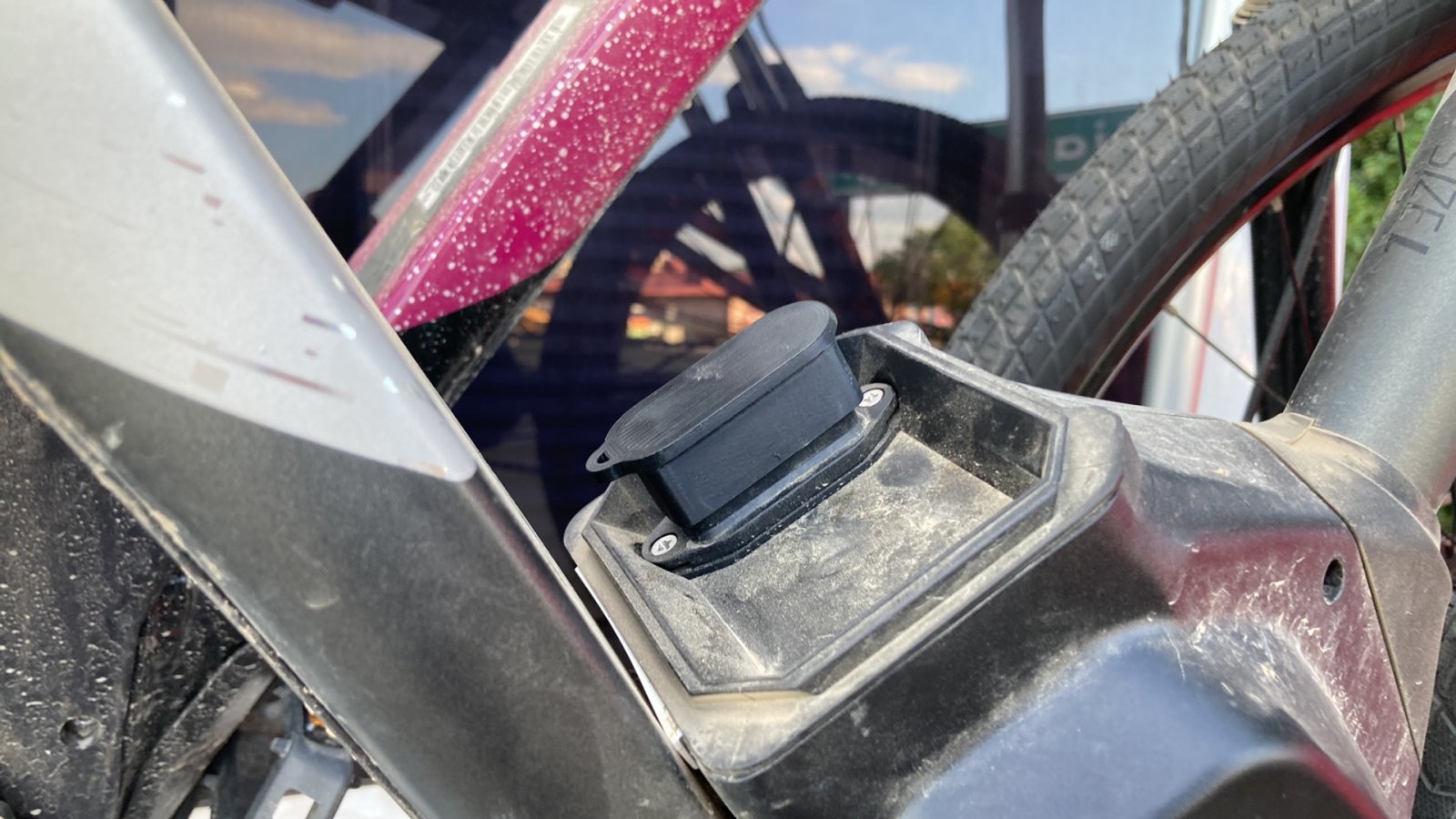

My friend printed me battery connectors plug. I’m satisfied



[BeBiker]

Looks good !
Does he have time to print one for me ?



[Maxiek]

I think yes. He can print many this plugs, I Don’t know how much you will spend for delivery (I’m from Poland )
If you are interested I can organise this.



[BeBiker]

I checked here:

Parcel and courier price calculator | GLS Poland

You can easily find out how much sending your parcel will cost using the shipping calculator of GLS.

gls-group.com

would cost 79.00 zł = 16,89 Euro

Please let me know how much he asks for the part.



[crunchie]

Brose T motor - Connector protection cap by Laurent_Bardelot

I've created this cap to protect the connector of the Brose T motor when the battery is removed on my E-Bike Decathlon E-ST 900.It prevents water / humidity from getting into the connector when you leave the bike outside without the battery (for example during transport on a car).The fit is...

www.thingiverse.com

For UK people I've found 3dprint direct will do 2 (min order) for £18 delivered using Carbon SLS



[xyra132]

Is this a public STL or one he'd be willing to share? I'd like to print myself a couple. I was only saying to my wife I was going to have design a plug the other day to protect the contacts!



[eph3]

I think I found the STL for the terminal cover mentioned above: Brose T motor - Connector protection cap by Laurent_Bardelot



[BeBiker]

Well then printing it here locally could be a better solution.



[RonnieX]

Of the 32 spoke holes in rim, 14 have small cracks!

update:- wheel replaced by Decathlon under warranty. All good now.



[Azimuth]

Hey guys...

Long time since my last post. Been enjoying my E-ST900 with the mods I did ( see my posts ).

Just wanted to share ( and ask ) some stuff.

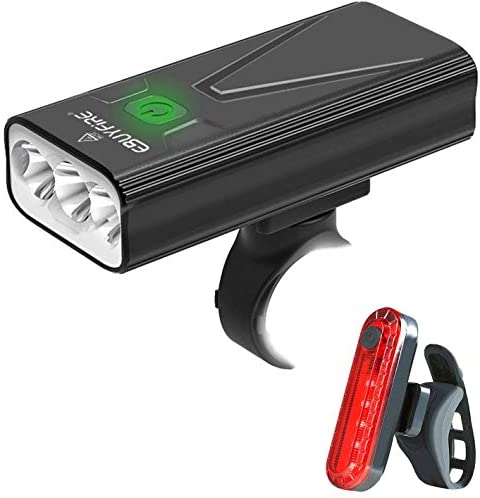

I upgraded the lights with this ( much better than the stock ones and the front one also serves as a powerbank ):

edit: mumble mumble, cant post links, search on amazon for "EBUYFIRE LED 3000 lumen 5200 mAh"

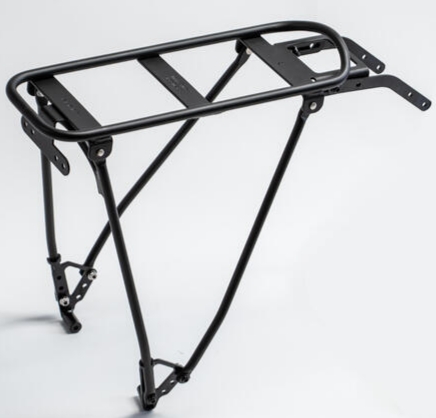

I also added a luggage carrier ( I have seen better looking solutions here in the forum, but that's all I could find ). Despite the Decathlon expert saying it would not fit the e-st900, it does.

I'd like to ask:

- 28 or 29 wheel conversion is possible? I am still maxing out the gears with a 40t crank.

- Is there a battery connector diagram anywhere? I was thinking about building a bigger battery.

- Any direct fit palm resting grips you'd recommend? The stock ones make my hands numb after some hours...

Thanks!



[BeBiker]

I have a 29" wheel at the front, but in the end the 29x2.25 has roughly the same outer diameter as a 27.5*2.8

A 29x2.4 won't fit (I suppose), the space between tyre and bridge is limited.



[BeBiker]

Well even now I have the way superior Cube, it surprises me how happy I still am when I drive the e-st900



[Afc69]

I take it, after you do the speedo hack, cycling at higher speeds flattens the battery quicker?



[Azimuth]

I take it, after you do the speedo hack, cycling at higher speeds flattens the battery quicker?

Yes, you cannot be greedy with the Sport and Boost modes.

But, curiously, I observed that even with the hack, I can make the battery deplete as much as person 25kg lighter than me with an S size RiverSide 500E ( which has a 418wh ) battery. We end the day with the same battery percentage ( but I get less tired ).

( It seems the Brose engine is much more efficient that whatever rear hub engine is in the RiverSide )

It is still worth it.



[Azimuth]

Well even now I have the way superior Cube, it surprises me how happy I still am when I drive the e-st900

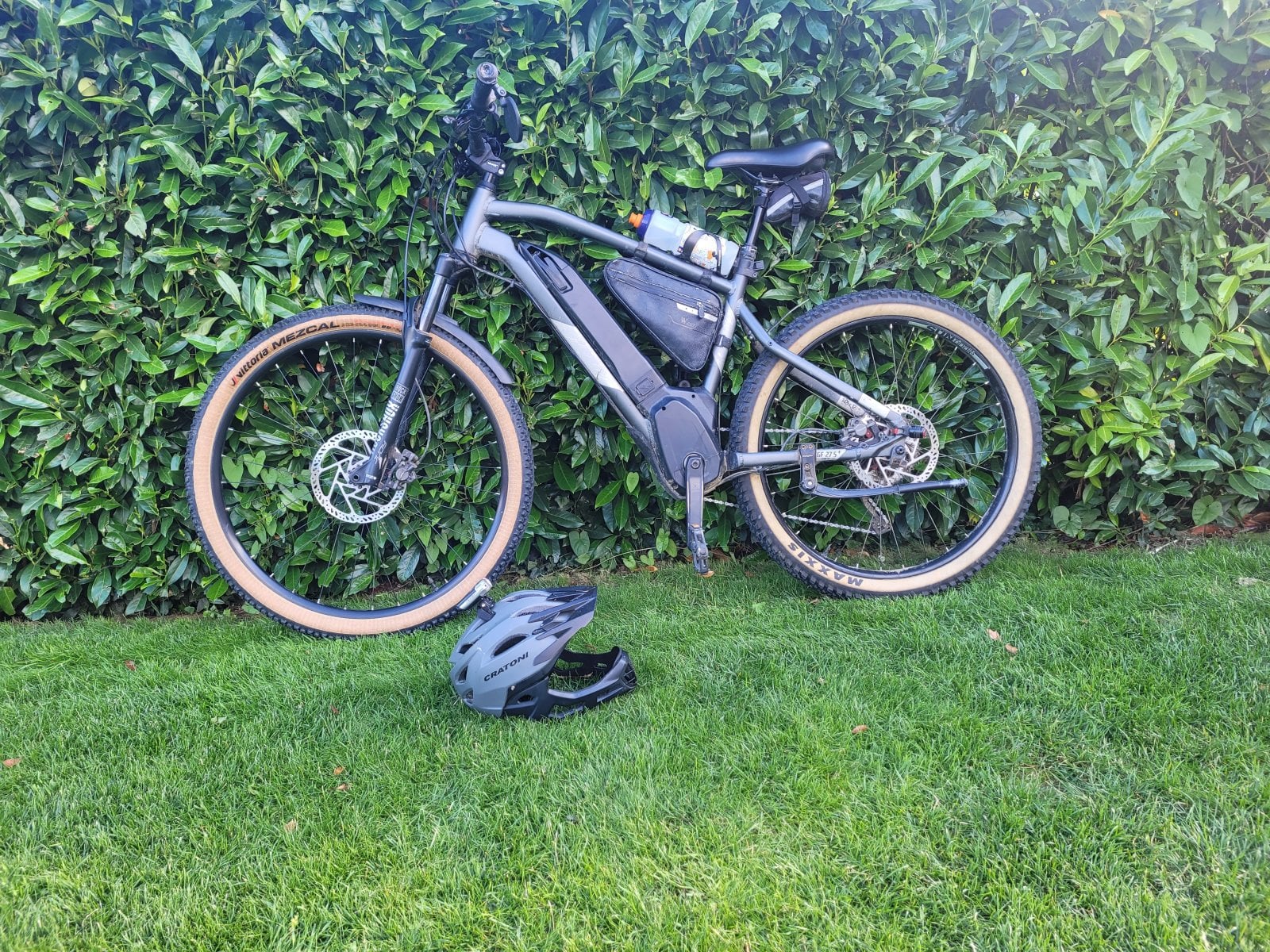

View attachment 91365

Are those 29 wheels?

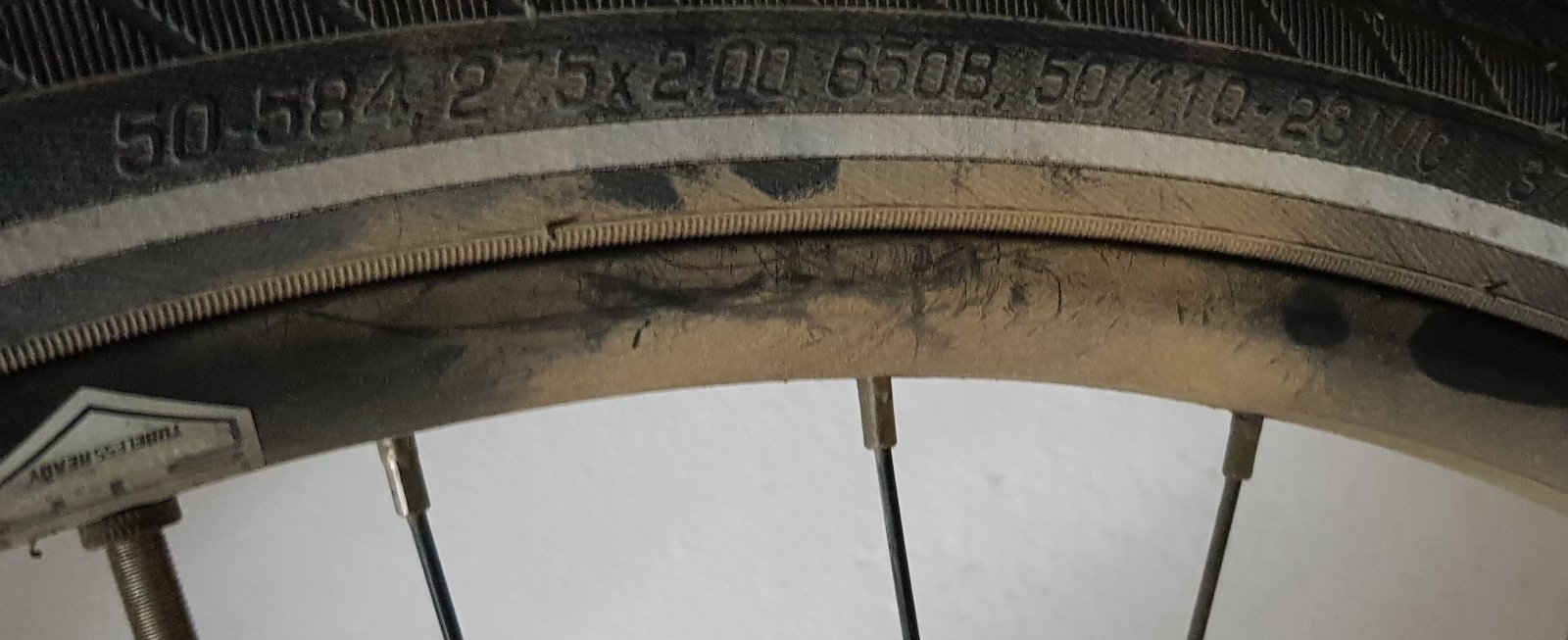

I am asking because I am running a pair of 27.5 x 2.00 and I am wondering how far more could I go...



[Afc69]

See the magnet that you need for the speed hack? What kind of magnet do we need, and do you just glue it in place on the inside of the crank, opposite the repositioned speed sensor?



[BeBiker]

Are those 29 wheels?

I am asking because I am running a pair of 27.5 x 2.00 and I am wondering how far more could I go...

29" x 2.25 Vittoria Mezcal front
27.5" x 2.8 Maxxis Rekon+ back

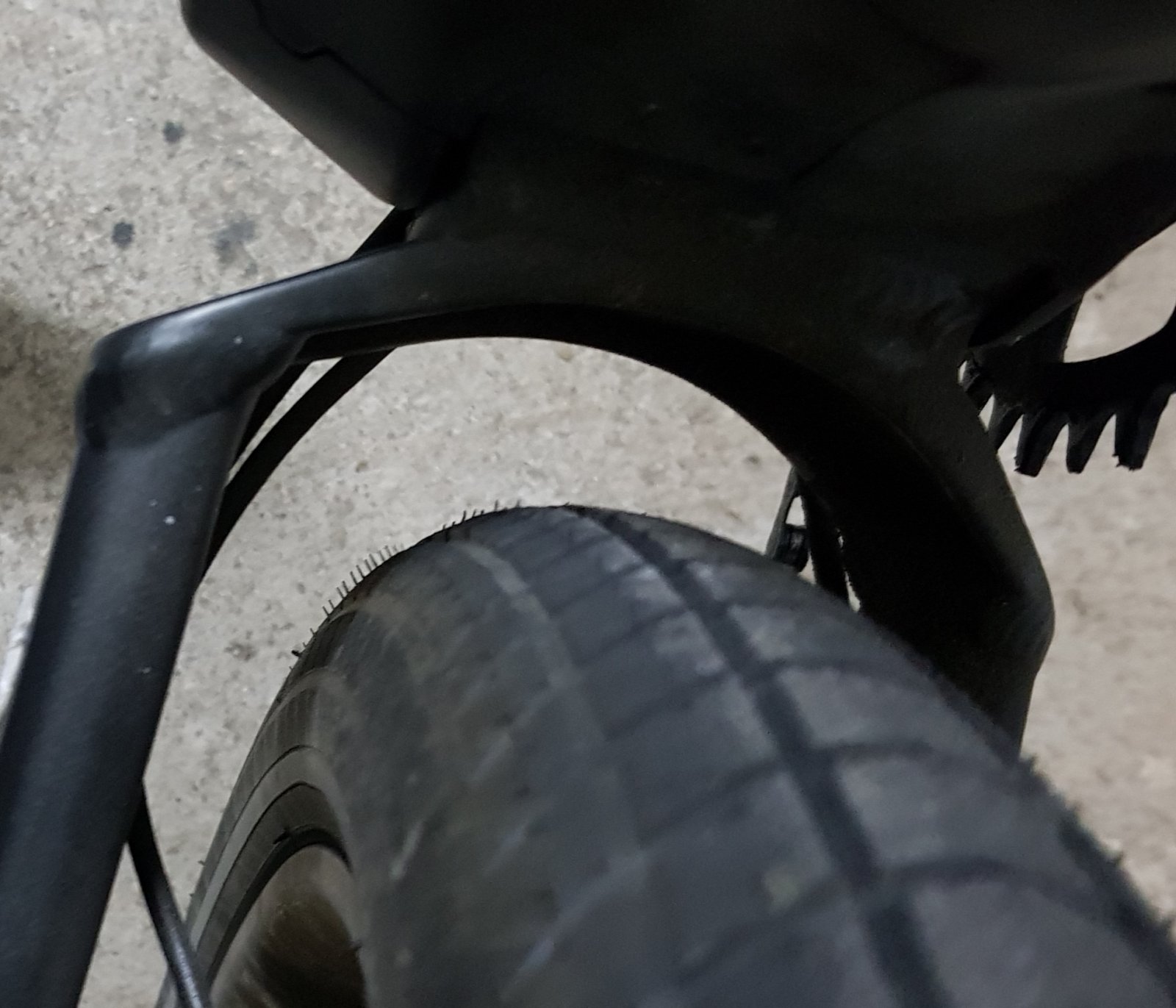

You see, at the front the mudfender even fits between bridge and tyre, so there's still room for experiments



[Azimuth]

See the magnet that you need for the speed hack? What kind of magnet do we need, and do you just glue it in place on the inside of the crank, opposite the repositioned speed sensor?

It seems however that new Brose software versions shutdown the controller after 500 revolutions ( you need to power it off/on again ).



[Azimuth]

29" x 2.25 Vittoria Mezcal front
27.5" x 2.8 Maxxis Rekon+ back

You see, at the front the mudfender even fits between bridge and tyre, so there's still room for experiments

Looks great, but I would need some gravel bike style tyres... I guess I am still going for the 42T after all.



[Afc69]

It seems however that new Brose software versions shutdown the controller after 500 revolutions ( you need to power it off/on again ).

So older software versions will be ok?



[Azimuth]

I cannot tell, sadly I only have one with the new Brose controller.



[E-MAD MALC]

I came across this a little while ago about the software update on the Brose motor
The first sign of the latest update is new display layout
I have'nt done it yet but was told to go to a dealership for the update
Anyway have a look and see what you recon

Neue Brose Software Version 7.4.1 und Brose Allround Display, Software R39 Änderung

Unser Motoren-Zulieferer BROSE stellt ein neues Update seiner Software bereit, mit dem u.a. die Funktion der Schiebehilfe verbessert, aber auch Beschädigungen am Riemen erkannt und somit Folgeschäden vermieden werden. Zudem erhöht das Update mit überarbeiteten Algorithmen die Stabilität des...

www.rotwild.de



[Azimuth]

Translated:

"New manipulation detection: The new manipulation detection ensures that the drive recognizes when the spoke magnet has been attached to the crank and the rear wheel and crank thus move in a 1:1 ratio to one another. If this is the case, the drive switches off the support after 500 pedal revolutions. Error 47 becomes active and can be read out in the service tool."

"Let's go Brose"



[BeBiker]

Our unelected EU imposes fabricants to imply such detections. It's in their din/iso paperwork.
For people outside EU: replace "EU" with you local bureaucrat organization where nobody rides an Emtb.
Spoiler alert: All "smart" emtb's with a gps sensor will (after an upgrade) start to compare chipped speed to gps speed.



[RonnieX]

I wonder if the likes of Bikespeed.de have combatted this yet with with their tuning chips?



[E-MAD MALC]

I wonder if the likes of Bikespeed.de have combatted this yet with with their tuning chips?

I emailed them and they assured me it works fine when i showed them the updated to the software
Mine is still sitting in the box
I will get round to installing it one day
