I was thinking for my M600 but fair point..
The M500 I rode wasn’t bad, but it definitely felt odd dropping assist, was smooth enough, just ‘that’s it?’
If that limit cant be bypassed, yet another use if someone does a DIY HMI/controls - getting to boost should be a single button..
Boost works not so bad, at least it „is”. Other brand engines are ending on 25 and thats it.
I was thinking for my M600 but fair point..
The M500 I rode wasn’t bad, but it definitely felt odd dropping assist, was smooth enough, just ‘that’s it?’
If that limit cant be bypassed, yet another use if someone does a DIY HMI/controls - getting to boost should be a single button..
In M500/M600 you can just push boost and bike will ride faster.
Od course the best is just connect a throttle and remove this nonsense limit.
m500 on 13Amps had around 42 max speed, on 18AM600 controller its around 50, but it both cases its not a rocket and accelerarion is really slow in comparison to any 50cm china scooter, and completely out of discussion in matter of any motorcycle.
1kW is still a bike with performance of bike. Complete idiot created the EU regulations that make „legal” ebikes almost useles in real daily life.
USA regulations are much more „for people”.

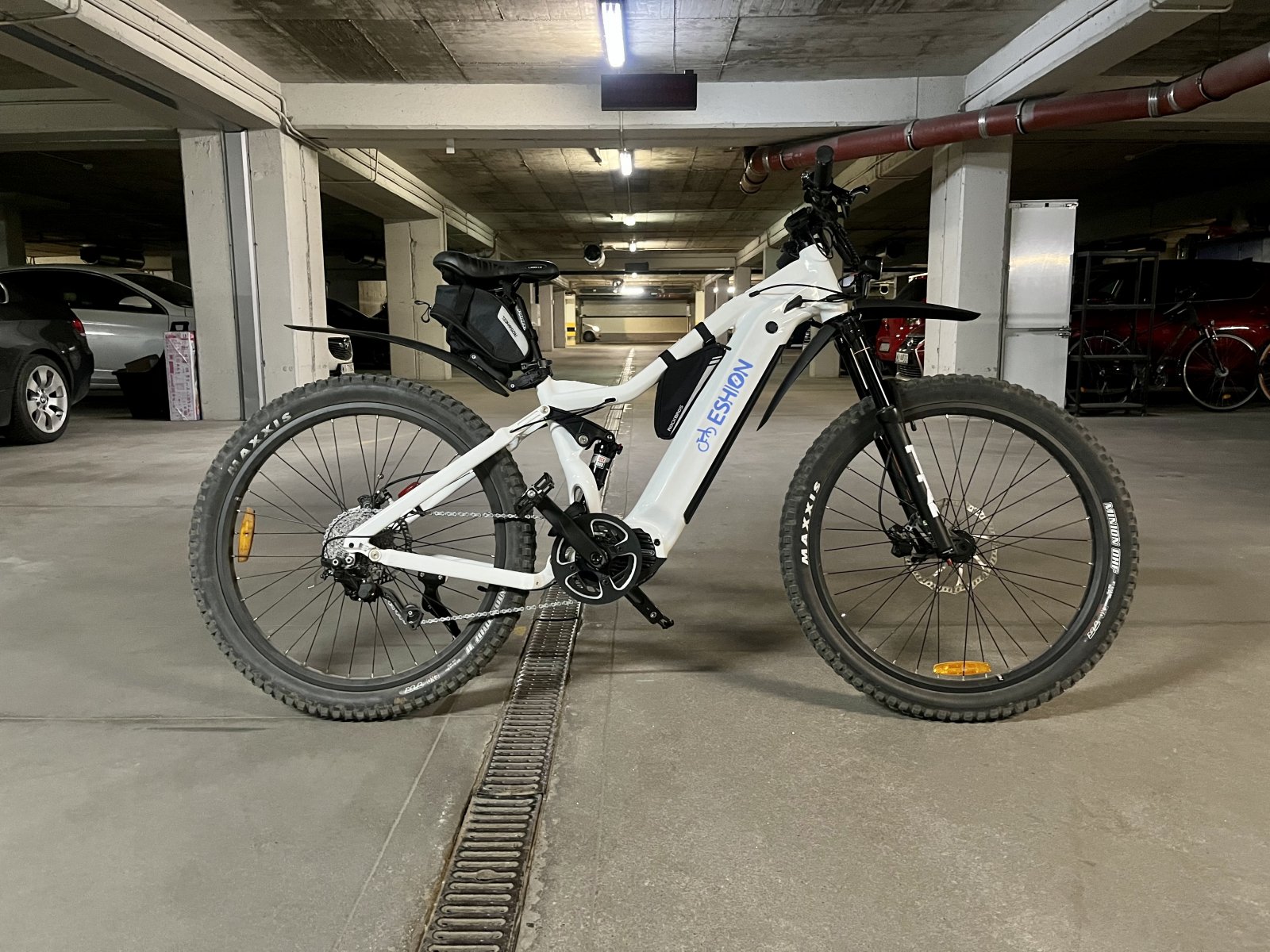

btw, photo with new slightly shorter rear damper, offset bushes, and head angle mod.
Went from 72 to 68HA.
Last edited:
SchadowMaster
Member
Hello, I have used Bafang motors for years specifically: (mid motors M300,M500 and rear motor RM G060) The best of them was the Bafang rear motor RM G060. The Strongest on hills without overheating and performance drop.
The M500 engine is great and powerful, but the overheating is a big problem, and it seems that this problem has been solved with the new engine m510, so I'm thinking of building a bike for the first time in my life.
But I have some questions and I hope you can help me:
1. I live in Germany and the question is can I ride the bike I built on the streets and public roads? (Of course, the maximum speed will be limited to 25 km/h)
2. Where can I buy an e-bike frame? (Most here in the forum have Dengfu E10 , but I didn't find it, there is E-05 What's the difference?
3. Is the process of building a bike difficult and is there a clear and detailed explanation somewhere?
Thank you in advance
The M500 engine is great and powerful, but the overheating is a big problem, and it seems that this problem has been solved with the new engine m510, so I'm thinking of building a bike for the first time in my life.
But I have some questions and I hope you can help me:
1. I live in Germany and the question is can I ride the bike I built on the streets and public roads? (Of course, the maximum speed will be limited to 25 km/h)
2. Where can I buy an e-bike frame? (Most here in the forum have Dengfu E10 , but I didn't find it, there is E-05 What's the difference?
3. Is the process of building a bike difficult and is there a clear and detailed explanation somewhere?
Thank you in advance
Hi, i have a question - how you noticed the M500 have problem with overheating? Some error, power degradation, or just was hot?
SchadowMaster
Member
Wenn ride uphill for about 5-10 min, Motor temperature starts to rise to the point where you cannot touch it, otherwise you will burn your fingers, and the performance also begins to decrease as if you are on the level 2, but in fact it is on the level 5.
So I have to stop until the motor cools down and then get back on the bike to get the full torque.
No errors
(Weather temperature around 20-25)
So I have to stop until the motor cools down and then get back on the bike to get the full torque.
No errors
(Weather temperature around 20-25)
thaeber
Well-known member
Never had that, even at steepest and longest climbs….
Aliexpress.com or direct from Dengfu. There is a Dengfu rep on the forum as well.
Is dengfu still selling the E10
I spent a bunch of time scouring their website, and I don’t see the E10. The closest thing I am able to find is on the Ican website - Ican E11 which is similar with a vertically mounted shock. Can anyone provide a working URL? I have done 4 China frame builds using frames from TanTan Cycles...
www.emtbforums.com
Dengfu's new salesperson
I am the salesperson of dengfu. I registered an account to participate in order to learn more about the usage of some products. At the same time, on the premise of not affecting everyone's discussion, put out some hot-selling product information. May post a separate post with product information...
www.emtbforums.com
It’s not too difficult for most, but you’ll need to do your own research. There are numerous build threads on the forum, as well as youtube etc videos out there..
Last edited:
SchadowMaster
Member
Was the power consumption constant above 550W?
SchadowMaster
Member
thaeber
Well-known member
If You ride 1h, its 550 Wh!
SchadowMaster
Member
You got me wrong! I'm talking about watts, not watt-hours. There is a difference between them.If You ride 1h, its 550 Wh!
During heavy load on the motor the amp goes up to 11 this means:
11 × 48 = 528 watt
When this amount of watts is consumed for 5-10 minutes, the motor overheats and its performance decreases, at least that's what happens with my engine.
On what firmware are you?
i think i have similar observations but i had no clue because i observed this rarely.
At least we know we can push amps and engine have temp protection - thats good news.
Last edited:
SchadowMaster
Member
I use 12A Frimware (CRX10NC4812i142015.5)
Exactly when the motor heats up, the protection works to not allow the current draw to rise. This would also prevent more heat.
But this is my problem with this engine, that it cannot withstand working under high pressure for a long time, but i think this problem has been solved with the new motor M510.
SchadowMaster
Member
Wiche Dengfu frame size should i choose?
S 15"
M 17"
L 19"
Is matt or glossy better?
I'm 177 cm tall
S 15"
M 17"
L 19"
Is matt or glossy better?
I'm 177 cm tall
Probably the Medium. I’m 183cm with a Medium frame. Realistically I could have gone Large but wanted my wife to occasionally use it. YMMV as usual, but at 177cm I’d wager a Med frame E10 would fit well.
Matte finish will pick up and ‘hold’ dirt easier, while the gloss should clean up easier. Personal choice, really.
SchadowMaster
Member
djol
Member
I’m also 183cm and went with a Large E10 (still on its way). Also gloss finish, as I’m happy not to need to paint at the start. (I have also seen on the forums a few people 183+ cm who are happy with XL size.)
To order, compile list of what you want to order (frame, motor, battery, wheelset, other parts…) and email Melody ([email protected]) for quote. After confirming shipping etc., you can then pay with PayPal.
The most important thing is to do some deep research through various threads here covering other people’s builds, and compile list of what you need. It will be a much smoother ordering process if you are 99% sure of what you want to order from Dengfu.
To order, compile list of what you want to order (frame, motor, battery, wheelset, other parts…) and email Melody ([email protected]) for quote. After confirming shipping etc., you can then pay with PayPal.
The most important thing is to do some deep research through various threads here covering other people’s builds, and compile list of what you need. It will be a much smoother ordering process if you are 99% sure of what you want to order from Dengfu.
i noticed something simiar on 15A and 18A (46.7) firmwares from M600.
Have you noticed that on 15.8 13A from M500?
i may be wrong but i have a feeling on 13A 15.8 had no such effect - worth testing.
thaeber
Well-known member
I‘m 183 cm and have a L frame. Perfect for me. I would choose M frame for You!
SchadowMaster
Member
Thanks for the great tips!I’m also 183cm and went with a Large E10 (still on its way). Also gloss finish, as I’m happy not to need to paint at the start. (I have also seen on the forums a few people 183+ cm who are happy with XL size.)
To order, compile list of what you want to order (frame, motor, battery, wheelset, other parts…) and email Melody ([email protected]) for quote. After confirming shipping etc., you can then pay with PayPal.
The most important thing is to do some deep research through various threads here covering other people’s builds, and compile list of what you need. It will be a much smoother ordering process if you are 99% sure of what you want to order from Dengfu.
Do you know if they sell bafang m510 motor?
I will definitely email them when my list is complete.
SchadowMaster
Member
Thanks, I think I'll choose the medium size.
SchadowMaster
Member
The problem with 13A Firmware is that you feel there is resistance and you need more muscle strength to cycle.
Maybe 13 A a little stronger than 12 A, but the resistance itself is present, and it takes more muscular effort to get this increase in electrical energy.
It didn't suit me so I haven't tested it for a long time. I don't know if there are heat issues.
SchadowMaster
Member
Wich chainring size do you use 32T or 40T or other size?
Do you use 27.5 or 29 wheels?
Do you use 27.5 or 29 wheels?
Last edited:
SchadowMaster
Member
Great I will also choose the same size
I have another question, can you touch the ground with your feet when the saddle is at the lowest point?
captainhightop
Active member
Just adding my experience:
I'm 178cm and L was too big
M was in the Goldilocks zone for me - just right! With a dropper at its lowest I can easily put both feet on the floor. I've got fairly short legs (30inch inside leg).
36T is pretty good for chainring for me, but I like spinning the cranks quite fast (around 95 cadence).
I'm 178cm and L was too big
M was in the Goldilocks zone for me - just right! With a dropper at its lowest I can easily put both feet on the floor. I've got fairly short legs (30inch inside leg).
36T is pretty good for chainring for me, but I like spinning the cranks quite fast (around 95 cadence).
SchadowMaster
Member
Thanks for sharing your experience with us.
What is your bike's wheel size?
Yes, no problem.Great I will also choose the same size
I have another question, can you touch the ground with your feet when the saddle is at the lowest point?
captainhightop
Active member
27.5 in wheels with 2.8in tyres on both front and back
