Rail (750Wh) Trek rail 9.8 2022 Crank arm removal

[Rip7]

Hi I'm trying to remove the crank arm off my 2022 gen4 9.8 gx so I can tighten up the chainring lock ring as its come loose I got the spider tool but which tool do I need to remove crank arm I'm in the UK if any links to one
Cheers



[Paulquattro]

Picture would help but ,
Some are self extracting
if you have what looks like a big and little allen bolt the inner bolt just comes undone and pulls the crank arm as you undo it ,
If you only have a single allen bolt then you need an extraction tool like in the link below

Crank Puller Removal Tool Bicycle Arm Extractor Pedal Road MTB Mountain Bike | eBay

Effective Crank Removal: The LUPO Crank Removal Tool is designed for optimal functionality. Start by removing the crank arm bolt using a spanner, then attach the tool and tighten the lower black section into the crank.

www.ebay.co.uk



[Rip7]

I already have that one it doesn't work as the middle of Crank is hollow the that tool as nothing to push against



[fasterjason]

I already have that one it doesn't work as the middle of Crank is hollow the that tool as nothing to push against

Some of those style crank pullers have two ends for different spindles. The small diameter end is for older square taper bottom brackets, and the large diameter end is for spline spindles.

If your tool only has the small size you can use an insert such as the shimano TL FC-15, or you can improvise with an appropriately sized low-profile bolt (choose one that won't push into the internal threads) or maybe a coin of the correct diameter (the TL FC-15 is 16.5mm).

The E-13 cranks on the Rail 9.8 are 6000 Al and pretty soft. I find that they come off pretty easy.



[Rip7]

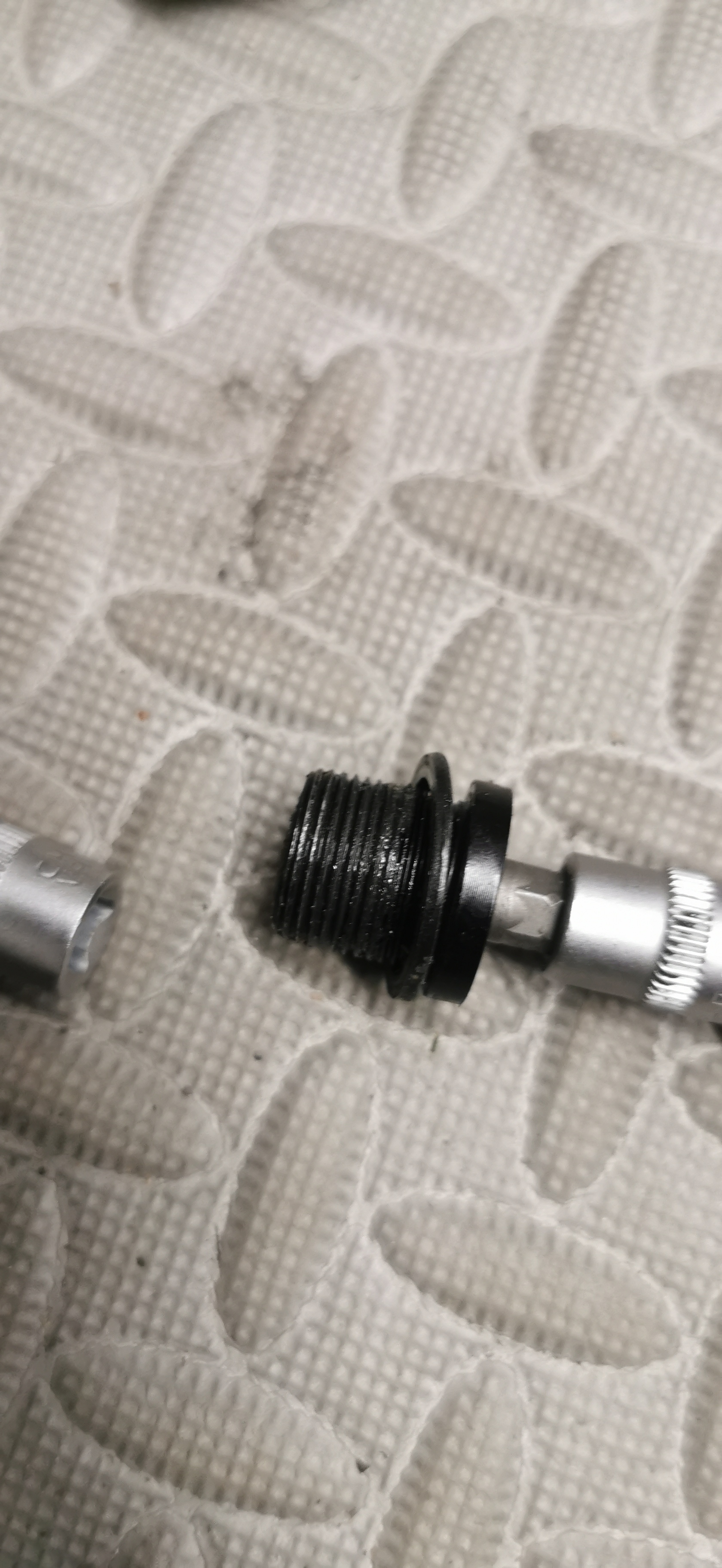

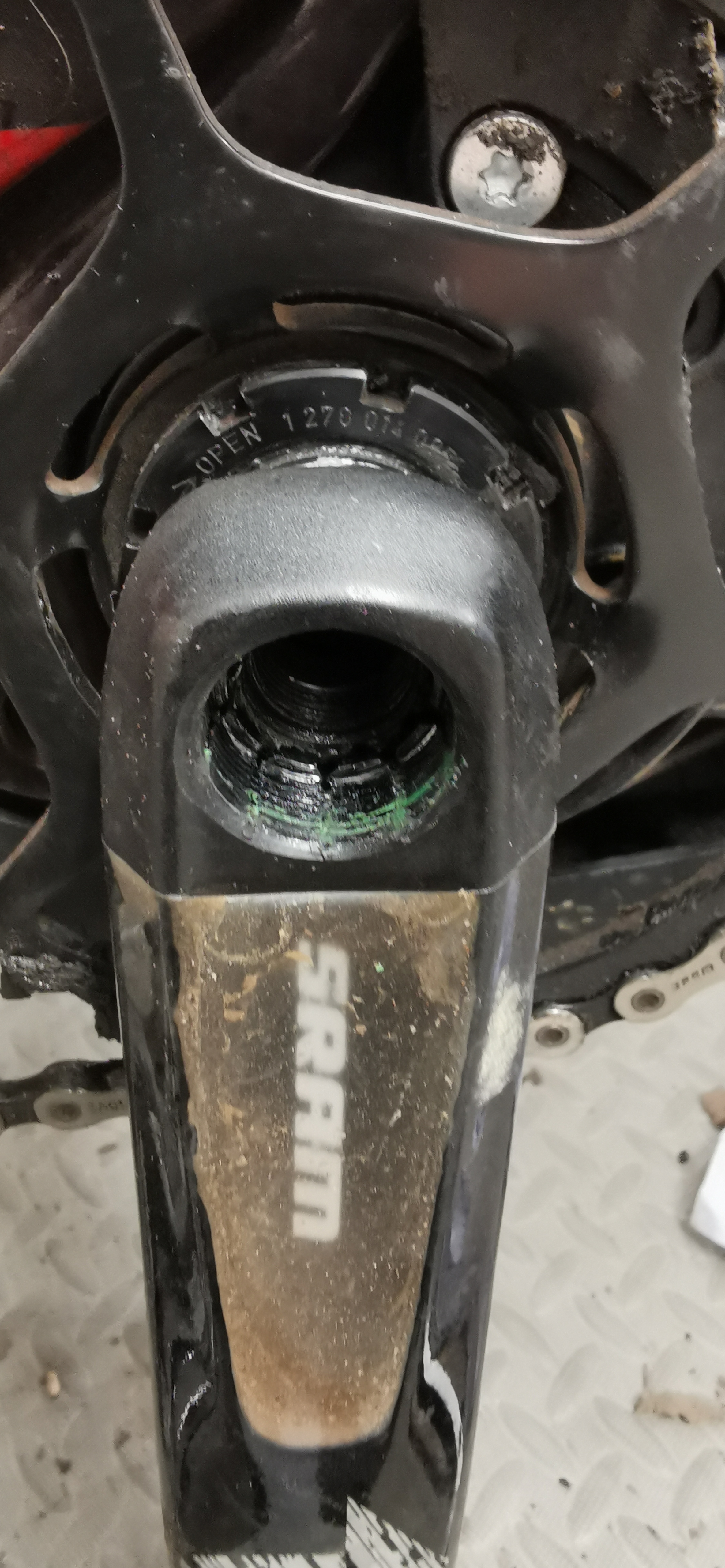

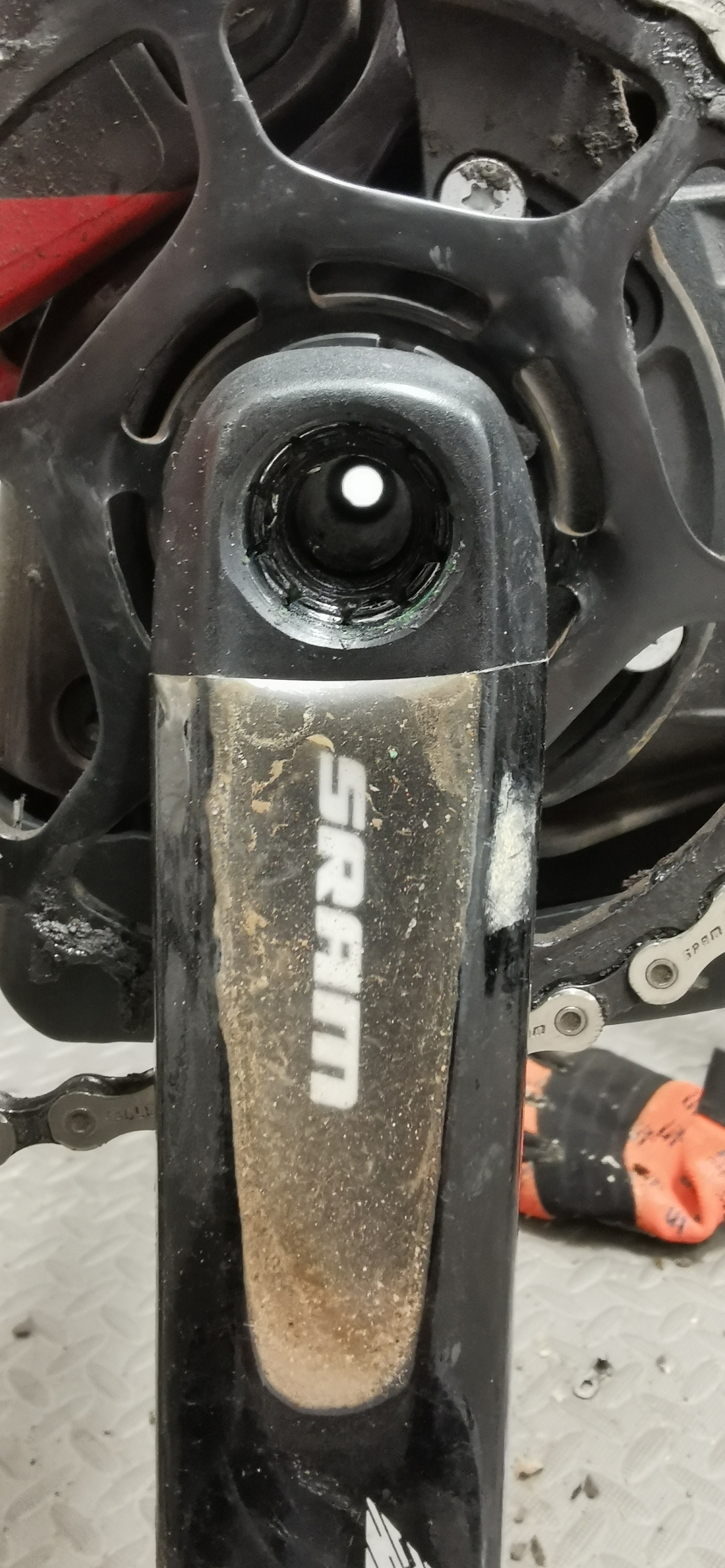

This it what the crank looks like



[Stihldog]

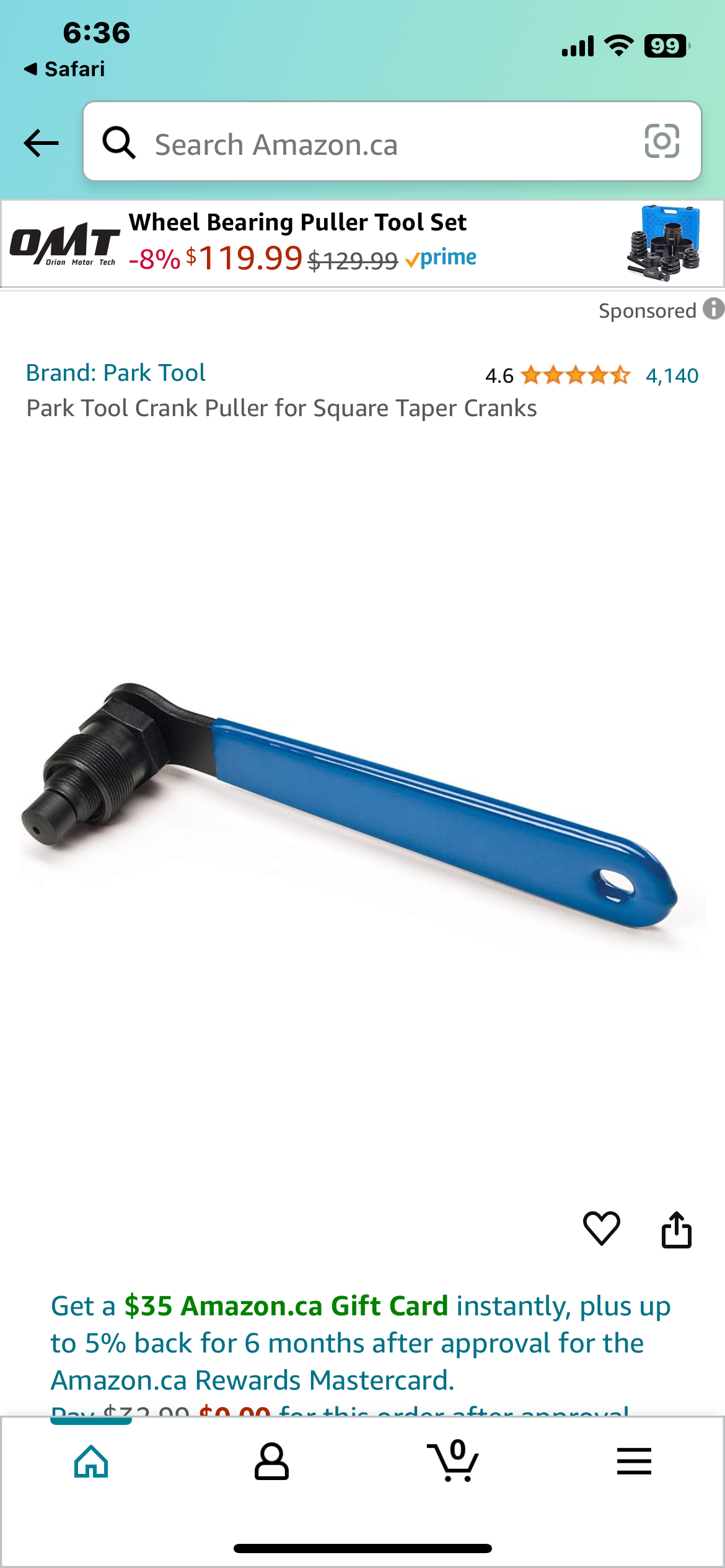

You probably got the crank-arm off by now (using the biggest hammer you can find) but I found these useful.



[Rip7]

Not yet rather use the right tool but still not sure which is right one my bike as sram crank arms from standard



[fasterjason]

Not yet rather use the right tool but still not sure which is right one my bike as sram crank arms from standard

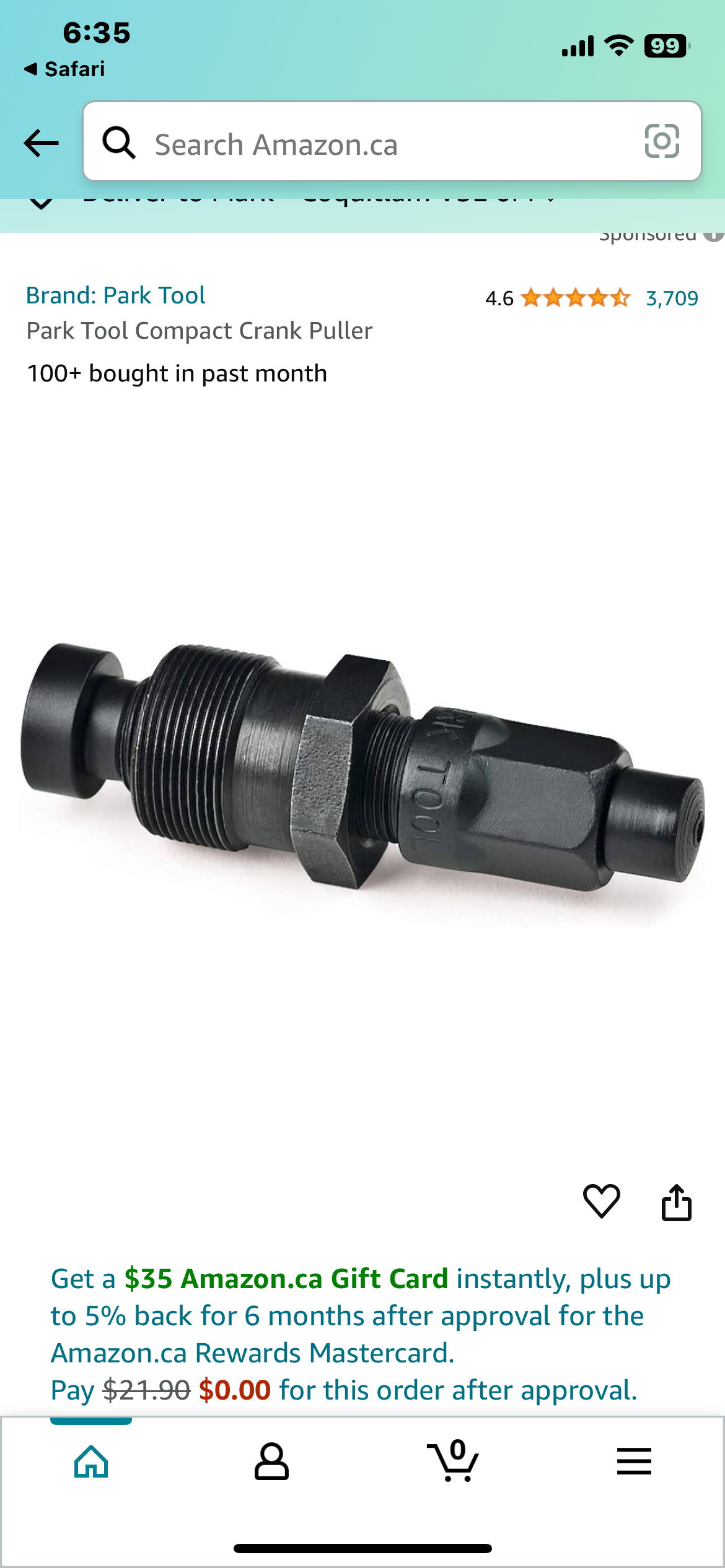

If you already have the puller for square taper, then buy the shimano TL FC-15. If you don't have a puller, then buy the Park Tool compact crank puller pictured above, it will work with spline cranks (what you have) and square taper.



[Rip7]

OK thx for your help I order that
Cheers
Paul
