Rail (625Wh) How to access the cables behind the alignment plate

[Haptic]

Hi, I have a Rail 7 (2022 model) which came with the battery alignment plate. I want to replace the seat post clamp so I need to lift the dropper post out of the tube so I can slide the clamp out sideways through the cable. To do this, I need to loosen the cables brackets so I can get enough slack in the dropper cable to lift the post up and out of the tube. Question is, how do I access the cables brackets behind the alignment plate? Do I really need to take the whole thing off?



[irie]

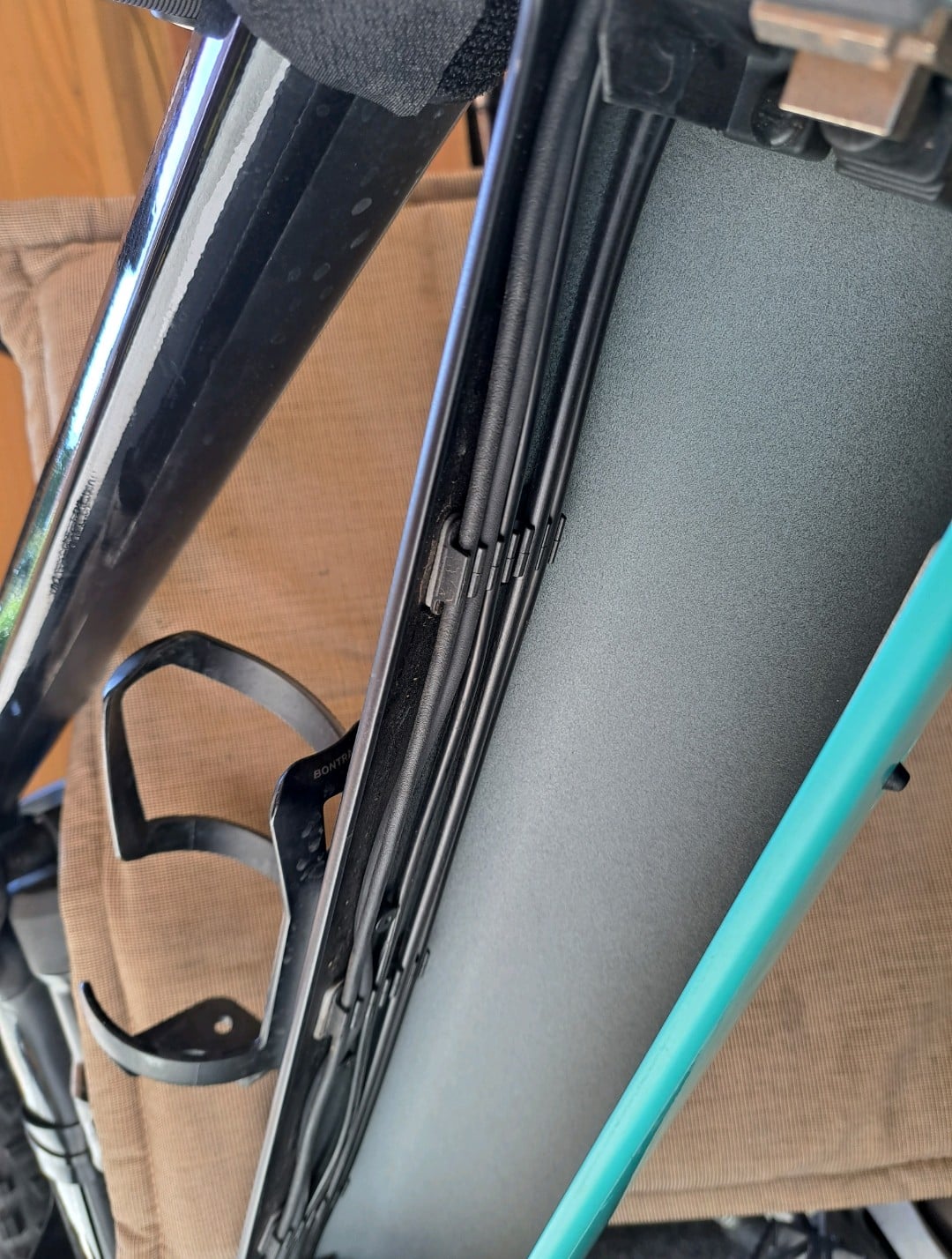

On my January 2022 Rail 5 (500Wh) the cables are on the opposite side of the battery alignment plate (which is fitted to the lower side).

(The bike was supplied by Blazing Bikes in Shropshire, UK).



[Haptic]

Thanks, this looks like a more convenient setup.



[Paulquattro]

On my January 2022 Rail 5 (500Wh) the cables are on the opposite side of the battery alignment plate (which is fitted to the lower side).

(The bike was supplied by Blazing Bikes in Shropshire, UK).

View attachment 97737

It must be a 2022 update my cables are in the same place too above the battery .
