Giant Reign 2022 first problem

[Redlemon]

21 years without washing a bike, i just wipe off the excess.
I save time
I save issues

Worst advice ever, a bike must be cleaned after each ride if possible.

A dirty bike is not a fast bike...wash it carefully and there will be no issues.



[Polaris]

Worst advice ever, a bike must be cleaned after each ride if possible.

A dirty bike is not a fast bike...wash it carefully and there will be no issues.

Wash, dry, lube repeat



[1oldfart]

Worst advice ever, a bike must be cleaned after each ride if possible.

A dirty bike is not a fast bike...wash it carefully and there will be no issues.

I ride twice a day i am not wasting time and my bikes rarely see the shop.
My way works for me so i stick with it.
I would have no time to eat.



[Letford]

21 years without washing a bike, i just wipe off the excess.
I save time
I save issues

Living and riding in the UK this wouldn’t be fun..



[Polaris]

Living and riding in the UK this wouldn’t be fun..

Agree. dude obviously doesn’t live in the UK or those two rides a day are a gentle urban commute and not through the bogs I usually ride through weekly. You’re not towling my bike down after those rides I can assure you. Even the jet wash struggles!



[Mikerb]

I guess it depends where in the UK. I live on the south coast and the forest trails I ride are sandy/loamy soil rather than clay. So I never wash my bike. I leave it to dry....which it usually has by the time I get home in the van.........and use soft and hard bristle brushes to brush off the dirt, then wipe over with a damp cloth, then spray every now and then with silicon shine. My bikes are kept in the house so they have to be clean before bringing them in.
In the end its a bit like polishing a tu#d since the frame is covered in plastic ( invisiframe).........I wish it was not but it was done before I bought the bike. Never invisiframed my other bikes, just used a kit to protect the few obvious areas of potential damage from the chain or tyres.....so I could actually polish/protect the paint finish which looked heaps better!!



[cappuccino34]



[cappuccino34]

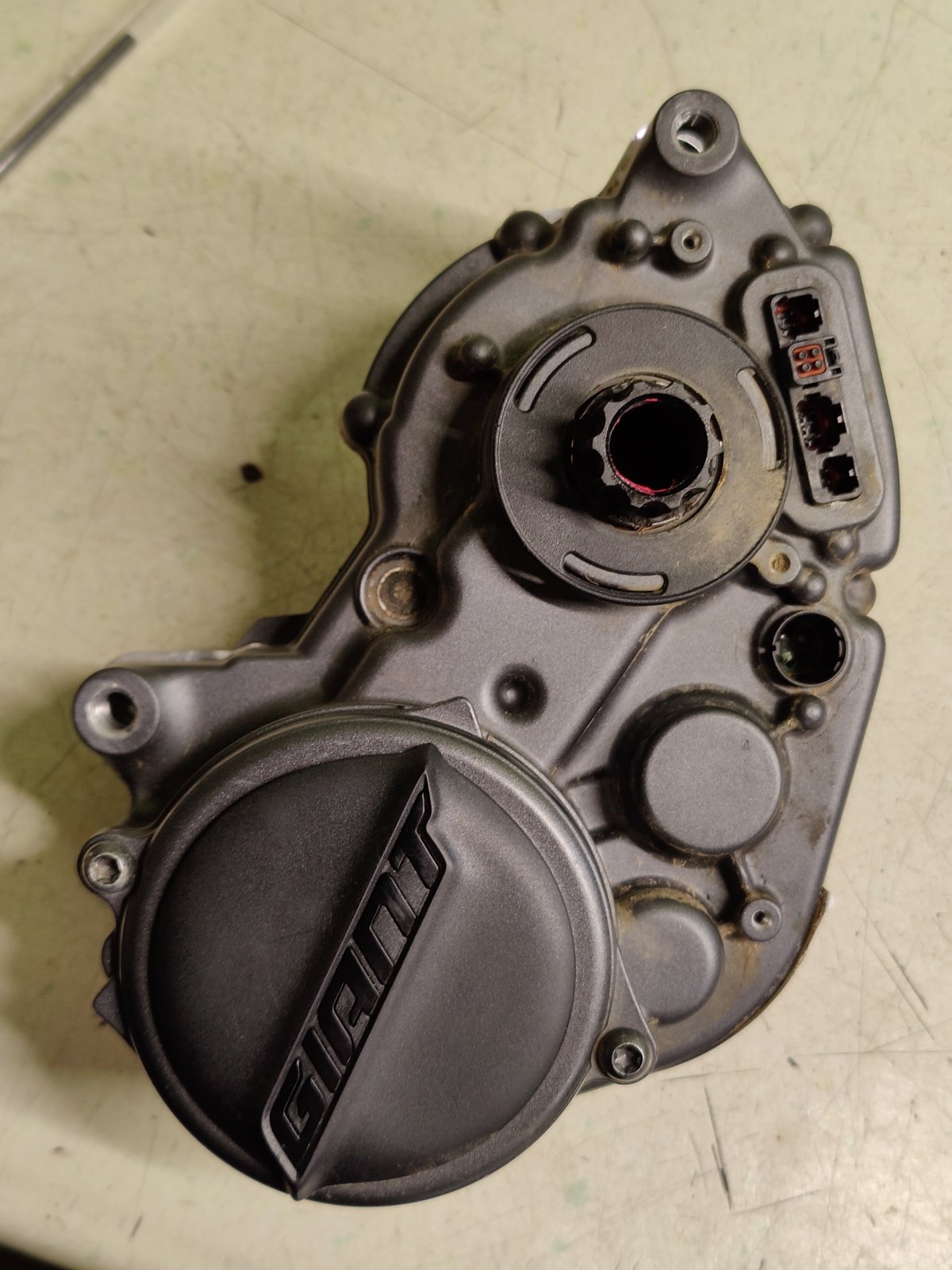

New PWX-3.

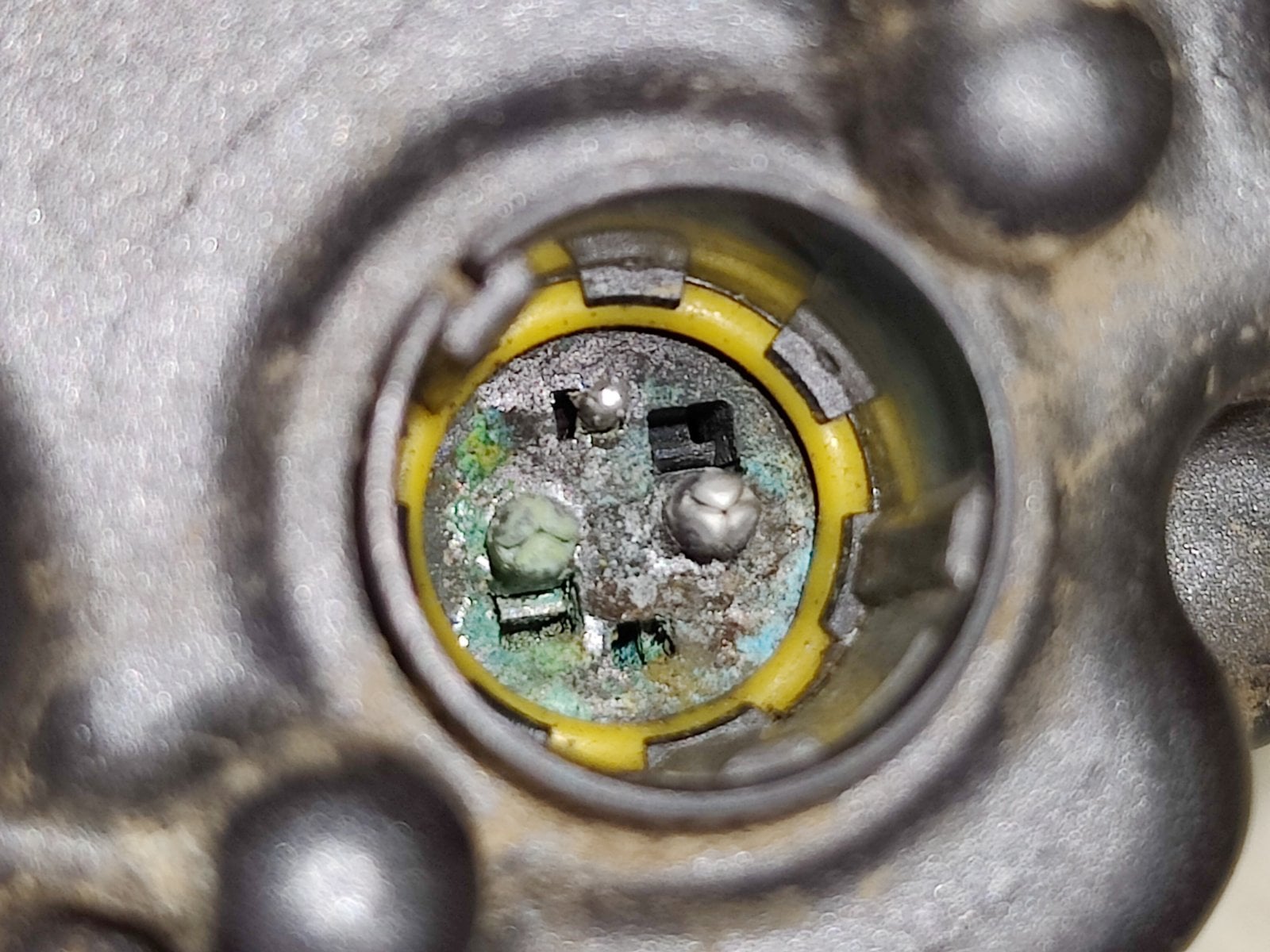

Same old problems with water ingress except that now the connector is part of the PCB and can't be replaced.



[cappuccino34]



[Polaris]

View attachment 84453

How many miles bud? Shocking news this



[cappuccino34]

Very few.
Not been jetwashed either.
Not sure yet if the connector O-ring has allowed it in, if has got in via the wire grommets, if it's capillaried in through the wire itself from an outside connector or if it's got into the motor through a bearing or the vent and just corroded the power connector because it's at the bottom of the motor.

Trouble is, they won't allow us to pull it apart to find out, and their solution is to "clean the contact and return the bike to the customer", which is going to work for what, a week at best.

This isn't just a Yamaha/Giant issue, all motors have water ingress issues.

I'm working on a solution for all compatible motors, maybe to offer a conversion kit in time.
I Can't divulge too much information because I might patent the idea yet. It's not actually a new idea, it's a new application of an old idea.



[Polaris]

Very few.
Not been jetwashed either.
Not sure yet if the connector O-ring has allowed it in, if has got in via the wire grommets, if it's capillaried in through the wire itself from an outside connector or if it's got into the motor through a bearing or the vent and just corroded the power connector because it's at the bottom of the motor.

Trouble is, they won't allow us to pull it apart to find out, and their solution is to "clean the contact and return the bike to the customer", which is going to work for what, a week at best.

This isn't just a Yamaha/Giant issue, all motors have water ingress issues.

I'm working on a solution for all compatible motors, maybe to offer a conversion kit in time.
I Can't divulge too much information because I might patent the idea yet. It's not actually a new idea, it's a new application of an old idea.

I’ve been riding Bosch and shimano EMTB’s in boggy Lancashire UK for years now, jet washed after ever ride with no issues st all. This Yamaha motor would melt



[Letford]

I had no idea they were this bad, I ride all year round and had so many issues with my Levo and water ingress was kind of hoping the Giant would be a lot better.



[Rickster]

Hmmm it looks like perhaps the motor was underwater for a bit… do you ride through creeks or water at all ?



[cappuccino34]

I’ve been riding Bosch and shimano EMTB’s in boggy Lancashire UK for years now, jet washed after ever ride with no issues st all. This Yamaha motor would melt

All motors give trouble here (in boggy Lancashire)
Shimano, Bosch, Brose, Yamaha. Etc etc.

I've yet to see a broken Poilini though, but given the I've only seen two of them and I own one of those two, I hope not to see any. :-D



[cappuccino34]

Hmmm it looks like perhaps the motor was underwater for a bit… do you ride through creeks or water at all ?

It just rain here, a lot. The dirt is mostly abrasive too so everything gets killed.

Bike and motor manufacturers should come here to test and develop stuff, not California and the Algarve. Shimano came here once because they couldn't believe the wear rates on mechanical stuff, and their visit directly led to them making changes to improve durability.



[Acmac999]

Very few.
Not been jetwashed either.
Not sure yet if the connector O-ring has allowed it in, if has got in via the wire grommets, if it's capillaried in through the wire itself from an outside connector or if it's got into the motor through a bearing or the vent and just corroded the power connector because it's at the bottom of the motor.

Trouble is, they won't allow us to pull it apart to find out, and their solution is to "clean the contact and return the bike to the customer", which is going to work for what, a week at best.

This isn't just a Yamaha/Giant issue, all motors have water ingress issues.

I'm working on a solution for all compatible motors, maybe to offer a conversion kit in time.
I Can't divulge too much information because I might patent the idea yet. It's not actually a new idea, it's a new application of an old idea.

Is there any grease application needed for a new bike to help keep the water out? Or not effective…



[cappuccino34]

Is there any grease application needed for a new bike to help keep the water out? Or not effective…

Just a little silicone grease on the seals but avoid getting it on the contacts. I often use a cotton bud with grease on just one side and keep the dry side towards the contacts.



[John Cap]

perhaps a good practice would be to add some touches of dielectric grease on contacts, connectors, etc on these bikes, before getting them out



[cappuccino34]

Absolutely not, dielectric grease is an insulator.



[Rickster]

Absolutely not, dielectric grease is an insulator.

Err maybe there’s a lot more to it then that…

“Contrary toInternet rumors, advertisements, and articles low viscosity silicone dielectric grease will NOT insulate pressure connections. Silicone dielectric grease will prolong connection life as well as, and have just as good conduction performance, as a properly selected metallic powder grease (conductive grease). On the other hand, and improperly selected "conductive" grease can actually cause connection problems.”
Complete article, Dielectric Grease vs Conductive Grease



[cappuccino34]

You use it if you want to.

You're not allowed to use it in aircraft, is what I know, because they crash and people die when things don't work properly.

I'll take aircraft engineers over turntable engineers.



[Evolution Stu]

You're not allowed to use it in aircraft.

Add motorsport engineeers to that. We wont go near the stuff on low voltage connectors as a rule.
We use it in super high voltage shunts where we need to stop it tracking though, which, incidentally, is what the stuff was originally developed for.

A solution was needed to stop HT volage tracking down plug leads when engine blocks got wet and this stuff came about from that. I recall Lucas OIls were one of the first to come up with this easy to fit solution that allowed you to coat the lower innards of the spark plug boots and solve the issue. It eventually became known as "Tune Up grease" in the industry as we painted it onto HT lead innards during a tune up.

Anyway...
Dielectric grease is absolutely an insulator / waterproofer but it should certainly be noted that it can still work in good electrical contacts because the spring pressure from the contact wiper drives it out upon connection, so essentially removes your error for you. The contact patch should remain grease free and still work as lots of E-Bike owers will have proven.

Try it again in a few years time when the connectors have lost their tension though and see how the connection fares with a dielectric material between the contact points.

If you want to use a quality electrical grease, I personally first clean with Electrolube CGS (Strips) and then lubricate with Electrolube CG70. You wont find better.



[Evolution Stu]

View attachment 84452

Unbelievable. I dont understand why this is still such an issue.
I take apart ABS connectors near vehicle wheels regularly that have been there in the muck and rain for 20 years and they are fine inside. Yamaha, have reliable, ultra high speed motorcycles.

Why cant we make a low speed bicycle waterproof?



[Rickster]

If something doesn’t make sense it’s usually money related… E mountain bikes are a fairly new tech that is moving along at an amazing pace, it’s just a matter of time before we will all be running snorkels



[pwiles1968]

Just an update on this. The bike shop fixed the not powering down issue. Now it has a new fault where intermittently when I power up the bike the display will fully illuminate both rows of lights and no motor assistance is available. It will stay like this until I pull the battery. So it's back in the bike shop.

Did you get the bottom of this issue my bike has just started doing this.



[Goughy75]

Did you get the bottom of this issue my bike has just started doing this.

It was a loose battery. When I tightened up the battery I didn't let it tighten until you hear the ratchet. That in combination with some water ingress around where the battery connects to the motor.



[Nobrks]

The TCU on the Specialized Levo...also on the top tube like the Reign...........always caused water ingress issues unless properly protected. I do not know the design on the Reign, but on the Levo the TCU also had a USB port sealed with a rubber plug. If that rubber plug was not pushed home fully it provided easy access for water ingress. Secondly the TCU is constructed of an upper and lower section. The seam between the upper and lower section was not waterproof. Thirdly the TCU had a "tail" of wires connected in the back that then were connected to the controller and down to the connections on the motor. Those connections were not water tight.
On most if not all bike frames the connection of the top tube to the headtube is open, meaning any water getting into the headtube either from a bove or below ( below being wide open if you wash the bike with it upside down on the bars) can pass straight into the top tube.
Then there is a matter of how well the TCU ( Reign on/off/battery display) is sealed against the top tube.....not at all is my guess!. any water from directly a bove, like rain, will likely be kept out but any water hitting it sideways, like a hose when washing the bike, will not!!

Phew! So what is the answer? On my Levo I removed the TCU and completely wrapped it in amalgamating tape. I similarly wrapped the connectors coming from the TCU. I then used "liquid gasket" to create a seal between the TCU and the frame. ( If you apply a thin layer of grease on the top tube sruface first the liquid gasket will only adhere to the bottom of the TCU/Reign display so it can be removed when required). I also used frame protector to stick across the bottom of the headtube.

I never had any water related problems with those modifications.

The issue with the giant controller design, is that they have mechanical load on thin transpatent plastic, in the assembly.
It separes or cracks if you pu some lod on, like from cables below or using to much force when removing it
I have glued mine twice.



[On.Works]

Just an update on this. The bike shop fixed the not powering down issue. Now it has a new fault where intermittently when I power up the bike the display will fully illuminate both rows of lights and no motor assistance is available. It will stay like this until I pull the battery. So it's back in the bike shop.

Did you get a solution or determine what causes both rows of LEDs to be fully illuminated white with no power to motor and unable to switch off? I have the same issue start today but pulling battery does not solve it. The issue persists.



[shep]

Did you get a solution or determine what causes both rows of LEDs to be fully illuminated white with no power to motor and unable to switch off? I have the same issue start today but pulling battery does not solve it. The issue persists.

Its giant....
