Levo Gen 3 Fitting Hope Tech 4 V4 brakes on Turbo Levo

[steeley]

Hiya, i hope some one can help me with a query i have.
I wish to upgrade my current Sram Code brakes that came stock with my 2022 Turbo Levo comp but a little concerned with the amount of work required to change the rear brake, my local cycle shop who have done lots of my upgrades have said its a real tricky job and the motor/battery would need to be dropped out, they have said its 4+ hours work so will cost almost as much to fit as one of the brake calipers them self, is this correct and have any of you also had this issue?

Many thanks for any help any of you can offer.

A friend of mine had his blown motor changed, SRAM brakes removed and Hope V4 brakes, discs & cranks installed at Berkshire cycles while we went across the road to a cafe for breakfast. In less than an hour and a half they called him to say the bike was ready ! I'd find yourself another bike shop.



[Spangoolies]

Yes, that's a week spot. Try to pull or push braided hose through the liner of a 2019th Stumpjumper was not possible here.
Standard hose went through. Maybe of the old liner or the higher friction of the braided hose material.

Braided hose is thicker



[sluette]

Braided hose is thicker

Both hoses meanwhile have 5mm diameter. Braided had 6mm, but this is long time ago.



[Binhill1]

I upgraded mine when I bought Levo Expert it took Berkshire cycles about an hour and a half max to put on Hope V4 brakes and Fox 36 forks .



[Hicksy 92]

Definitely worth doing, one of my best things I’ve changed on my bike



[Stoneilove]

Definitely worth doing, one of my best things I’ve changed on my bike

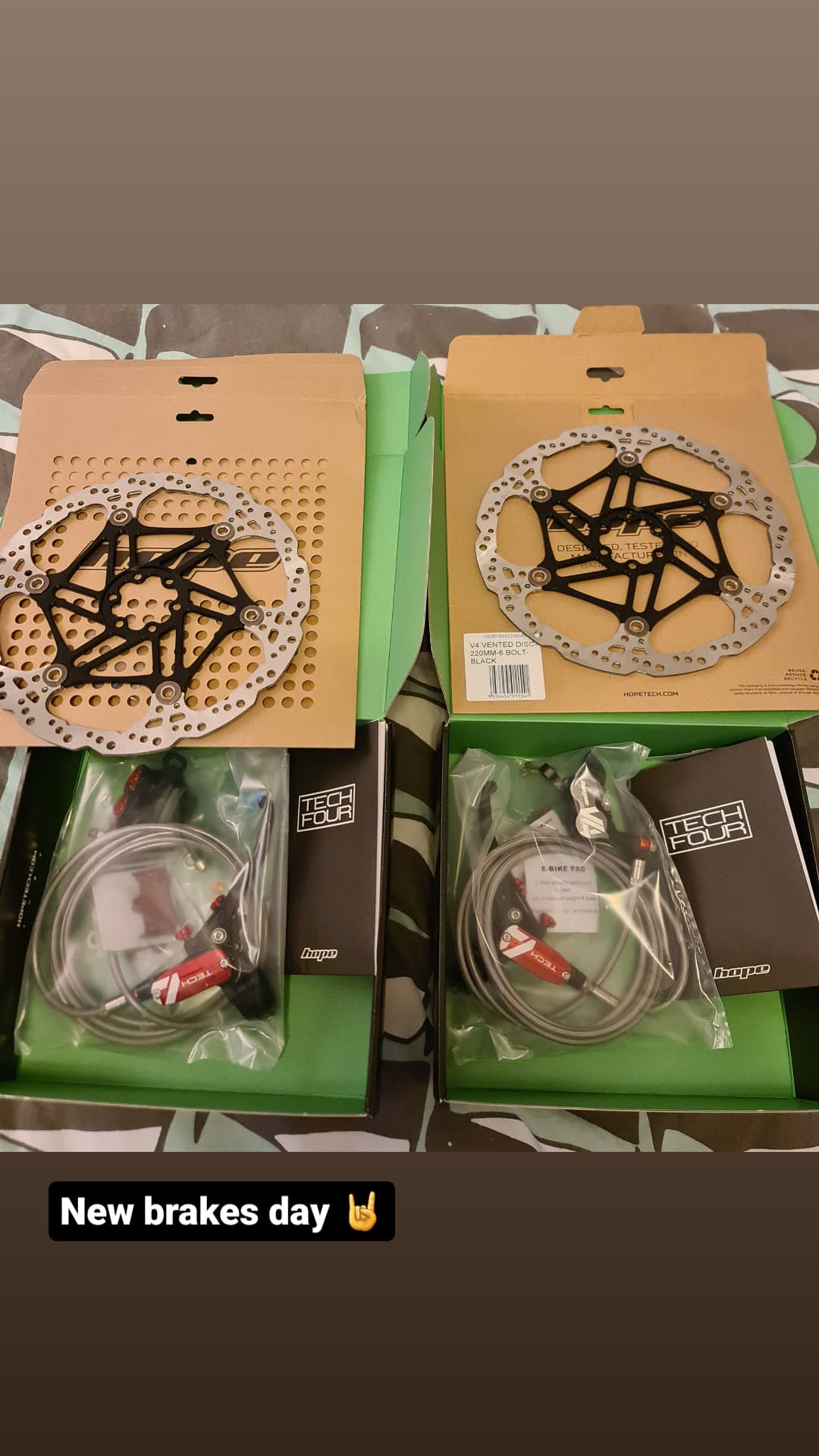

Brakes and rotors arrived yesterday, thanks to a recommendation on here ita all booked in to get fitted this Tuesday, can't wait



[super_claret]

Brakes and rotors arrived yesterday, thanks to a recommendation on here ita all booked in to get fitted this Tuesday, can't wait

I bought the same brakes for my Levo but not fit them yet. Did the bike shop have to use different brackets for the callipers? I bought some new wheels along with Hope floating rotors but they would not work with the Code brakes, as the rivets caught the mounting brackets. I was told that I wouldn't have any issues if I fit the Hope brakes?

Interested to hear what brackets the bike shop used ?



[Stoneilove]

I bought the same brakes for my Levo but not fit them yet. Did the bike shop have to use different brackets for the callipers? I bought some new wheels along with Hope floating rotors but they would not work with the Code brakes, as the rivets caught the mounting brackets. I was told that I wouldn't have any issues if I fit the Hope brakes?

Interested to hear what brackets the bike shop used ?

Hiya, mine arrived today, I will certainly need new rear mount as I've gone 220 on the rear too. I'm taking it in to get fitted tomorrow and hopefully collecting weds, I'll let you know but pretty sure it's just the hope mounts.



[Hicksy 92]

I bought the same brakes for my Levo but not fit them yet. Did the bike shop have to use different brackets for the callipers? I bought some new wheels along with Hope floating rotors but they would not work with the Code brakes, as the rivets caught the mounting brackets. I was told that I wouldn't have any issues if I fit the Hope brakes?

Interested to hear what brackets the bike shop used ?

I’ve had new calliper mounts fitted to mine



[Hicksy 92]

Hiya, mine arrived today, I will certainly need new rear mount as I've gone 220 on the rear too. I'm taking it in to get fitted tomorrow and hopefully collecting weds, I'll let you know but pretty sure it's just the hope mounts. View attachment 106637

Nice same colour as mine



[James_C]

Levos are fully sleeved for hoses and cable from the head tube to the rear stay. No motor drop required. One slides out and the other slides in. Use a hose joiner if you're unsure but I didn't even need that. I just plugged the hose with a spoke nipple so I wouldn't need to do a full bleed.

Gordon

exactly this. Just done it last week on mine.

The bleed will take a while from empty. I did a main bleed then moved the bike into diff positions including upright overnight in a steadyrack. Then a couple more lever bleeds to get a rock hard lever feel.



[Stoneilove]

Nice same colour as mine

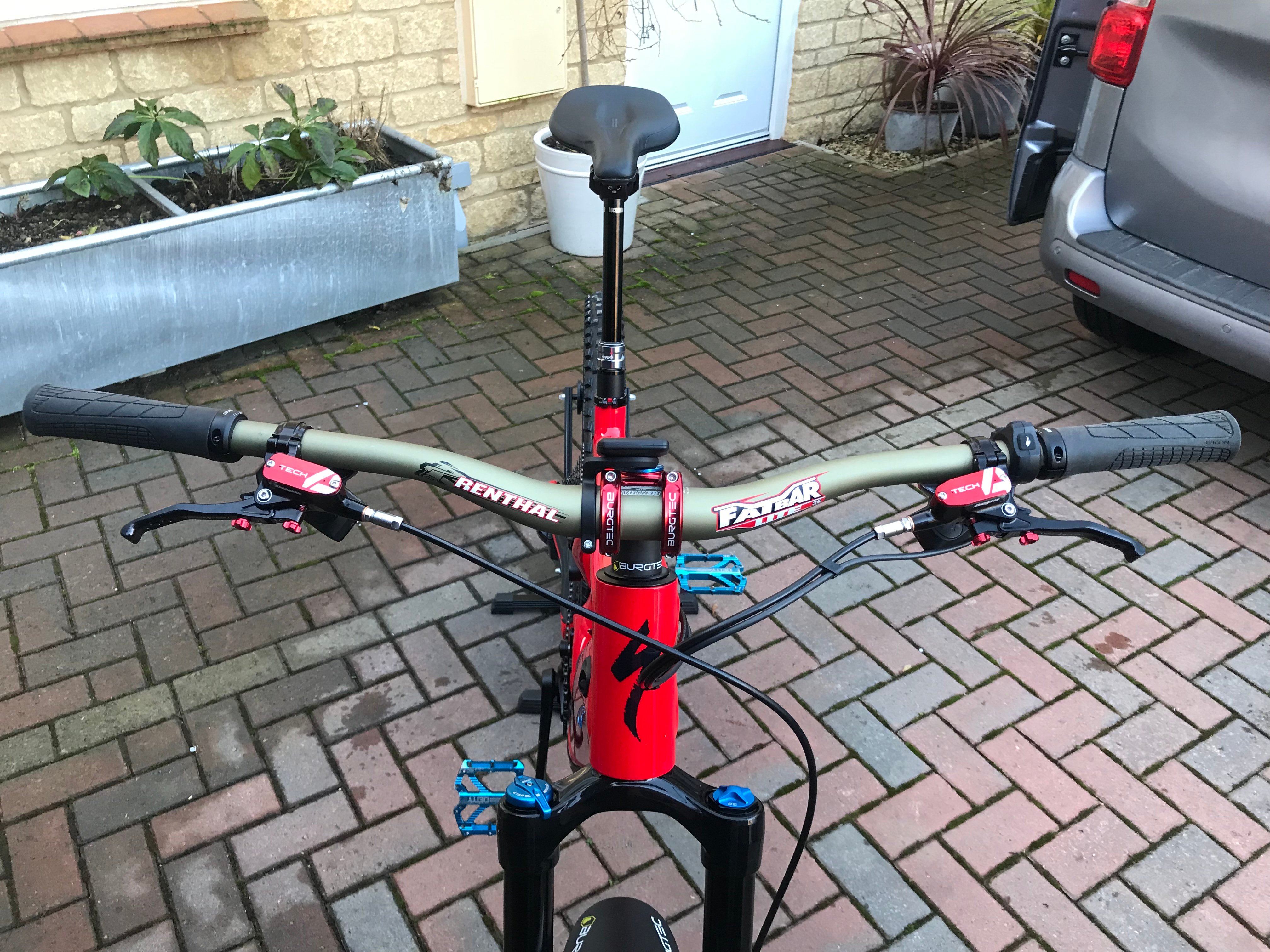

View attachment 106643

Which stock brakes did you get on yours mate. I had Sram Code R 220/203. My Tech 4 v4 220/220 is currently being installed I guess i am in for a big improvment on steep downhills



[Stoneilove]

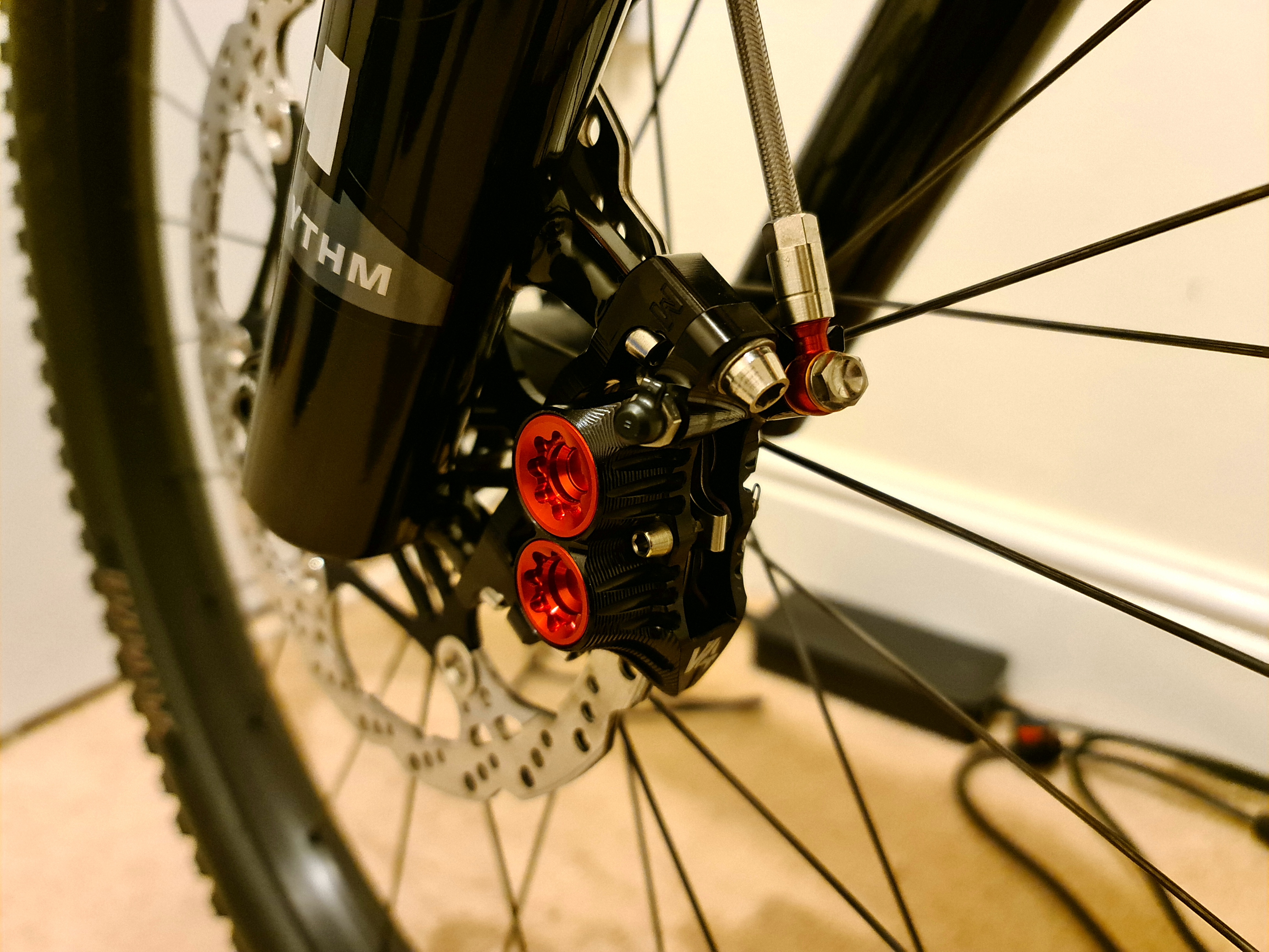

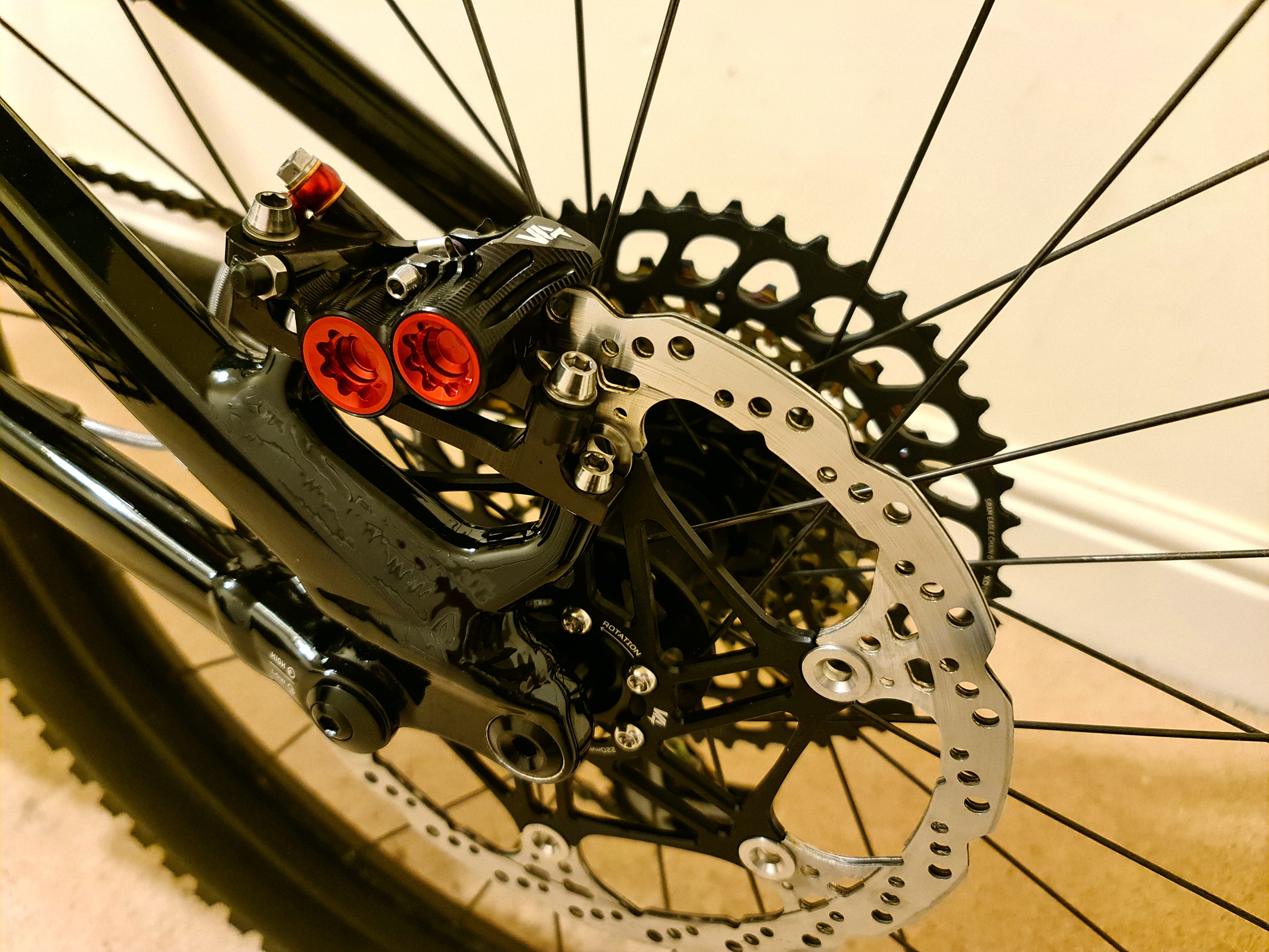

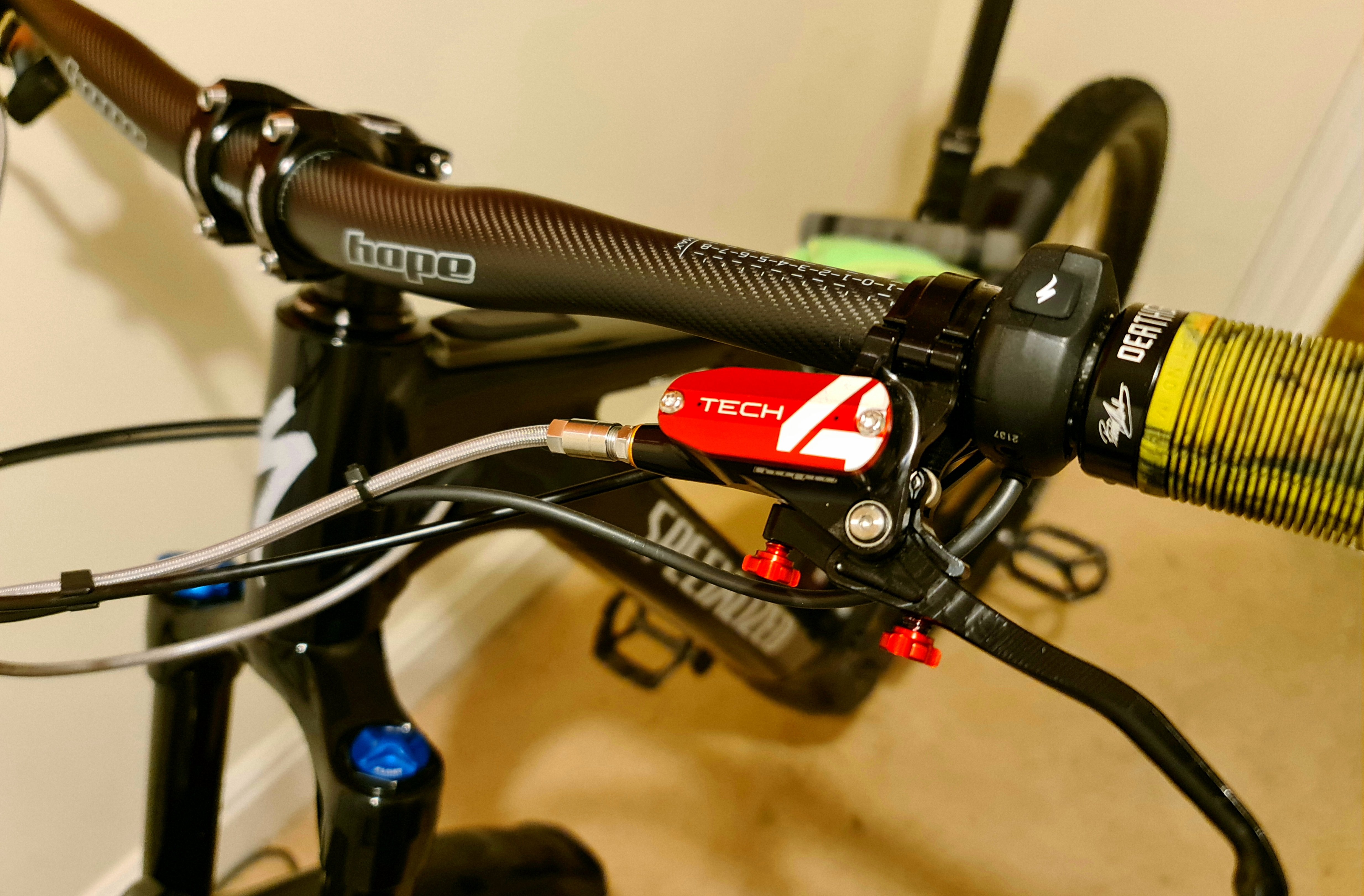

Just a quick update, brakes got fitted with no issues, great service from Slam69 and also picked up some F22 pedals whilst there.
Did a 8 mile ride to get them bedded in, feel night and day compared to the Code R.



[2wheeledwalbert]

Just a quick update, brakes got fitted with no issues, great service from Slam69 and also picked up some F22 pedals whilst there.
Did a 8 mile ride to get them bedded in, feel night and day compared to the Code R. View attachment 106814 View attachment 106815 View attachment 106816

Very nice good shop isn't it?



[Stoneilove]

Very nice good shop isn't it?

Top shop, thanks alot for recommendation, I'll be using again next week



[2wheeledwalbert]

Top shop, thanks alot for recommendation, I'll be using again next week

Haha fair play



[Binhill1]

Used hopes for last 15 years never had any problems. Seem to need a lot more TLC on.my ebike . I know I am deeing a lot more miles but seems more sticking pistons etc.



[Stoneilove]

Used hopes for last 15 years never had any problems. Seem to need a lot more TLC on.my ebike . I know I am deeing a lot more miles but seems more sticking pistons etc.

Yeah same here they have always been my go to brand, i love the fact parts are easy to get hold of incase of issues and love the fact there made in the uk.
