Hi Guys,

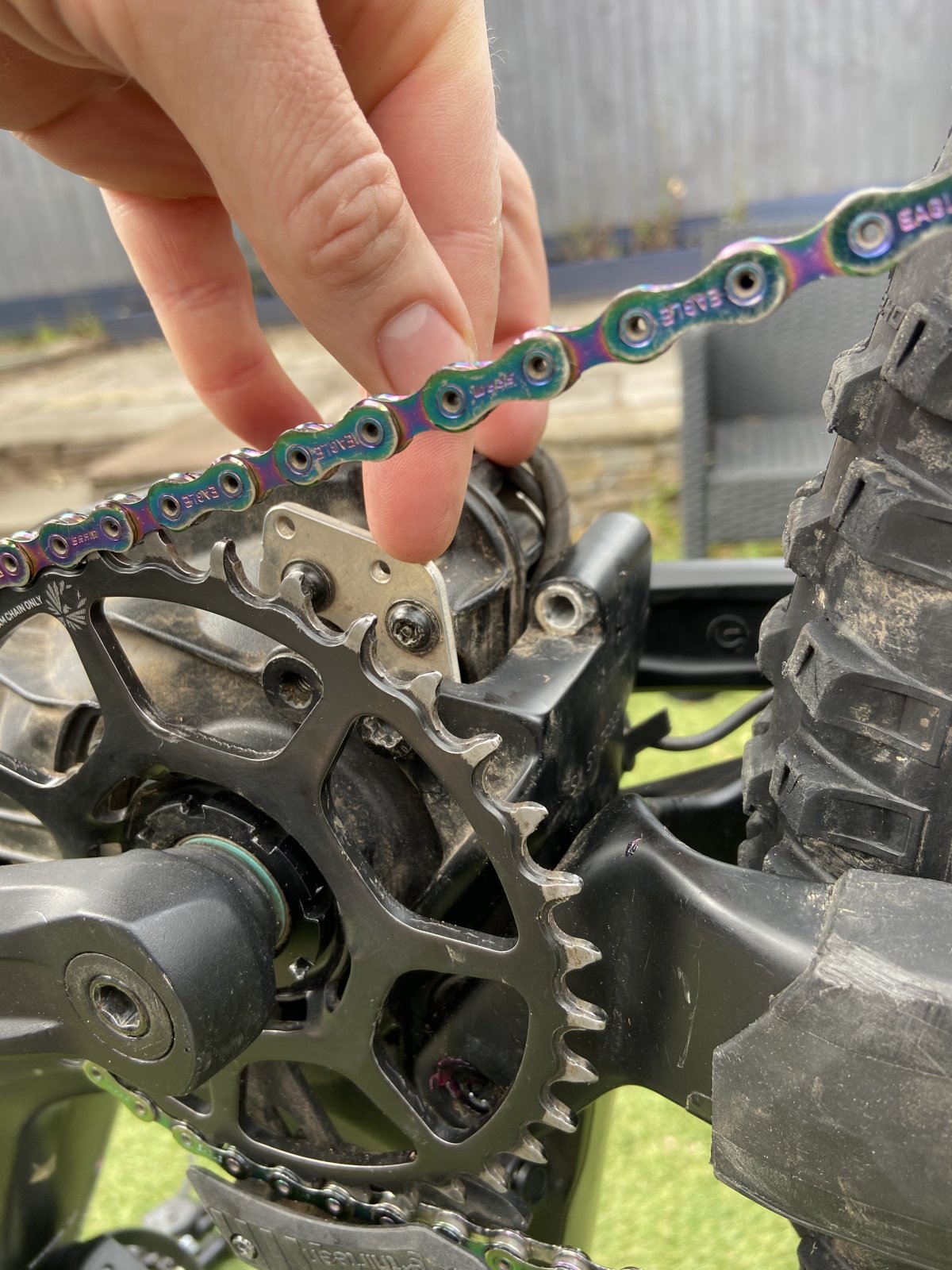

My stereo 160 SLT developed a creak when pedalling. Went thru the rear axle, swing arm bolts checking after everything. It was eventually one of these little screws that fix the plates to the motor.
2 were loose.
You need torx plus to remove motor and tighten these up.
There is a set by laser for about £22
Do not use standard torx as your will strip the bolts.
I removed motor and tightened all bolts without removing wires from motor.
Hope that helps creak free riding! ?
My stereo 160 SLT developed a creak when pedalling. Went thru the rear axle, swing arm bolts checking after everything. It was eventually one of these little screws that fix the plates to the motor.
2 were loose.
You need torx plus to remove motor and tighten these up.
There is a set by laser for about £22

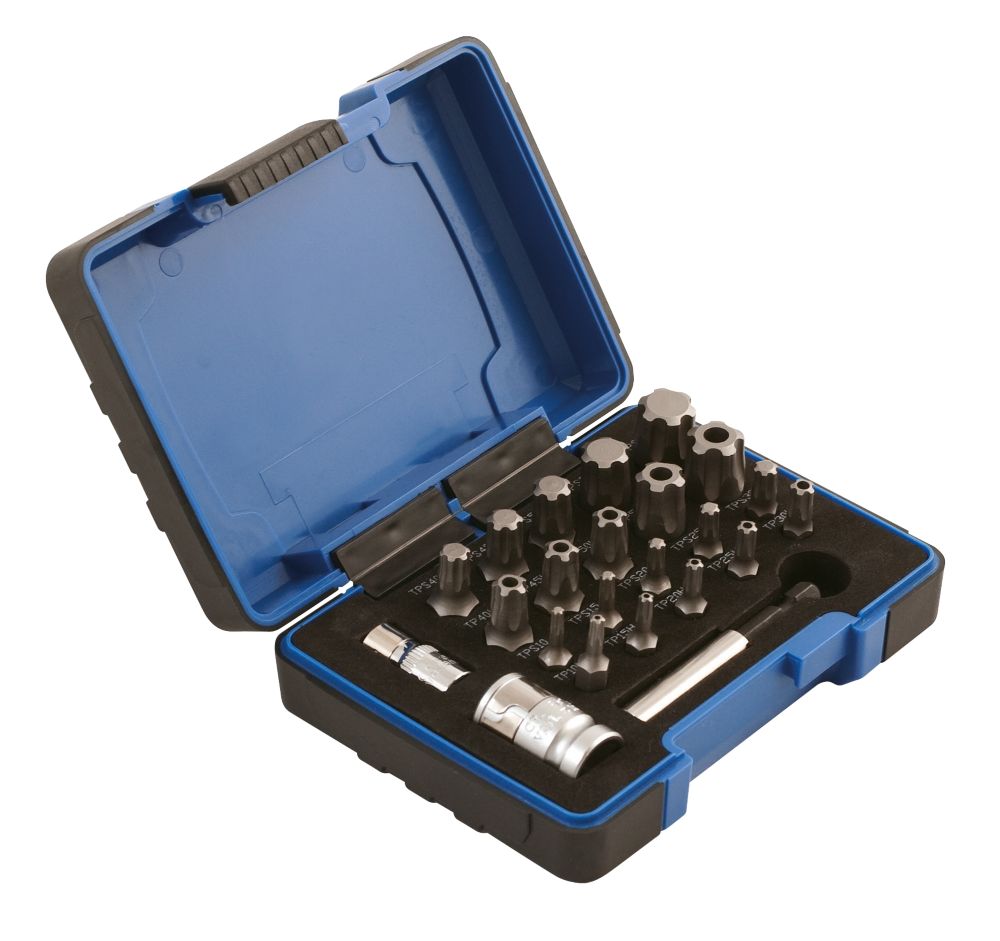

Laser TX Bit Set 23 Pieces
Order online at Screwfix.com. Comprehensive set of 5 and 6-sided TX bits with a stainless steel, quick chuck shank bit holder. The high quality bits are manufactured from S2 steel. The set is suitable for TXPlus fixings enabling greater torque and minimised wear. Supplied in a storage case. FREE...
www.screwfix.com
Do not use standard torx as your will strip the bolts.
I removed motor and tightened all bolts without removing wires from motor.
Hope that helps creak free riding! ?
