Bosch CX gen 4 chainring nut

RustyMTB

E*POWAH Elite World Champion
Jul 22, 2020
2,853
6,894
UK
That's half undone. If it's jammed at that point, then it's already f***ed. I'd either whack it hard with a punch, try to shock it loose or carefully dremel through it in one of the spindle valleys, throw it in the bin & get a new one. They're only aluminium.


Tyjay

Active member
Apr 27, 2020
218
364
Bedlington
That's half undone. If it's jammed at that point, then it's already f***ed. I'd either whack it hard with a punch, try to shock it loose or carefully dremel through it in one of the spindle valleys, throw it in the bin & get a new one. They're only aluminium.

cutting through it is the only option I reckon


Wodger63

Member
Apr 18, 2022
21
12
Australia

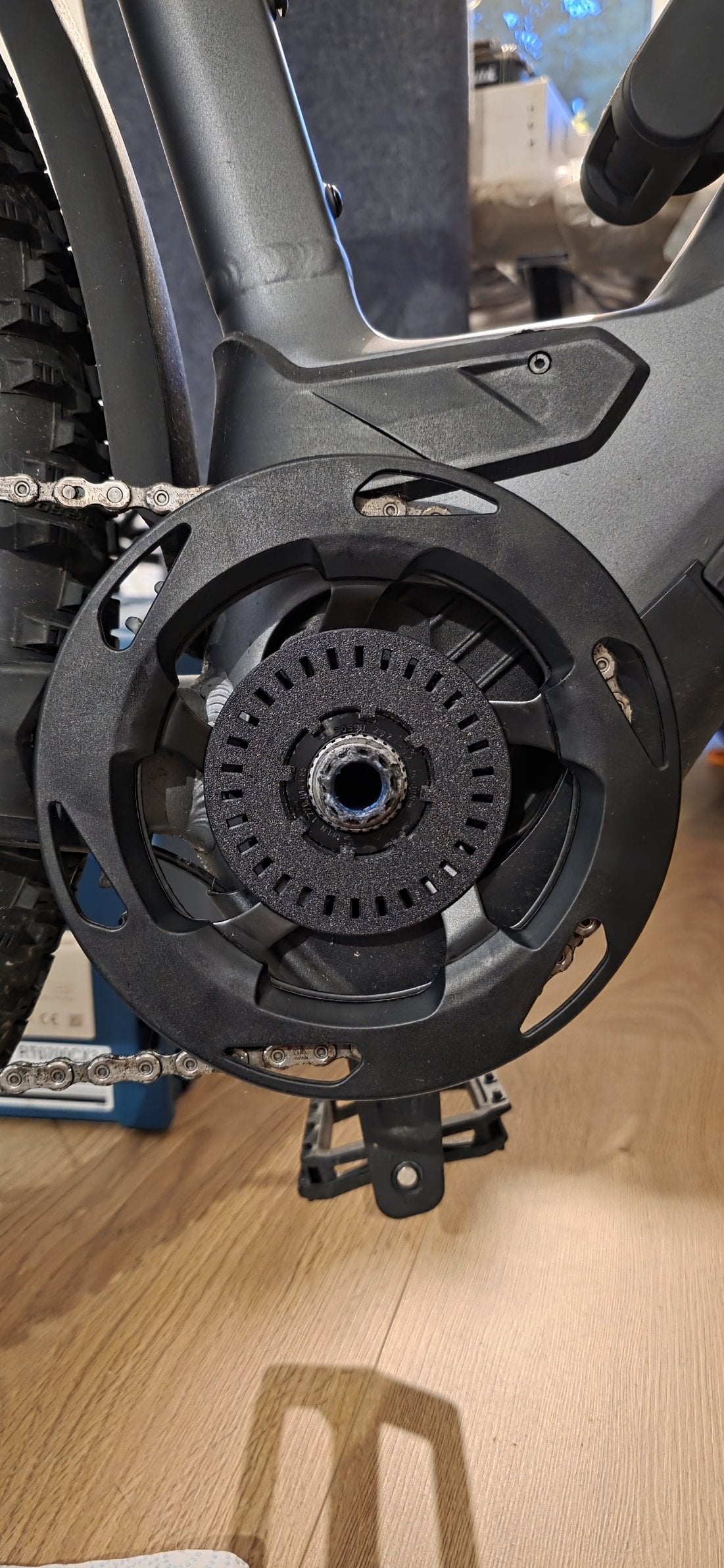

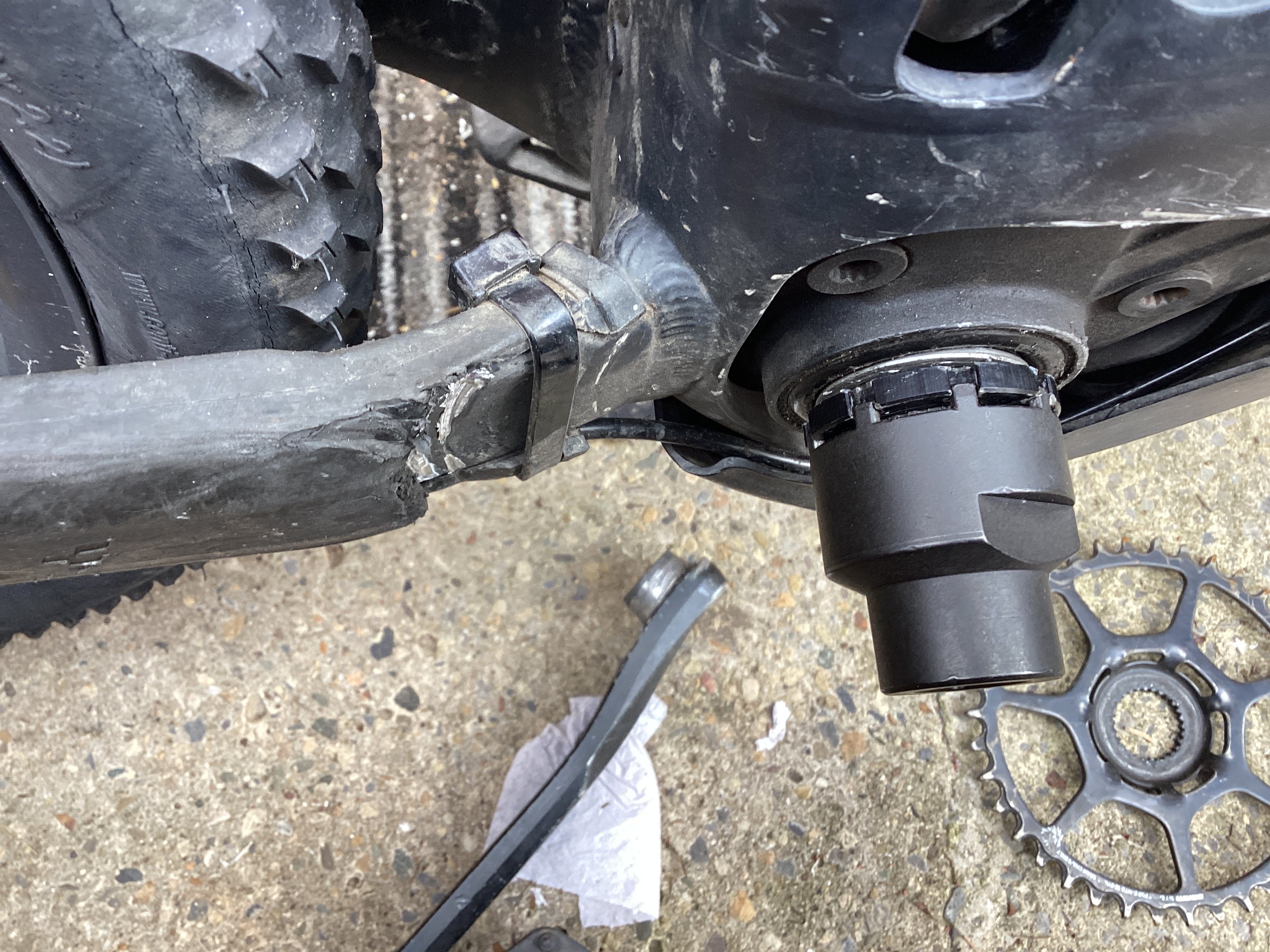

Quick question been given a cube with the lock ring on but no chainring on
so when I turn it clockwise to loosen it, it obviously spins the motor as theres nothing to stop it from spinning
its an oldish bike probably gen 1/2 motor said I’d have a look and get it working again but can’t do anything if I can’t removing locking ring 😂

any Ideas what I can do there’s not much space between lock ring and frame

View attachment 121281
Can't quite see from your pic but if your tool has a square/hex drive you should be able to hit with a rattle gun.

Last edited:

EMTBSEAN

E*POWAH Elite
Subscriber
Feb 20, 2020
1,038
733
Sheffield
Appreciate the reply but there’s nothing to put the chainring on the lock ring is at the end of the threads so nothing to grab onto if u get what I’m saying View attachment 121287
Let me get this right mate, you’re trying to remove the retainer ring to fit a new chainring yeah? if the retainer won’t come off, either cut it extremely carefully, apply some dismantling fluid or take it to your LBS, you could also try to shock it off with a drift and a hammer, just a couple of things to try out 👍


Flupke

Member
Apr 16, 2022
24
12
Brussels, Belgium
I had frequent (4x in 2.5 years) incidents due to untight lock ring Bosch gen4.

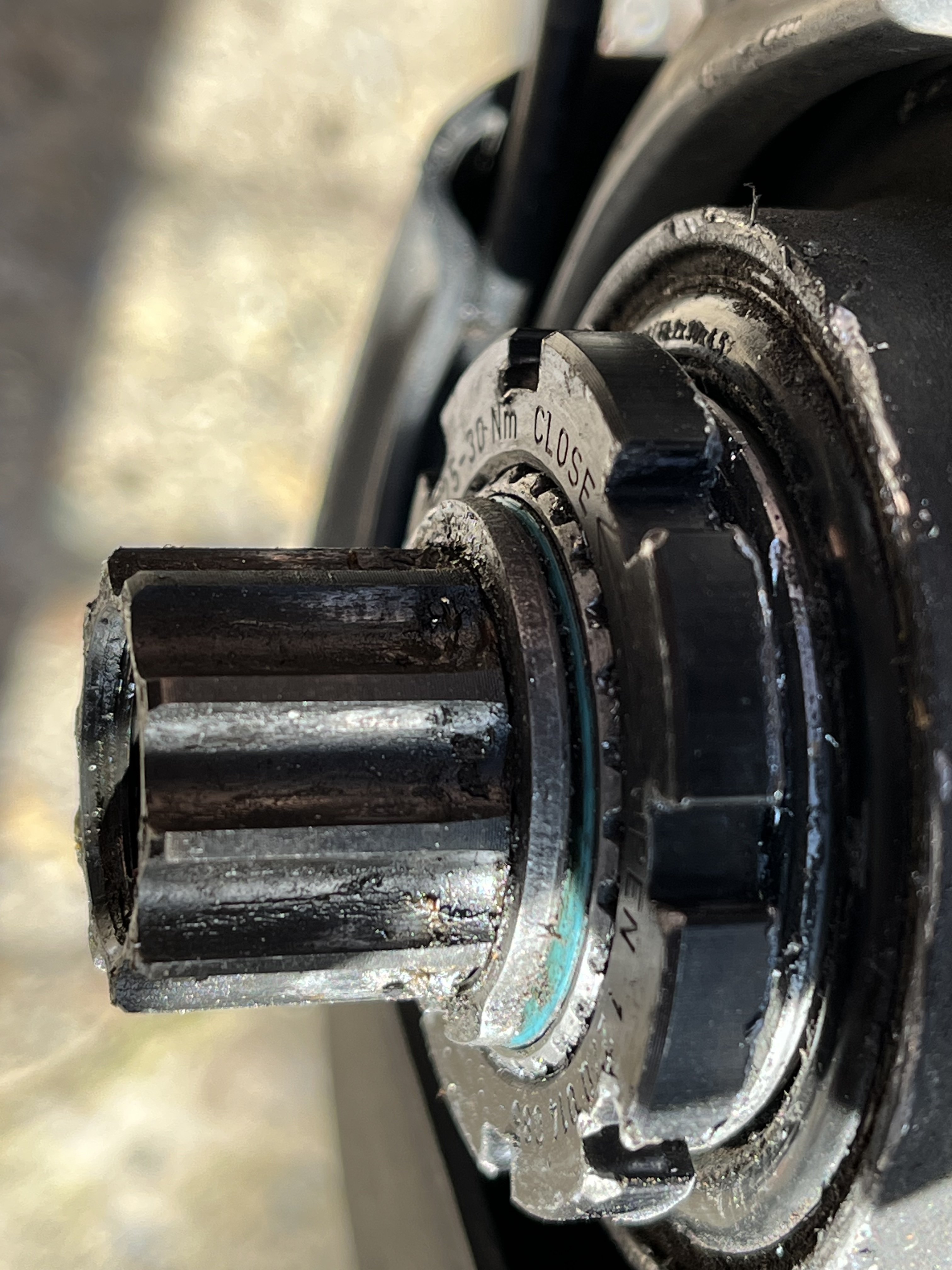

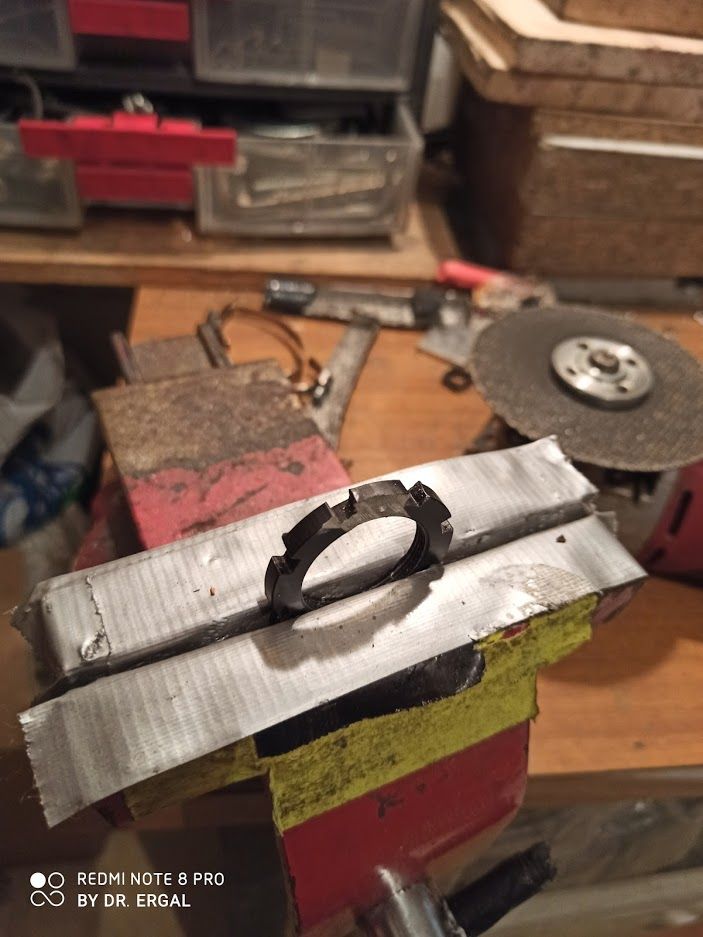

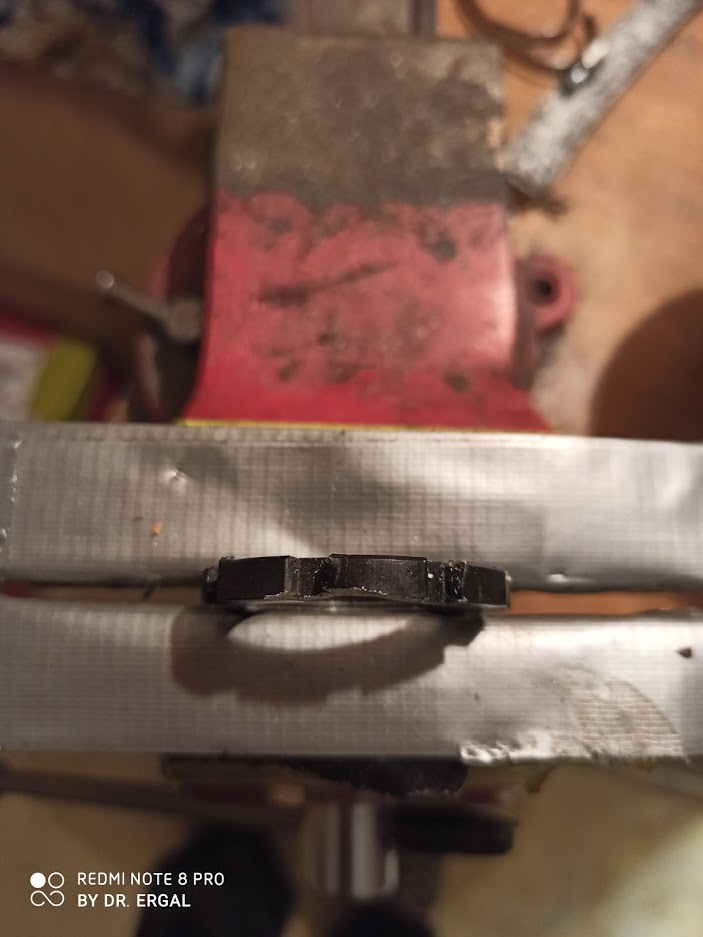

This time my lockring became ovale! :eek: ...Luckily I believe the male threads of the engine rotor axis looks OK. :)

When removing the lockring, I observed there was no O-ring: actually I suspect that my retailer had forgotten to put one when he did change my spider crank. The frequent unloosing of my lock-ring only happened after that intervention.

I had respected the specified torque of 30N.M
I have read that the O-ring role might be to avoid this untightning. This time I'll put one.
And some purple lockit despite Bosch recommendation not do put lock-it (as it can alter the precise torque measure precision) but I am tired of those incidents.


slomtbr

Active member
Subscriber
May 14, 2021
130
99
US
Is there a groove for an o-ring where the nut and chainring meet? If not, adding an o-ring won't help.

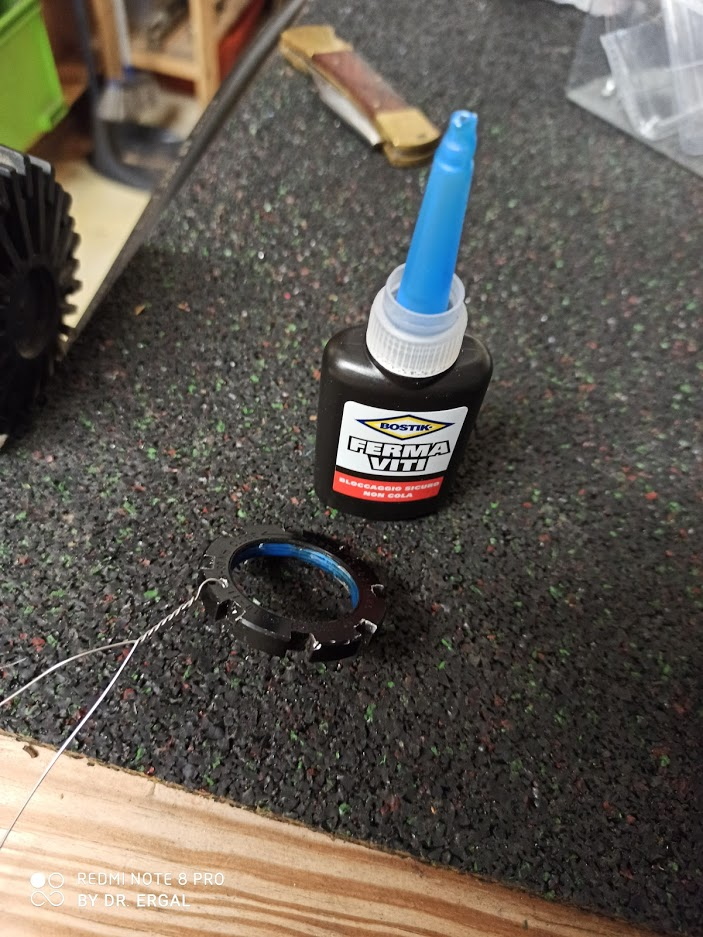

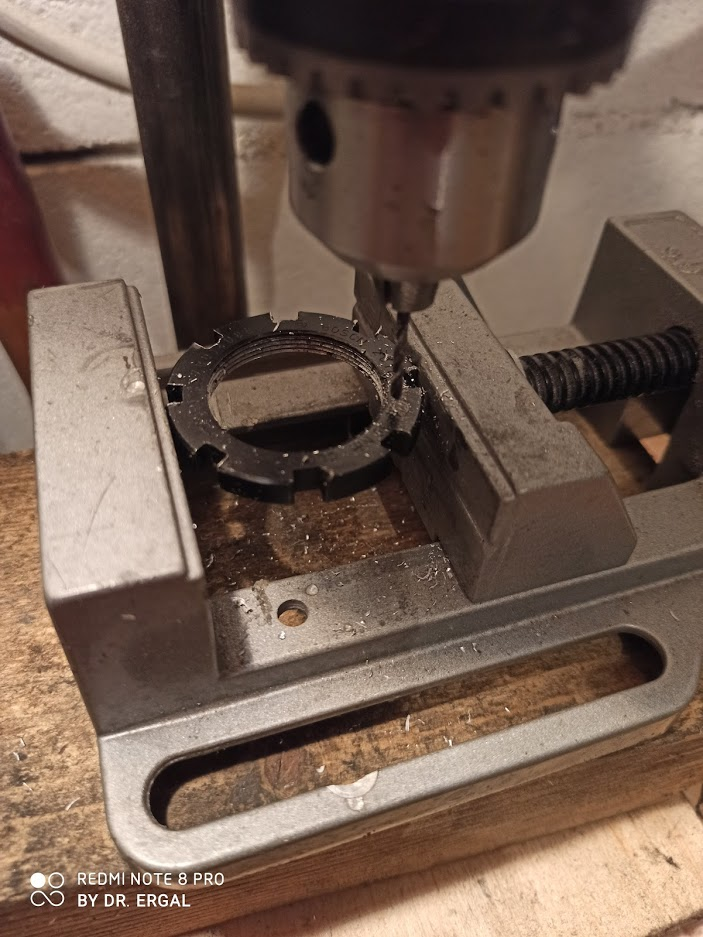

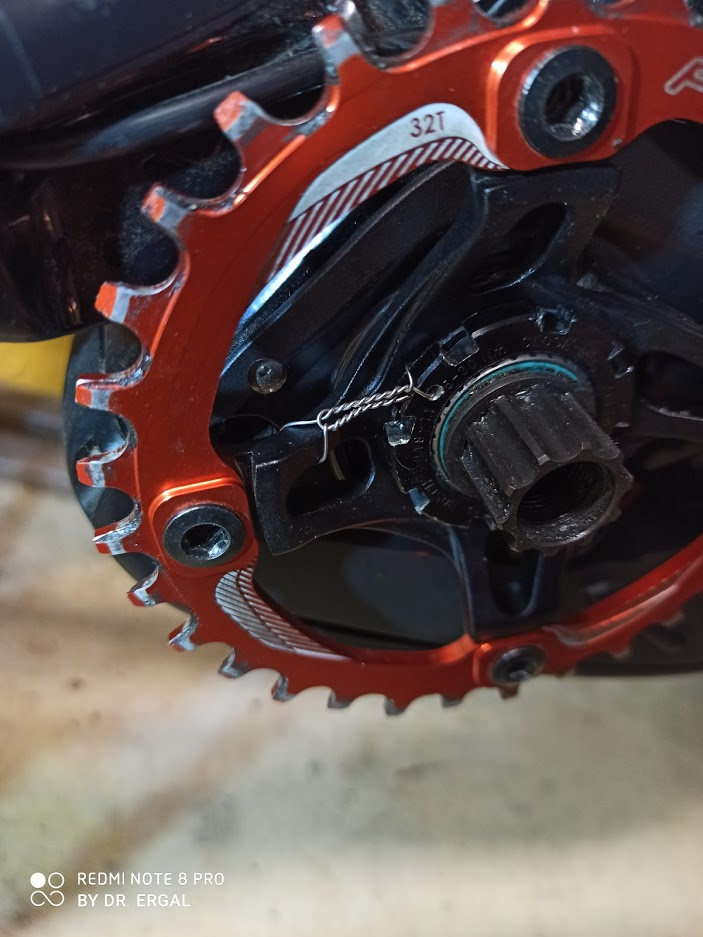

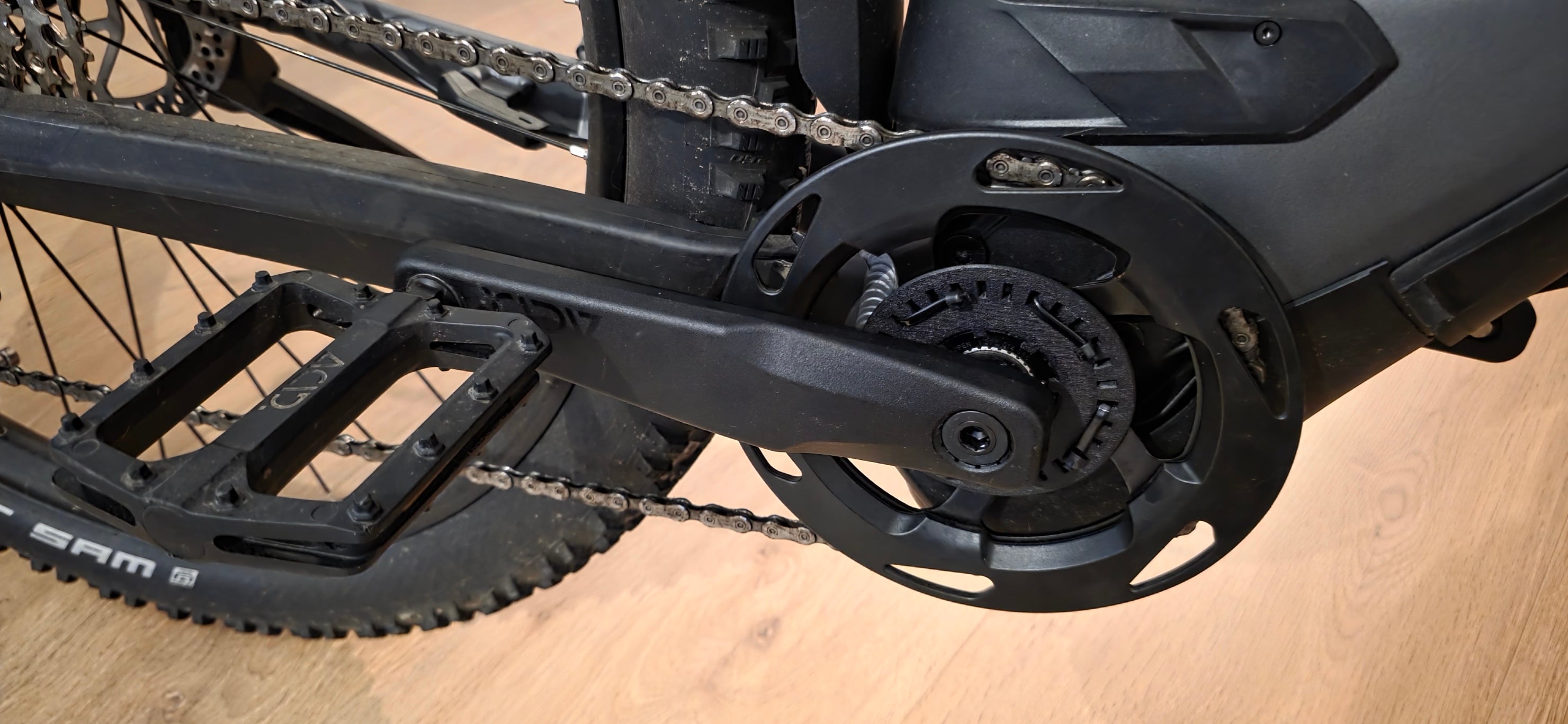

Loctite is working for many riders, but I went a step farther, and added safety wire. (Other users have drilled and tapped the nut for a grub screw.)

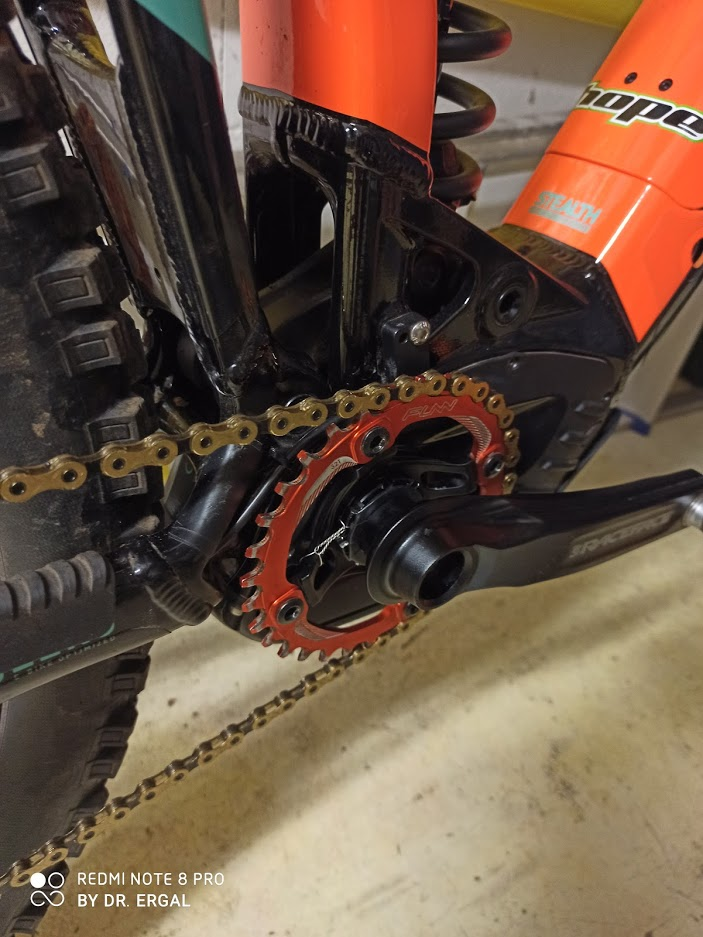

Here's the image that gave me the idea, and the link to the post:

It's a fairly easy mod.


Bones

E*POWAH Elite
Subscriber
Apr 3, 2020
898
1,181
Harrogate
I just noticed mine was loose today. It lasted 1k miles on blue loctite so trying red loctite on it.


Stihldog

Handheld Power Tool
Subscriber
Jun 10, 2020
3,573
5,041
Coquitlam, BC
Ah. The ole loose spider/castle nut issue. Frustrating when it happens …especially when it happens to me.

I changed the original 34t chainring because of chain-suck. The new 34t ethirteen chainring didn’t fit exactly right and I noticed that the profile was slightly different. I installed it with the rubber “o” ring, thin plastic “o” ring, and the aluminum “o” ring. When I torqued the castle nut, to spec, the chainring protruded further out thus affecting the correct chain alignment.

What I eventually found was that the aluminum “o” ring was not necessary with this type of chainring. (No instructions). This spacer was integrated into the chainring body. But the thin plastic “o” ring became absolutely necessary.

What I learnt was that exact chainring profiles are critical. Also that the threads on the crankshaft are not compromised. (Accidentally cross threaded counter clockwise). A very small amount of blue lock-tite was used on the castle nut.

The ethirteen chainring works for my 2020 Gen4 CX motor. I currently have my third chainring on but I have experienced loosening of the castle nut once. Never since I added blue loc-tite , and correct torque, to the castle nut.



Flupke

Member
Apr 16, 2022
24
12
Brussels, Belgium
Fingers crossed for my new attempt with the (formerly missing) o’ring joint, a brand new Bosch’s gen4 lock ring and loctite purple (the lightest) in its female contour. Meticulous measuring of the torque to the specified 30 N.m


Singletrackmind

Active member
Sep 17, 2020
472
428
San Diego, CA
Thought I would add some information for anyone who is upgrading/spec'ing their bike with a SRAM AXS TRANSMISSION Drivetrain. Recently purchased a new Orbea Wild and was having issues with the lockring coming loose on my new bike. I switched out the chainring that came stock on my bike (e13) to the SRAM XX1 EAGLE Transmission chainring. After replacing the lockring twice, decided to take off chainring to measure thickness of SRAM chainring versus the stock e13. The XX1 Transmission chainring is much thicker than the e13 and the bikeshop that installed my the SRAM AXS Transmission Drivetrain left the original aluminum spacer on the Bosch Motor that is need when using the e13 chainring. The Sram chainring comes with the washer "built in" thus being more thicker. After removing the aluminum washer, lockring is fully engaged versus just a couple threads that were holding it on previously. Used a little blue Locktite just in case and have had absolutely no issues with lockring coming loose. Also recommend that if you do need to replace lockring, use a new one. The threads are very fine and seem to distort a little after being tightened.


Flupke

Member
Apr 16, 2022
24
12
Brussels, Belgium
Thought I would add some information for anyone who is upgrading/spec'ing their bike with a SRAM AXS TRANSMISSION Drivetrain. Recently purchased a new Orbea Wild and was having issues with the lockring coming loose on my new bike. I switched out the chainring that came stock on my bike (e13) to the SRAM XX1 EAGLE Transmission chainring. After replacing the lockring twice, decided to take off chainring to measure thickness of SRAM chainring versus the stock e13. The XX1 Transmission chainring is much thicker than the e13 and the bikeshop that installed my the SRAM AXS Transmission Drivetrain left the original aluminum spacer on the Bosch Motor that is need when using the e13 chainring. The Sram chainring comes with the washer "built in" thus being more thicker. After removing the aluminum washer, lockring is fully engaged versus just a couple threads that were holding it on previously. Used a little blue Locktite just in case and have had absolutely no issues with lockring coming loose. Also recommend that if you do need to replace lockring, use a new one. The threads are very fine and seem to distort a little after being tightened.
I think that replacing a locking when it becomes loose is an excellent advise.
Moreover hen it becomes loose the locking can actually become "ovale": mine was totally deformed. It is somehow good that aluminium piece is the weak one as a damage on the engine rotor side would be much much more expensive.
I just placed a new one and will monitor the situation.


Stihldog

Handheld Power Tool
Subscriber
Jun 10, 2020
3,573
5,041
Coquitlam, BC

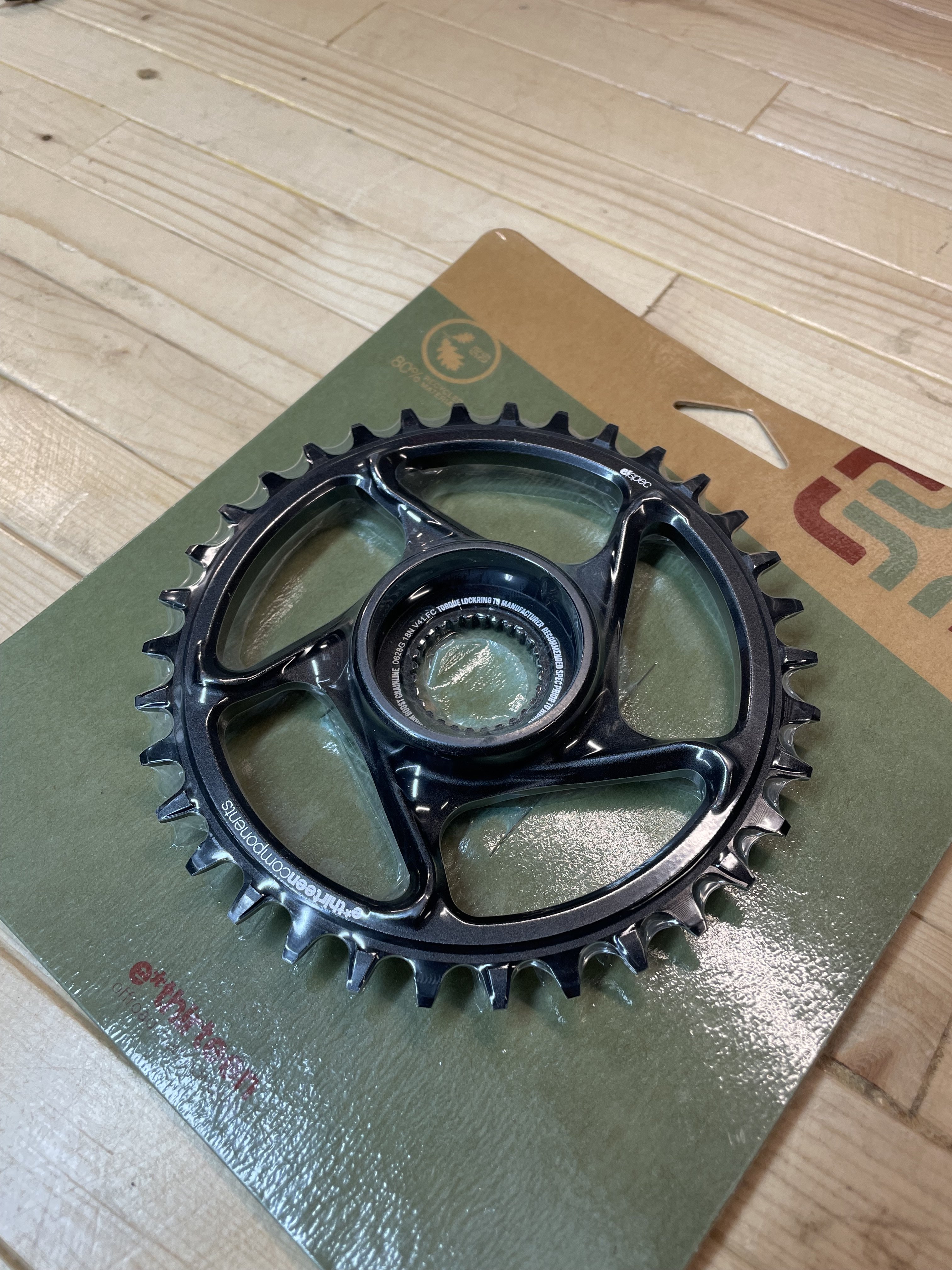

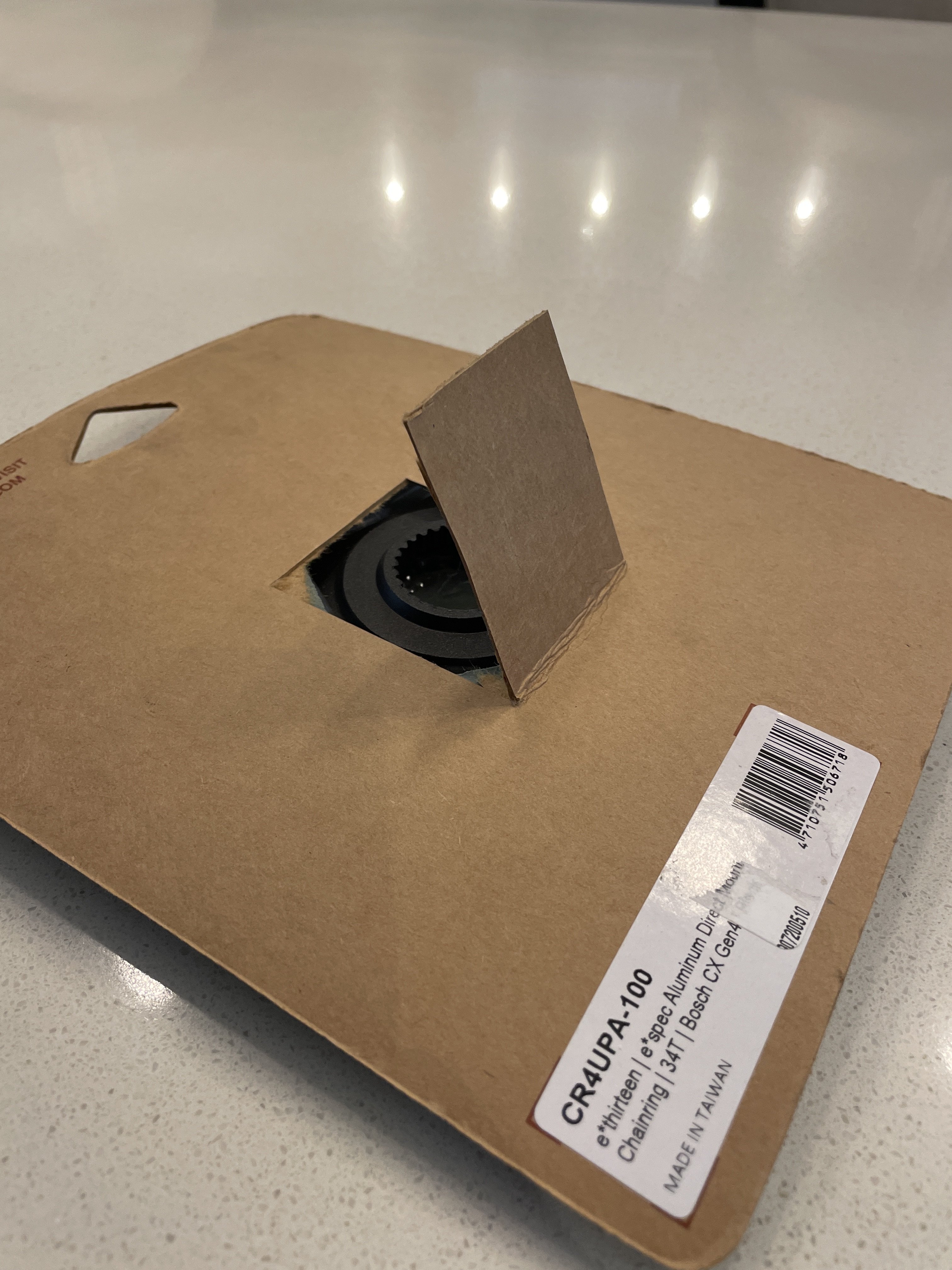

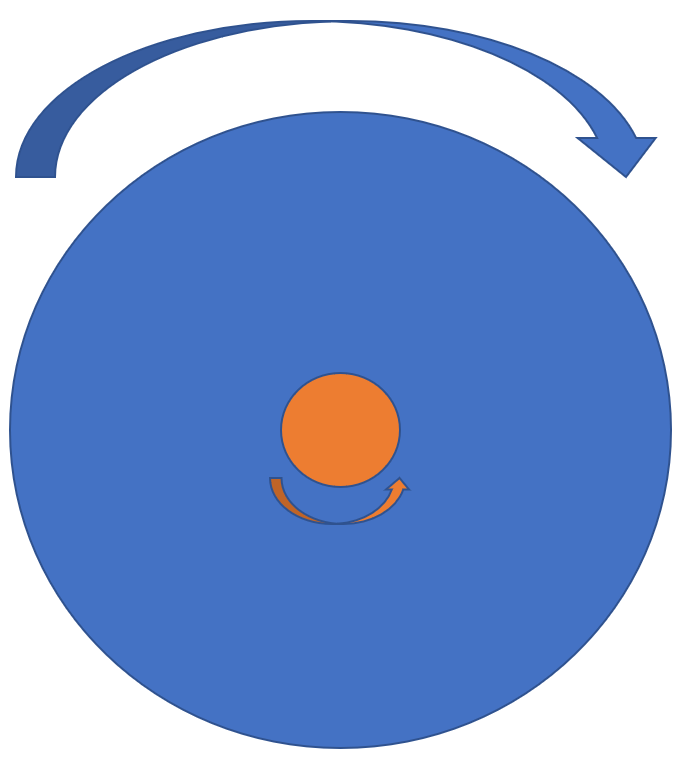

It shows how critical the position of this nut can be. When I installed the ethirteen chainring I had to remove the aluminum “o” ring when I discovered that it was “built into” this model (see pic) of the ethirteen chaining.

Having a spare castle/spider nut is a good idea though since it is only aluminum and prone to distortion …or the castle tool slipping (which I’ve done).


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,568
5,059
Weymouth
I have said previously when lock rings coming loose has been mentioned that I believe lockrings are single time use only. My reasoning is that a lock ring is secured with very few threads and is a soft ally. Torque of 30nm probably forces some distortion of the thread to achieve maximum thread friction (ie it spreads it a little). The o ring has nothing to do with fit..it is there to protect the motor spigot splines from water/mud etc....ie it is a seal. Similarly any washer is most probably there to achieve a specific chainline.
Finally I believe ally chainrings are probably not a good idea on an emtb due to too much flex. That can also apply to much pressure on the lockring.
So my advice is use a steel chainring and always use a new lockring when changing it.......its only another £10.


Flupke

Member
Apr 16, 2022
24
12
Brussels, Belgium
I have said previously when lock rings coming loose has been mentioned that I believe lockrings are single time use only. My reasoning is that a lock ring is secured with very few threads and is a soft ally. Torque of 30nm probably forces some distortion of the thread to achieve maximum thread friction (ie it spreads it a little). The o ring has nothing to do with fit..it is there to protect the motor spigot splines from water/mud etc....ie it is a seal. Similarly any washer is most probably there to achieve a specific chainline.
Finally I believe ally chainrings are probably not a good idea on an emtb due to too much flex. That can also apply to much pressure on the lockring.
So my advice is use a steel chainring and always use a new lockring when changing it.......its only another £10.
Thanks!
I couldn't find any steel chainring with the same offset or spider connection than the originale, hence I went for a Race Face aluminium one.


Stihldog

Handheld Power Tool
Subscriber
Jun 10, 2020
3,573
5,041
Coquitlam, BC
Finally I believe alloy chainrings are probably not a good idea on an emtb due to too much flex. That can also apply to much pressure on the lockring.
That’s a good point.
I’m not sure how other chainrings are designed or engineered but the ethirteen alloy chainring, that I use, seems to be beefier around the spider nut. This may reduce some of the flex that you describe.

The added torque and flex, from an eMTB, at the spider nut might cause a slow and minute loosen of the spider nut.


Like I said, only once has the spider nut come loose. (10K+ kms ?)


ralfturfsmurf

Member
May 4, 2023
6
1
sweden

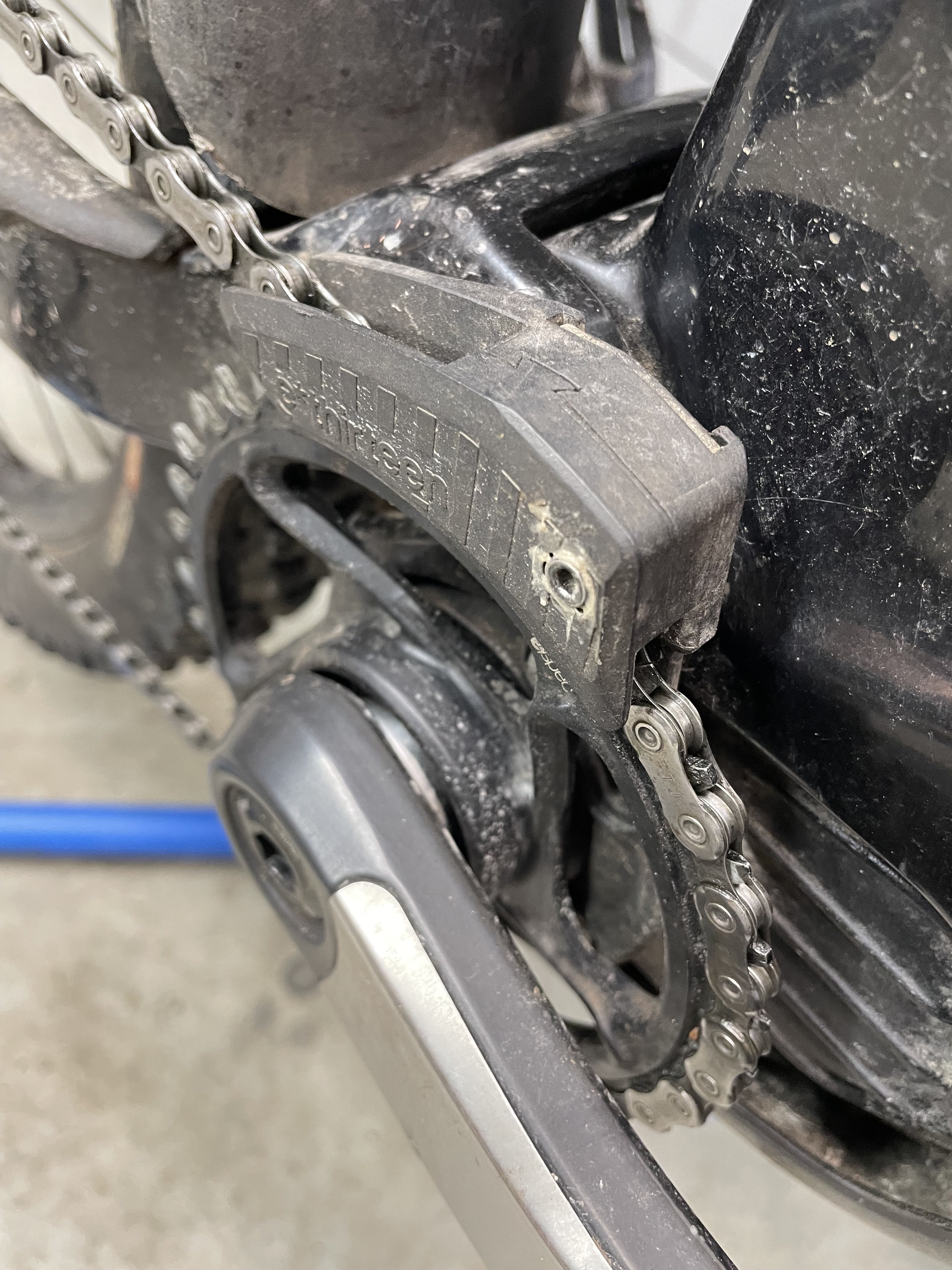

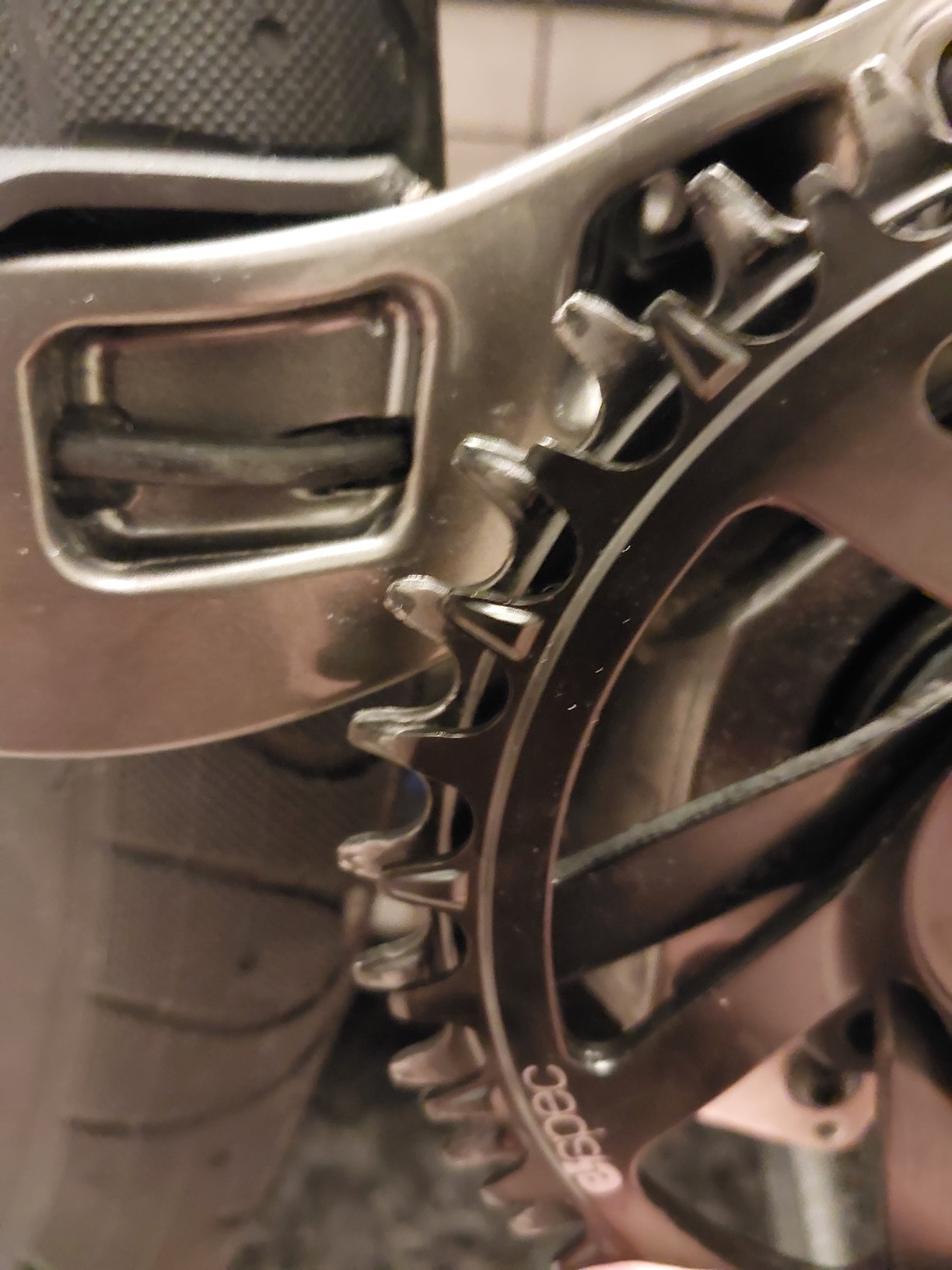

Trek Rail 2023: I had my chainring eat through the chainstay. Not really a good design, the clearance is too tight. I got a new chainstay on warranty from trek. While assembling the bike back together, I am changing from a 36T chainring to a 34T chainring. See the difference in these images.






HORSPWR

E*POWAH Master
May 23, 2019
853
680
Alice Springs, Australia
Finally I believe ally chainrings are probably not a good idea on an emtb due to too much flex.
Sorry to disagree there Mike but the e13 alloy sprockets are 7050 alloy and 7050 is up there with the best in the business for these applications. For comparison, Renthal 7050 alloy rear sprockets for motocross bikes in the 450cc range put out around 60HP, I would find it highly unlikely that an ebike would put out enough power/torque to flex a 7050 alloy chainring.


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,568
5,059
Weymouth
Sorry to disagree there Mike but the e13 alloy sprockets are 7050 alloy and 7050 is up there with the best in the business for these applications. For comparison, Renthal 7050 alloy rear sprockets for motocross bikes in the 450cc range put out around 60HP, I would find it highly unlikely that an ebike would put out enough power/torque to flex a 7050 alloy chainring.
no comparison in terms of thickness or design ( e.g. distance between the teeth and the central fixing).......put a MX chain up against a 12 speed MTB chain! chalk and cheese! 7075/T6 is very strong in terms of a relationship with its weight in a tube or square section.............here we are talking a bout neither type of construction. Ally is also softer than steel and therefore subject to more wear...............the main reasons for using ally rather than carbon steel is lighter weight and has better anti corrosion, neither of which is much of an advantage in this application in my opinion.


HORSPWR

E*POWAH Master
May 23, 2019
853
680
Alice Springs, Australia
here we are talking a bout neither type of construction
That's correct, we're not talking square section or tubing but apples for apples, two sprockets made out of the same material. Get a Renthal 7050 rear sprocket and place an e13 or Raceface mtb sprocet on top. When you compare the shear forces that the Renthal sprocket goes through on a 450 desert racer, it's no more than 2-3 thicker than the mtb sprocket. I'm not buying that the mtb ones flex unless they're not made of 7050.


irie

E*POWAH Elite World Champion
Subscriber
May 2, 2022
2,613
2,665
Chichester, W.Sussex, UK
I would find it highly unlikely that an ebike would put out enough power/torque to flex a 7050 alloy chainring.

Agree with you. The power/torque of an eBike is pitiful compared with that of motorcycles.

Edit: used to get motorcycle custom sprockets from Talon Engineering, needed ranges of sizes for racing.

Last edited:
