2019-2021 Turbo Levo mudguard

z1ppy

E*POWAH Master
May 11, 2018
240
168
West Mids

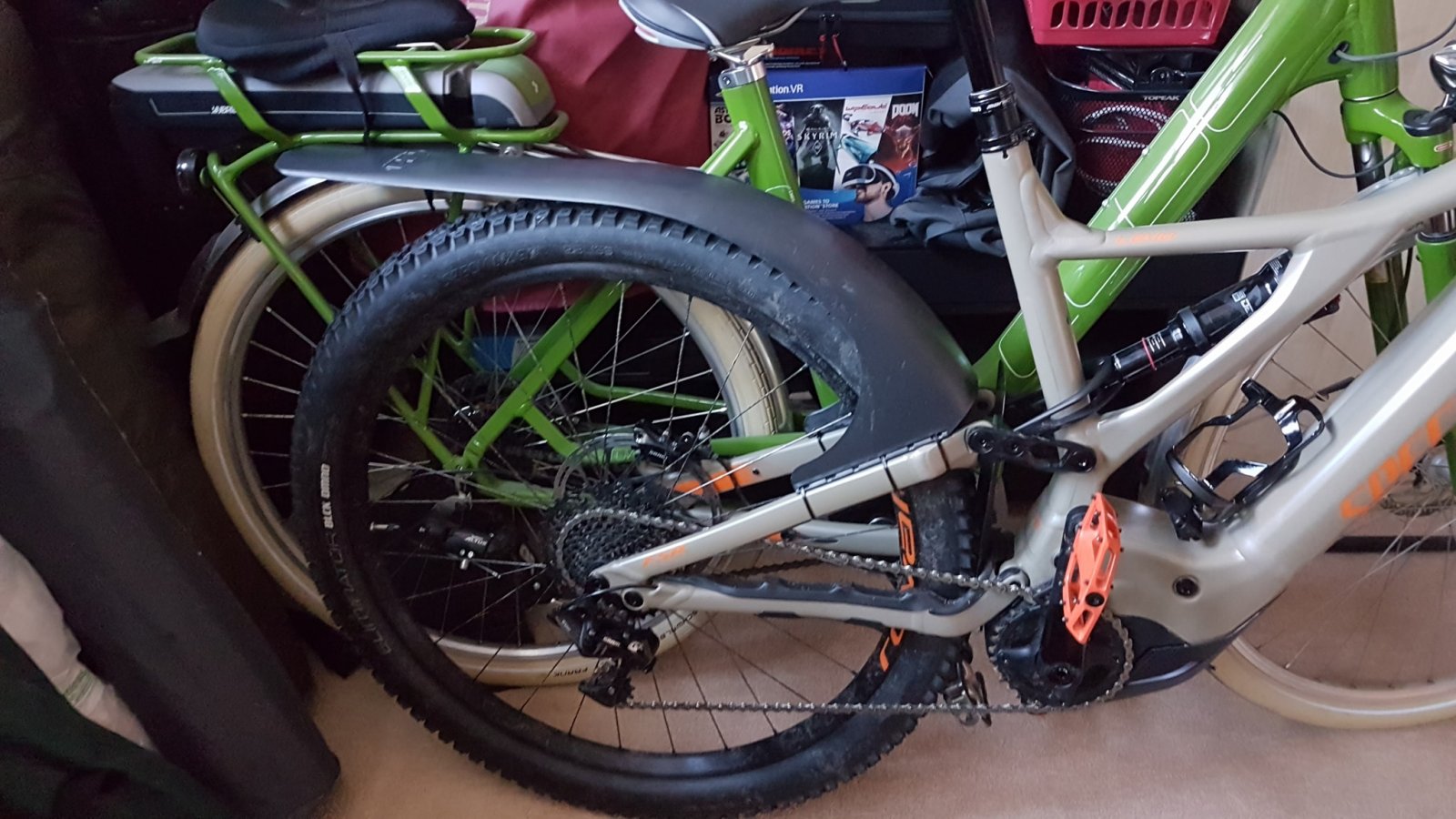

As you can see (further up the thread) I use mine in conjunction with a mudhugger & yes it was very effective. I won't say doesn't stop all the mud collecting on the top of the rear of the swinging arm, but it does a bloody good jobs of preventing it.

Sep 21, 2019
53
52
Oxfordshire England

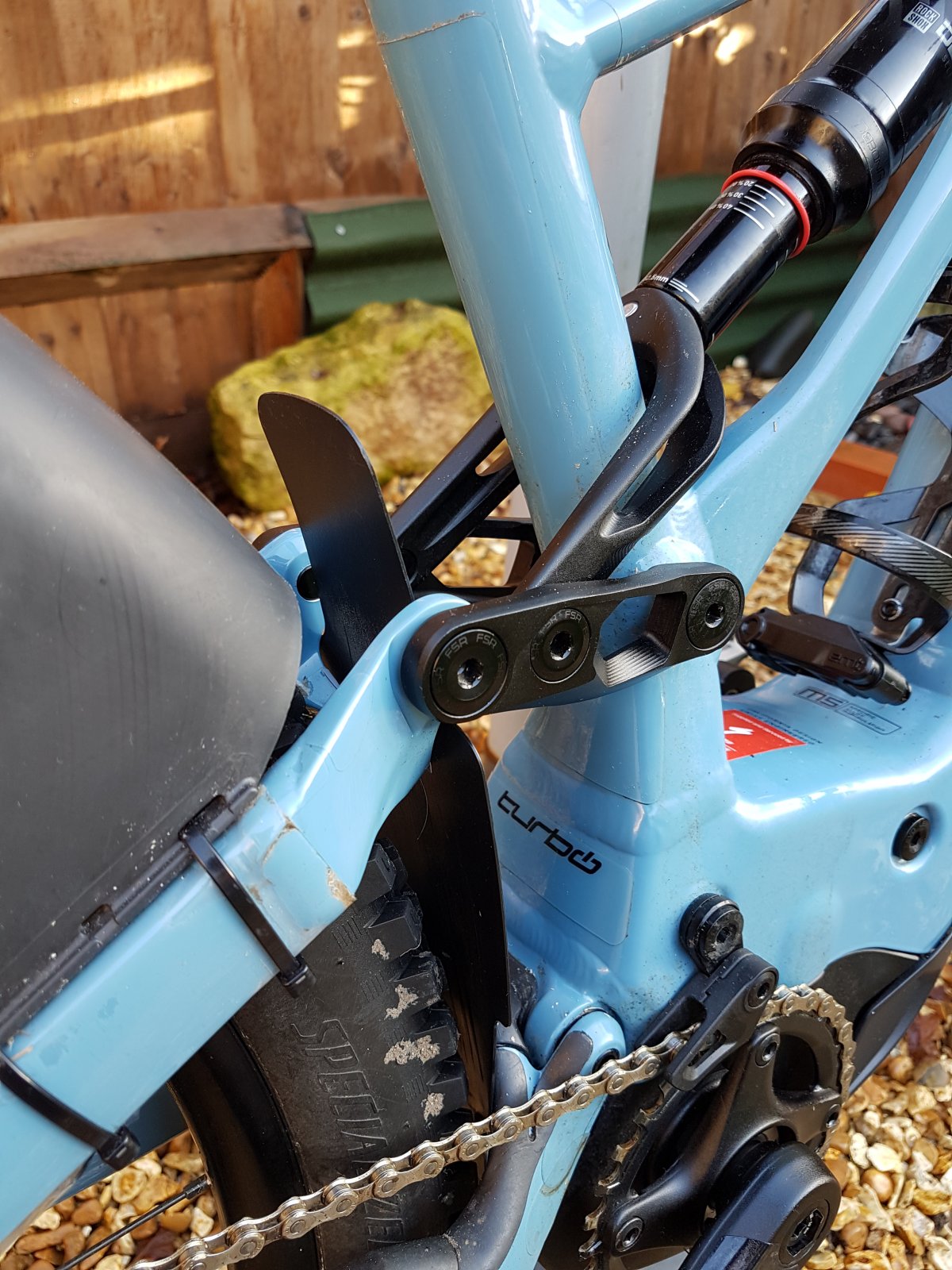

Works well with the mudhugger. I put some Teflon tape on the brace. Not going to stop every thing but probably the best current solution with the stock 2020 tyre



Will Hesch

Member
Dec 3, 2019
68
115
93422
It's been a while since I've posted because I couldn't get my PC to upload photos from my iPhone, then I found Dropbox.

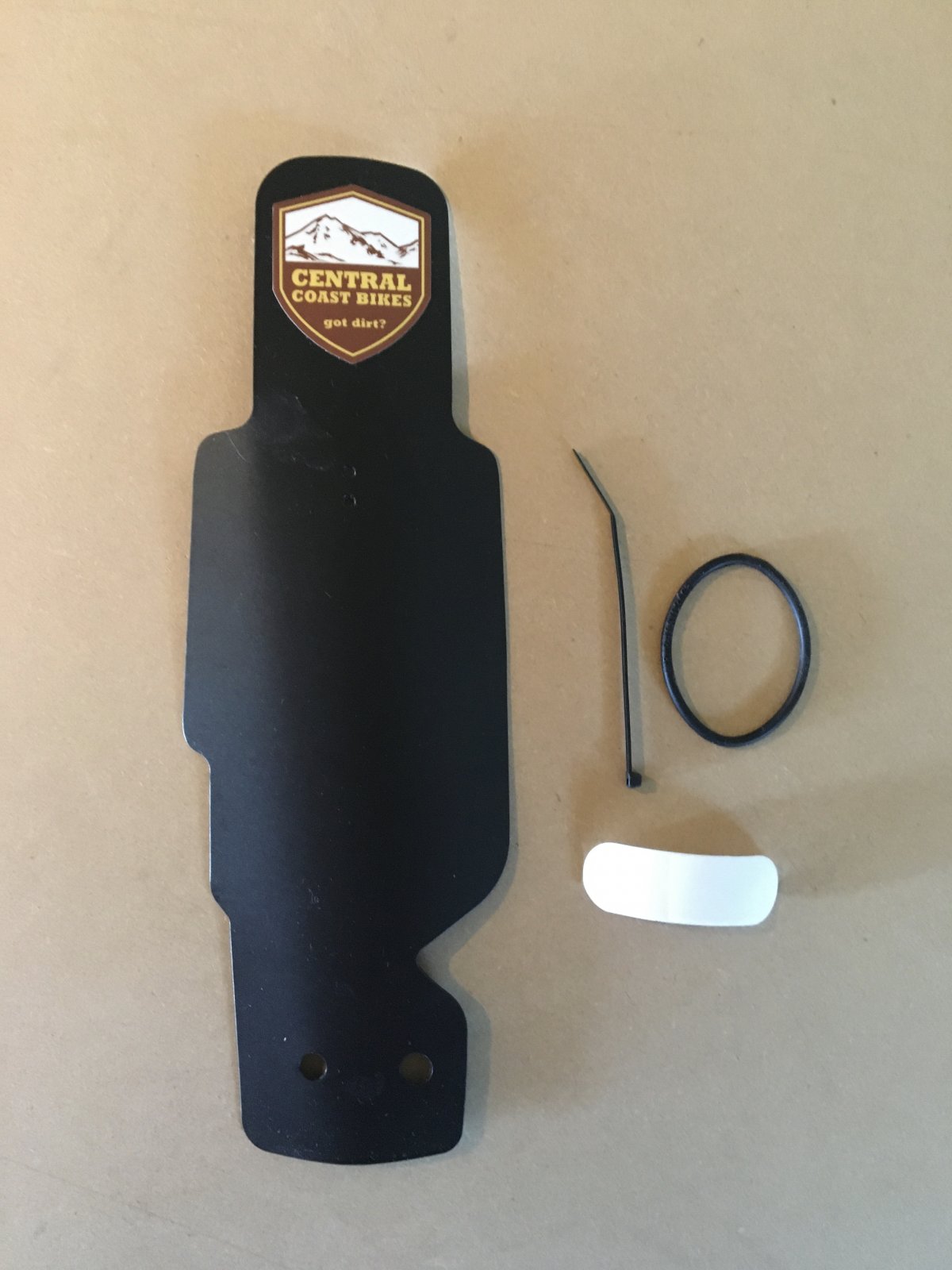

We've re-designed the Turbo Guard to eliminate tire rub almost entirely. We added a silicone band and a zip tie
(I know, it's not supposed to have any) to hold the Guard away from the tire.

We've added a thin clear protector piece which peels and sticks to the lower chain-stay to protect the paint.

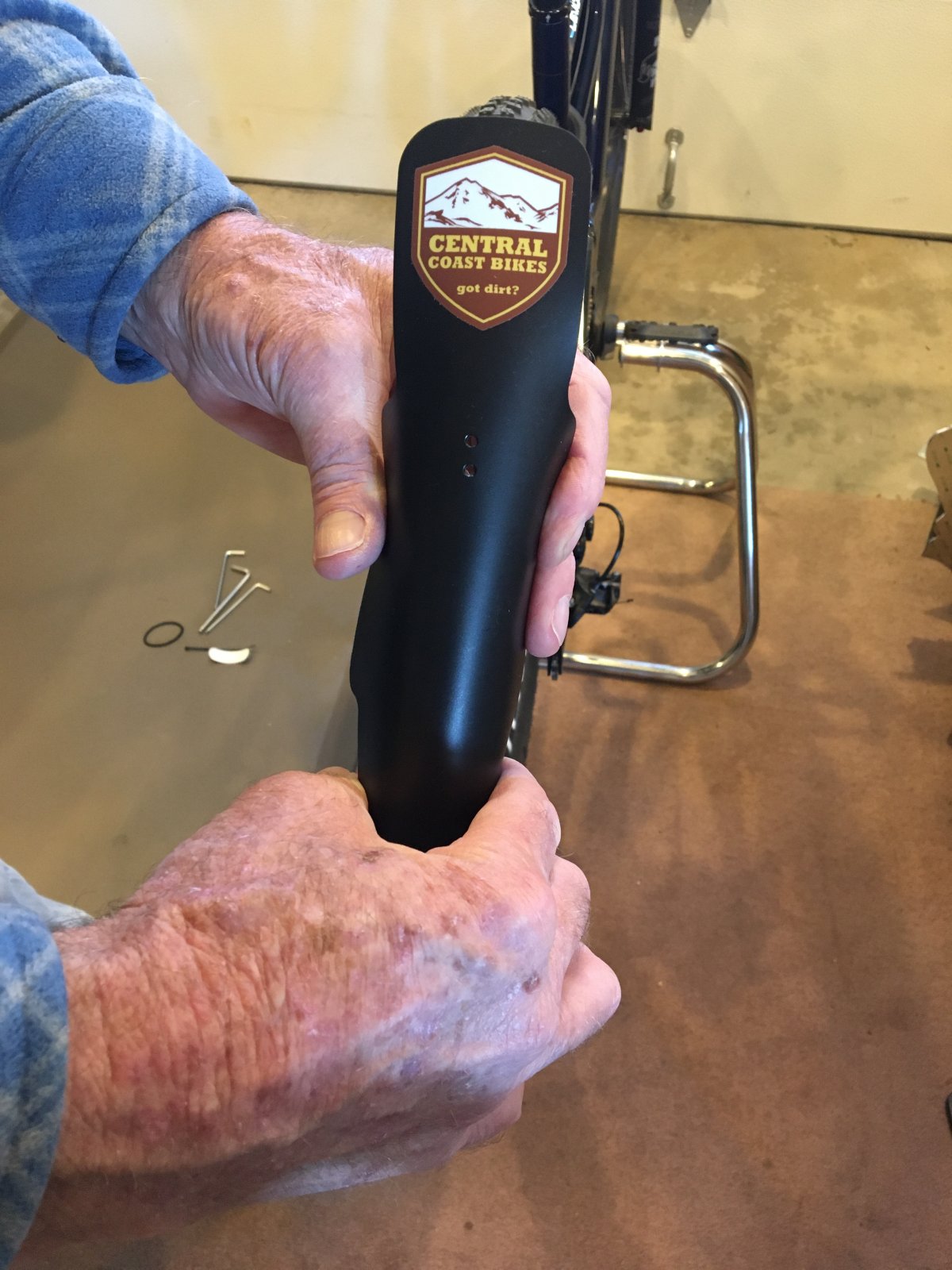

We found that bending the Guard to match the curve of the lower chain-stay helps when installing it.

We can't mail the Guard curved or shipping would be very expensive so this important step is left to you.

We have a company logo now and a decal is fixed on each Guard.

Here are some photos:

2020-01-11 14.28.19-2.jpg

2020-01-11 14.36.25.jpg

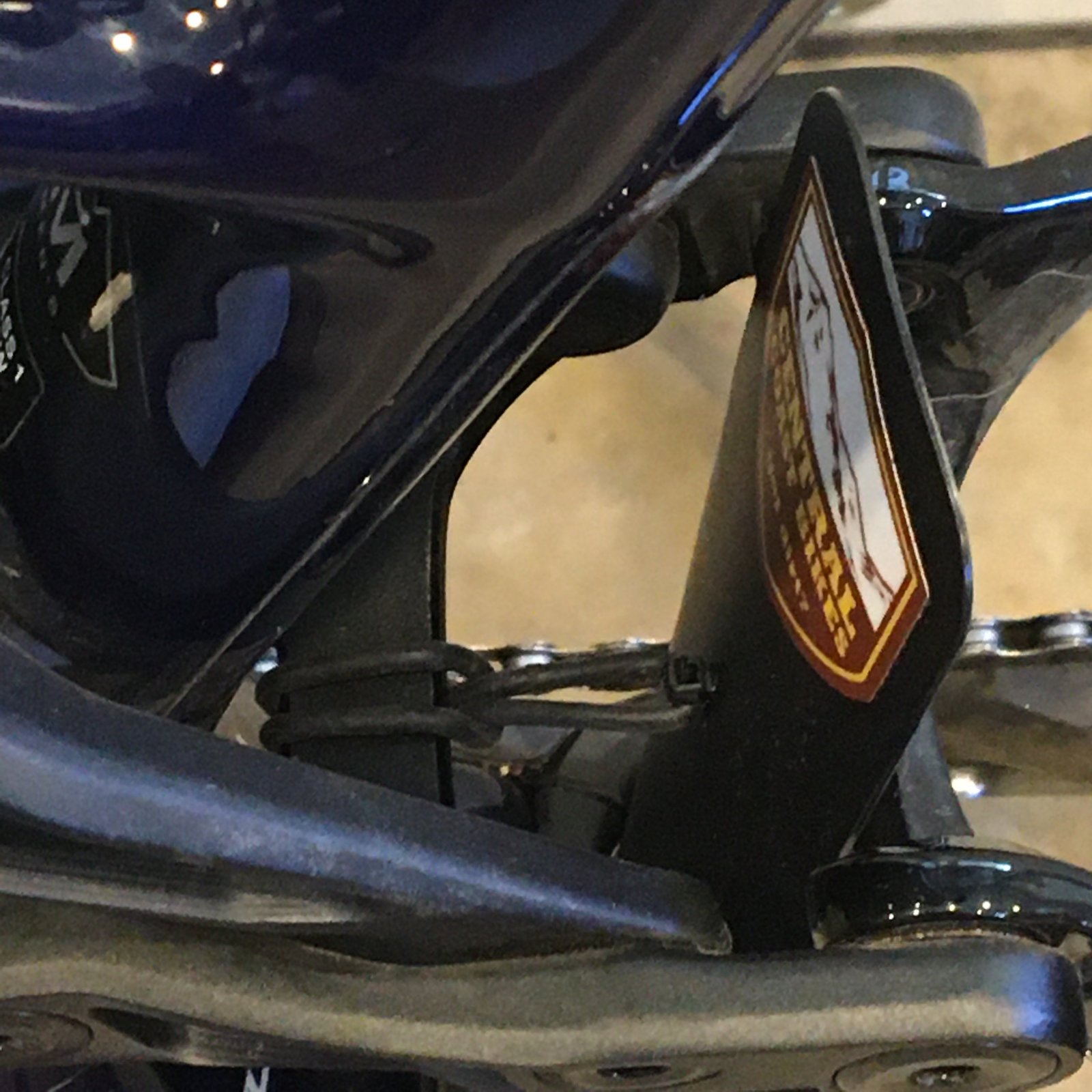

2020-01-11 14.48.52.jpg


2020-01-13 10.32.52-2.jpg

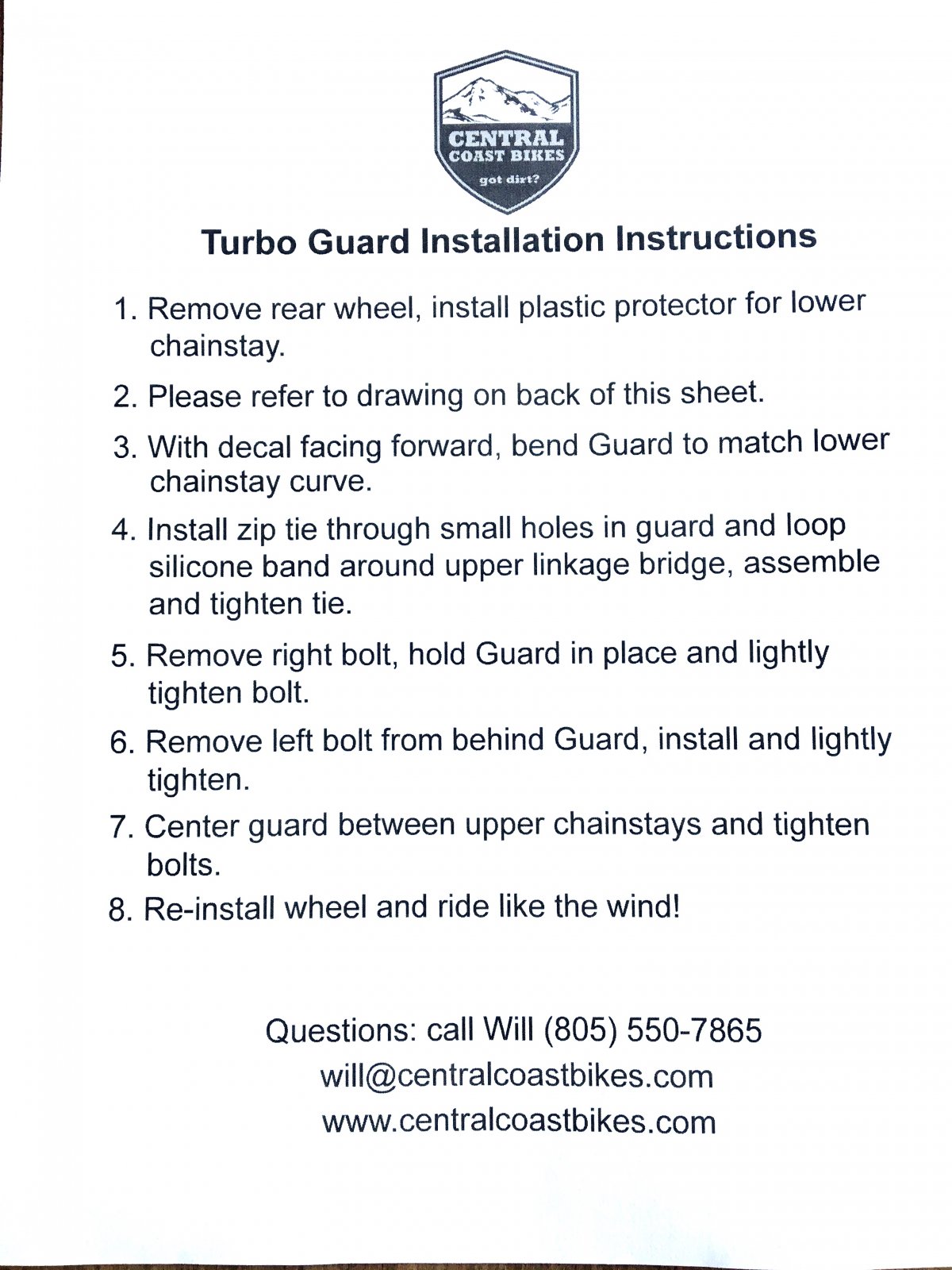

2020-01-15 16.08.32-1.jpg

Last edited:

jbodnar

Active member
Patreon
Subscriber
Nov 23, 2019
143
79
California
Will,

Thanks for posting the pictures...

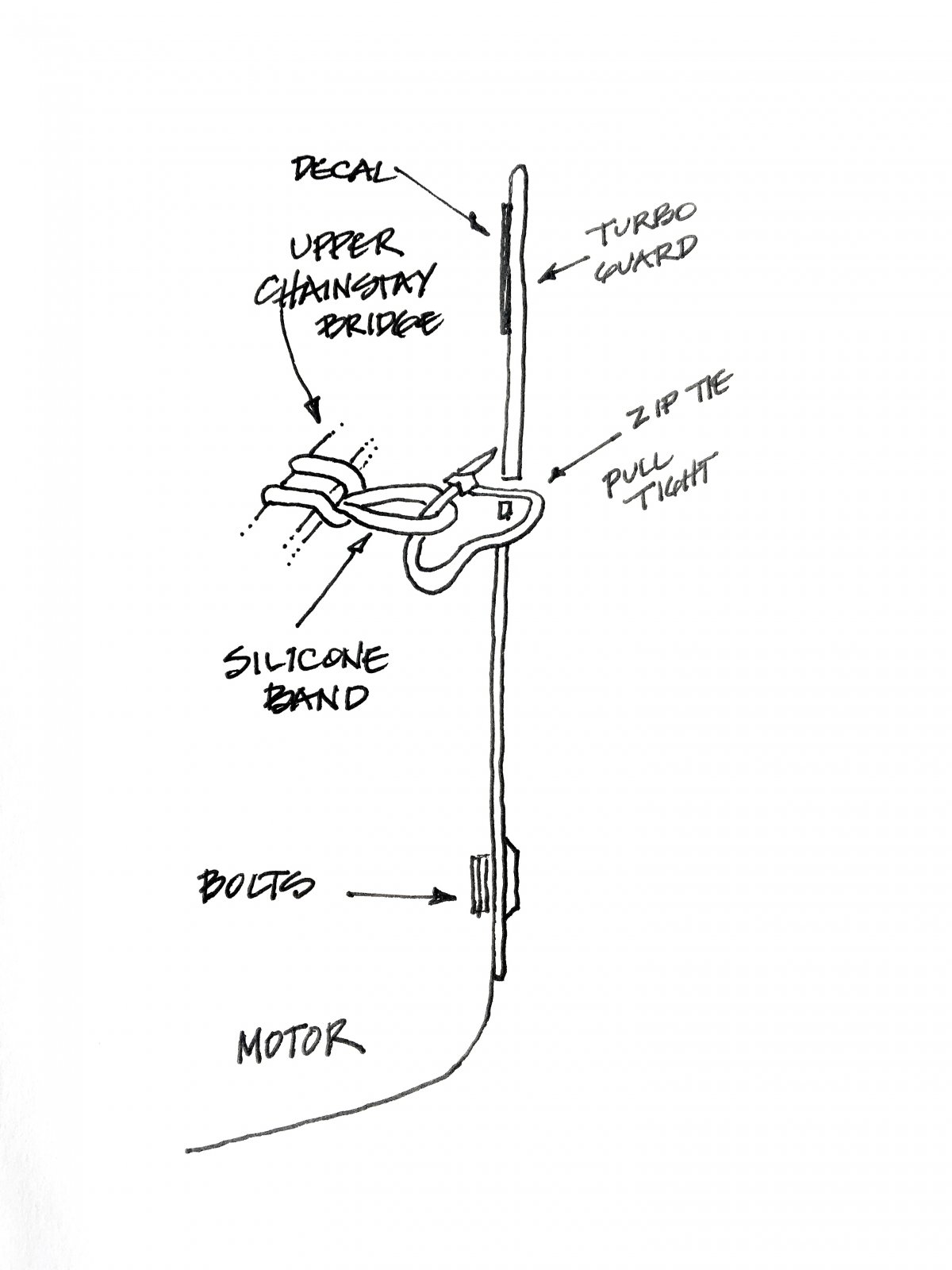

The included diagram confused me because the bolts are drawn in the wrong direction.

Jeff


Will Hesch

Member
Dec 3, 2019
68
115
93422
Will,

Thanks for posting the pictures...

The included diagram confused me because the bolts are drawn in the wrong direction.

Jeff

Jeff, thanks for noticing that! It always looked weird to me but I couldn't put my finger on it. I hope the 100+ folks who've received the drawing are as observant as you!


Zimmerframe

MUPPET
Subscriber
Jun 12, 2019
14,028
20,815
Brittany, France
Jeff, thanks for noticing that! It always looked weird to me but I couldn't put my finger on it. I hope the 100+ folks who've received the drawing are as observant as you!

You could just draw a big bolt head on the right hand side, so it looks like a big cartoon bolt going in the correct way ?? Saves re-doing the whole drawing ?


DodgyRog

New Member
Dec 6, 2019
22
37
Exmouth, Devon

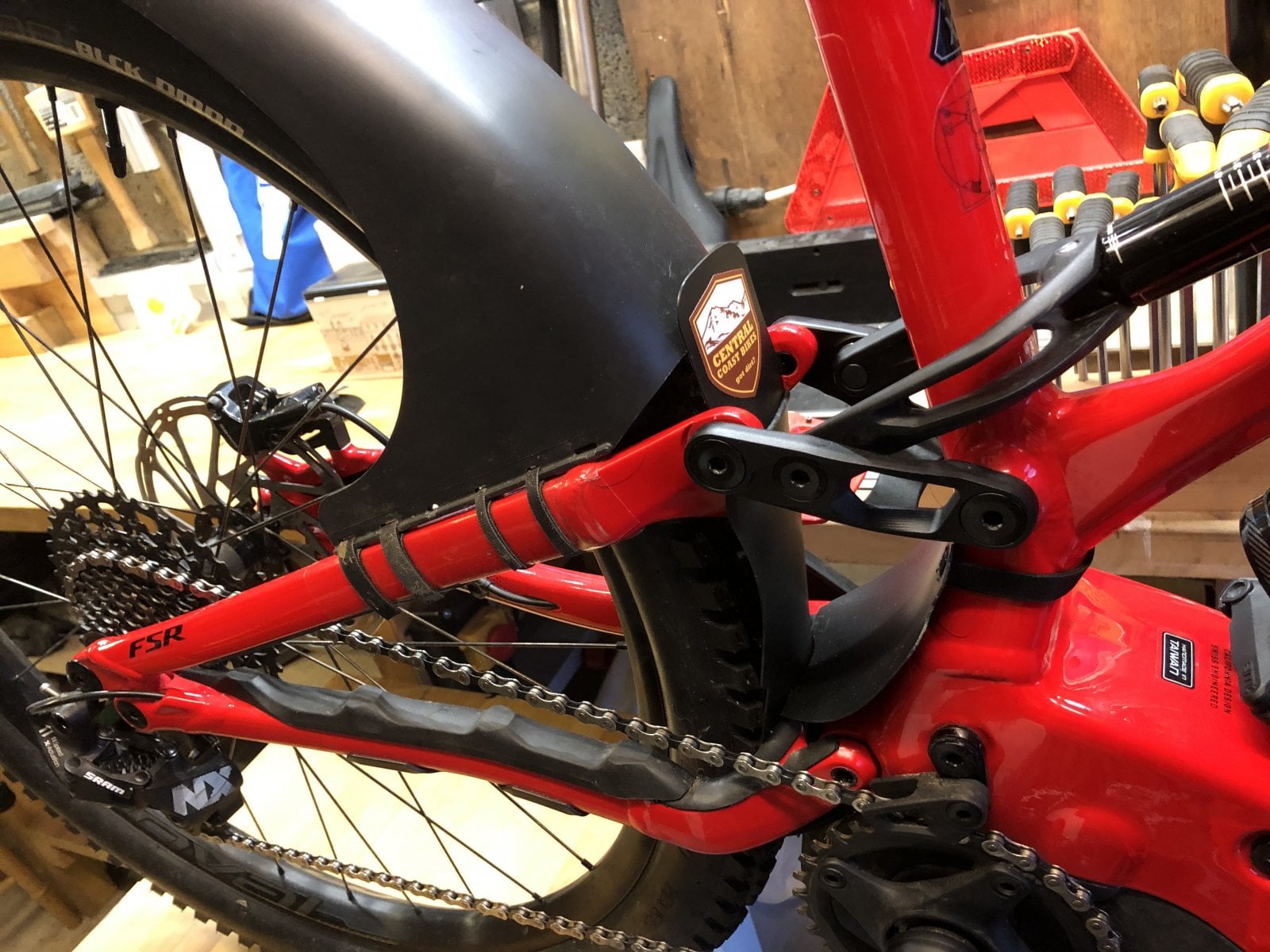

Got mine fitted and finally got out on a ride.
Seems to work very well with the Mudhugger.
Awesome service from you as well, with the updated version being sent out.
Thanks a lot


Supratad

Well-known member
Nov 13, 2019
393
306
North Yorkshire, UK

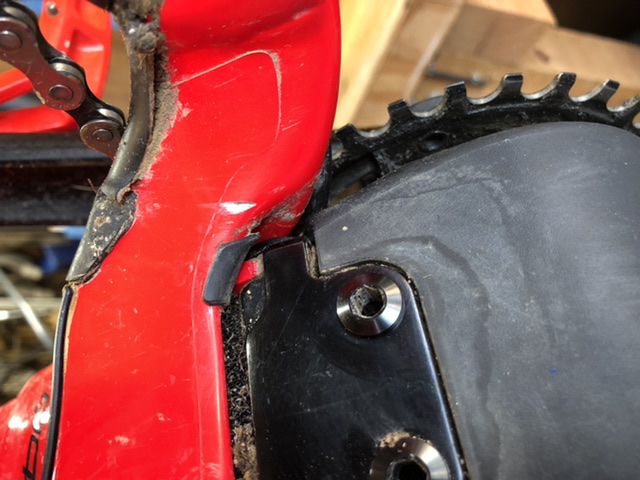

I’ve taken everything off for cleaning and noticed this gouge alongside where the central coast guard sits. Annoying but I dont think even tape would have protected it. It must be the grinding paste of mud forced out to the sides.


Supratad

Well-known member
Nov 13, 2019
393
306
North Yorkshire, UK
Having said that, the outer edge is a straight vertical line. I wonder if the mud/wheel interface is wibbling the plastic guard about enough to wear into the metal.


Webike

E*POWAH Master
Dec 13, 2018
101
110
San Luis Obispo County

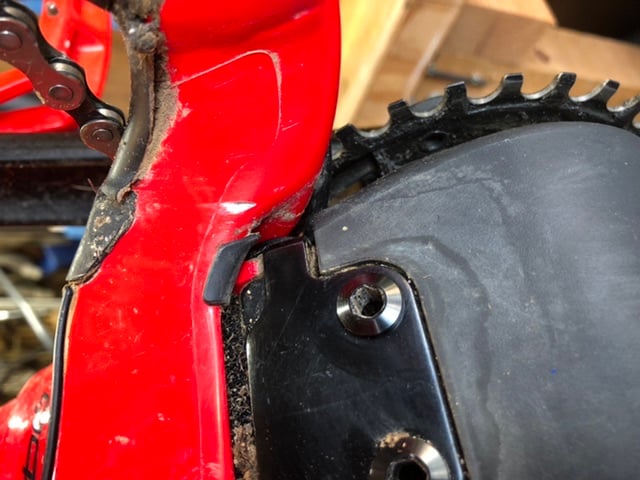

I’ve taken everything off for cleaning and noticed this gouge alongside where the central coast guard sits. Annoying but I dont think even tape would have protected it. It must be the grinding paste of mud forced out to the sides.
View attachment 27091
You may be able to resolve some of the paint abrasion by heating the plastic guards and forming a curve to minimize contact points. It also creates a more rigid form with the curve.


Roger20

Active member
Mar 6, 2020
147
104
West Yorkshire UK
Yet another thumbs up for Will's mudguard - came quickly to the UK.

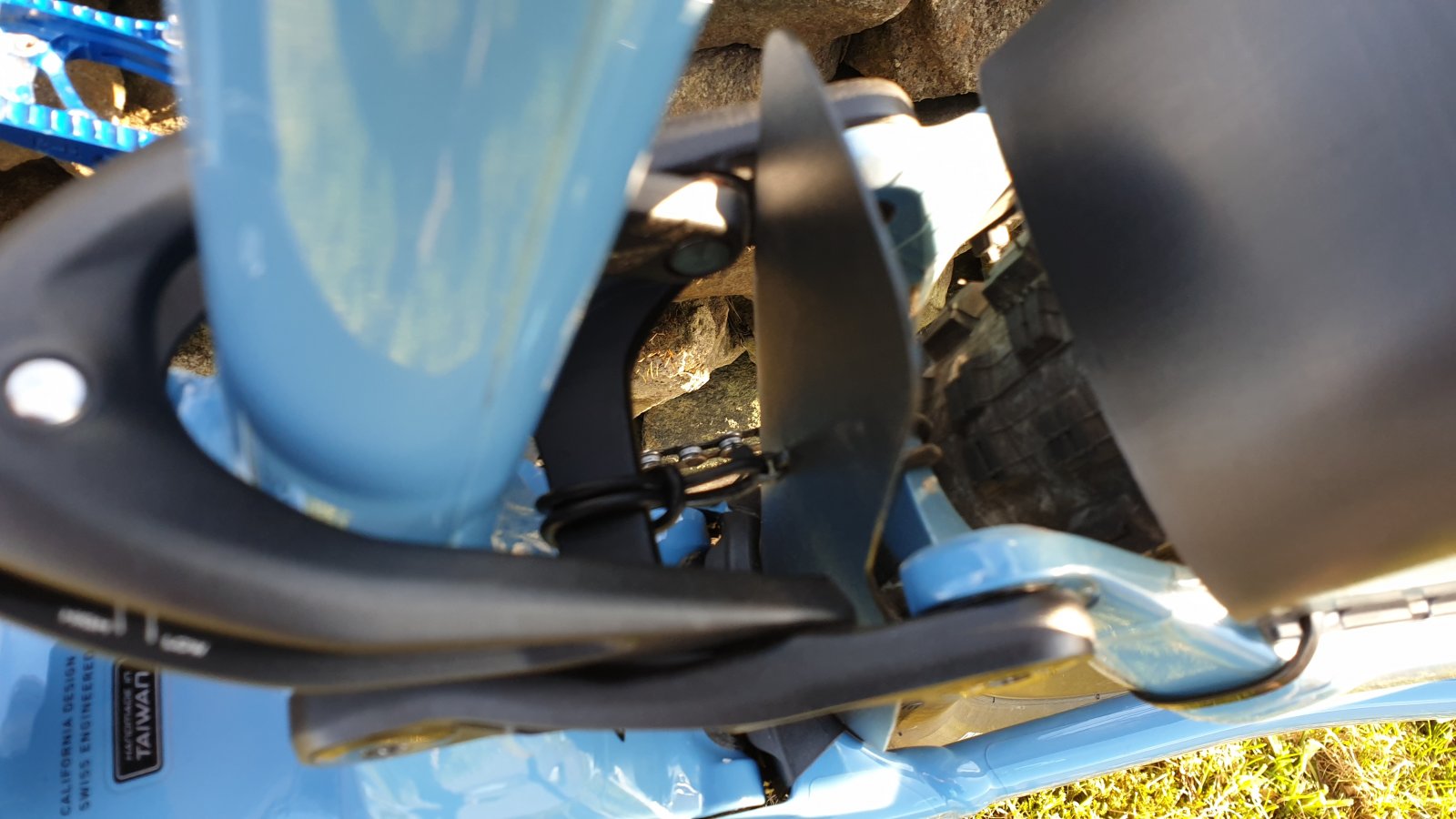

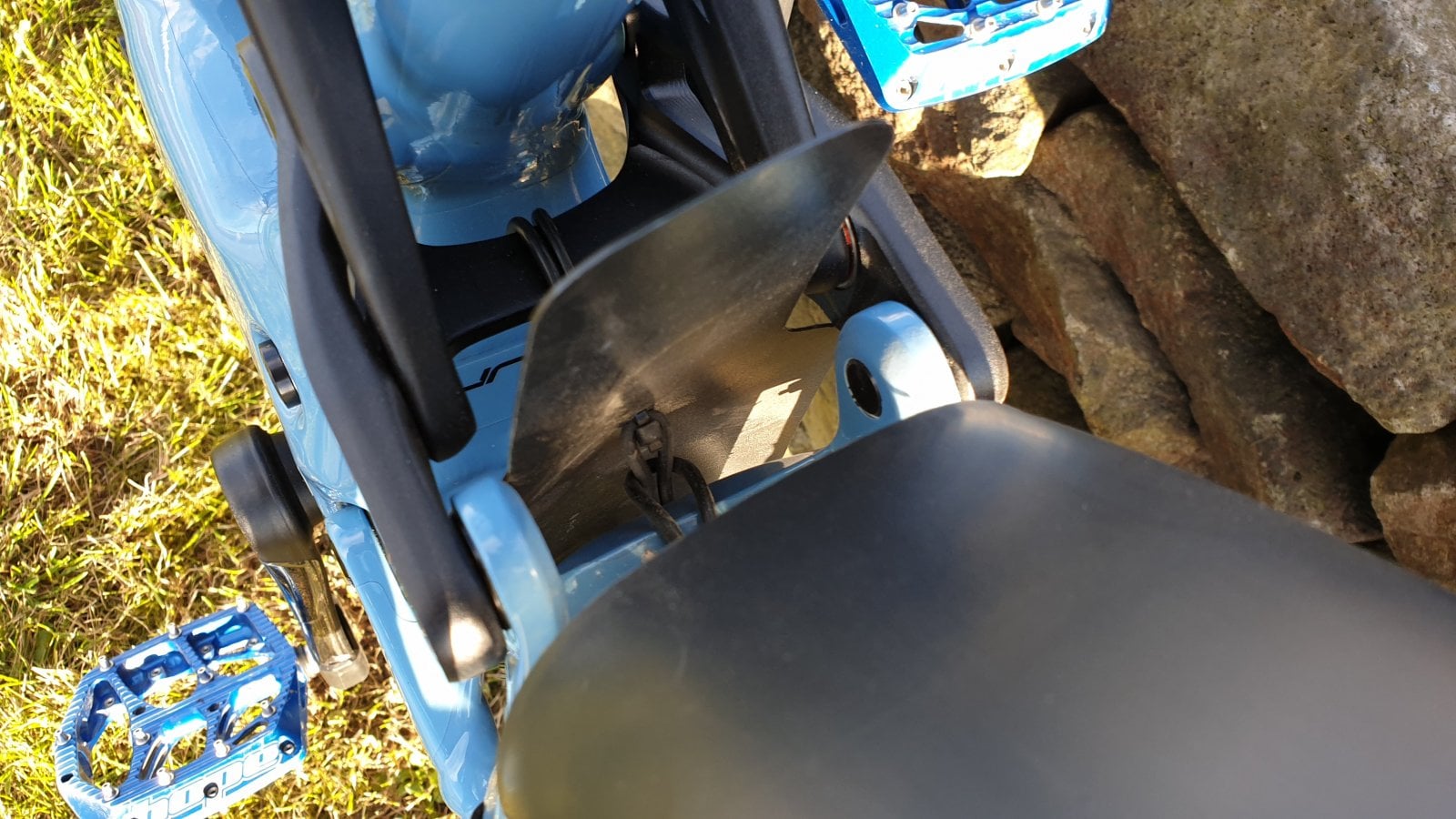

A couple of pictures showing a slight fixing modification from standard using an extra 'O' ring which centralise the guard between the linkages and ensures that there is no rubbing. I took the shock off to check that it goes straight up on full travel movement. Slightly tricky to fit without a third hand but just possible.
