What's your 27.5" Smart System circumference?

[Gauss Guzzler]

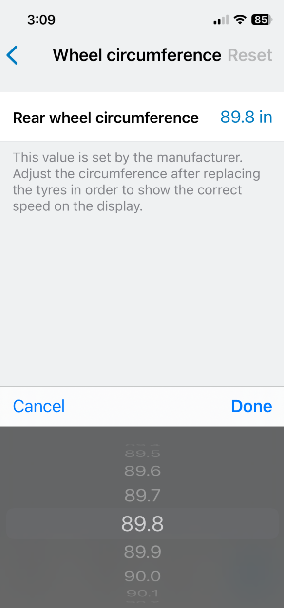

The phone app lets you adjust the circumference +/-5% so you can simply average the max/min allowable values to determine the factory programmed circumference.

I ask because my 27.5" came factory programmed as 29" (2280mm/89.8" circumference) and Bosch doesn't know if/how to fix it. I'm wondering if they even support 27.5" wheels anymore or if they just figure that 29" -5% is close enough. Anyone else have a Smart System they can check?

Technically, 29"-5% is pretty close to 27.5" but only if the tire is new and firmly inflated. At my preferred tire pressure the circumference is 2125mm/83.7" which is 7% below the factory setting.



[RustyIron]

The "factory setting" isn't going to be accurate for all tires, pressures, and rider weights. You need to measure it out for yourself.

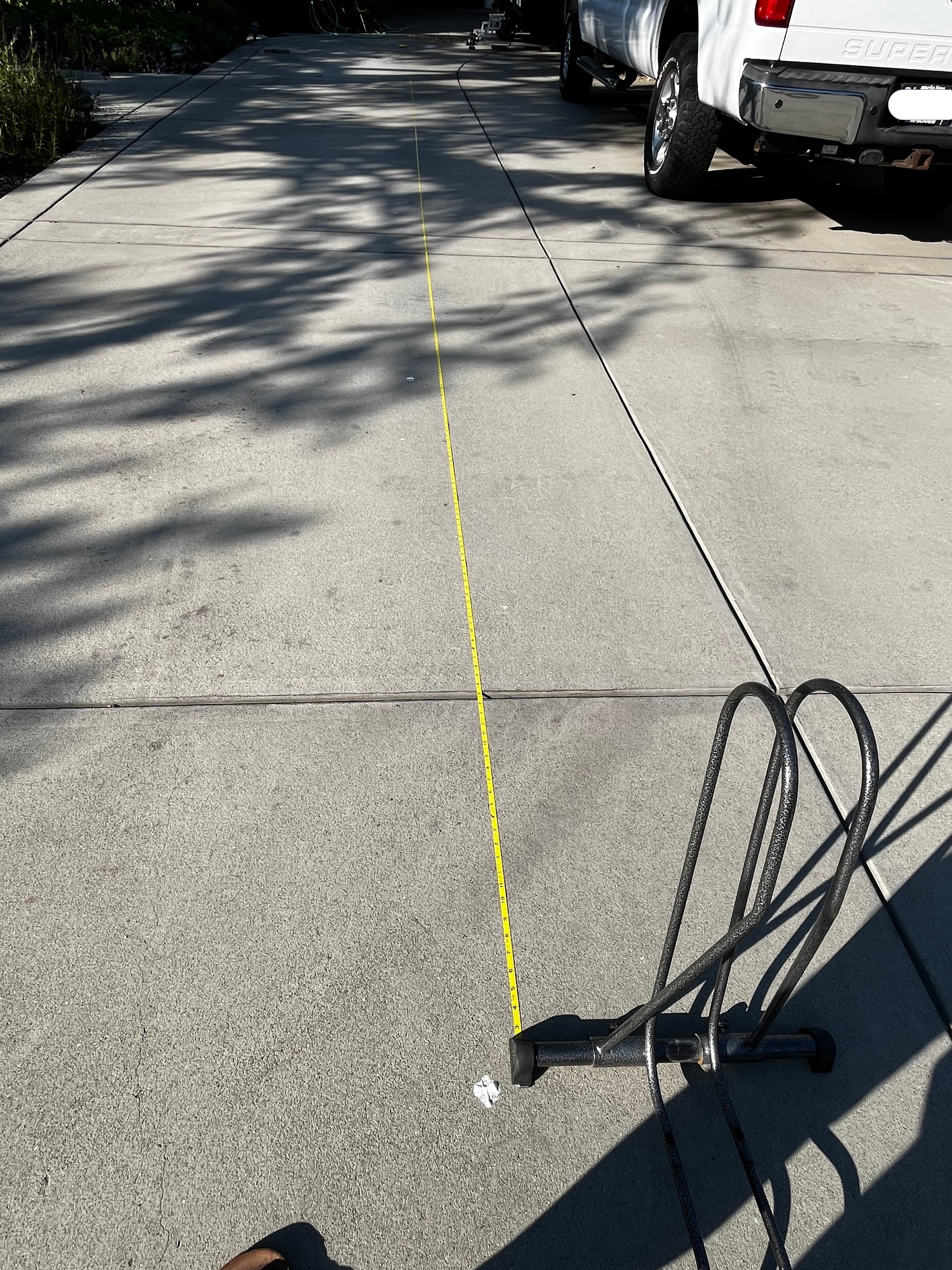

Use chalk for marking your tire. Put a line where the tire contacts your garage floor. Put a matching mark on the floor. Sit on your bike. Roll forward until the tire makes one complete revolution. Mark the garage floor again. Measure the distance between the two marks on the floor. That will get you into the ballpark.



[Gauss Guzzler]

That's precisely correct Rusty, and exactly the method I used to measure mine, but the question is:
Does Bosch set all Smart motors to 29" and/or is it possible to change them?

Bosch doesn't know the answer so I'm hoping someone here has a 27.5" that is *not* factory programmed as 29" to confirm the theory.



[MasterDabber]

My Cube Stereo 160 slx with 27.5 has a circumference setting in Flow of 88.5inches.



[Gauss Guzzler]

Hmm... 88.5" definitely sounds like a 29" tire. Are you saying that the user setting is currently at 88.5" or that the total available adjustment range is 84"-93"?

I'm looking for the latter - the max/min allowable settings, the median of which is the hard-coded factory configuration.



[MasterDabber]

Hmm... 88.5" definitely sounds like a 29" tire. Are you saying that the user setting is currently at 88.5" or that the total available adjustment range is 84"-93"?

I'm looking for the latter - the max/min allowable settings, the median of which is the hard-coded factory configuration.

I put my tyre size into one of the on-line calculators to give a rough guide to the factory setting in my Flow app. I've got a Maxxi DHR 11 on the back... 27.5/2.4.... the calculator says circumference is 87.12 inches. If I put in the size as 27.5/2.6 it gives me the 88.5 inch number. I haven't changed that setting but when I get a chance I'll have a look and see what is actually available.
One thing I'm not sure about is whether I'd be causing myself any warranty problems by changing it??? If I change the setting to 87.12 that will, if I'm correct, show a lower speed on the Kiox and therefore assistance will stay on for a little bit higher actual speed? Also my recorded distance would be reduced as well.... have I got that right?

Edited to add.... I've now been out to my bike and gone into the wheel circumference settings on Flow. It would appear that I can adjust them from 84.1 to 93 inches.... in 0.1 increments. I haven't changed anything at the moment though.



[Shark58]

If I change the setting to 87.12 that will, if I'm correct, show a lower speed on the Kiox and therefore assistance will stay on for a little bit higher actual speed? Also my recorded distance would be reduced as well.... have I got that right?

Partly right.

The user changeable value only influences the displayed speed to make it closer to actual.
The cut-off speed cannot be changed by the user or a dealership. This is a second value coded into the drive unit by the bike manufacturer.

Bosch doesn't know the answer

Hard to believe - not what you say, but what Bosch told you.
Bosch delivers all drive units to the bike manufacturer without basic programming. Either during bike assembly or before that at parts reception the bike manufacturer programms each drive unit to desired specs. This includes the four assist modes and the two tire size values. One for the max speed and the second for speed display.

If for any reason the bike manufacturer made a gross mistake and programmed a drive unit scheduled to go into a 27“ bike with 29“ circumference values, this can be changed.

One needs to convince the dealer who sold the bike to collaborate with the bike manufacturer and Bosch. The dealer will do the actual reprogramming but needs a new basic software configuration file from the bike manufacturer and at the same time a special one time code from Bosch to unlock the reprogramming feature on his diagnostic system.

As mistakes can happen with any manufacturing process, this has been done on several occasions. It will need some work and goodwill from all three parties involved. Also, Bosch will not consider the effort for small adjustments. Anything less than 10% off the correct value will be seen as ‚in spec‘.



[MasterDabber]

Partly right.

The user changeable value only influences the displayed speed to make it closer to actual.
The cut-off speed cannot be changed by the user or a dealership. This is a second value coded into the drive unit by the bike manufacturer.


Hard to believe - not what you say, but what Bosch told you.
Bosch delivers all drive units to the bike manufacturer without basic programming. Either during bike assembly or before that at parts reception the bike manufacturer programms each drive unit to desired specs. This includes the four assist modes and the two tire size values. One for the max speed and the second for speed display.

If for any reason the bike manufacturer made a gross mistake and programmed a drive unit scheduled to go into a 27“ bike with 29“ circumference values, this can be changed.

One needs to convince the dealer who sold the bike to collaborate with the bike manufacturer and Bosch. The dealer will do the actual reprogramming but needs a new basic software configuration file from the bike manufacturer and at the same time a special one time code from Bosch to unlock the reprogramming feature on his diagnostic system.

As mistakes can happen with any manufacturing process, this has been done on several occasions. It will need some work and goodwill from all three parties involved. Also, Bosch will not consider the effort for small adjustments. Anything less than 10% off the correct value will be seen as ‚in spec‘.

Thanks for clarifying that. At the moment I'm riding with both my Kiox and Garmin 520 logging the ride. Typically, the Flow app records a higher average speed by around 1/1.5 mph than the Garmin and around a similar higher distance completed... this is for a typical 18/20 mile ride when loaded onto Strava. If correcting the wheel circumference is purely cosmetic I don't think I'll bother. Thanks anyway.



[Gauss Guzzler]

Thanks @MasterDabber for confirming that your Cube goes from 84.1" to 93", indicating a factory value of 88.5" or 28.2" diameter. This seems really high for a 27.5" wheel which should generally be less than 27.0" (84.8") in practice so I'm not surprised that your speedometer is inaccurate. I suggest changing it to 84.x which should make your speedometer more accurate.

I'm glad to know that Cube set your bike up as 88.5" rather than 89.8" like mine. This is what I was hoping to find from this thread - does Bosch simply lock all motors at 89.8" (2280mm) or do they allow bike builders to configure the correct value? And while Cube doesn't seem to have done any better job configuring your wheel size than Bulls did with mine, the fact that they're different suggests that it's at least possible to do so.

There's some speculation that cutting power at 19mph instead of 18mph might be hard on the motor but this is nonsense. The motor doesn't know what gear you're in, it just blindly delivers 250W and is perfectly happy to do so. The speed limiter is only for legality.

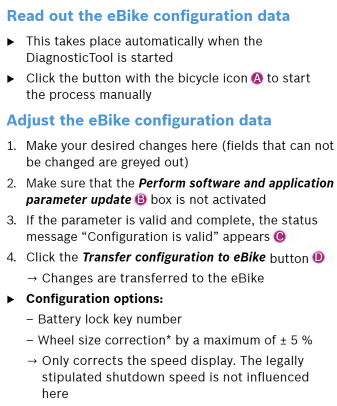

@Shark58 is correct that the user-set wheel circumference only affects the speedometer/odometer, NOT the power assist speed limit, so correcting it will result in a lower speed reading at the time of cutoff even though the actual speed is the same. I tried to verify this with GPS but it's not easy to detect 1 or 2mph variations with certainty. A much better method I found is to ride at max/min circumference and see what pedal cadence the speed cutoff occurs at. If a 10% change in circumference were to actually change the cutoff speed by 10% as expected, the resulting 6-8 rpm difference in cadence would be clearly evident, but it is not. The Bosch service manual also confirms this behavior:



[Gauss Guzzler]

Resolution:

I'm happy to report that after several weeks of effort and many bikeless days and trips to the LBS, Robert Bosch's yacht came close enough to shore that they were able to airlift a notary out to him and he personally authorized the repair of this manufacturing defect (I assume), thereby allowing the LBS to change the factory circumference from 89.8" to 83.7".

As a result, my top gear (34T/10T) cadence at cutoff went from 64 to 69rpm.

A simple calculation of cadence, circumference, and gearing shows that the Bosch-intended cutoff speed of 18.6 mph is now being accurately reached (GPS agrees) whereas my previous cadence cutoff of 64 rpm was only reaching 17.2 mph (also GPS confirmed).

This is huge because not only can I now ride 1.4 mph faster, but I can actually make use of 12th gear on level ground! The cadence increase allows both me and the motor to provide that little bit of extra power I needed to be able to maintain full speed in 12th gear, whereas previously I could only top out 11th gear.
