Rail Battery Parts Diagrams

[Doomanic]

I’ve managed to get hold of exploded parts diagrams for the Aluminium Rail.



[Doomanic]



[Good Times]

This is invaluable info, thanks. All the bike shops I spoke to said the 500w battery wouldn’t fit the Rail. With this spacer showing the contrary, it means that when shopping for an eBike for the wife, it has to be Trek.

That was I can have a spare on rare 100km outings, but also could shed some weight running the 500 for shorter runs too. Yew!



[Zimmerframe]

exploded parts

Did you get that so you know how to put it back together after your first proper fall ?



[themonkster]

This is invaluable info, thanks. All the bike shops I spoke to said the 500w battery wouldn’t fit the Rail. With this spacer showing the contrary, it means that when shopping for an eBike for the wife, it has to be Trek.

That was I can have a spare on rare 100km outings, but also could shed some weight running the 500 for shorter runs too. Yew!

My Rail 5 comes with the 500w battery. How would the bike shop not know that. All other Rails come with the 625w. I've still not managed to kill the 500w yet. Did 35 miles last week with 4800ft climbing still had a bar left.



[Good Times]

Nah I mean my 625wh Rail (longer battery), I wanted to see if I bought a Powerfly 5 for the wife, if I could use that battery in mine too. They said no, diagram says yes.



[Doomanic]

Perhaps they meant it isn’t a straight swap? Running a second internal battery looks to be either expensive of a proper PITA that you wouldn’t want to attempt trail side.
By the time you’ve bought all the bits you need you might be better off just buying a Rail 5



[themonkster]

Nah I mean my 625wh Rail (longer battery), I wanted to see if I bought a Powerfly 5 for the wife, if I could use that battery in mine too. They said no, diagram says yes.

Yes it definitely will fit. Mine just has a spacer in it. I could swap to a 625 with ease. Don't know how easy it will be to fit the battery cover on if you use the spare battery I've not really looked how it all fits together.



[Good Times]

Perhaps they meant it isn’t a straight swap? Running a second internal battery looks to be either expensive of a proper PITA that you wouldn’t want to attempt trail side.
By the time you’ve bought all the bits you need you might be better off just buying a Rail 5

It’s a turn of the key and it’s out. 5 seconds. I don’t know the battery cover cost but a new 625wh battery in Oz is $1400 and the bike is $8k so you’re well ahead! The 500w battery with spacer and cover is probably about the same cost.



[p3eps]

Roughly how much does a 625wh battery weigh?
I assume if you wanted a spare, you’d have to buy a second fascia for it to match your bike?



[themonkster]

Roughly how much does a 625wh battery weigh?
I assume if you wanted a spare, you’d have to buy a second fascia for it to match your bike?

I'm

Roughly how much does a 625wh battery weigh?
I assume if you wanted a spare, you’d have to buy a second fascia for it to match your bike?

I can't find the weight specs anywhere. I know if I get a spare it will be a 500. That would be plenty for a big day out. Yes you'd have to get a matching battery cover and the clips and end caps.



[p3eps]

I store my bikes currently on a ‘Floaterhoist’ device - which allows me to pull them up to the ceiling horizontally. It means they take up no room on my garage floor, and are high enough to walk under without worrying about.

I know the Rail 9.9 in size Large is approx 22kg with pedals and tubeless. I wondered what it would lose if I took the battery off. I assume it would be under 20kg - which is the weight limit of my storage.



[dochabanero]

I store my bikes currently on a ‘Floaterhoist’ device - which allows me to pull them up to the ceiling horizontally. It means they take up no room on my garage floor, and are high enough to walk under without worrying about.

I know the Rail 9.9 in size Large is approx 22kg with pedals and tubeless. I wondered what it would lose if I took the battery off. I assume it would be under 20kg - which is the weight limit of my storage.

Then you should be good. Battery weight is roughly 3.5 kilograms.



[p3eps]

I’ve gone back and re-read the Floaterhoist FAQ, and it’s actually capable of 25kg.
Looks like I can store with or without the battery in - depending if it’s charged when I put the bike away!



[taifi]

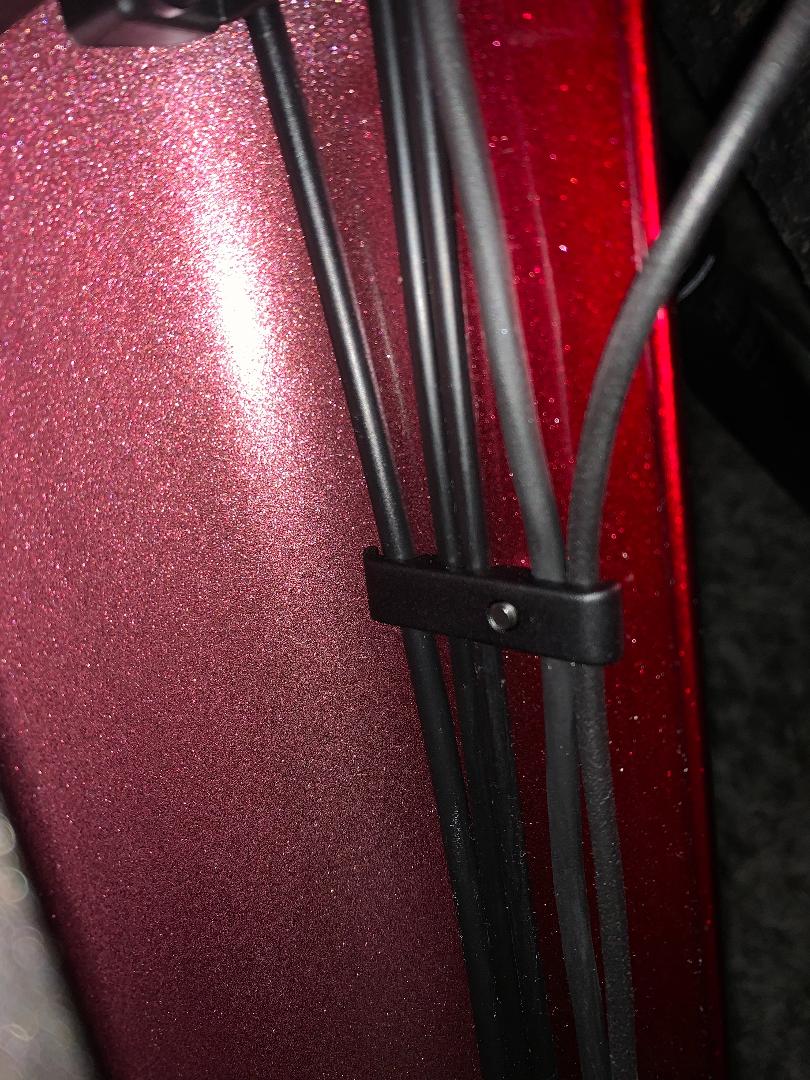

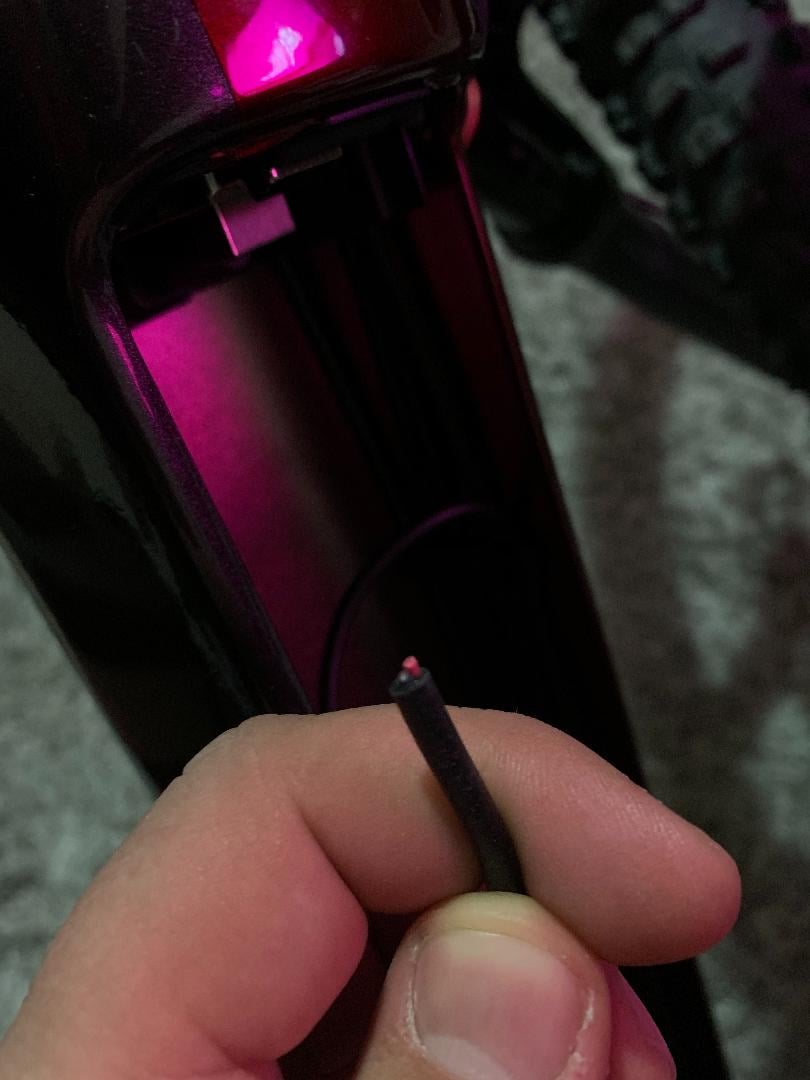

Hi riders, i have a question about your Rails...bough my girlfriend a rail 7 and...inside the frame, under the battery , there are 5 cables....purion, dropper, back brake and shifter...what that the 1st one from left to wright does ??? (her is broke, but the bike is working normal)



[Rusty]

what that the 1st one from left to wright does ??? (her is broke, but the bike is working normal)

Could be for a light.



[Good Times]

Thank goodness for internal routing!



[protowheeler]

It's pre-routed for a front light if the customer wants it. It just hangs out in there otherwise.

Weight of a 625Wh battery is a bit under 4kg with all the parts (metal cover, plastic caps and handle, etc).
