New Bosch CX generation 5 - seal/bush problem

[Boogz83]

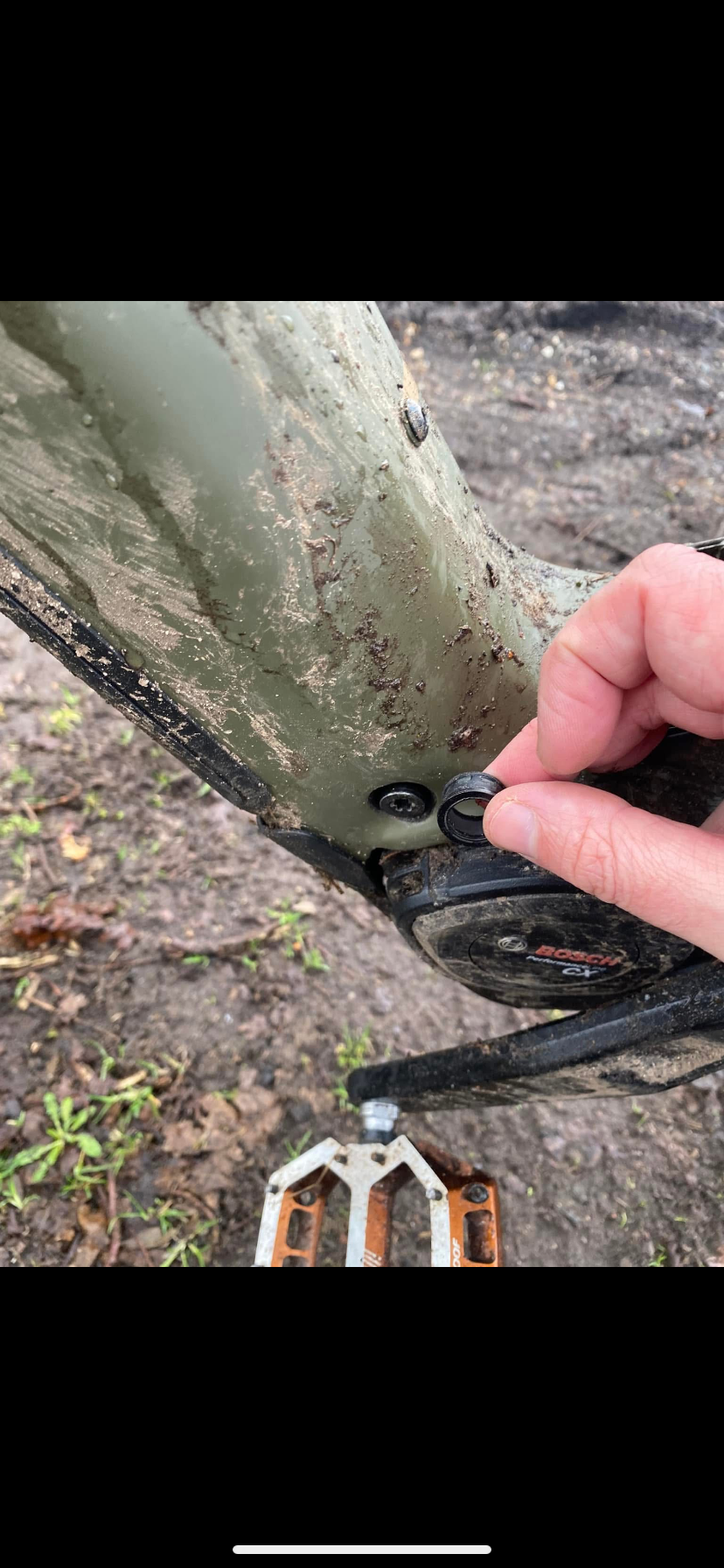

Hi Anyone had issues with the seal/ bush falling out of the new gen 5 CX motor?

They are fixed in with the new two bolt system and no body even seems to know the correct torque for T40 bolts.



[ficorama]

Hi Anyone had issues with the seal/ bush falling out of the new gen 5 CX motor?

They are fixed in with the new two bolt system and no body even seems to know the correct torque for T40 bolts.

I don't have that problem, but it seems to me that the axle squeaks when pedaling, on cx5. I have to change the pedal to try. but it seems to me that it is the engine



[Boogz83]

I don't have that problem, but it seems to me that the axle squeaks when pedaling, on cx5. I have to change the pedal to try. but it seems to me that it is the engine

Got to be honest the new generation 5 CX motor seems absolutely silent on my bike especially compared to my previous bike with a SX motor.
I suspect there must be an issue with yours?



[ficorama]

maybe it's the pedal, I have to try it. although my frame creaked from day one. Orbea forgot to put all the parts at the seatstay and chain stay junction at the UDH hanger.

Got to be honest the new generation 5 CX motor seems absolutely silent on my bike especially compared to my previous bike with a SX motor.
I suspect there must be an issue with yours?



[Boogz83]

maybe it's the pedal, I have to try it. although my frame creaked from day one. Orbea forgot to put all the parts at the seatstay and chain stay junction at the UDH hanger.

Mines a cube and I have to say the build quality seems awful on a lot of the new emtb ranges!
I still can’t see how a seal can just drop out after 100 miles on a brand new bike



[ficorama]

Mines a cube and I have to say the build quality seems awful on a lot of the new emtb ranges!
I still can’t see how a seal can just drop out after 100 miles on a brand new bike

definitely the quality of the product is bad. so far I'm disappointed in the big manufacturers. Turbo levo problem from the first day, I sold it. Orbea Wild 2025 problem from the first day, the gen 5 engine is not as smart, it feels weaker. I'm still thinking about what to do with Orbea.



[Polar]

Bosch was very fast to pump out 5 maybe therfore Specialized is taking the time needed to make an new solid G4 all other brands can look up to.



[Boogz83]

definitely the quality of the product is bad. so far I'm disappointed in the big manufacturers. Turbo levo problem from the first day, I sold it. Orbea Wild 2025 problem from the first day, the gen 5 engine is not as smart, it feels weaker. I'm still thinking about what to do with Orbea.

I have no experience with Orbea I am afraid but definitely don’t swap it for a cube if you want better quality or customer service



[ficorama]

I have no experience with Orbea I am afraid but definitely don’t swap it for a cube if you want better quality or customer service

As for Cuba, post sale support is the best.



[Bndit]

Hi Anyone had issues with the seal/ bush falling out of the new gen 5 CX motor?

They are fixed in with the new two bolt system and no body even seems to know the correct torque for T40 bolts.

View attachment 155446

Somebody at Vala thread had the same.



[Boogz83]

Somebody at Vala thread had the same.

Did they I can’t find the thread?



[ckkone]

They changed the design of that bushing, you have an early one. Call your dealer and get the new bushing and problem solved.



[Boogz83]

They changed the design of that bushing, you have an early one. Call your dealer and get the new bushing and problem solved.

Ok cool thanks will message them is it just a dust seal and is it necessary to take the bolt out to replace?



[Shark58]

Anyone had issues with the seal/ bush falling out of the new gen 5 CX motor?

Check my answer to same issue in the Vala thread: Santa Cruz Vala



[Boogz83]

Check my answer to same issue in the Vala thread: Santa Cruz Vala

Thanks that’s exactly my issues! I wonder if they were never pushed in fully from the factory? I’ve just refitted my old one for now but will try and get some new ones asap.
Funny though I finished my ride without the bush and it was silent with no issues at all for 20 miles. Makes me wonder if it is more of a dust seal than a structural mount?

What did you torque the bolts up to?



[Old Codger]

I have no experience with Orbea I am afraid but definitely don’t swap it for a cube if you want better quality or customer service

I’ve had four cubes from the Bosch CX Gen 1. Had Gen 2 and 4 and now got a new Gen 5 One44 all Cubes. Still got a seven year old Cube with Gen 2 CX and it’s been no trouble at all. Most of the components are not Cube anyway apart from the frame, it’s got Bosch motor, XT Drivetrain, Fox suspension etc..etc. What’s bad quality?



[Boogz83]

I’ve had four cubes from the Bosch CX Gen 1. Had Gen 2 and 4 and now got a new Gen 5 One44 all Cubes. Still got a seven year old Cube with Gen 2 CX and it’s been no trouble at all. Most of the components are not Cube anyway apart from the frame, it’s got Bosch motor, XT Drivetrain, Fox suspension etc..etc. What’s bad quality?

They are crap quality just read the cube Facebook groups!

I bought a light weight hybrid one last year the headset failed, dropper failed, wheel hub was faulty, charging cover fell off and then the paint peeled off around shock mount! Cube customer care Uk were that bad I returned the bike and exchanged for a different model with the online store.

I love the new bike but already at 3 weeks old the sram shifter was draining and the battery going flat overnight and now the motor mount has fallen out

I get emtb are more complicated but never has this much grief in 35 years of riding! I’ve only managed about 400 miles on both bikes combined.

I get a lot of that is component related but still not great! On top of that whilst replacing the dropper I found 2 random torx screw rattling around loose in the frame!



[Old Codger]

They are crap quality just read the cube Facebook groups!

I bought a light weight hybrid one last year the headset failed, dropper failed, wheel hub was faulty, charging cover fell off and then the paint peeled off around shock mount! Cube customer care Uk were that bad I returned the bike and exchanged for a different model with the online store.

I love the new bike but already at 3 weeks old the sram shifter was draining and the battery going flat overnight and now the motor mount has fallen out

I get emtb are more complicated but never has this much grief in 35 years of riding! I’ve only managed about 400 miles on both bikes combined.

I get a lot of that is component related but still not great! On top of that whilst replacing the dropper I found 2 random torx screw rattling around loose in the frame!

Well with all of those problems I’m surprised you went for another Cube. All I can say is that my four Cubes have been perfect. My partner still has a Cube with a Bosch Gen 1 motor and since I replaced the cheap Suntour forks after 7 years with some Rockshocks she refuses to upgrade.
As I have said, you can’t blame Cube for generic pert faults. I just bought a spare mech hanger and even that was a non Cube part. I wouldn’t be surprised if a lot of different frame brands were made in the same factory.



[Arminius]

Hi Anyone had issues with the seal/ bush falling out of the new gen 5 CX motor?

They are fixed in with the new two bolt system and no body even seems to know the correct torque for T40 bolts.

View attachment 155446

That is a well known prob of the early SX and CX Gen 5 and there is a fix that I forgot - pls google.



[Boogz83]

As for Cuba, post sale support is the best.

Is most definitely is not!



[ficorama]

- YouTube

Enjoy the videos and music that you love, upload original content and share it all with friends, family and the world on YouTube.

youtube.com

hi everyone. please comment, it seems a bit too loud to me, maybe I'm wrong! the engine has about 180 km. bosch "gen5"



[Boogz83]

Definitely sounds noisy to me get it back to the dealer and let us know how you get on.



[Mister cube]

- YouTube

Enjoy the videos and music that you love, upload original content and share it all with friends, family and the world on YouTube.

youtube.com

hi everyone. please comment, it seems a bit too loud to me, maybe I'm wrong! the engine has about 180 km. bosch "gen5"

That does not sound right,back to a bosch dealer for a second onion!



[E-MAD MALC]

I have no experience with Orbea I am afraid but definitely don’t swap it for a cube if you want better quality or customer service

I've never had problems with Cube within the last 5 years
I feel bad news speads faster than good and that applies to anything one buys
I've taken note on issues on this forum
Also upgraded parts that people are recommending
I'm lucky I suppose to be able to maintain my bike which is a big plus



[Mikerb]

- YouTube

Enjoy the videos and music that you love, upload original content and share it all with friends, family and the world on YouTube.

youtube.com

hi everyone. please comment, it seems a bit too loud to me, maybe I'm wrong! the engine has about 180 km. bosch "gen5"

dont know a bout gen5 but it is a lot louder than either of my Gen 4s and one has done over 1300 hard miles mostly in foul weather!



[Gavalar]

I don't have that problem, but it seems to me that the axle squeaks when pedaling, on cx5. I have to change the pedal to try. but it seems to me that it is the engine

Torque settings on a carbon frame are 9- 11nm



[ficorama]

Torque settings on a carbon frame are 9- 11nm

I have an aluminum frame.



[Boogz83]

The bolts on the new generation 5 are a completely different design to the gen 4 etc.
The torque is 30nm



[Gavalar]

I have an aluminum frame.

20nm



[Boogz83]

20nm

30nm as stated by Bosch and also the bike manufacturers
