Invisiframe help/question for Rail 7

[Just240]



[Just240]

Please could anyone who has installed invisiframe on a Rail 7 tell me exactly where the “Shock Rocker left/right” pieces go/place?



[Philly G]

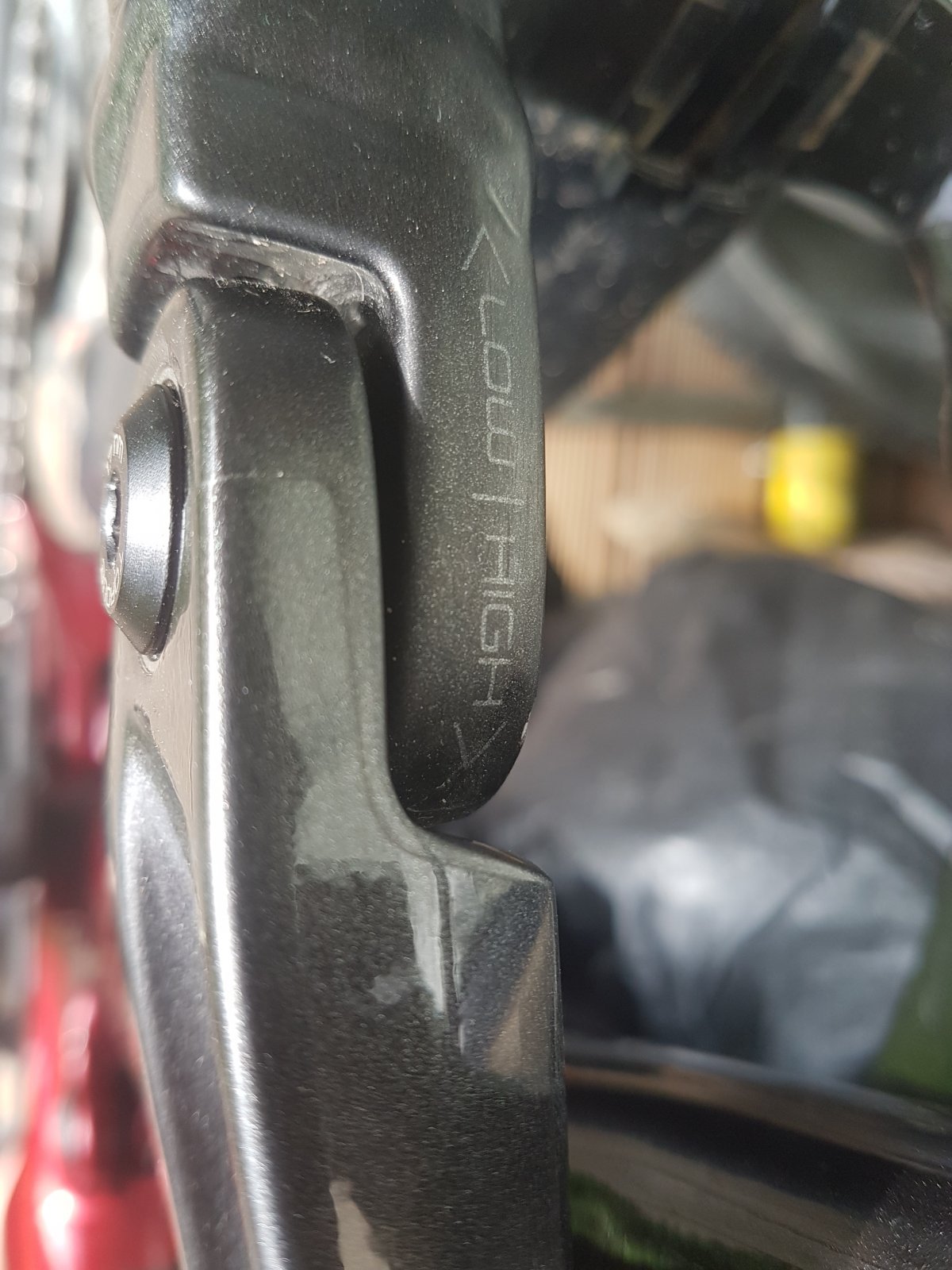

This is the rocker. The invisiframe pieces go along the top edge. I found it easiest to first cut around each piece with scissors, which helped me figure out the correct orientation. How those rocker pieces are meant to go was different from the how it first appeared to me, just looking at them. As I remember it, there were also two pieces that go around the motor that were labelled wrong on the sheet, left and right side were swapped over. Hope this helps!



[Just240]

Thanks Philly, I know that’s Rocker piece but can’t figure out how/where the invisiframe piece fits on it?? Thanks again ?



[Philly G]

Thanks Philly, I know that’s Rocker piece but can’t figure out how/where the invisiframe piece fits on it?? Thanks again ?

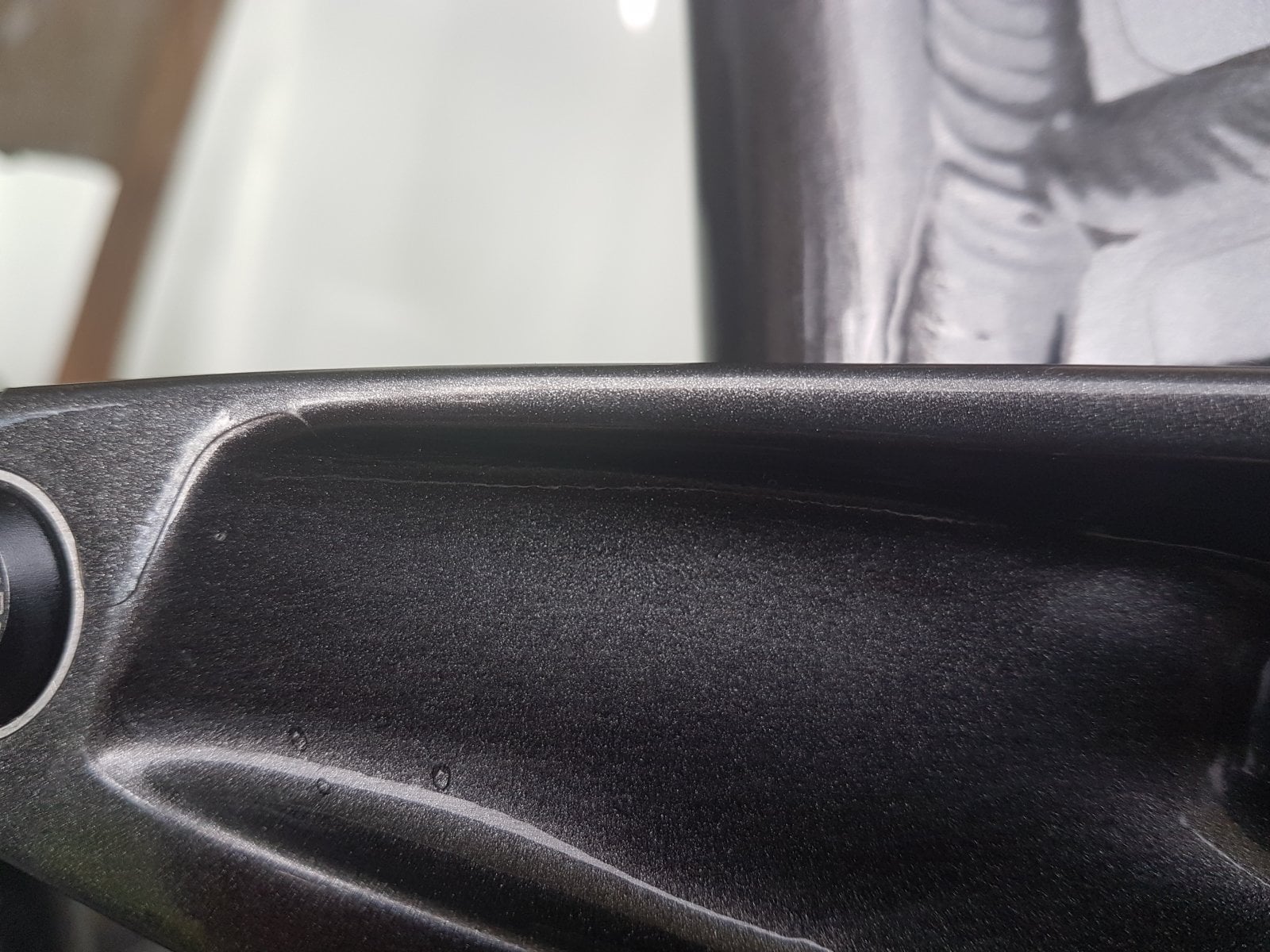

It's very hard to show in photos. This is the R/H (drive side) rocker. The transfer folds over the front edge, but not the inside edge. Hope this helps! Cut around each piece closely with scissors and that should help you see how they fit. They are a bit tricky, the way I thought was immediately obvious isn't how they actually go



[Just240]

Ah, perfect, thanks again ?
