EXT USA's 2022 Norco Sight VLT C1

NotSoSikMik

EXT Official Dealer
Jun 18, 2021
27
35
USA
Hi all here is a bike we built up for media/festivals and all around fun for 2022 to showcase the new e-Storia Damper and V2 ERA Fork. Hope you guys like it.

Artwork was created by Brandon Rollin and decals by Stikrd

Build:

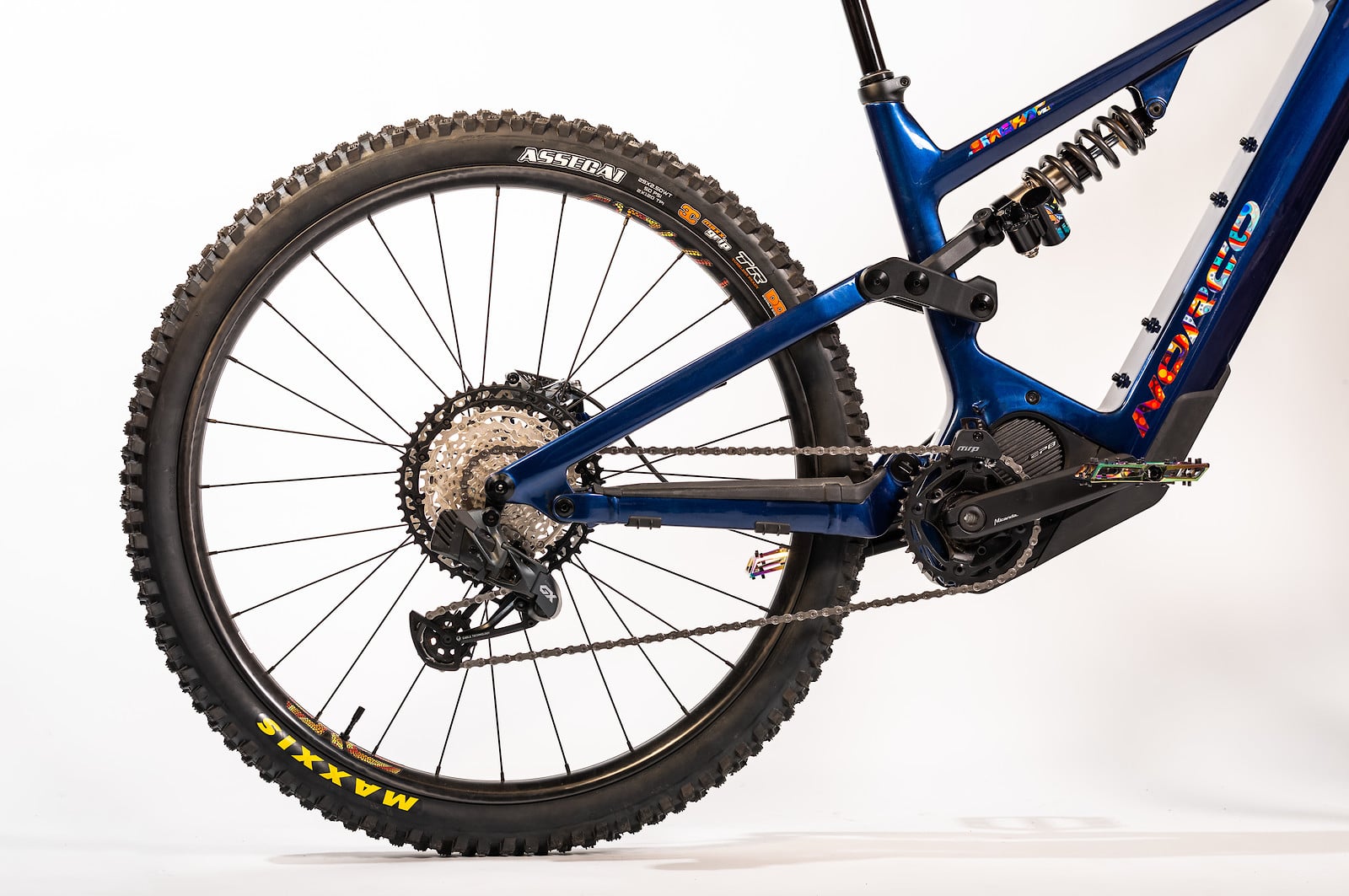

Frame: Norco Sight VLT-C1 900Wh Battery

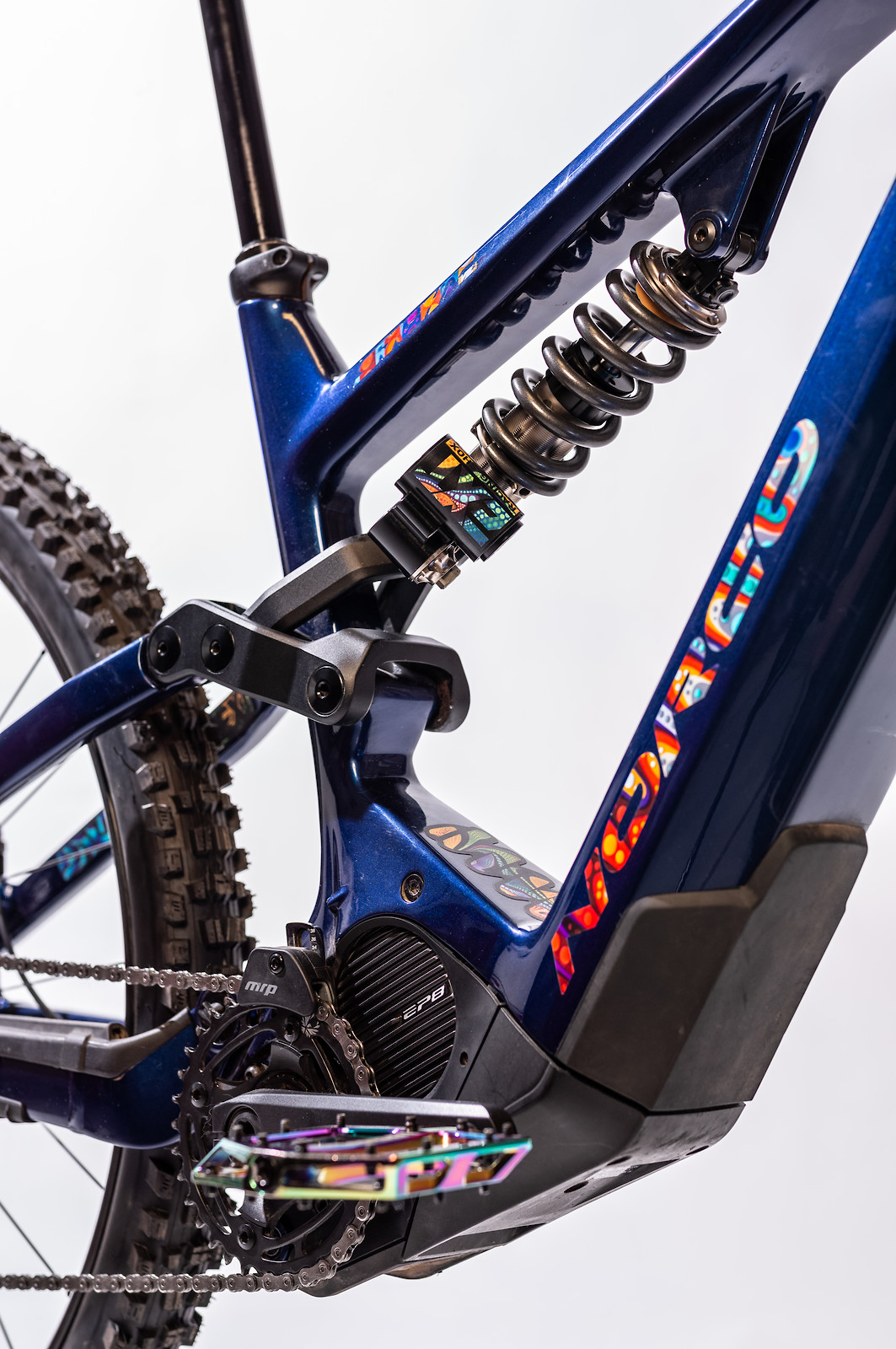

Shock: EXT e-Storia 210x55mm, 550lb coil

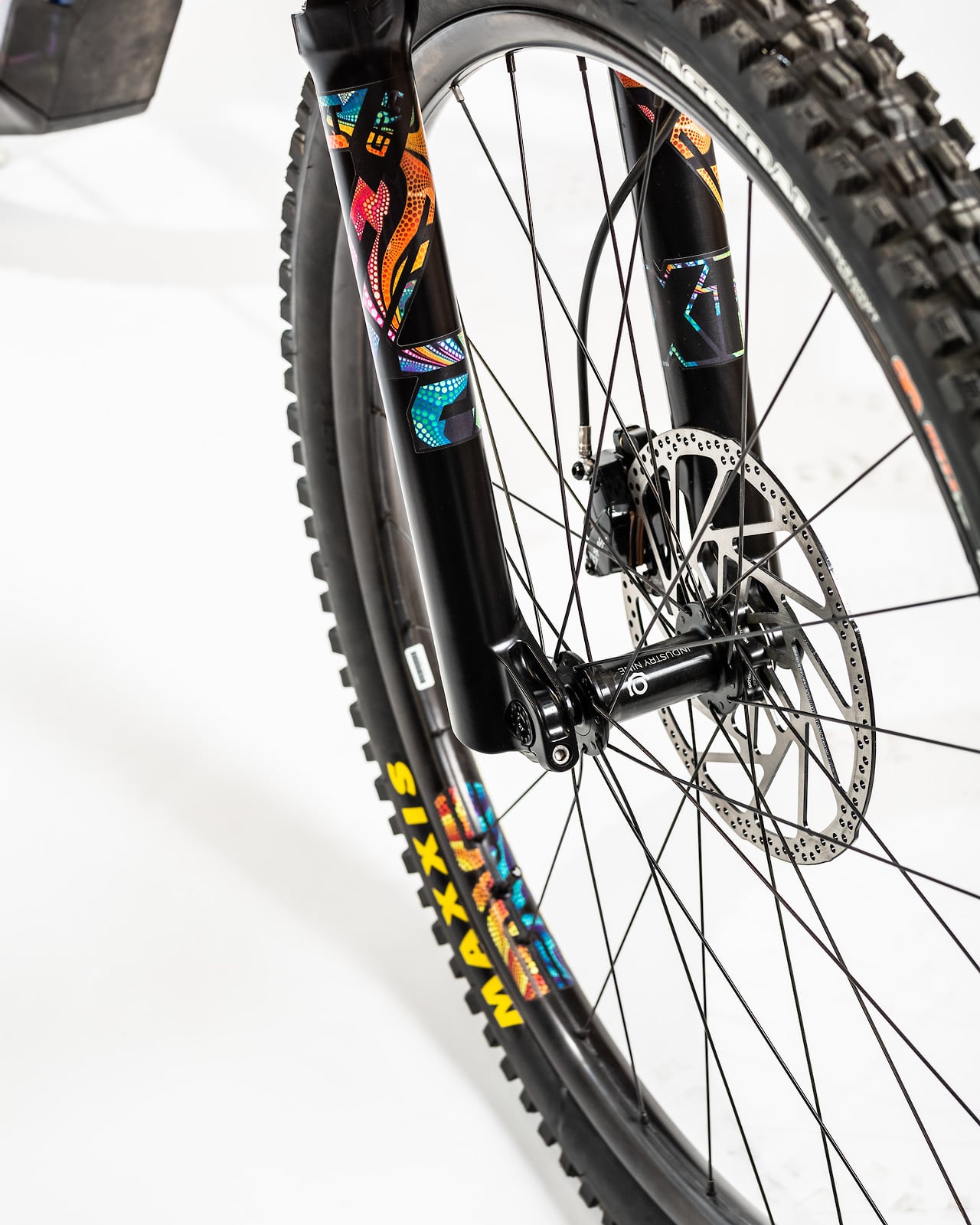

Fork: EXT ERA V2
Wheels: ENVE AM30 (29"/30mm internal Width), I9 1/1 Hubs, Reserve Fillmore Valves.
Tires: Maxxis 2.5" Assegai DD Maxxgrip 3C Front/ 2.5" Assegai DH Maxxgrip 3C Rear
Brakes: TRP DHR EVO (223mm Rotors F/R) W/ 3d Printed Caliper Covers

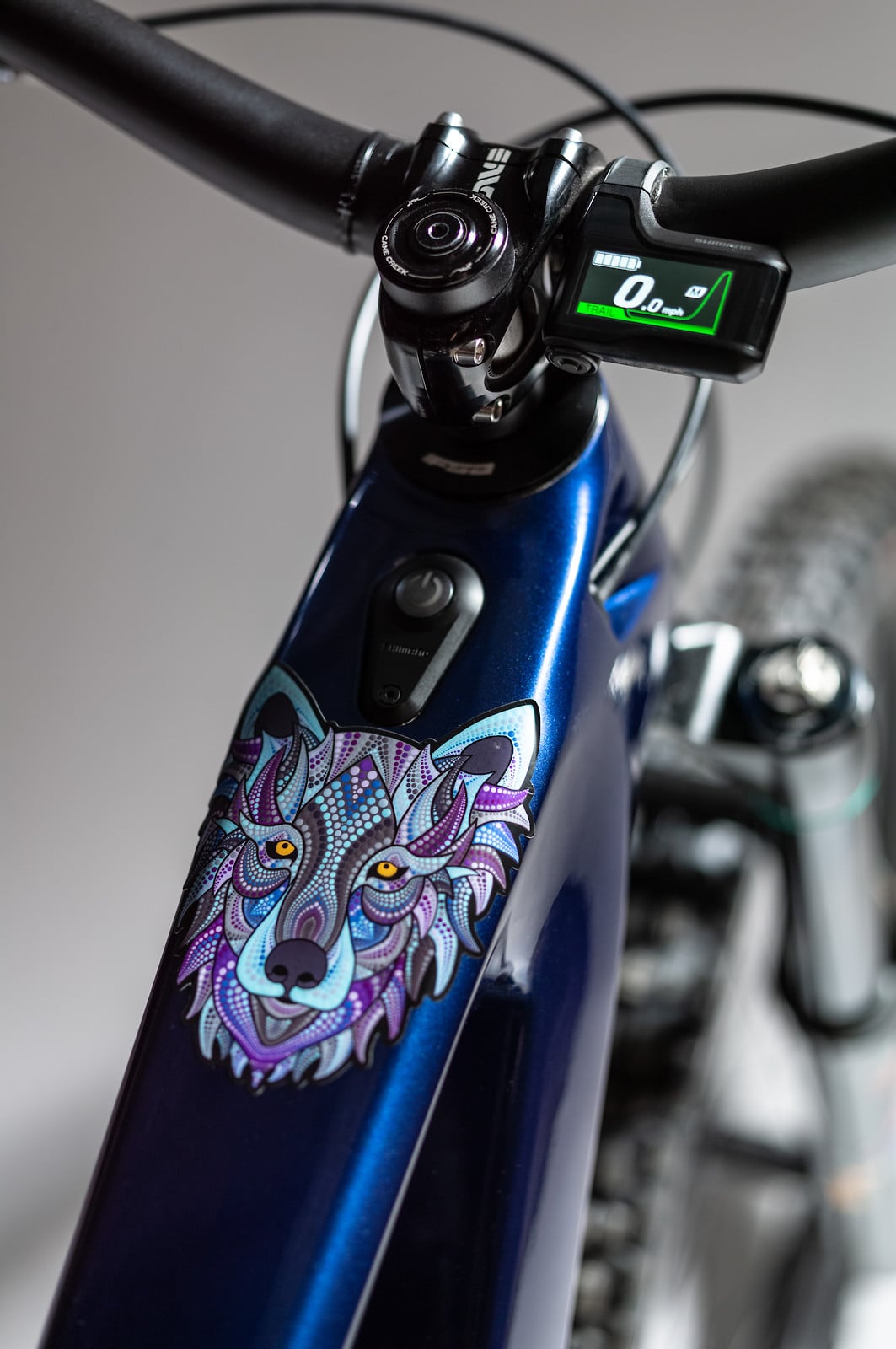

Bars: ENVE M9 50mm High-Rise, 31.8mm diameter
Stem: ENVE Alloy 35mm, 31.8mm diameter

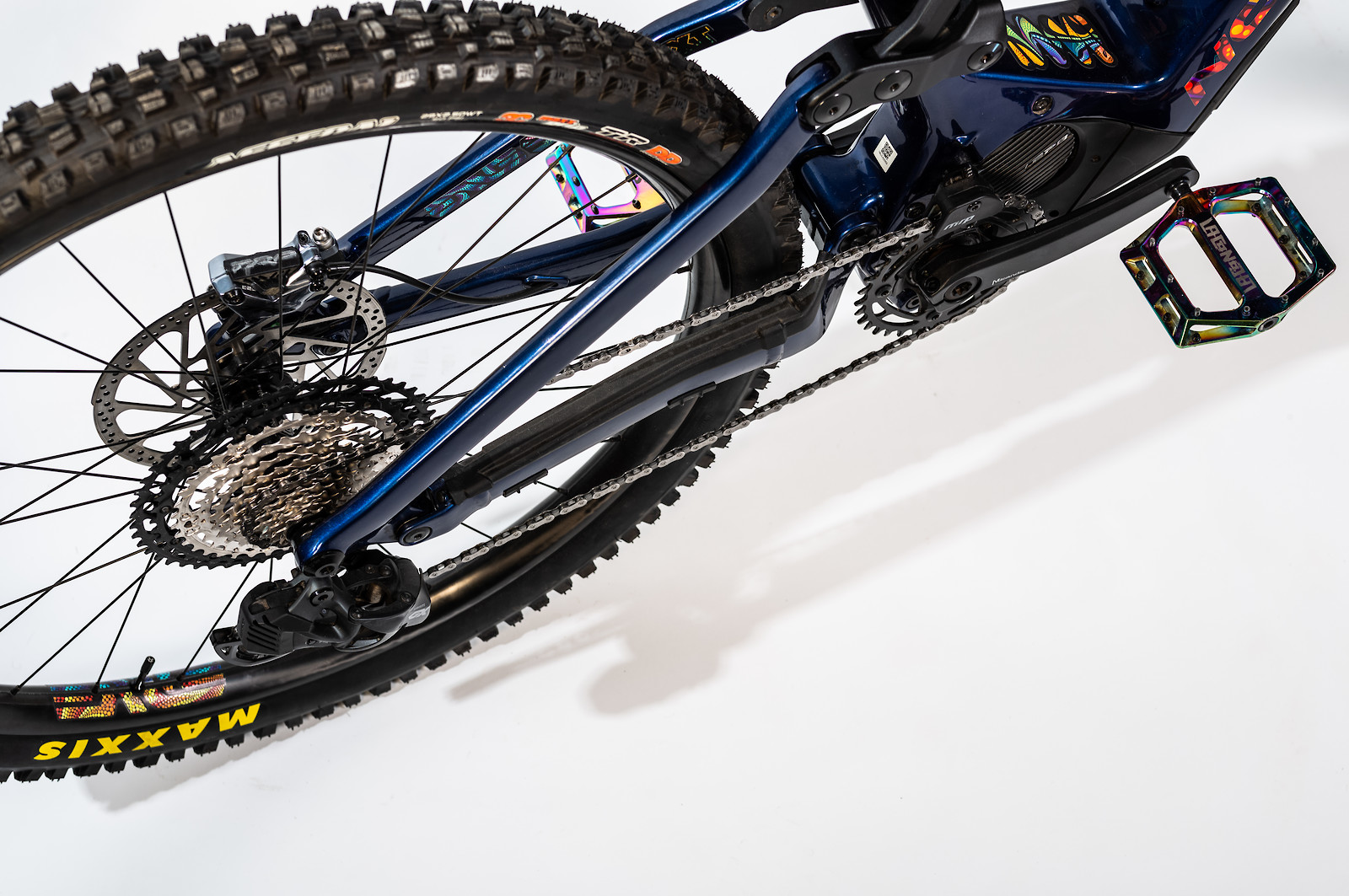

Drivertrain- Sramano GXT AXS
Shifter/Derailleur: Sram GX AXS
Chain/Cassette: Shimano XT Hyperglide+ (10-51t)
Cranks: Miranda Delta LS 155mm
Dropper: Oneup Components V2 170mm
Pedals: DMR Vault Lacon
Grips: DMR Deathgrips
Seat: Ergon SM-10
