damdegraff
Member
Anyone know what size EXT e-storia I should be ordering for my Trek Rail 9.8XT 2021 size XL? Is it Trunion or metric?
or
or
Factory Size is Metric, 230x57.5. Your shock is a Trek Specific Trunnion version...230mm eye 2 eye shocks are not normally trunnion mount. You can try a longer stroke shock to gain travel, but if your not familiar with doing it, I wouldn't recommend it. You'll also need all new shock hardware (pin and sleeves) 10mmx54mm for top & 10mmx40mm for bottom and Trek bolt hardware..
Check that the shock will clear the frame, depending on size of frame and shock type the reservoir can hit the down tube. Lots of info and various members experiences with different coil shocks in this thread
XL should be fine. It's the Medium that has problems and Large occasionally depending on the size of reservoir.
It's not even released yet. Not supposed to ship until mid August. Reservior looks shorter than the Resi on the DHX2. @NotSoSikMik Do you know the dimensions of the E-Storia's reservoir?I've read the thread but not found specifically information on EXT shocks on Trek Rail XL. "Should" is not the same as "is".
Interesting if someone really tests it.
@Hob Nob ran an EXT shock with a 45mm reservoir but I don't know what size frame he has.
For me the DHX2 coil felt 10 times better than the DPX2 I tried out on it and 1000 times better than the stock Deluxe that my Rail came with. It matches perfectly with the Fox 38 170 up front.Mine was a mongrel shock of a Storia/Arma, but it still wasn't ideal, even with the shorter reservoir. Looking at the E-Storia they have swapped the orientation of the piggyback to be a-la Ohlins so I would imagine it will be fine in terms of clearance, even on smaller bikes.
I'd still question whether a coil is the right choice on a Rail though.
For me the DHX2 coil felt 10 times better than the DPX2 I tried out on it and 1000 times better than the stock Deluxe that my Rail came with. It matches perfectly with the Fox 38 170 up front.
Swapped out to a modified DXP2, and whilst it wasn't as supple initially, it was a noticeable improvement everywhere else. Same with the '21 Float X2.
I'm running a 230x65mm 2021 Fox DHX2, 169mm rear travel that gains progressivity deeper into the travel, on a lrg aluminum Rail 7...but i'm unsure of Carbon fitment...I think resi will fit but seat stay bridge may not have clearance.Can you elaborate on what "modified" means? I know Craig Seekins is doing some nice work on DPX2's at Avy Racing and was thinking of going that route as I really need to ditch the POS RS shock on mine.
Also I've seen some X2's but everyone is keeping the same 57.5 stroke to prevent resy strike? Would really like to have at least 60mm stroke if not 65 so is the DPX2 the only air option for doing so? Will a 65mm stroke even fit on a Medium Rail?
Cheers,
G
Can you elaborate on what "modified" means? I know Craig Seekins is doing some nice work on DPX2's at Avy Racing and was thinking of going that route as I really need to ditch the POS RS shock on mine.
Also I've seen some X2's but everyone is keeping the same 57.5 stroke to prevent resy strike? Would really like to have at least 60mm stroke if not 65 so is the DPX2 the only air option for doing so? Will a 65mm stroke even fit on a Medium Rail?
Cheers,
G
So what are your initial thoughts?
So what are your initial thoughts?

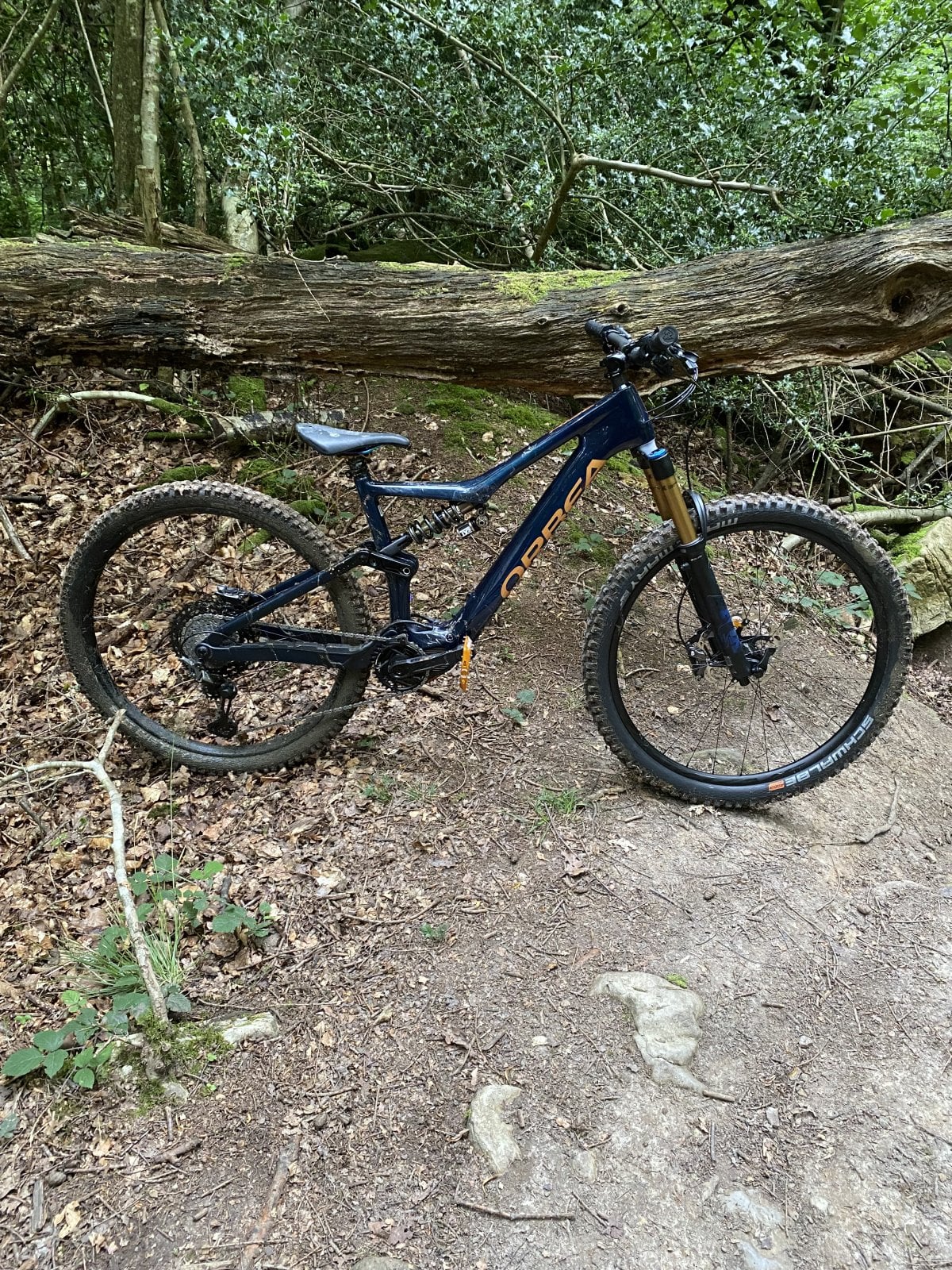

How many miles/Kms did you give on the standard bike otherwise you're just comparing your rockshox 35 boulevard cruiser to any vastly better equipped bike.I threw the new bike down most of the trails at Forest of Dean and it just soaked everything up, I seriously doubt I’ll switch back to air or even bother giving it more time, I’m really happy with the traction and way isn’t phased by roots and handles drops just fine. The lok function is nice, also Mojo are class the way they help setup everything
Given you get a heavier spring for trail parks etc I can’t see much logic in keeping the air, might as well sell it for £500 meaning the upgrade one cost £450 In the end….
How many miles/Kms did you give on the standard bike otherwise you're just comparing your rockshox 35 boulevard cruiser to any vastly better equipped bike.
You already did 900k on the mteam with the air shock before you tried the coil shock on it ?About 900km, you only need 1km to tell however
Sorry meant to say only need 0.1k to notice the difference ??You already did 900k on the mteam with the air shock before you tried the coil shock on it ?
Sorry meant to say only need 0.1k to notice the difference ??
I mean I could keep the air and try more but I don’t need any better/different to what’s happening, maybe an e pensive placebo ?
