Kenevo SL 65mm shock on KSL ?

[OLDSCHOOLLAKESDHER]

Hi everyone. I’m eyeing up a tasty shock upgrade - DB Kitsuma but it’s 230x65. Two things please - 1) does this cane creek fit ok
2) will I foul at 65mm stroke vs 62.5stock?
Many thanks
Richard



[OLDSCHOOLLAKESDHER]

Thanks. Yes I’ve just done this and I’m pretty happy 2.5mm more will present no issues.
So far it’s looking good that a katsumi 230x65 air is green for go !



[Stompweaver]

Thanks. Yes I’ve just done this and I’m pretty happy 2.5mm more will present no issues.
So far it’s looking good that a katsumi 230x65 air is green for go !

What size is your KSL? I have a 65mm stroke shock on my S5 and have no clearance issues.



[OLDSCHOOLLAKESDHER]

Thank you kindly. Useful info. It’s an s3 mate



[Stompweaver]

To check it fitted on mine I took the spring off, put the shock back in and moved it through its travel. I also used my weight to compress the bump stop to check for clearance on full bottom out. There was plenty of room.



[OLDSCHOOLLAKESDHER]

It’s not just 2.5mm. That’s your shock. Your suspension as stock is ~170mm travel with 62.5mm shock movement. Now it’s ***mm with 65mm shock movement.

It’s a pretty simple math problem.

Indeed. Adds about 8mm travel.



[ebikerider]

65mm stroke shock fits the S4 no worries



[Stompweaver]

It adds 6.8mm of travel by my calculations. Not a lot but you might as well use it if you’ve got the option.



[CjP]

S3 with a 65mm shock gives 179mm travel checked with a pen in the rear axle hole and a board.
No fouling anywhere



[OLDSCHOOLLAKESDHER]

S3 with a 65mm shock gives 179mm travel checked with a pen in the rear axle hole and a board.
No fouling anywhere

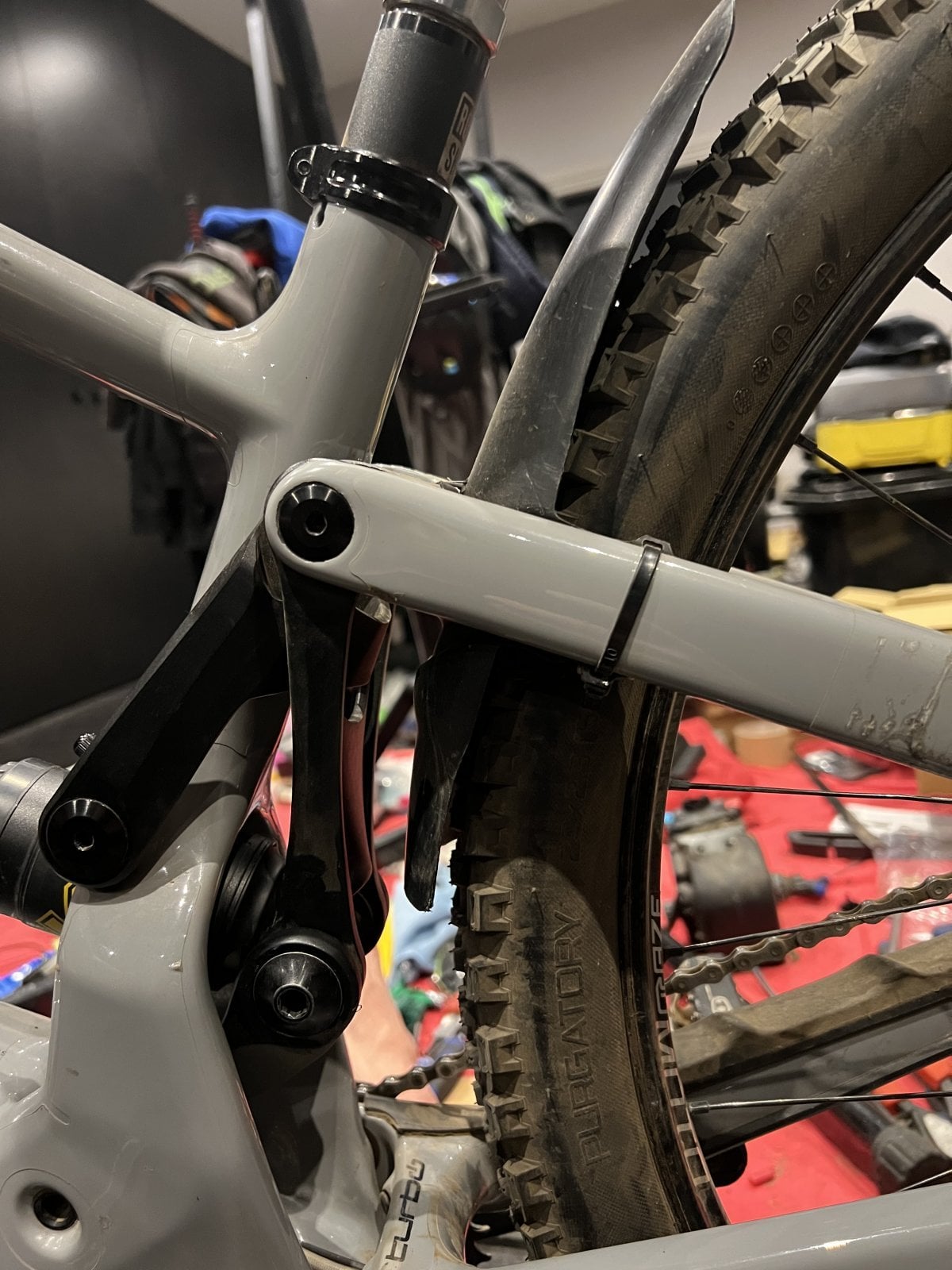

View attachment 99783

Super useful thanks bud. I’ll post some pics up when I have this nice Cane Creek fitted next week.
