Bike / Product Year: 2024
Manufacturer: Mondraker
Model: Dune RR
Size Medium
Asking Price: £8400
Location Wexford

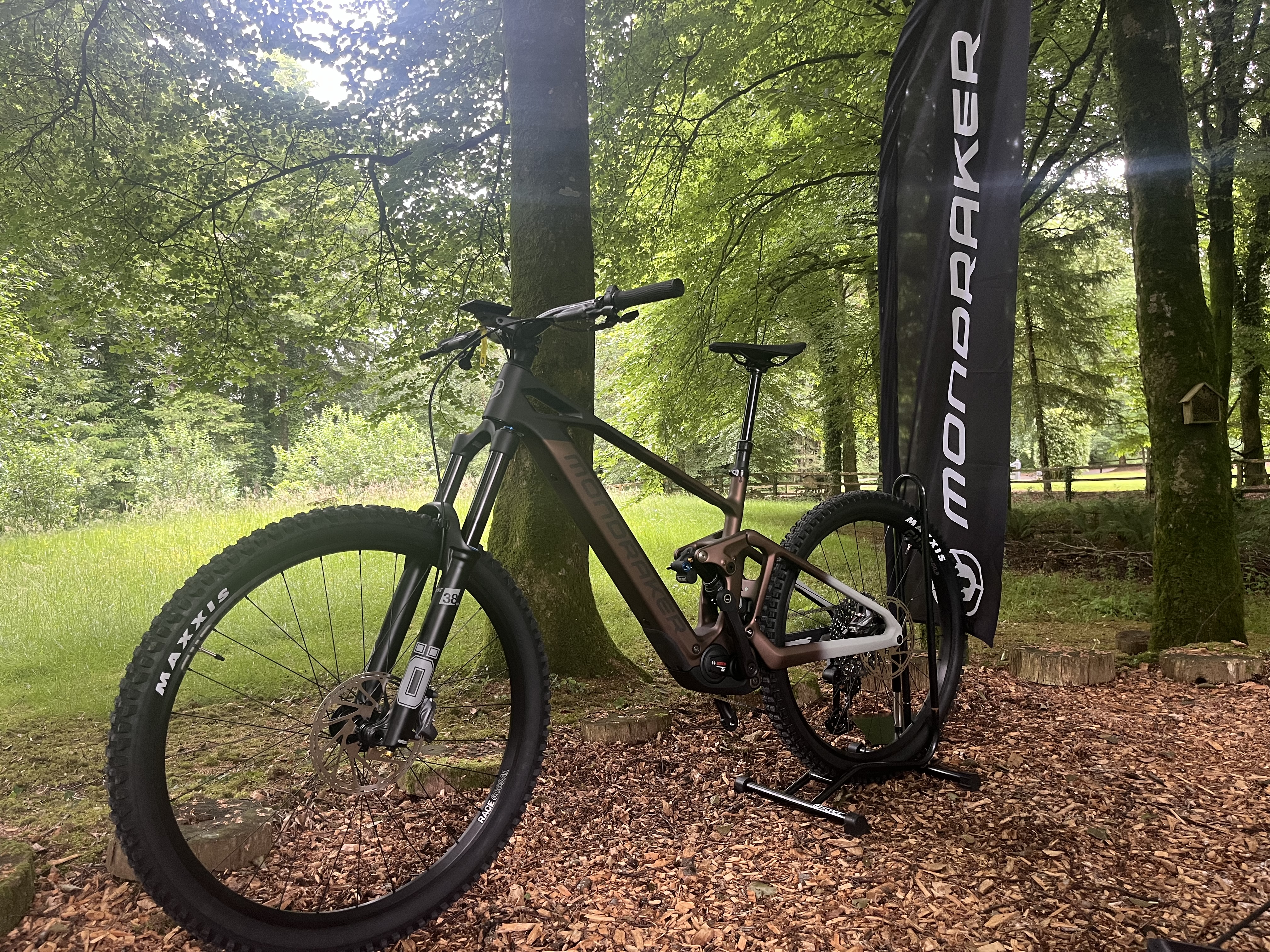

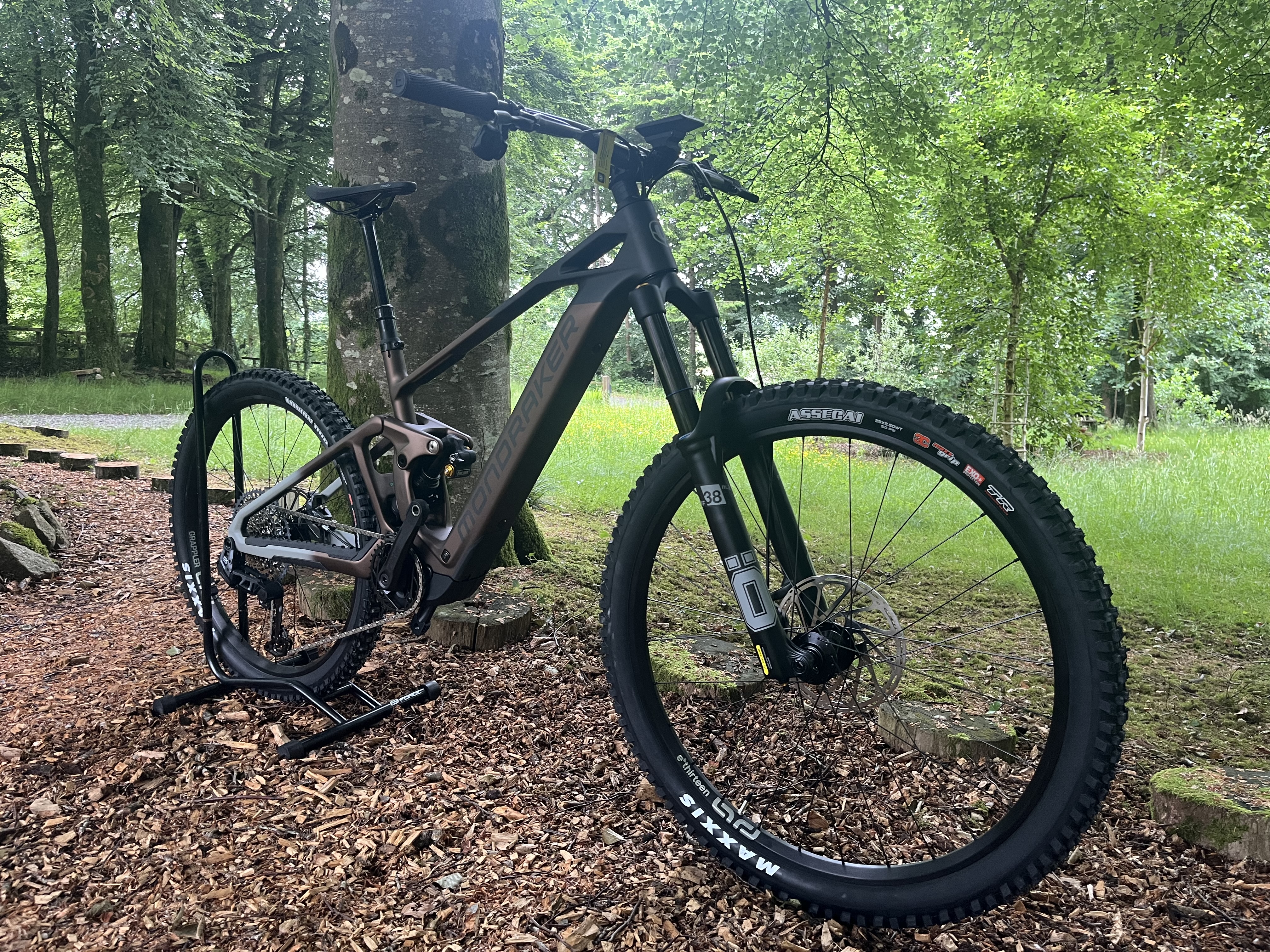

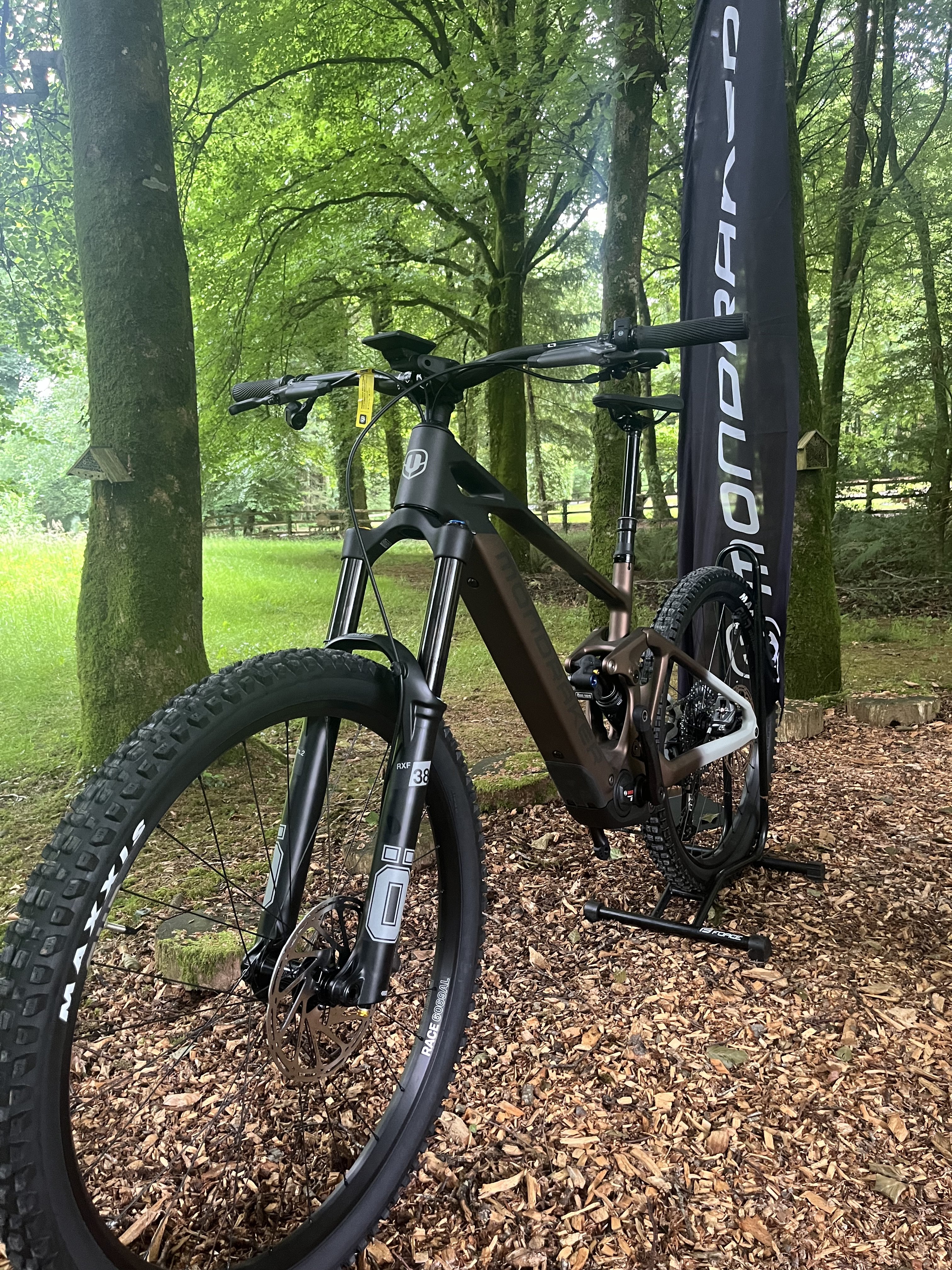

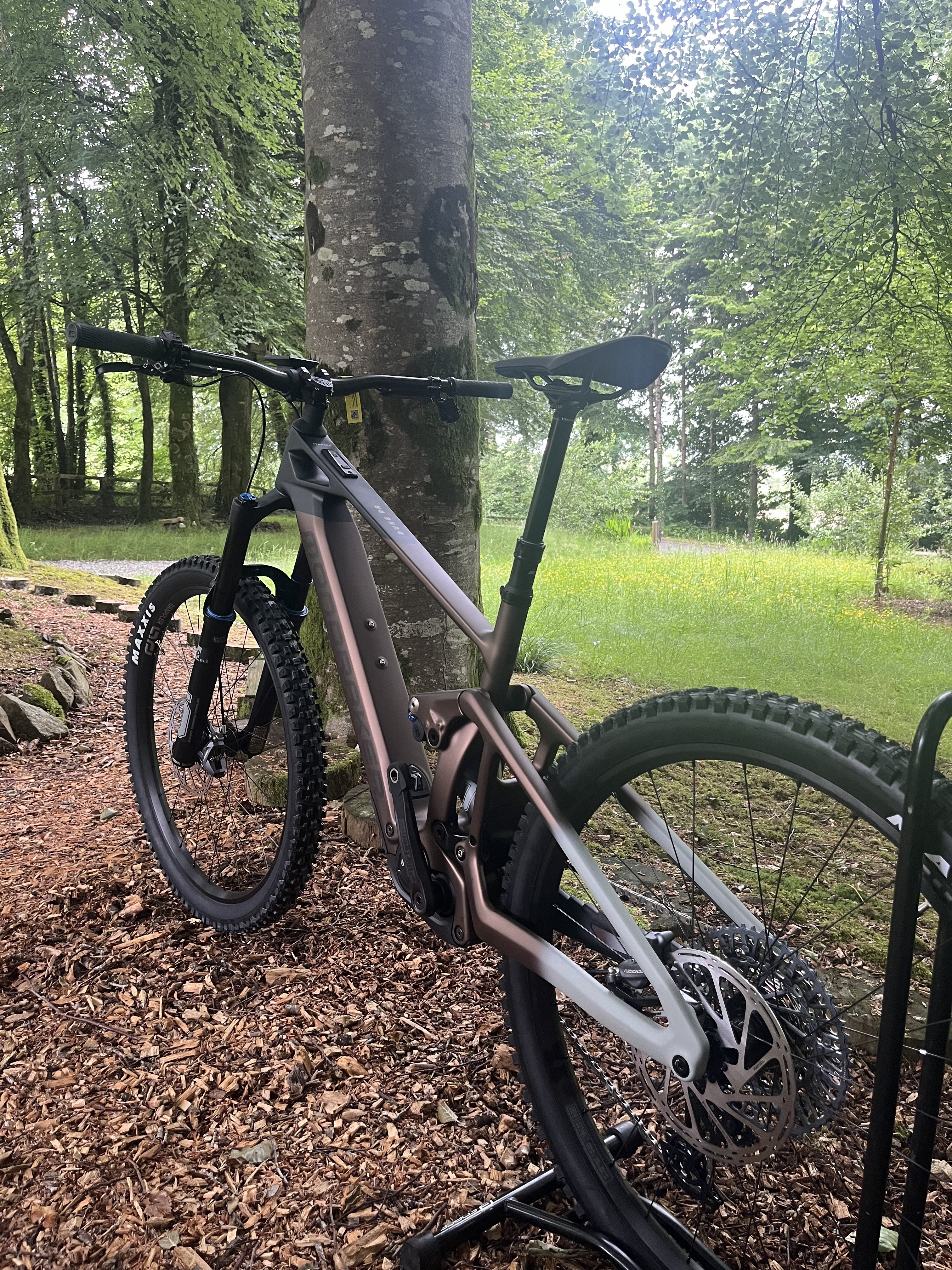

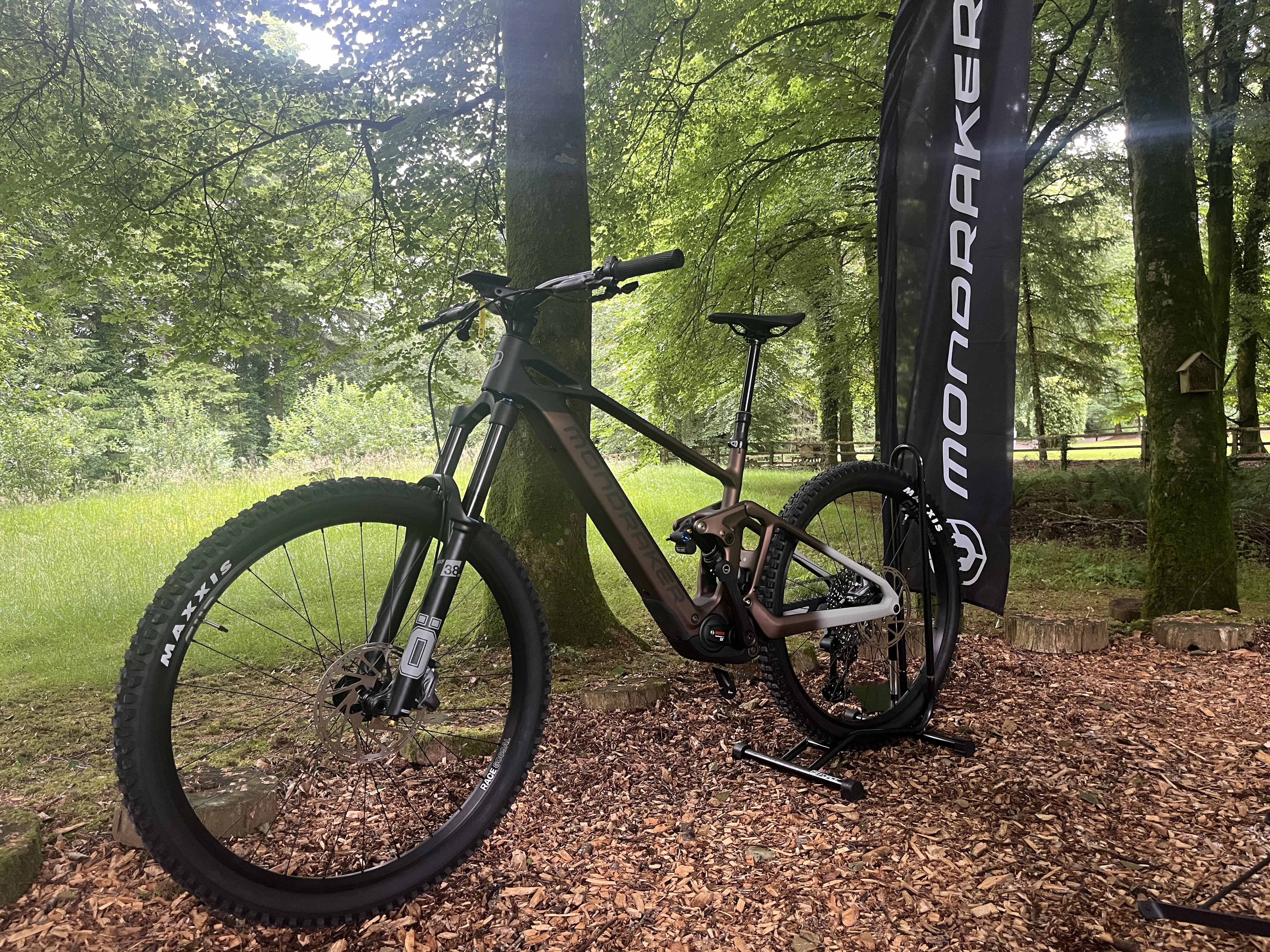

Description Very exciting bike just landed in the shop. The build comes with a 170mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX Air 205X65mm shock, SRAM transmission with GX Eagle AXS T-Type rear mech, E.13 E*Spec Plus cranks, ONOFF Pija dropper post, SRAM Code Bronze Stealth 4-pot brakes and e*thirteen Grappler Race wheels with 30mm wide aluminium rims.
Frame

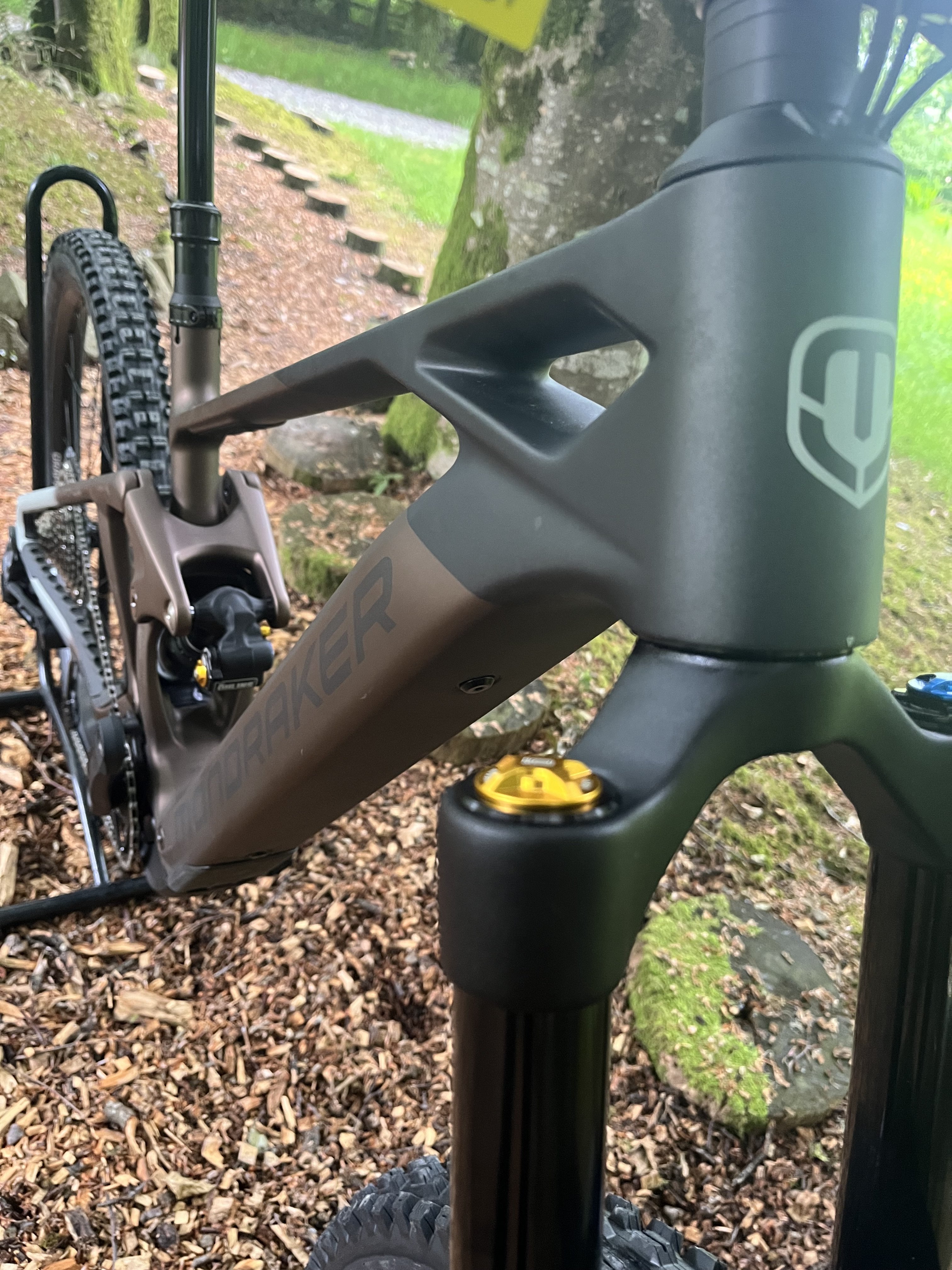

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork

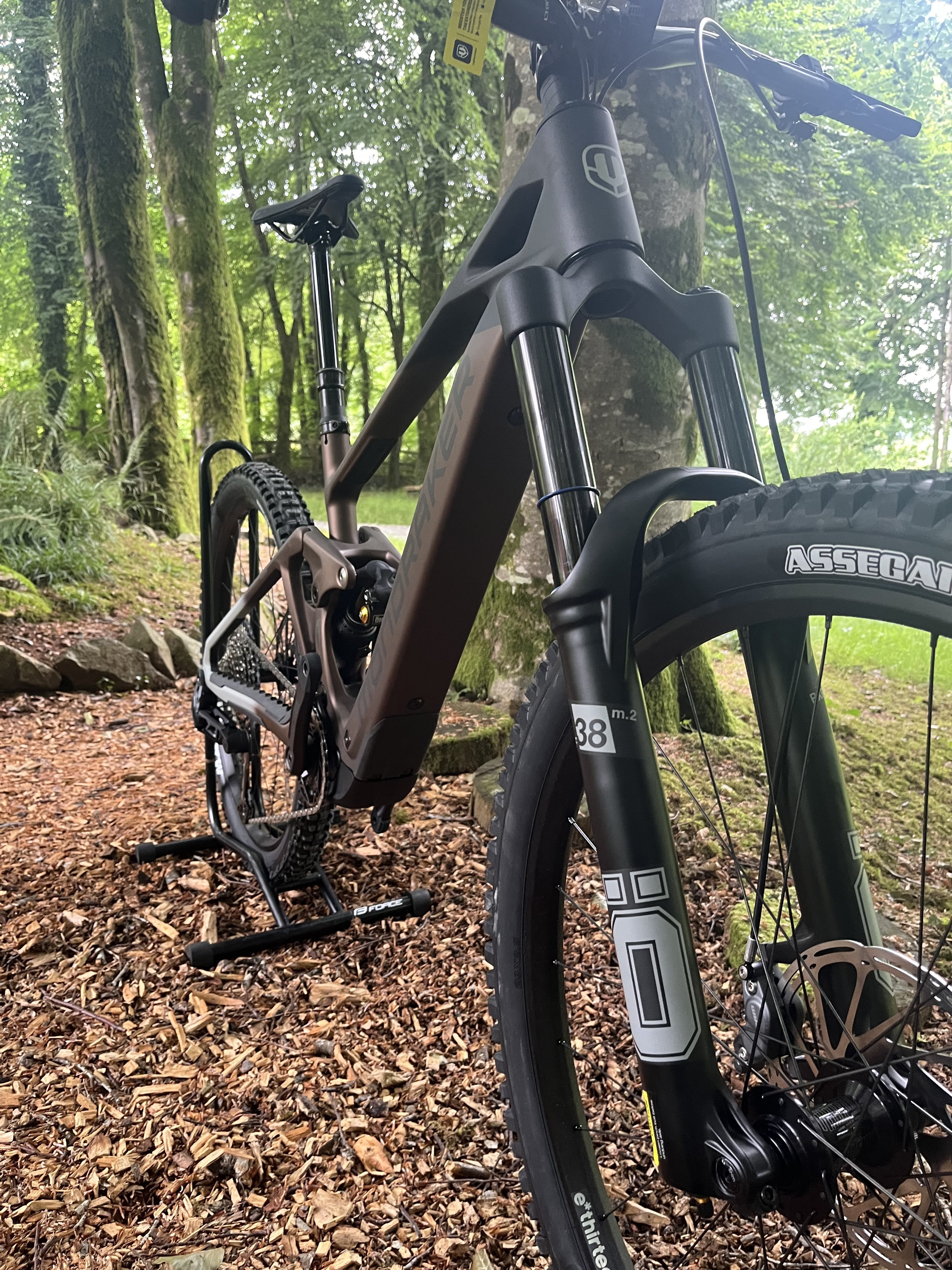

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore

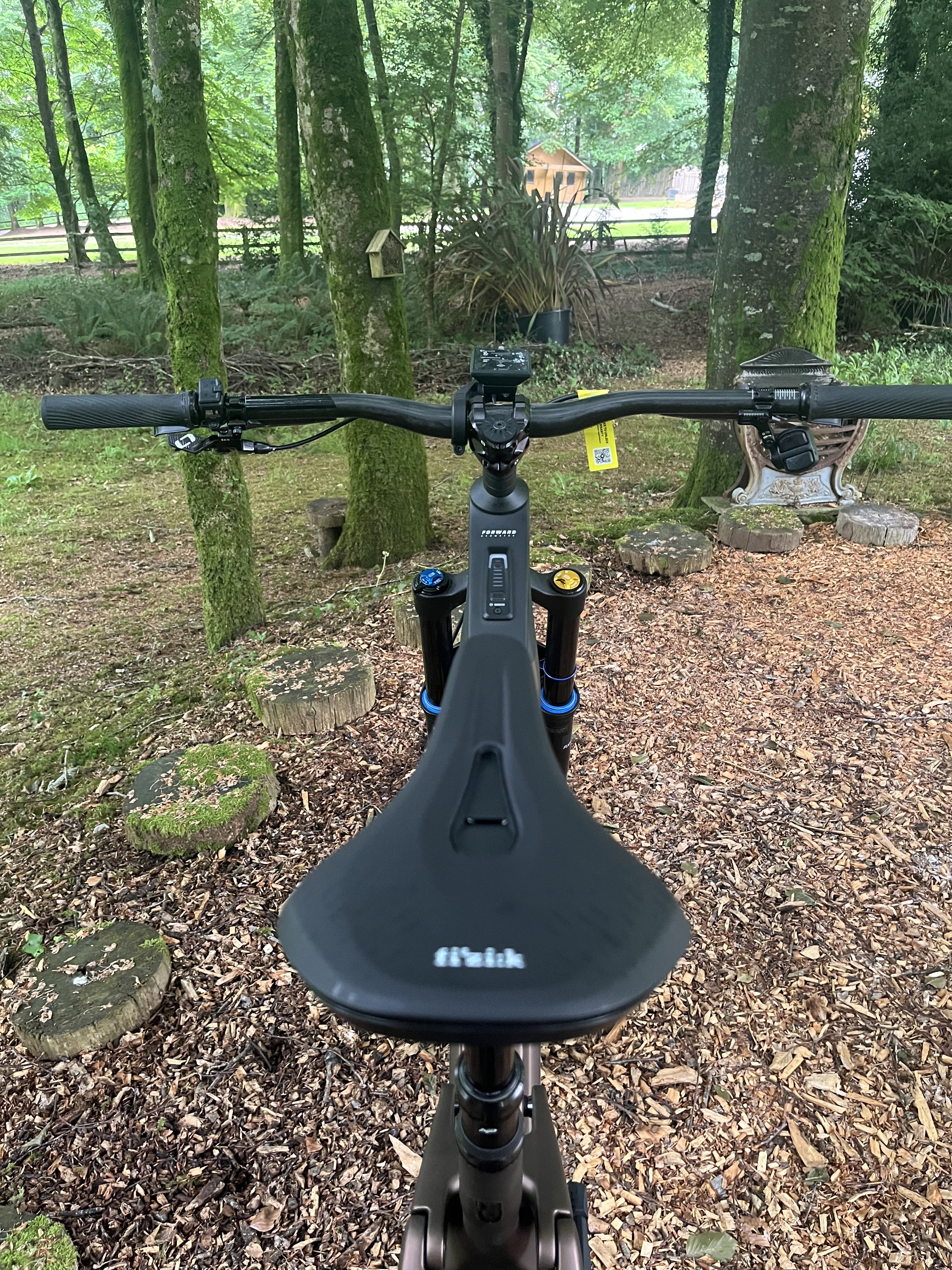

Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle
Fizik Terra Aidon Slim X5
Front brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset

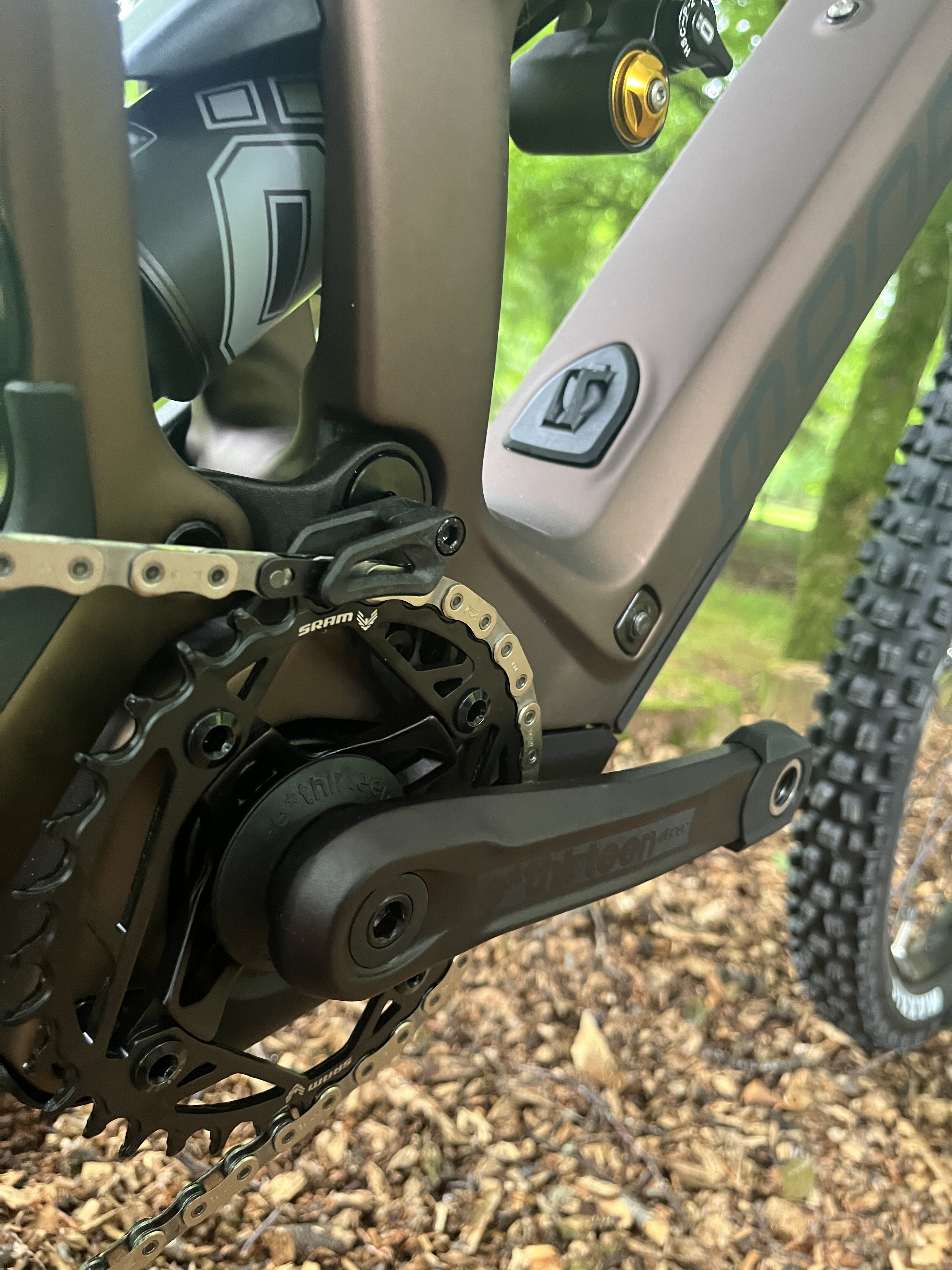

E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur

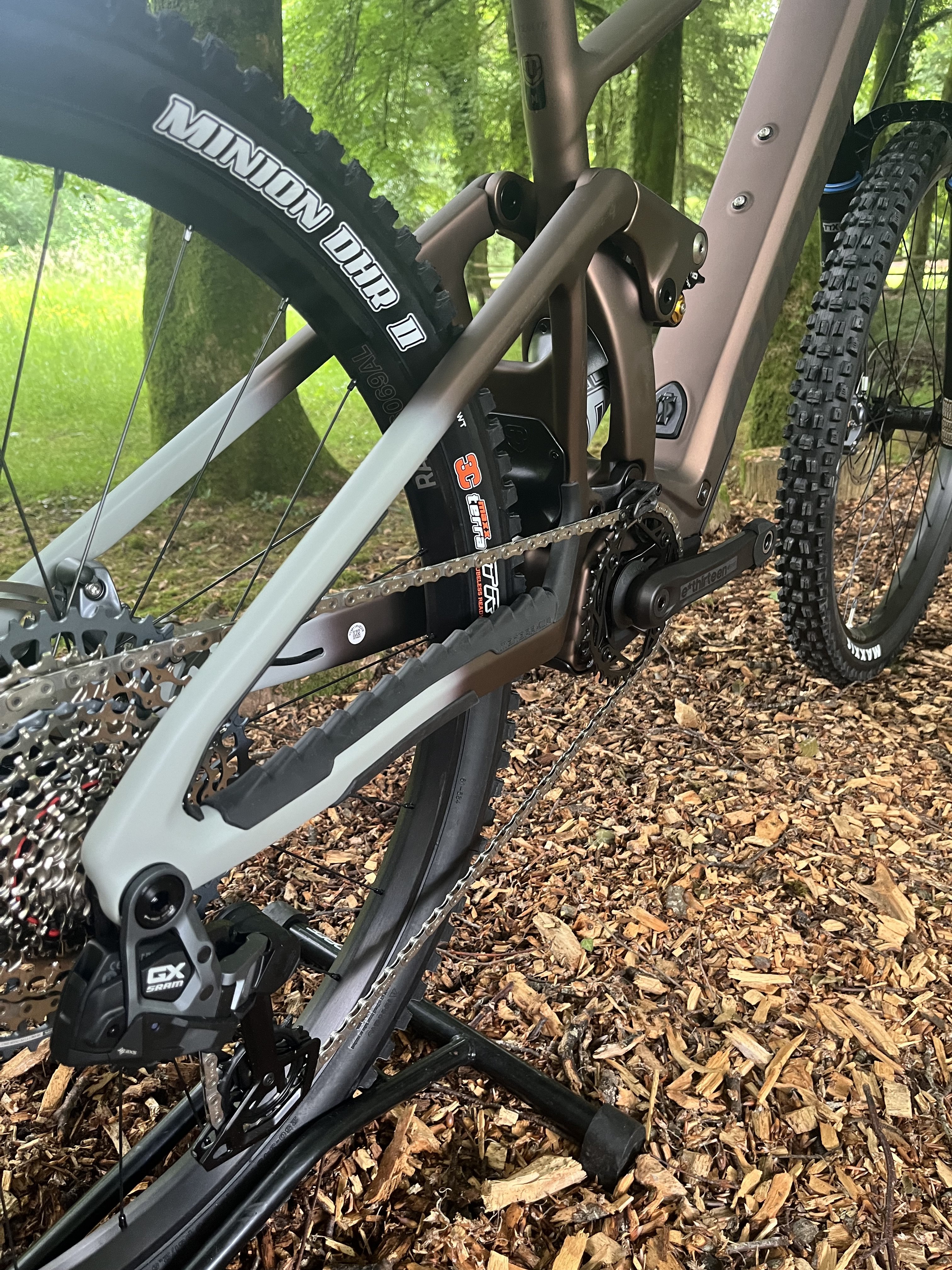

Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette

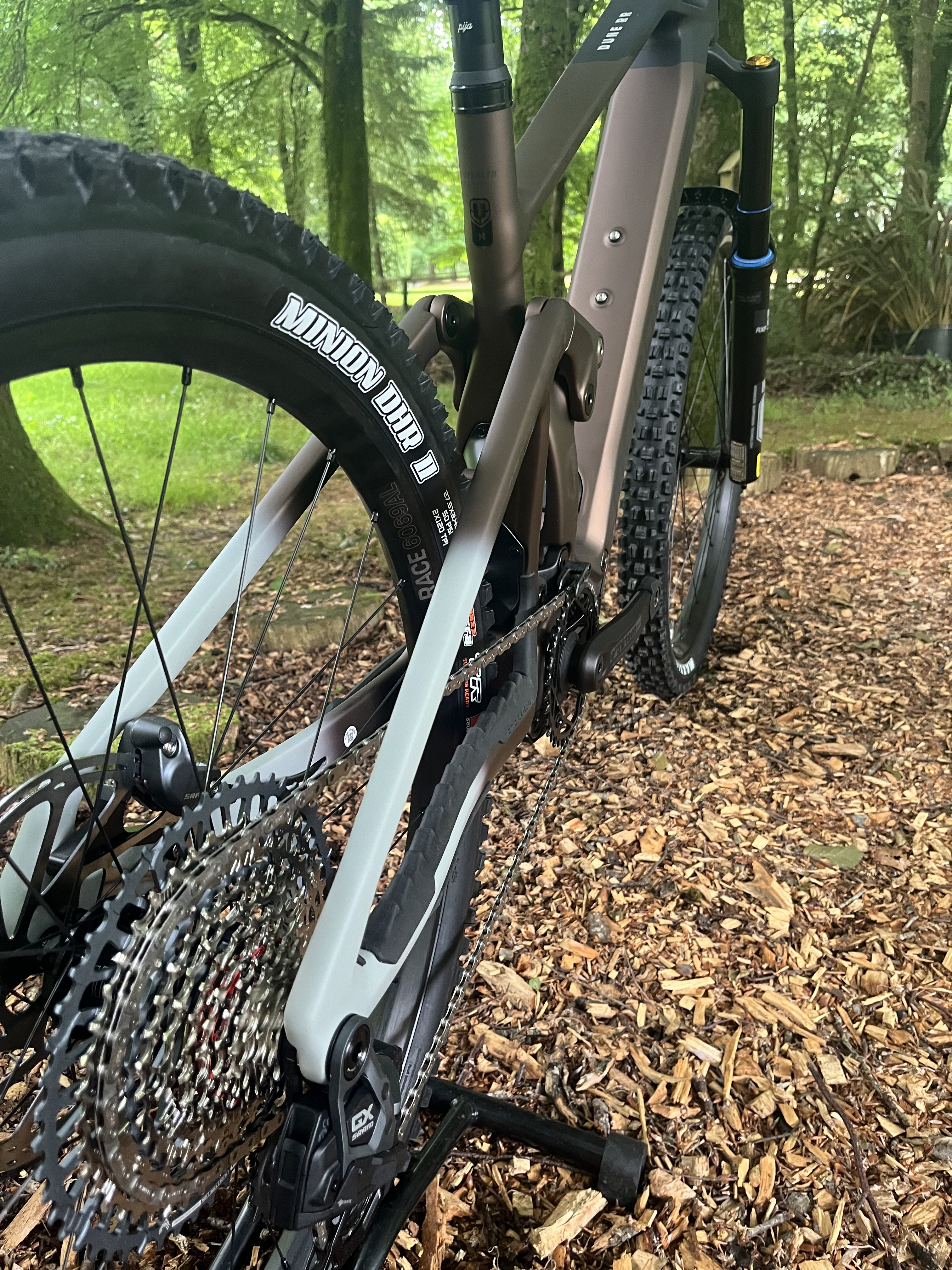

Sram XS-1275, 10-52T, T-Type, 12s
Weight
19,6 kg
Display
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
