Pritchi83
Member
Bike / Product Year: 2022
Manufacturer: Mondraker
Model: Crafty XR
Size Large
Asking Price: 7000
Location Ireland
Description 2023 Mondraker Crafty XR Alloy - Size Large and 29er
Normally €8600 but sale price €7000
Any questions feel free to ask! Phone 00353876529190 for any questions or postage questions
The CRAFTY XR is the raddest aluminium framed super enduro eMTB in its class. Suspension duties are carried out by Öhlins, the prestigious Swedish suspension experts, offering up 170mm travel at the front and 150mm at the rear, both matched perfectly with Bosch’s improved Performance Line CX Smart System motor and the all new System Controller and Bluetooth Mini Remote. It goes without saying you’ll be taking advantage of our industry leading technologies such as FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and STEALTH ALLOY EVO. The CRAFTY XR is the perfect choice of bike if you’re looking for an enduro e-MTB with an aluminium frame and no compromises. The Bosch Smart System motor with all its improvements for 2023 coupled with its 750Wh battery give you endless opportunities to enjoy your Crafty XR.

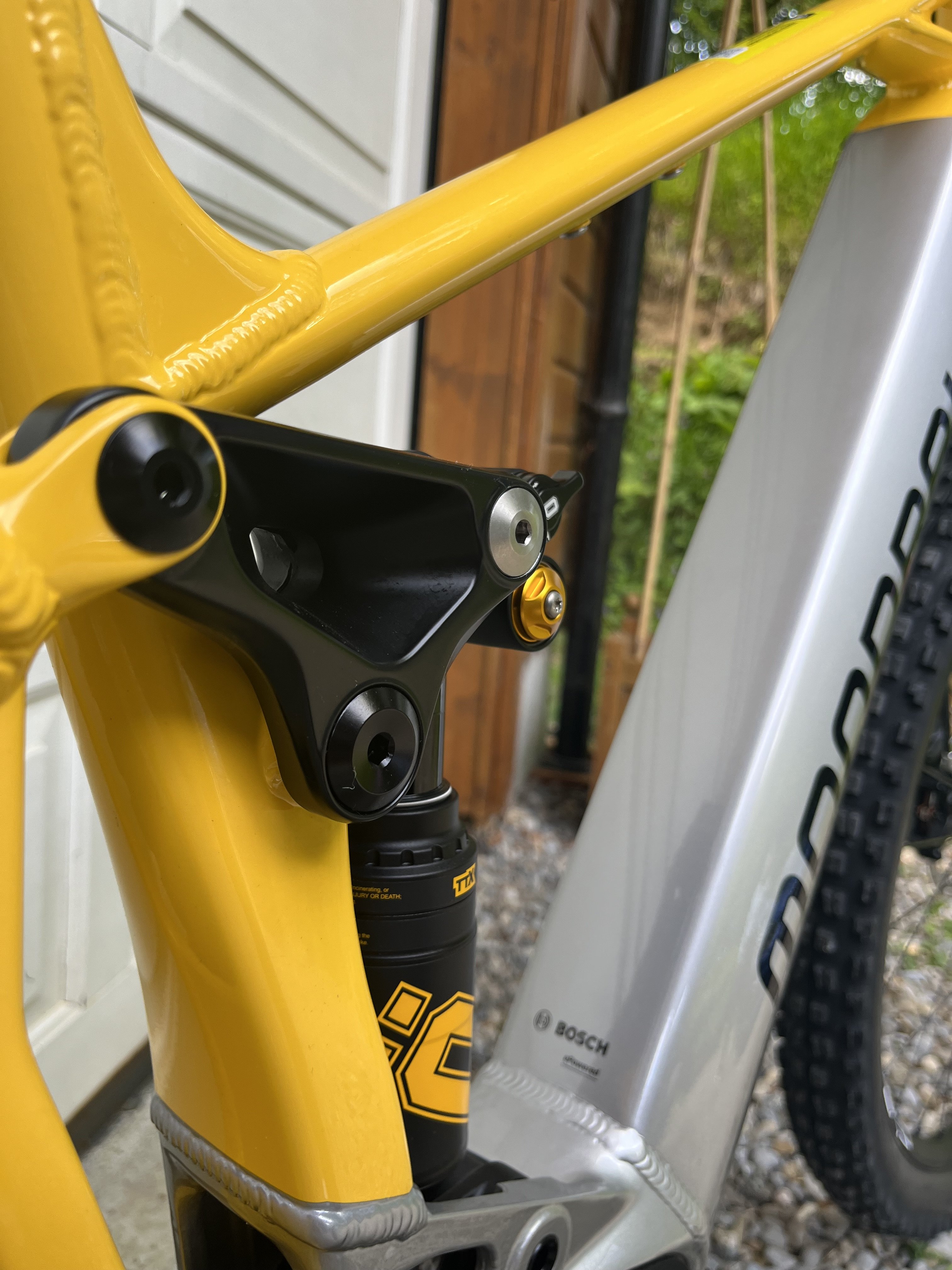

Frame

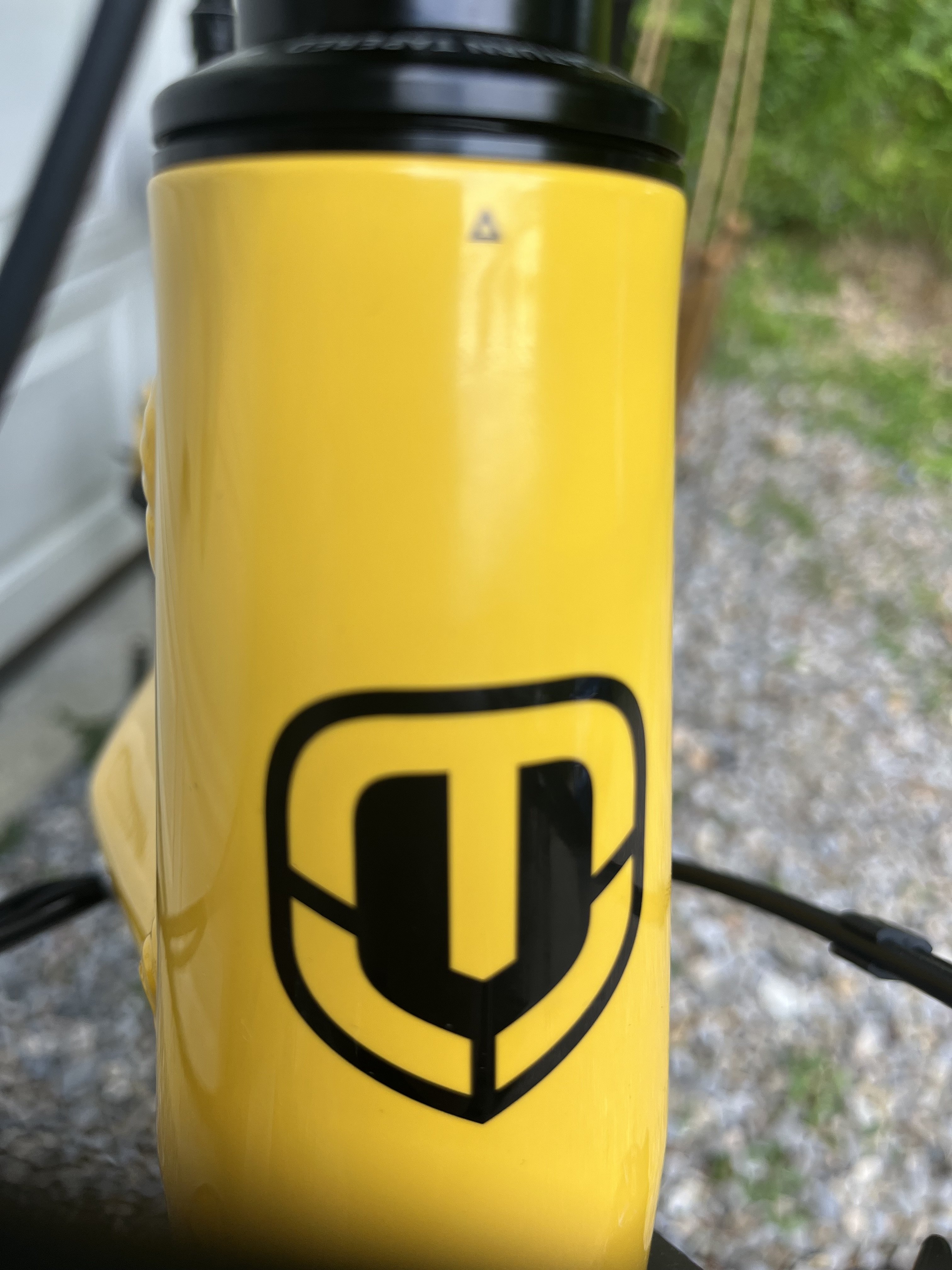

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

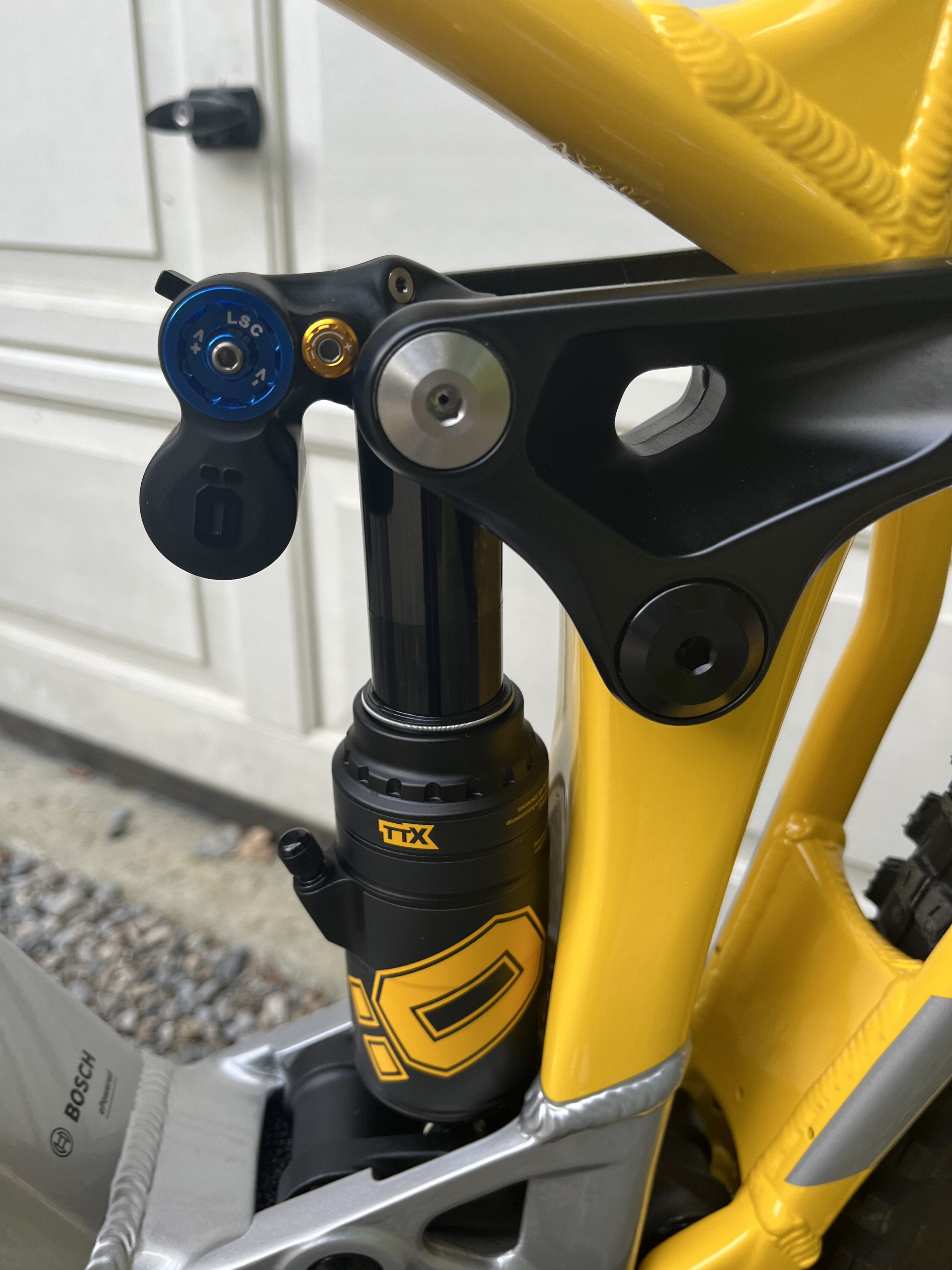

Rear shock
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Fork

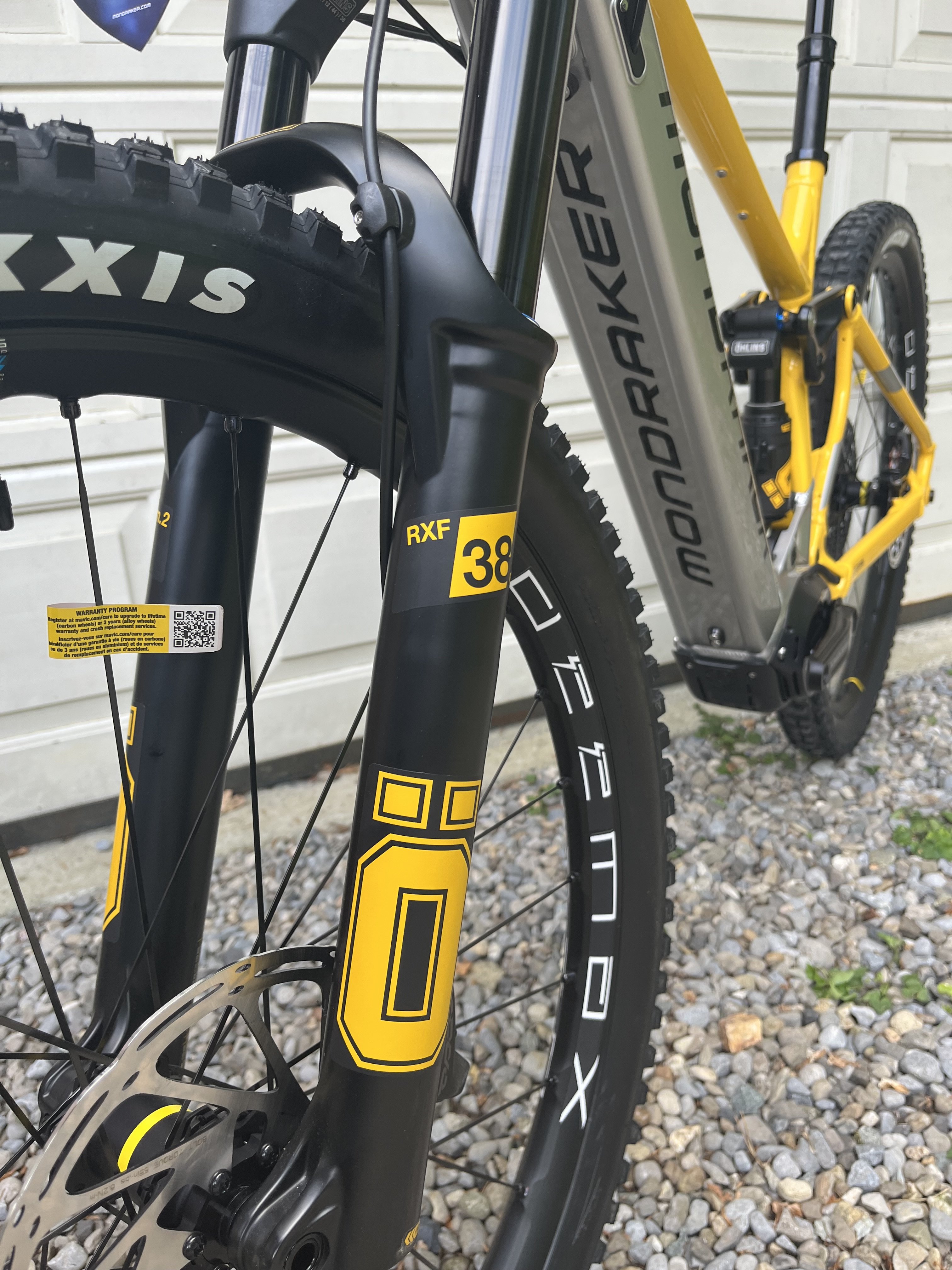

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Desert, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

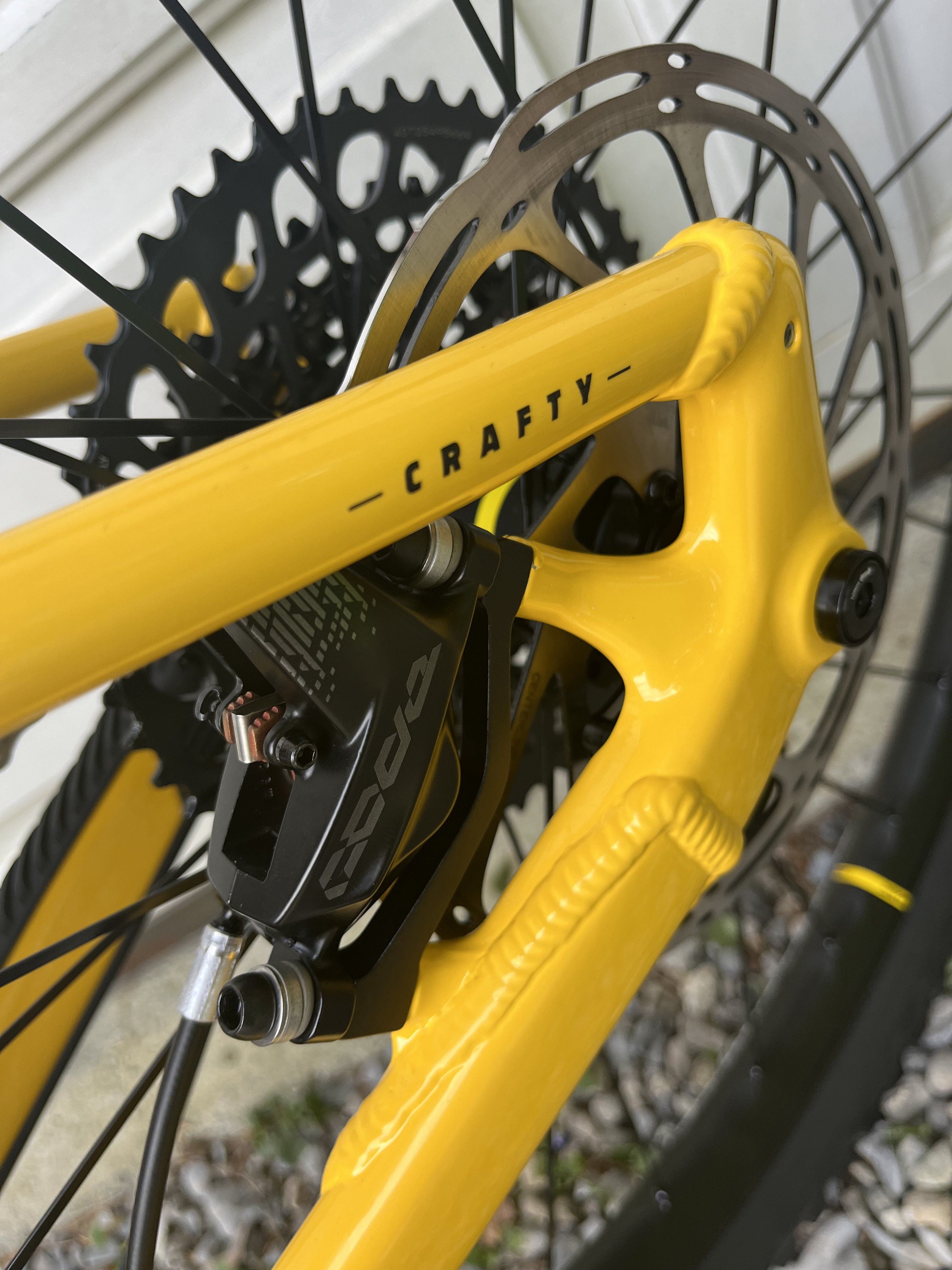

Rear brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

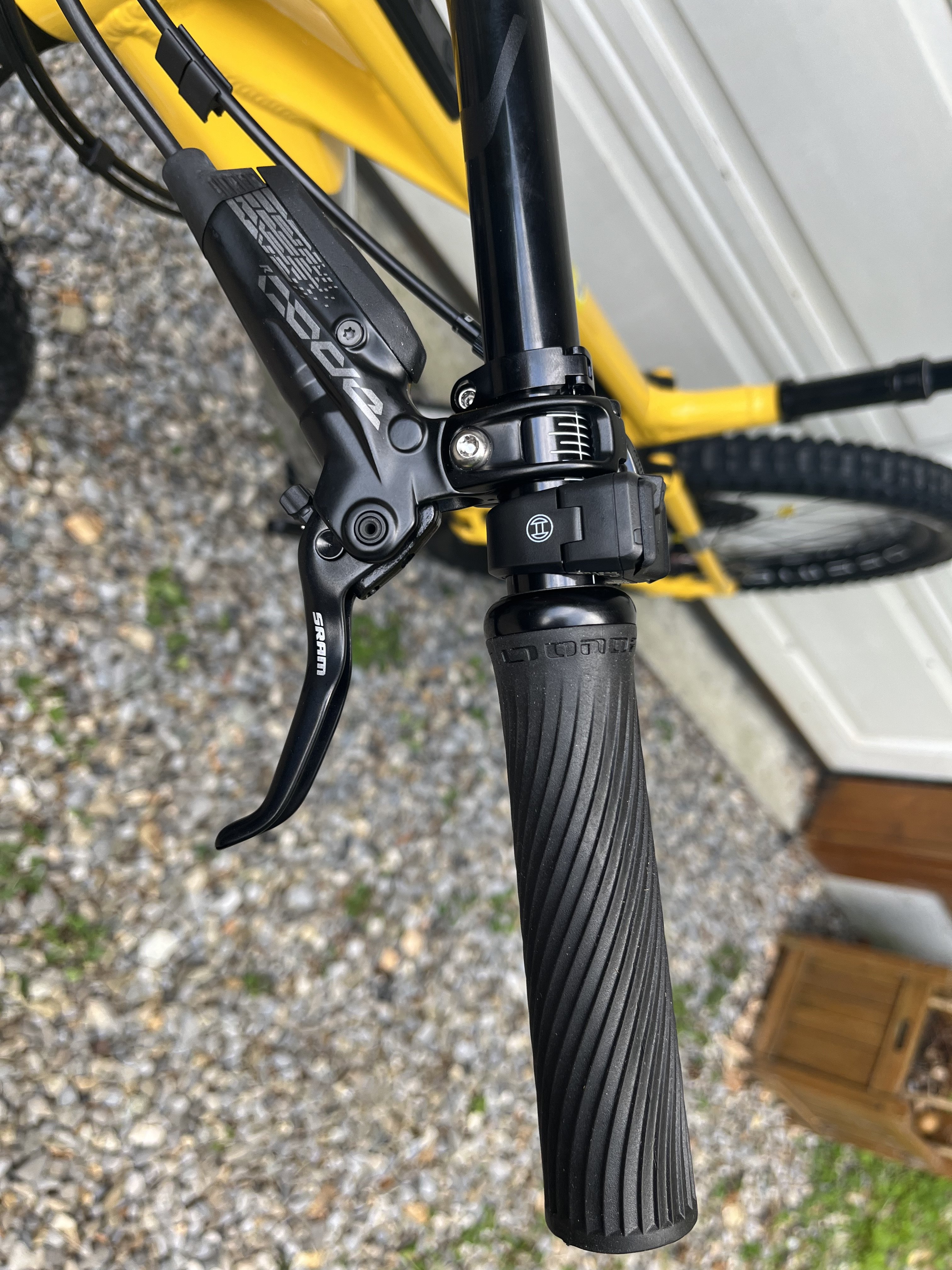

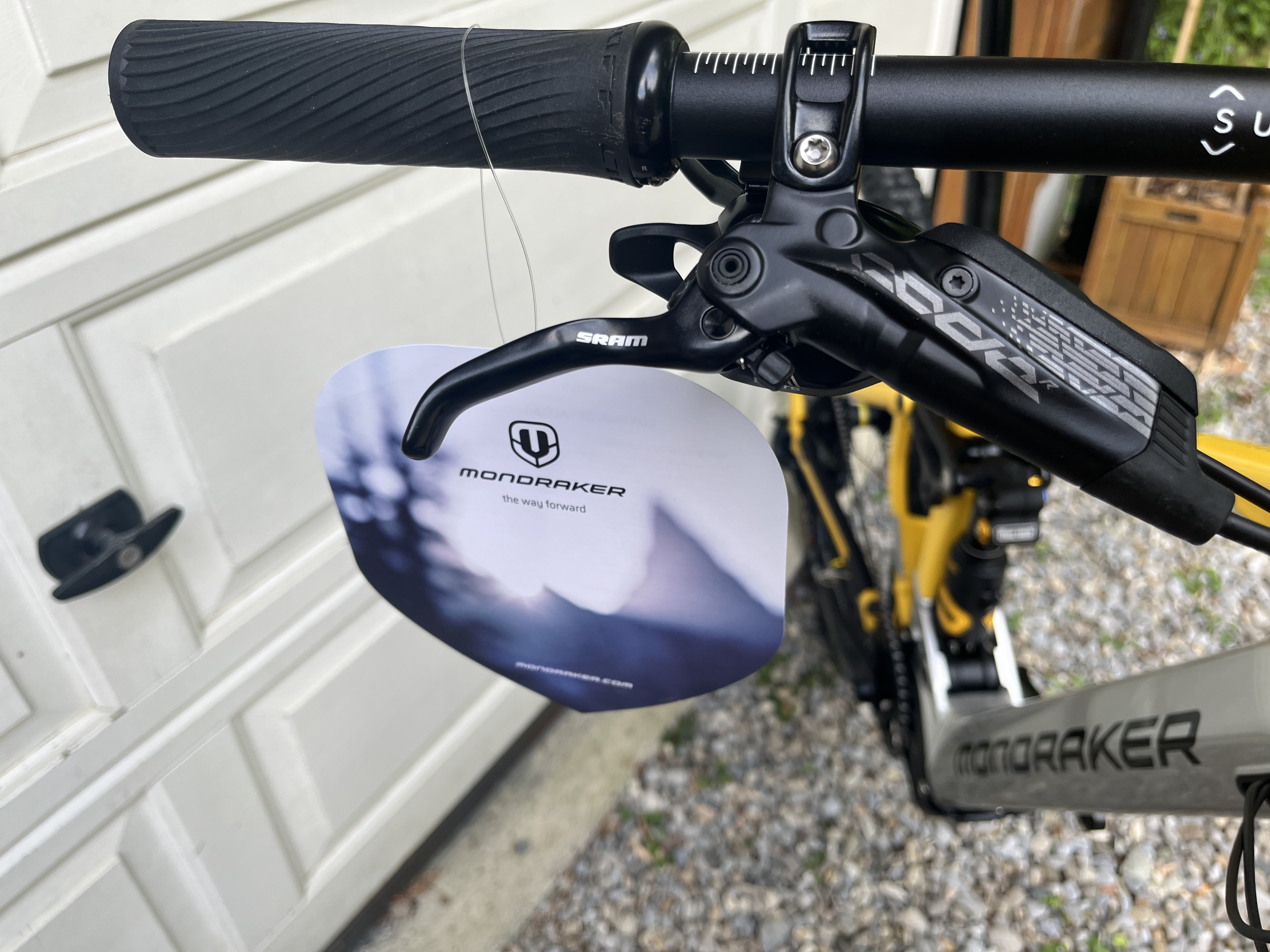

Brake lever
Sram Code R, tool-free reach adjust

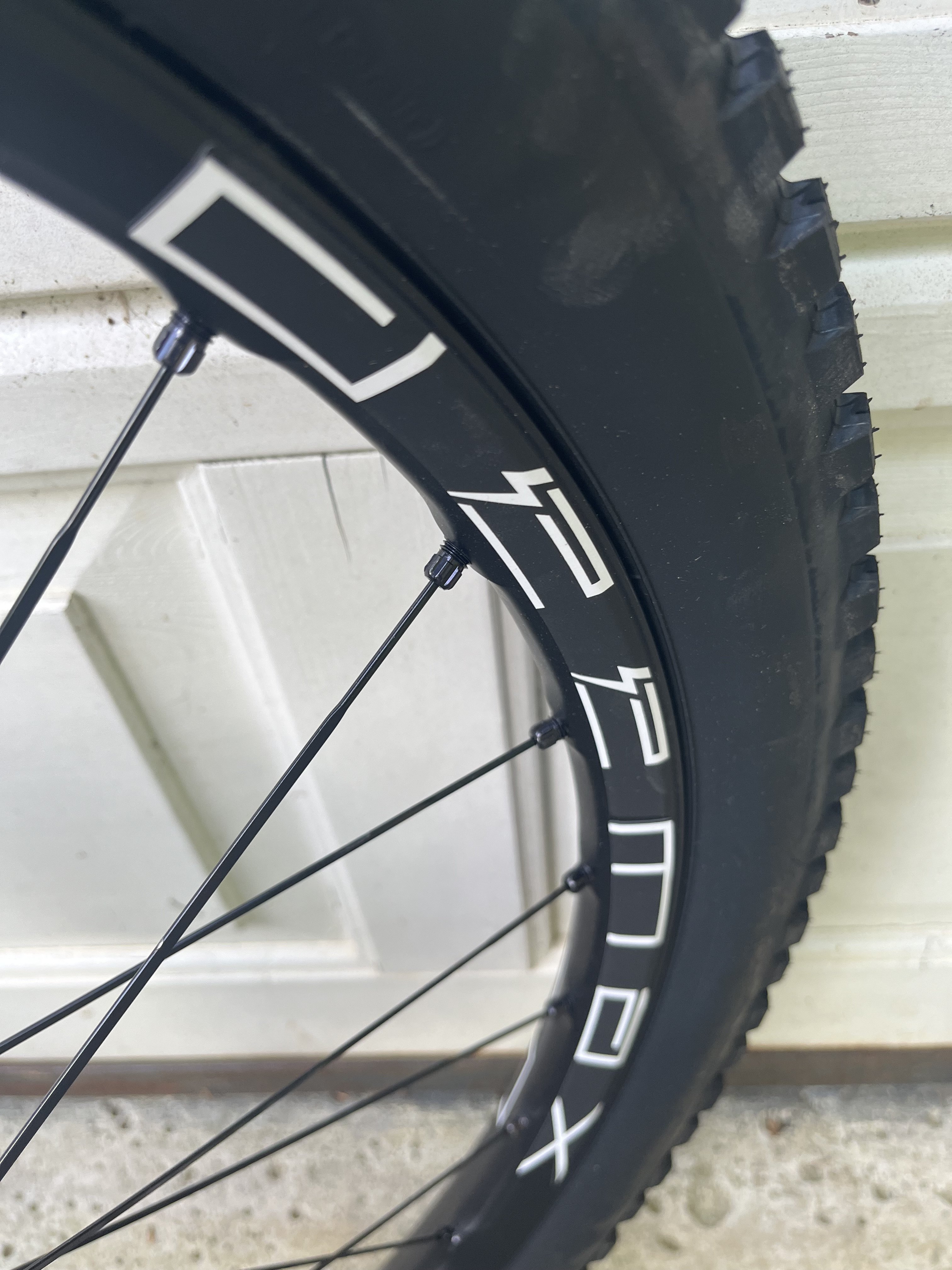

Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts

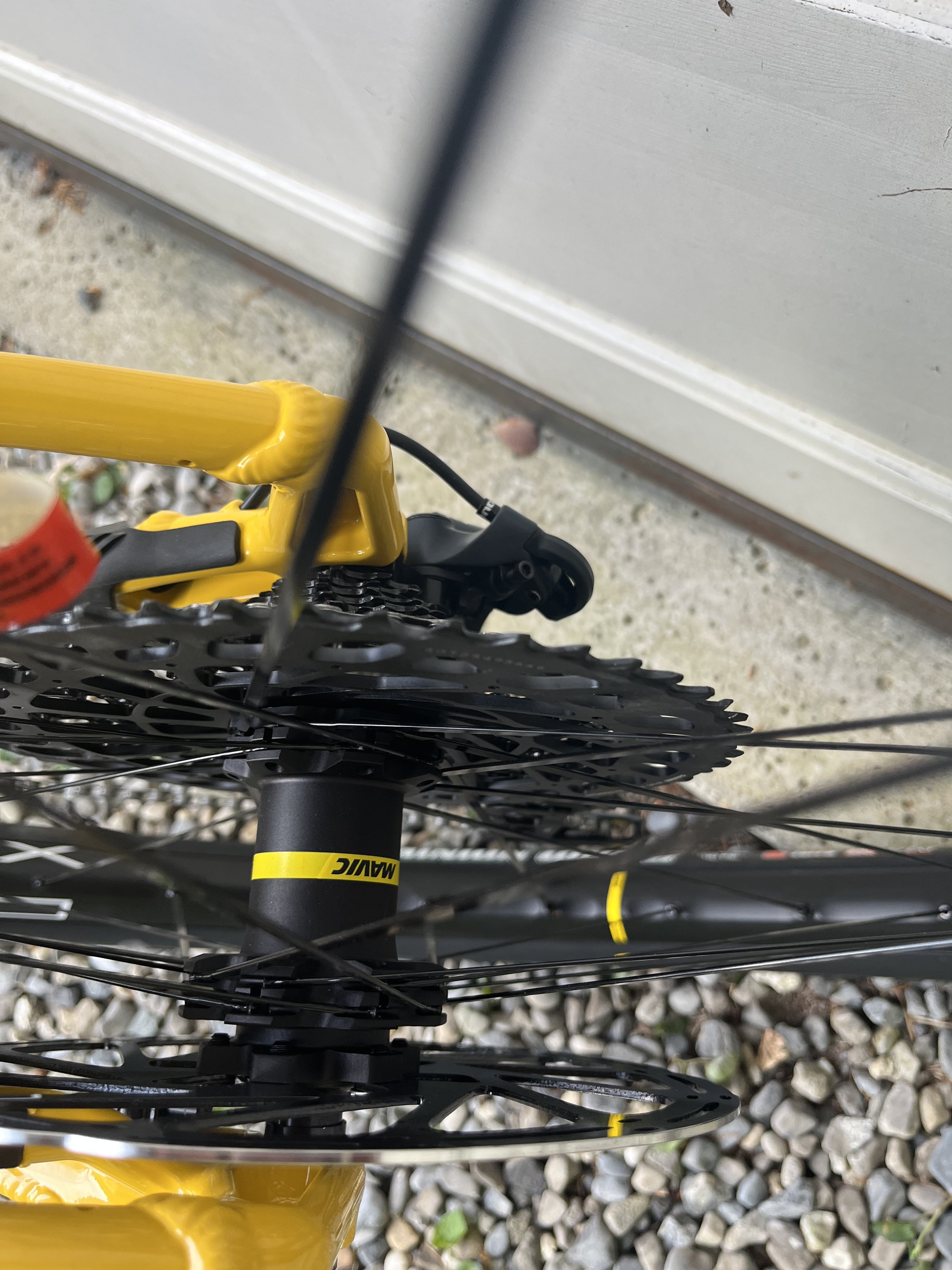

Rear hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

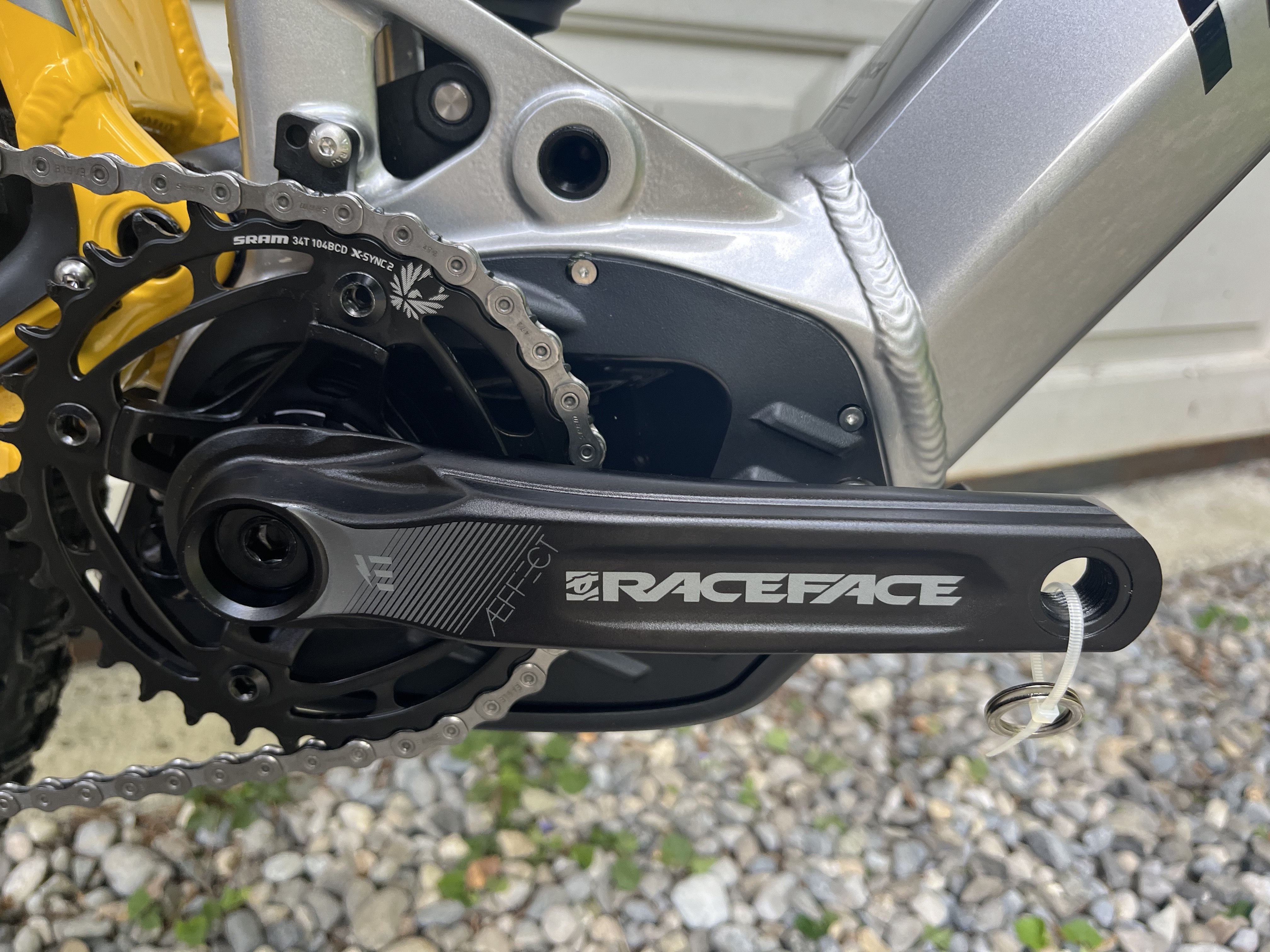

Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram NX Eagle, 12s, Powerlock

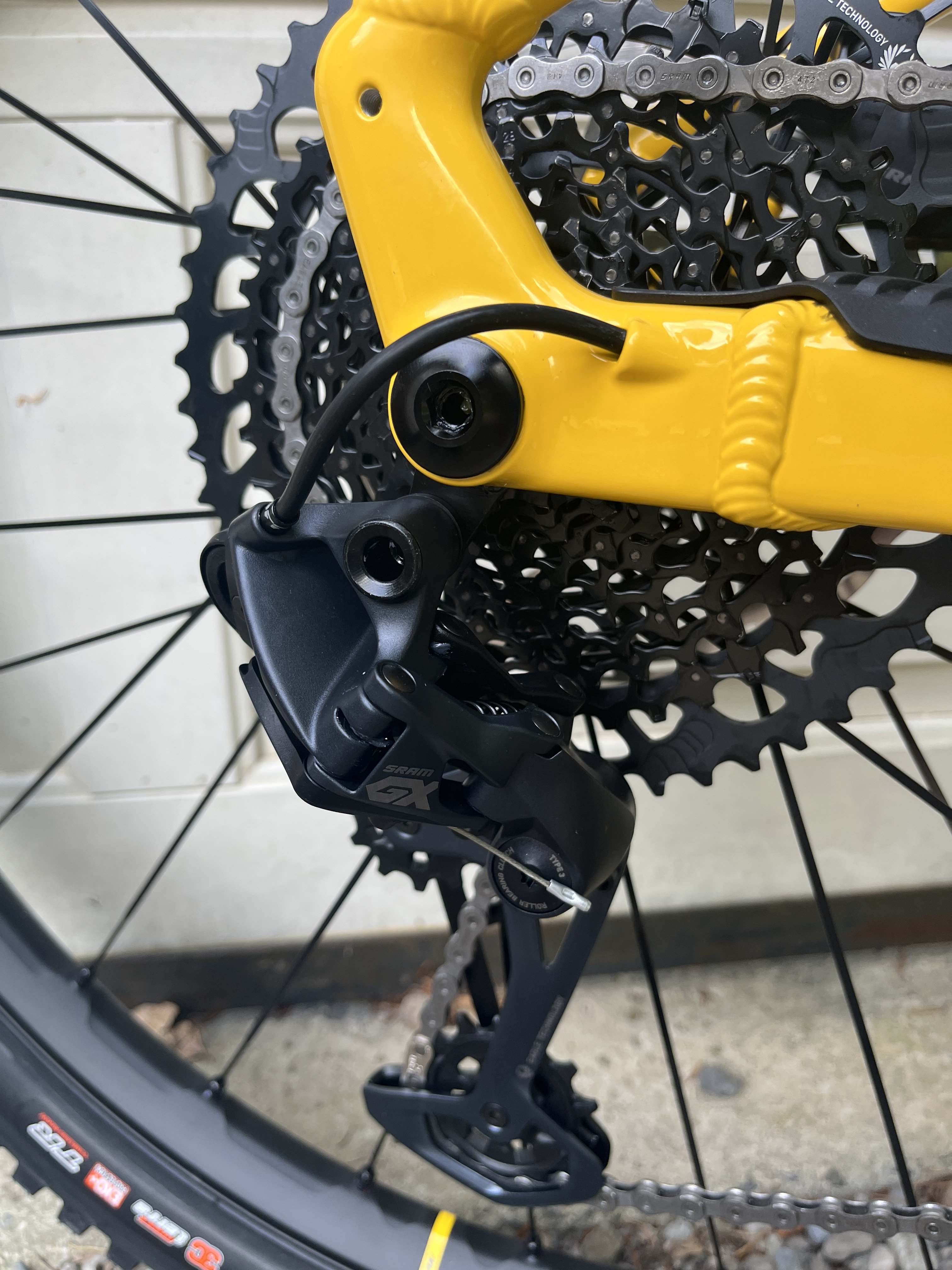

Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
SRAM UDH
Weight
25,0 kg

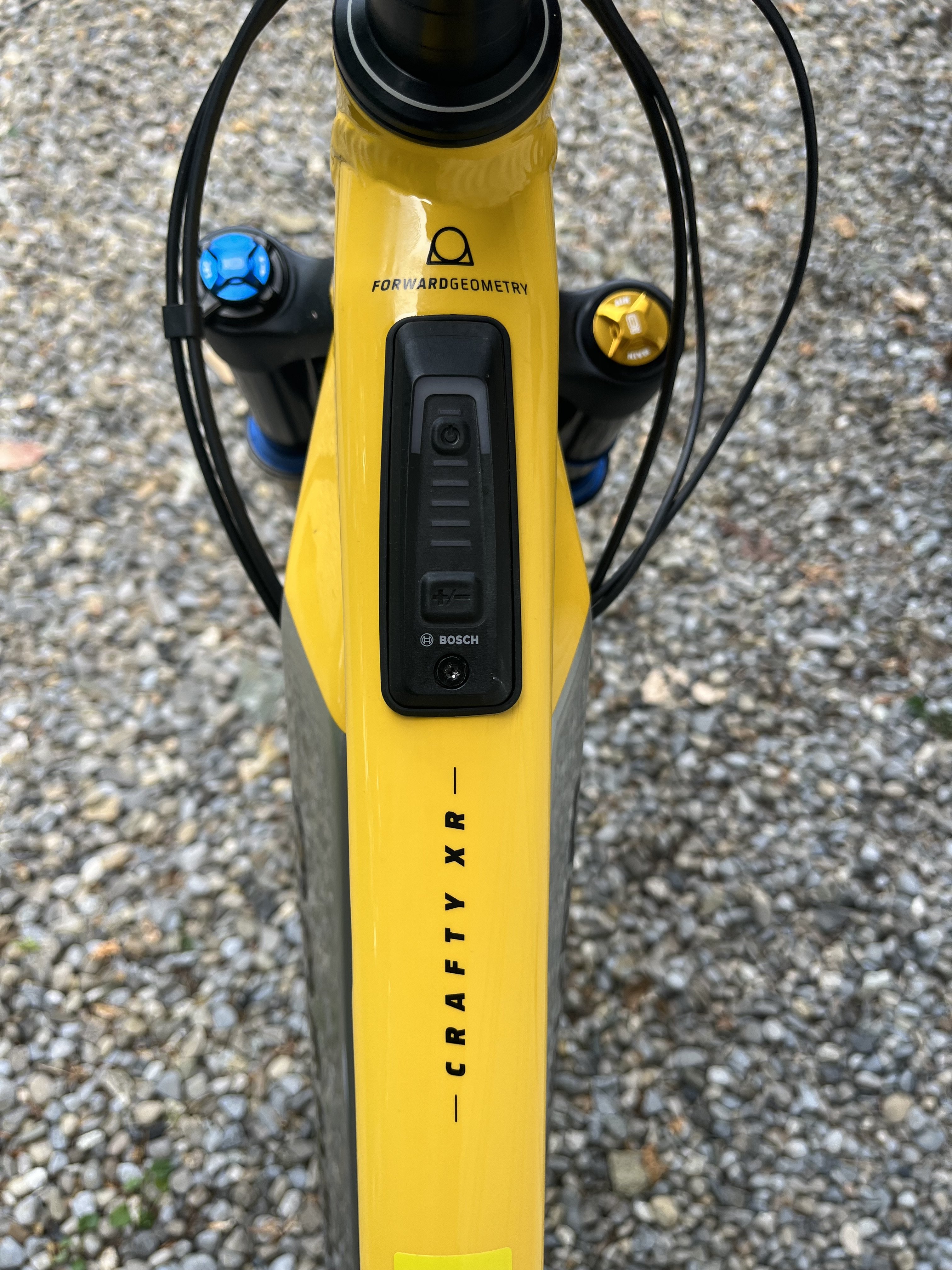

Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 750Wh
