Matt00
Member
Bike / Product Year: 2021
Manufacturer: Canyon
Model: Spectral:ON CF 7
Size Medium
Asking Price: £4,400 ono
Location Worcestershire

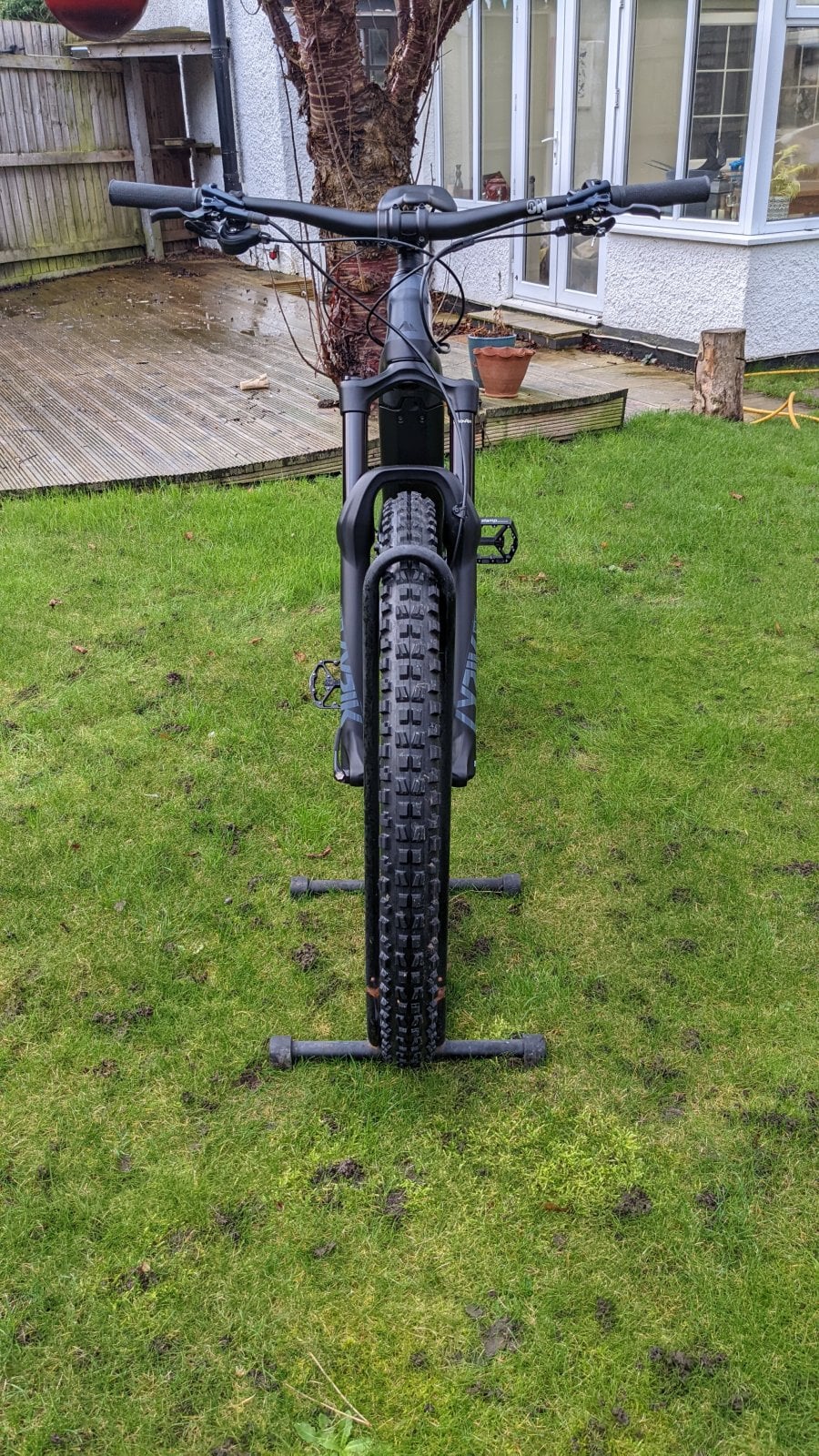

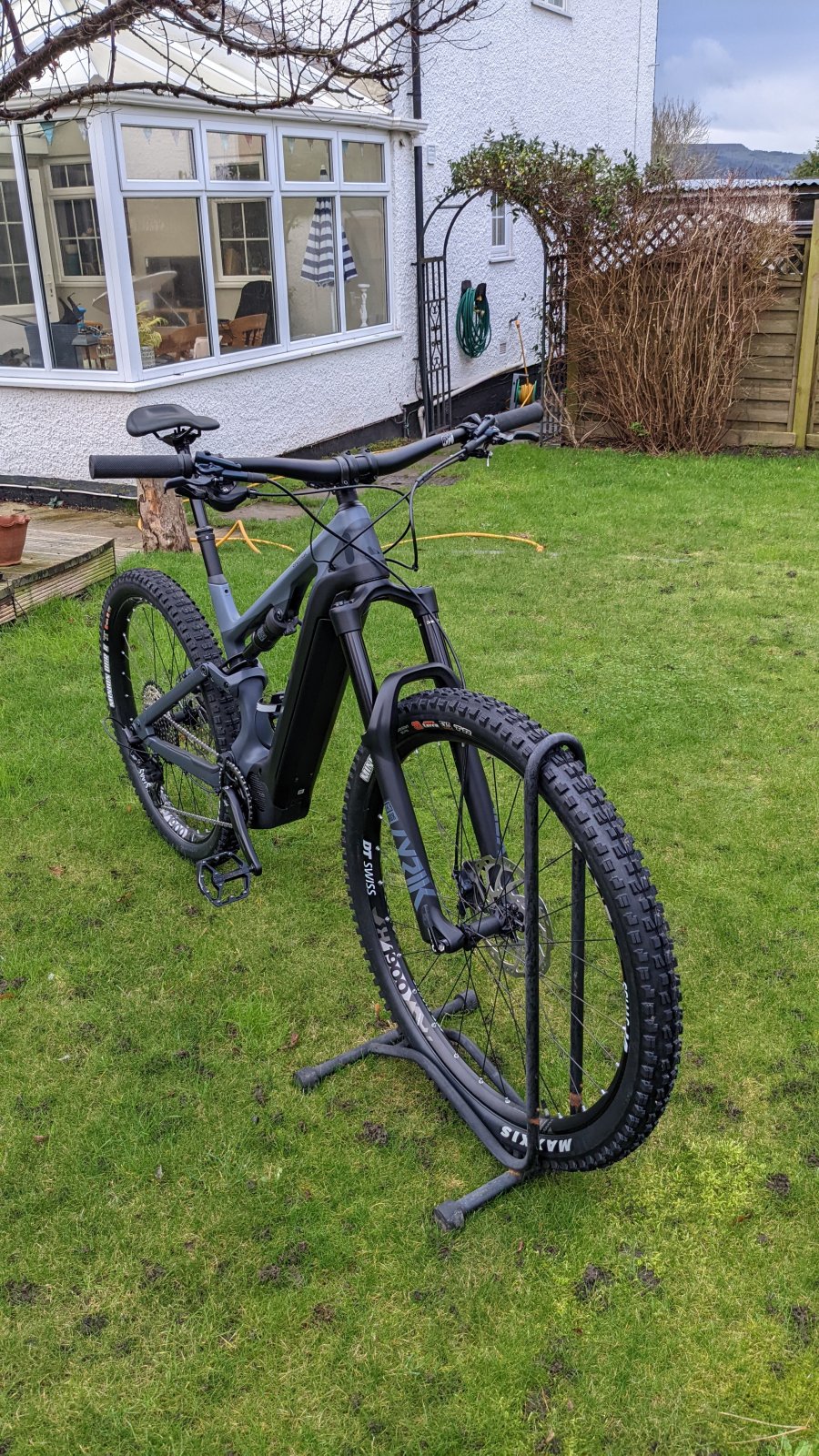

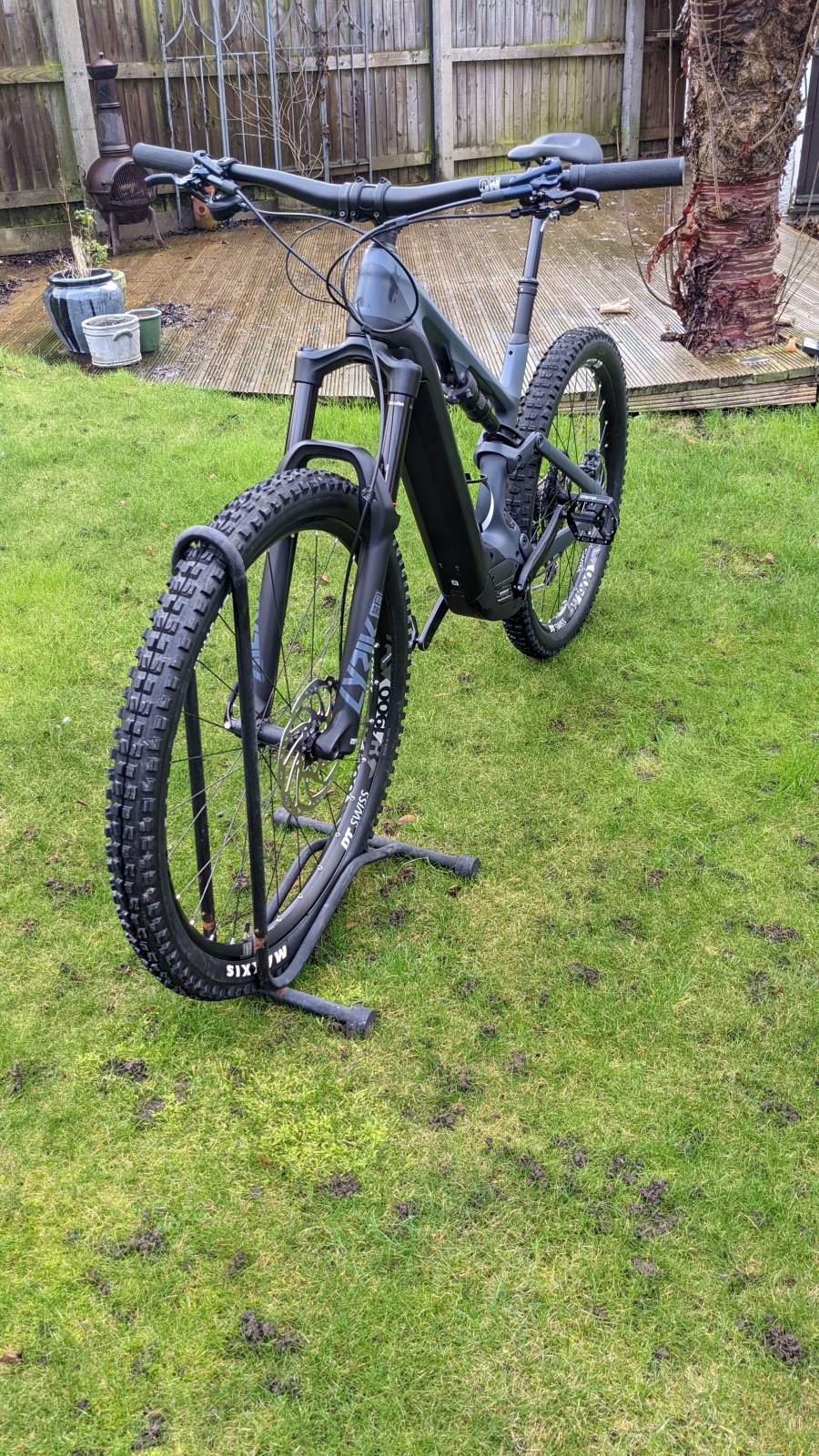

Description 2021 Canyon Spectral:ON CF 7, Shimano EP8 - Shades of Stealth in Size Medium
Excellent condition with only 250 miles since new! Only ever used locally and new baby means I'm just not using it as intended. Incredible bike and battery for days. 29 on front and 27.5 rear
Warranty is transferrable so over 12 months left with Canyon.
Full spec below and any questions, photos, then please ask. Not invisiframed but helitape in strategic places was used so frame is in excellent condition as per the photos.
Comes with charger etc and can post in original bike box for extra postage charge:
https://www.canyon.com/en-gb/electric-bikes/electric-mountain-bikes/spectral-on/spectral-on-cf-7/2697.html?dwvar_2697_pv_rahmenfarbe=BK%2FGY#all-components-section-tab
Frame

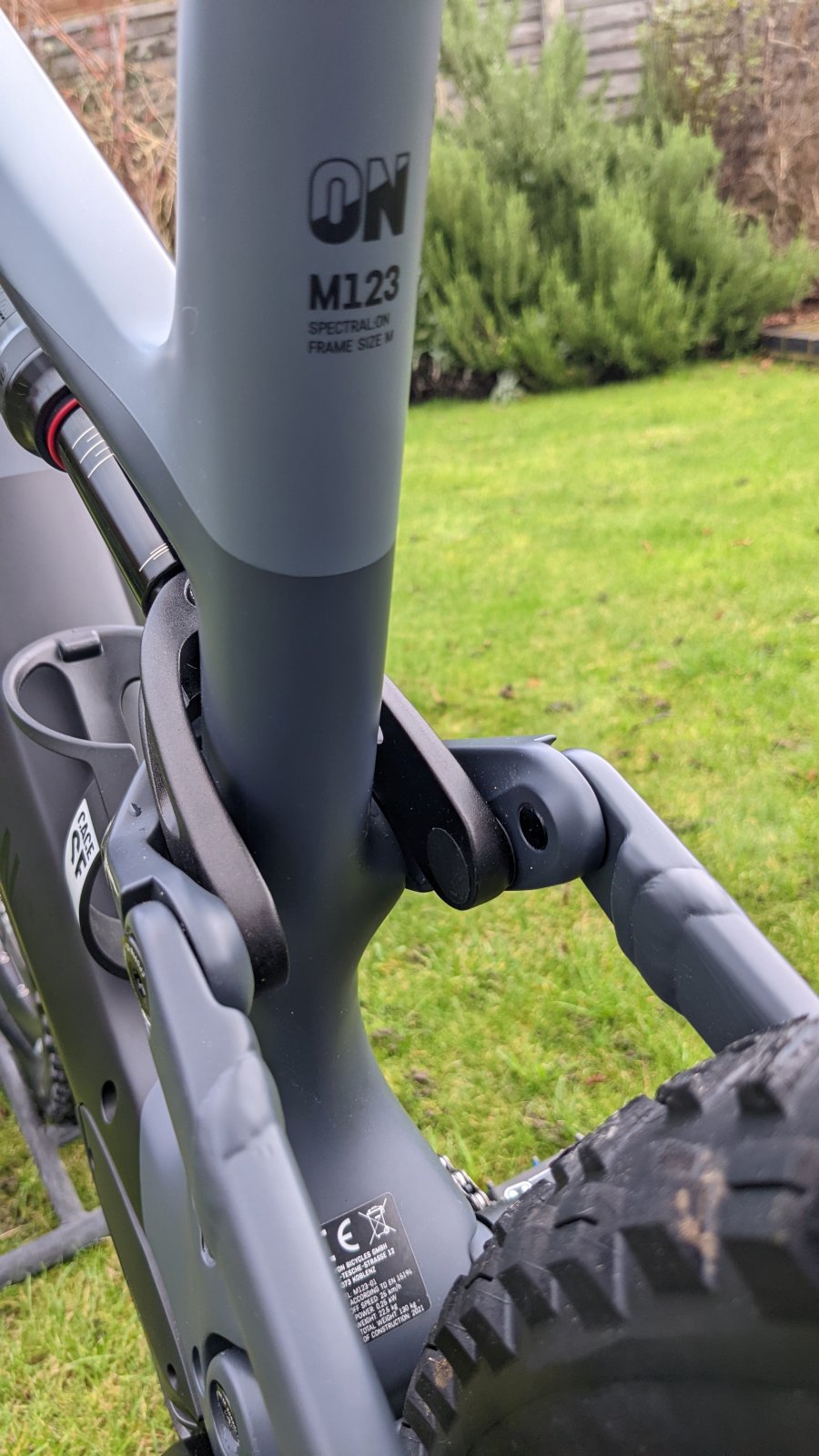

Canyon Spectral:ON
Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Rear Shock

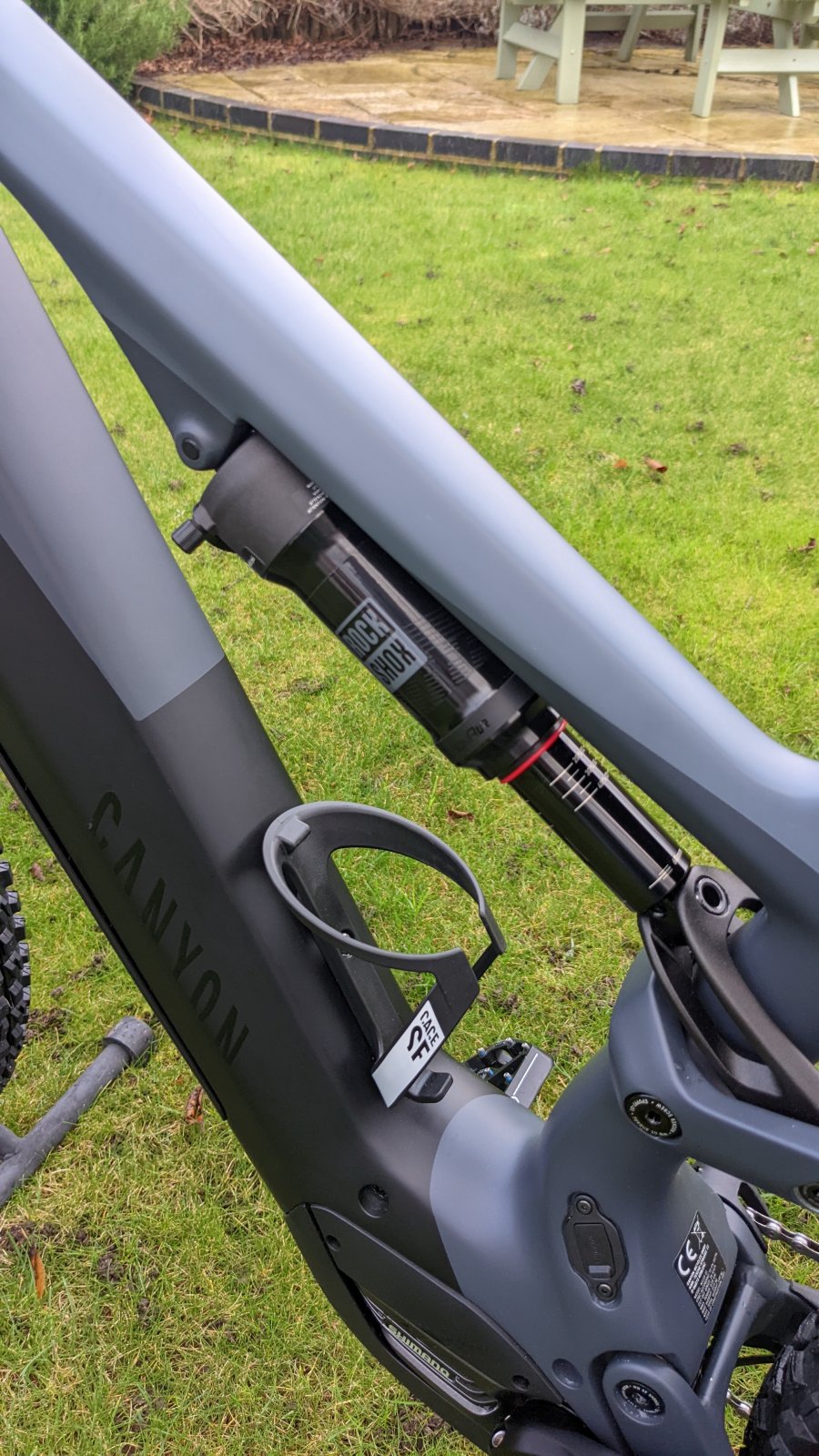

RockShox Deluxe Select, 230x60
150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.

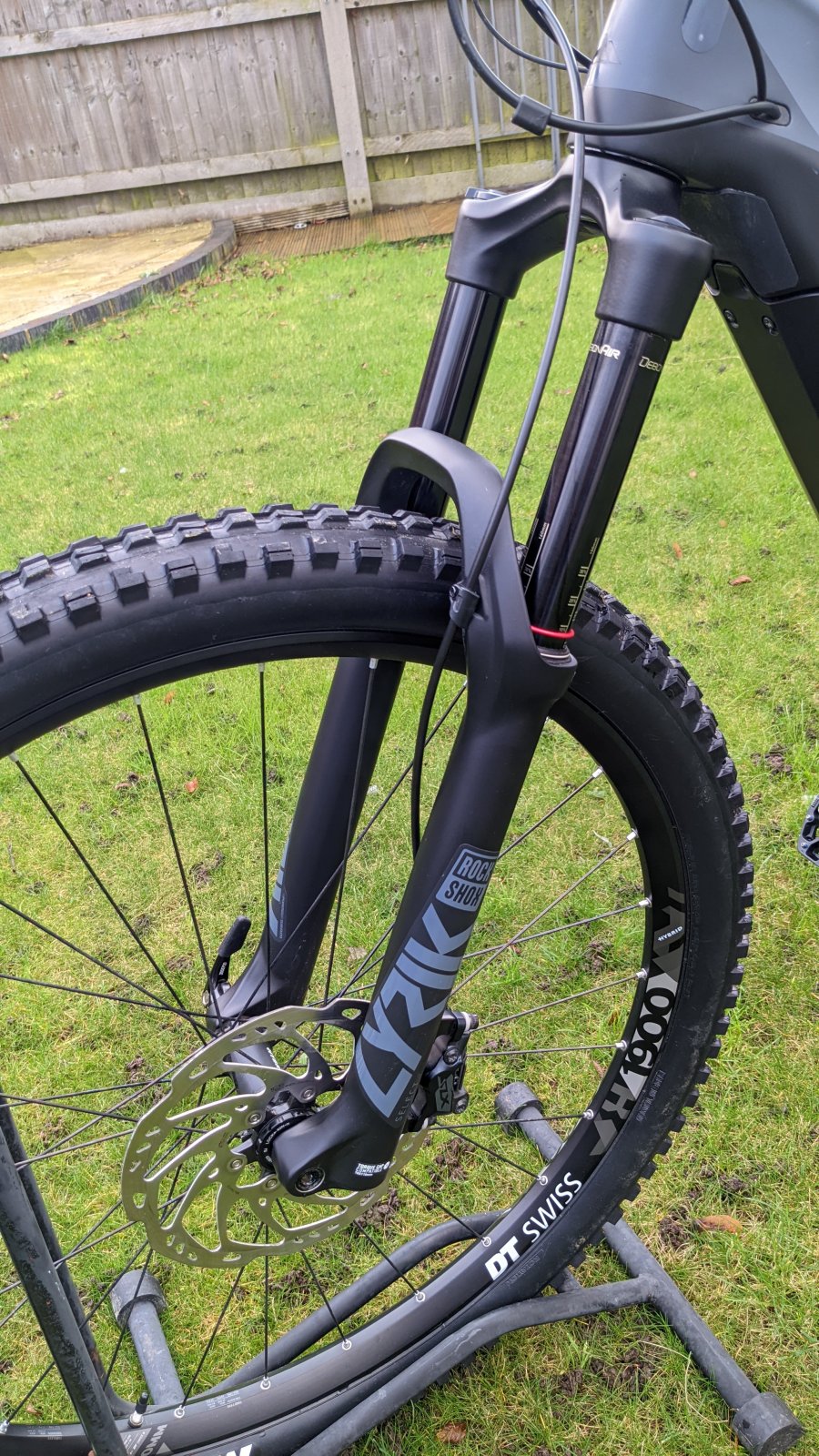

Suspension Fork

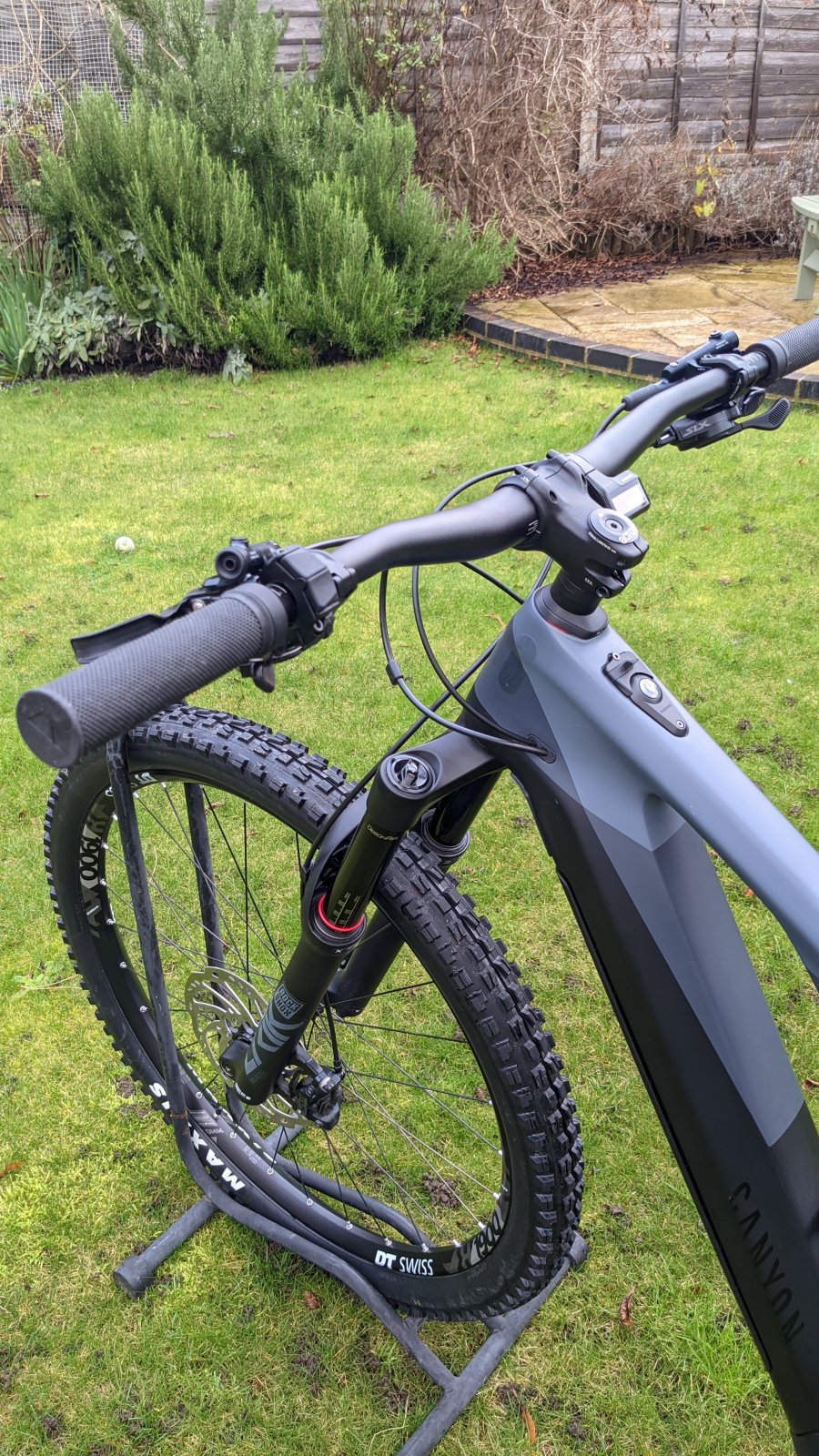

Rock Shox Lyrik Select, 150mm
150mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Charger RC compression and rebound damping adjuster, Debonair air spring
Drivetrain
Motor
Shimano Steps EP8 Motor

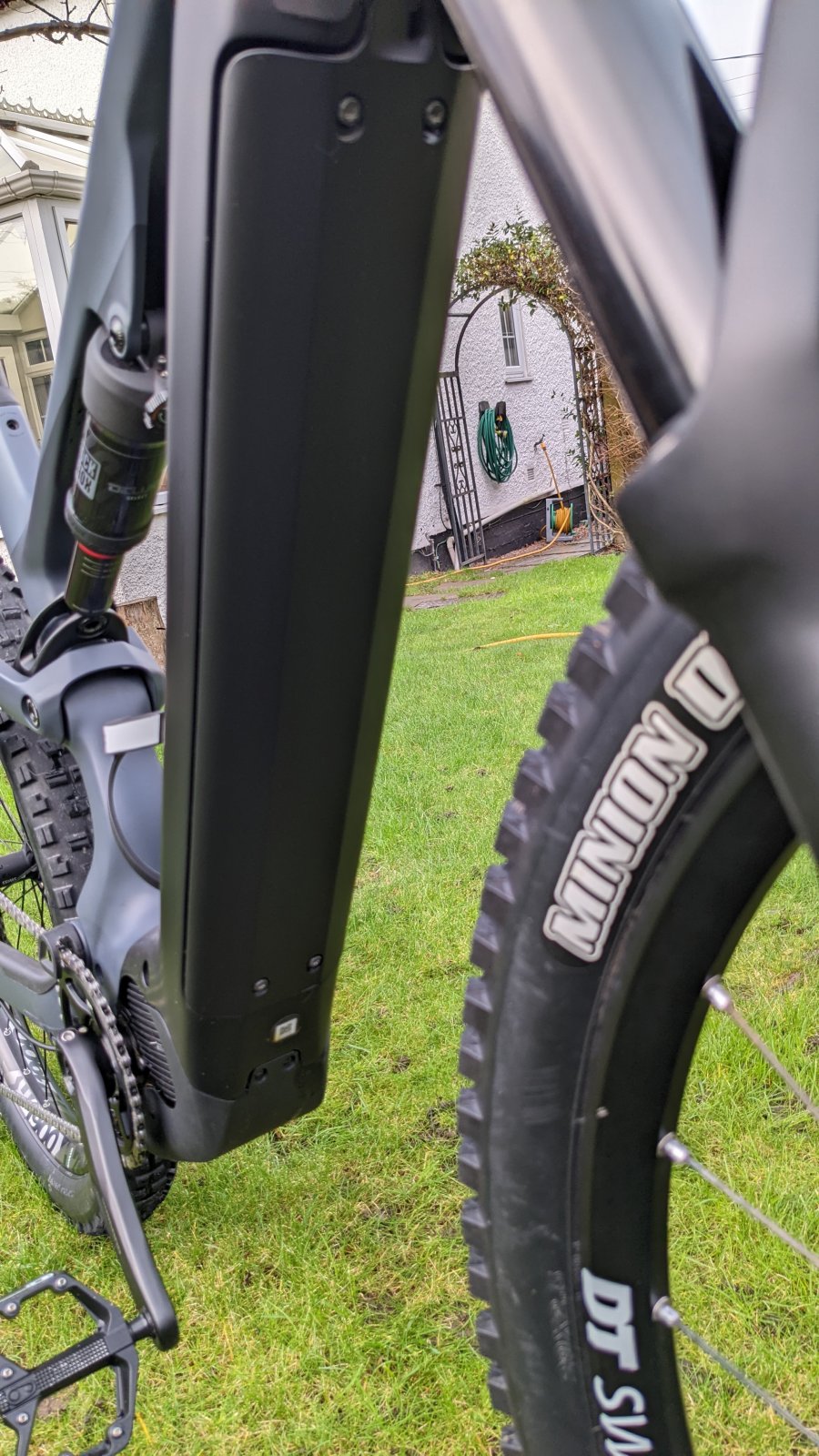

Battery

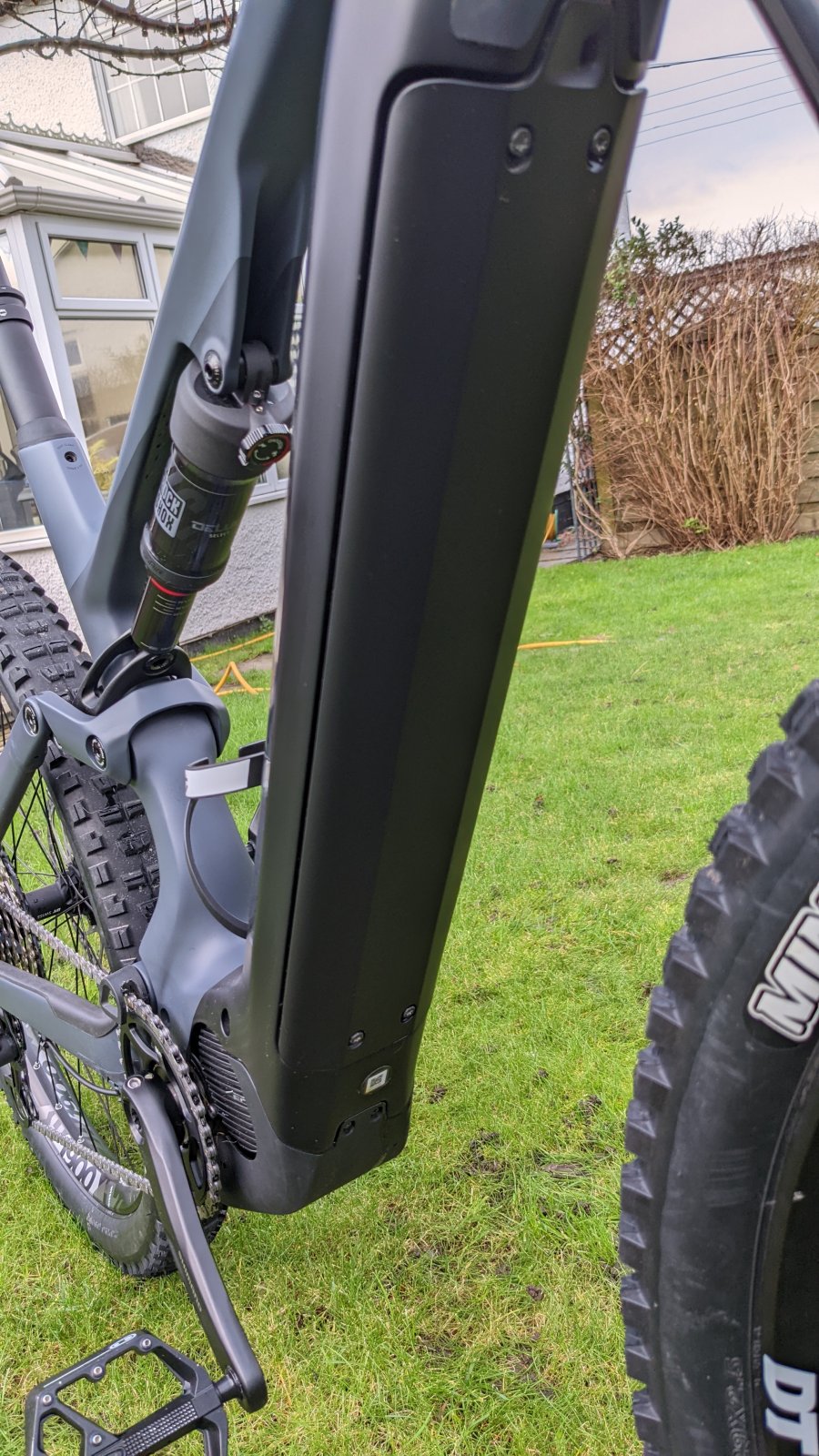

Shimano BT-E8036 Battery
Rear Derailleur
Shimano Deore XT, 12-speed
Precise 1x12 drivetrain.

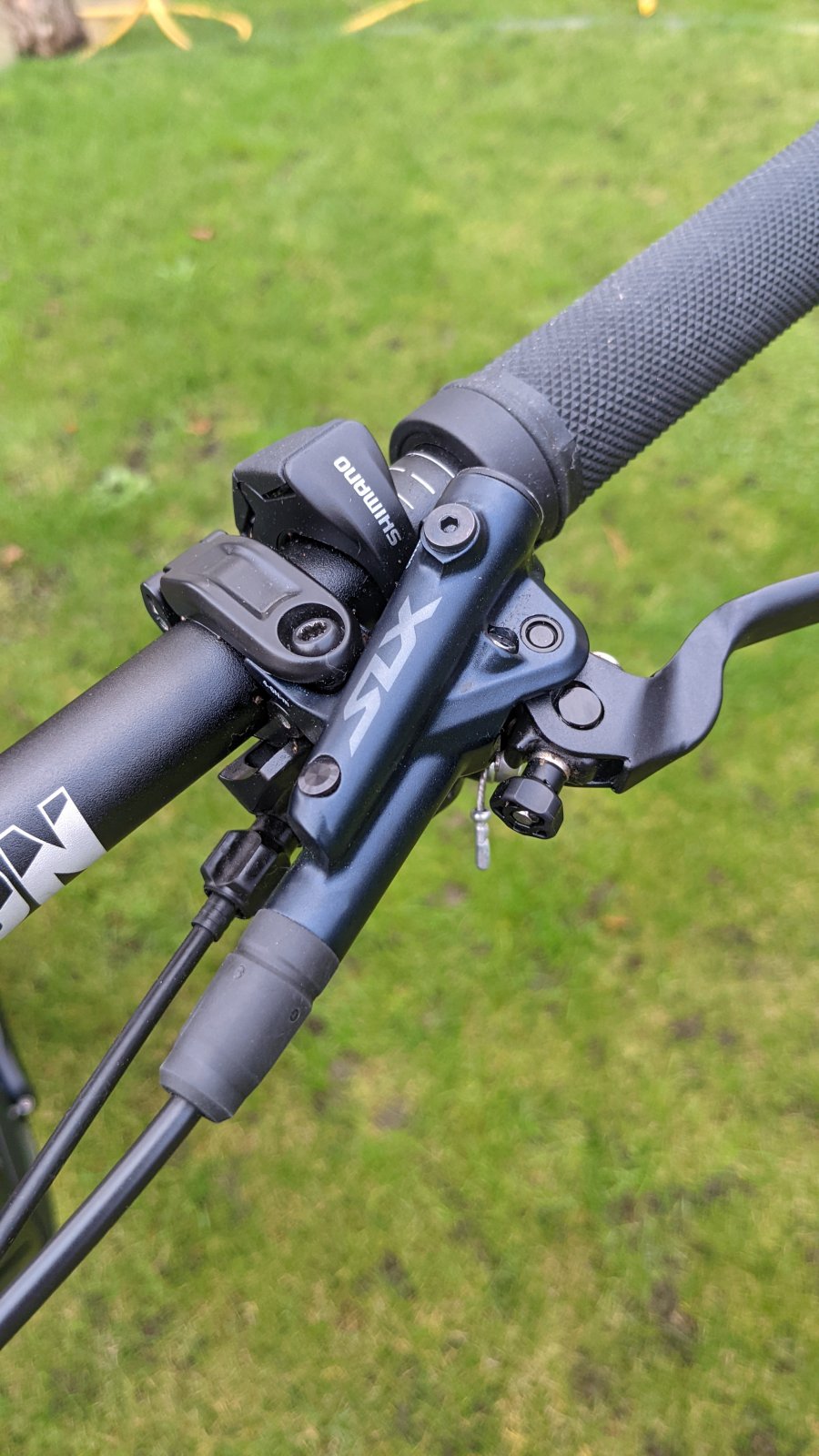

Shift Lever
Shimano SLX, 12-speed
12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
Cassette

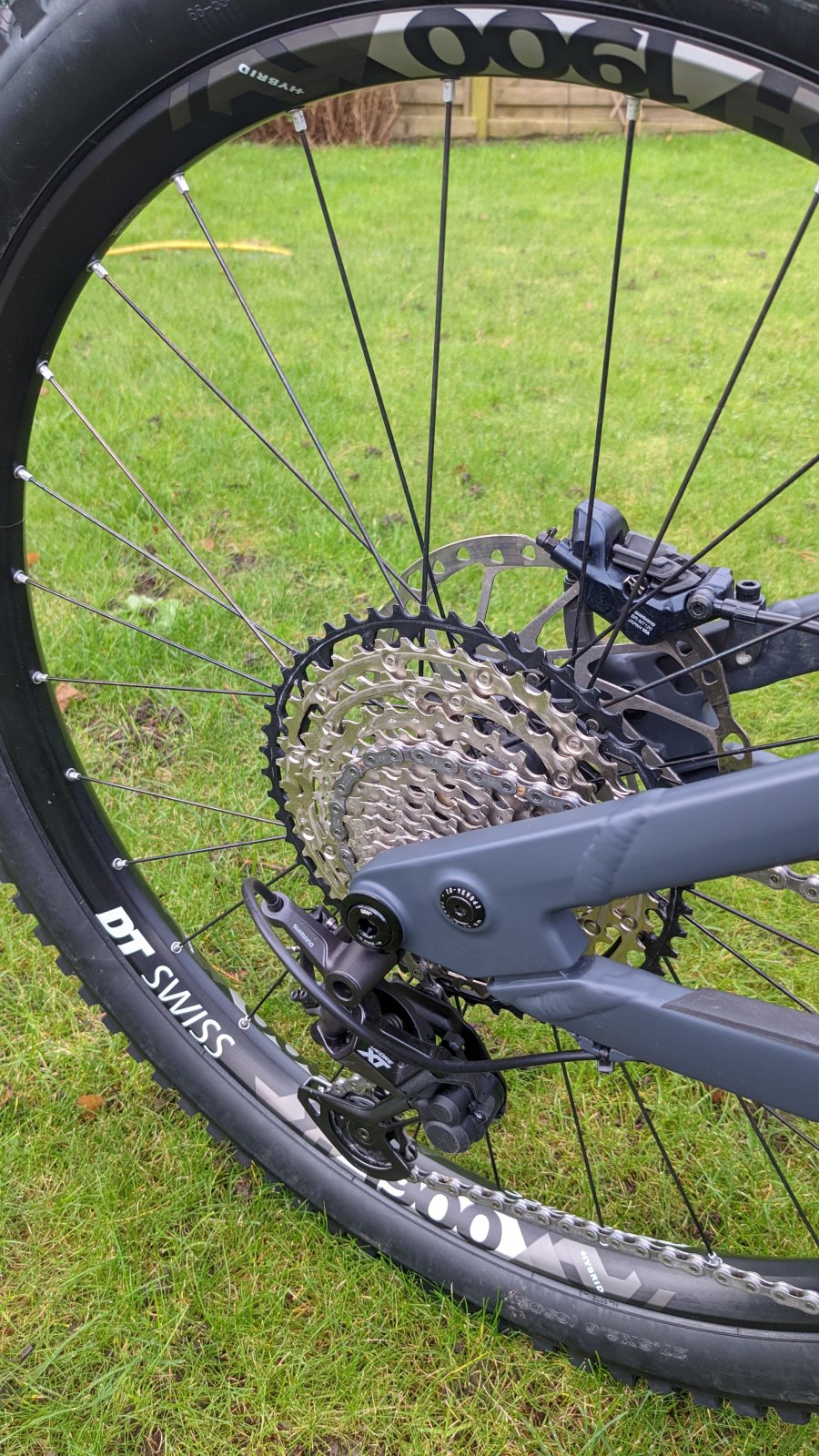

Shimano SLX, 12-speed (10-51)
Cassette size: 10-51T. Gear range: 510%.
Crank

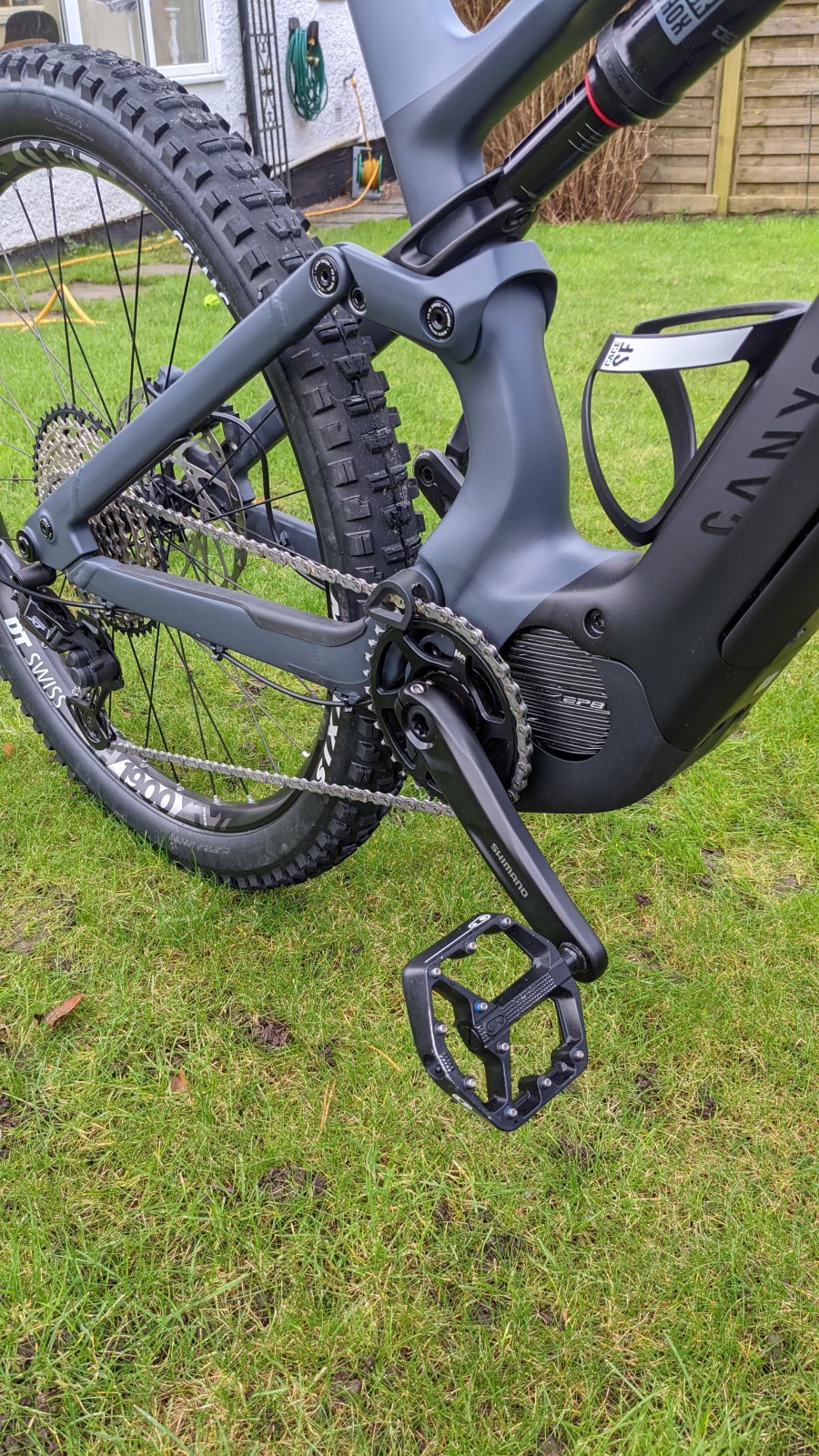

Shimano STEPS e-MTB crank arms
Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms
Chainring
Canyon:ON 34T
Canyon E-MTB specific, direct-mount chainring, 34-tooth
Chain
Shimano M6100 12-speed
HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Brakes
Disc Brake
Shimano SLX 4-piston front brake
High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g

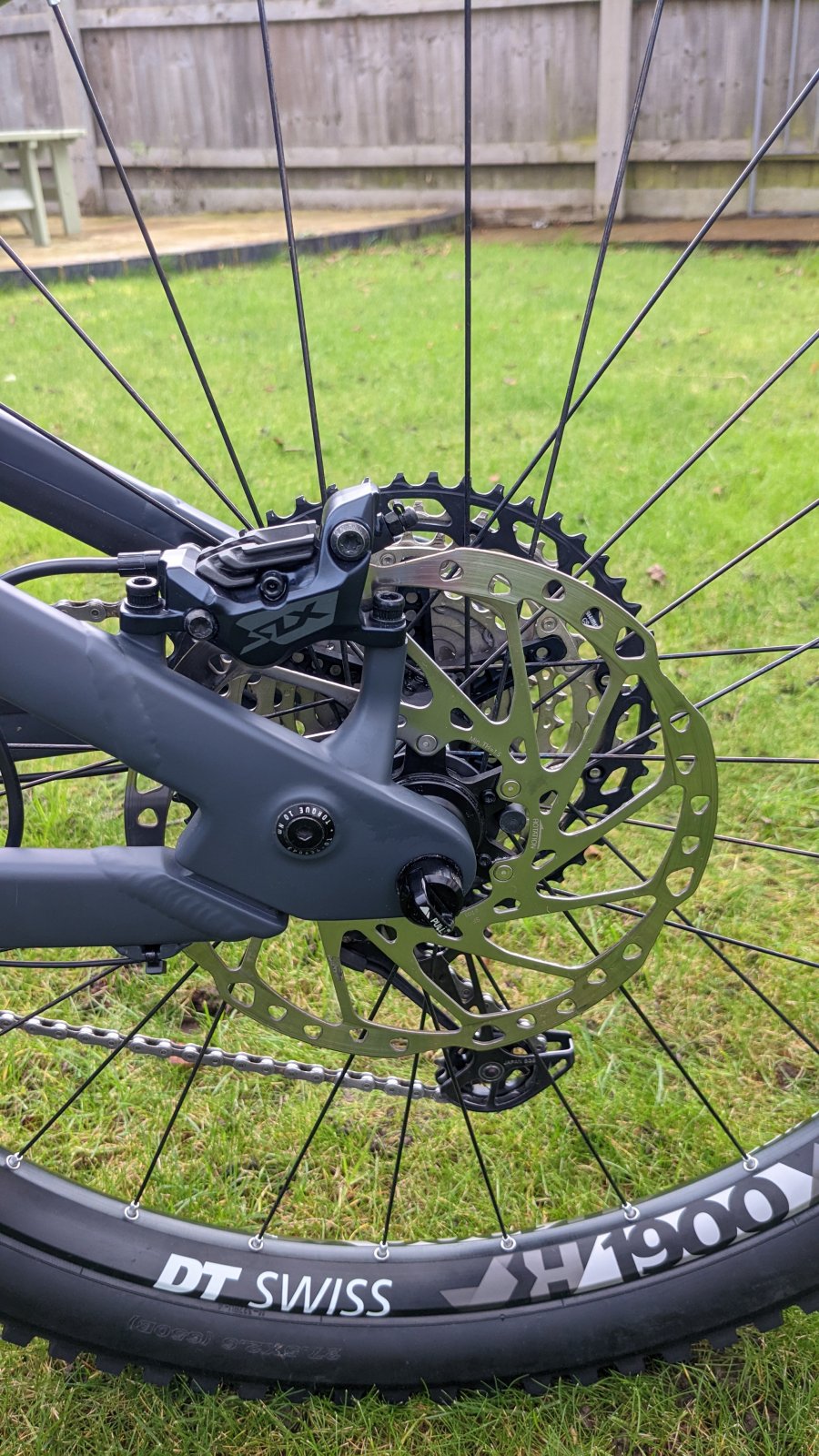

Disc Brake
Shimano SLX 4-piston rear brake
High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
Brake Rotor
Shimano EM600 STEPS rear rotor, 203mm
Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal
Brake Rotor

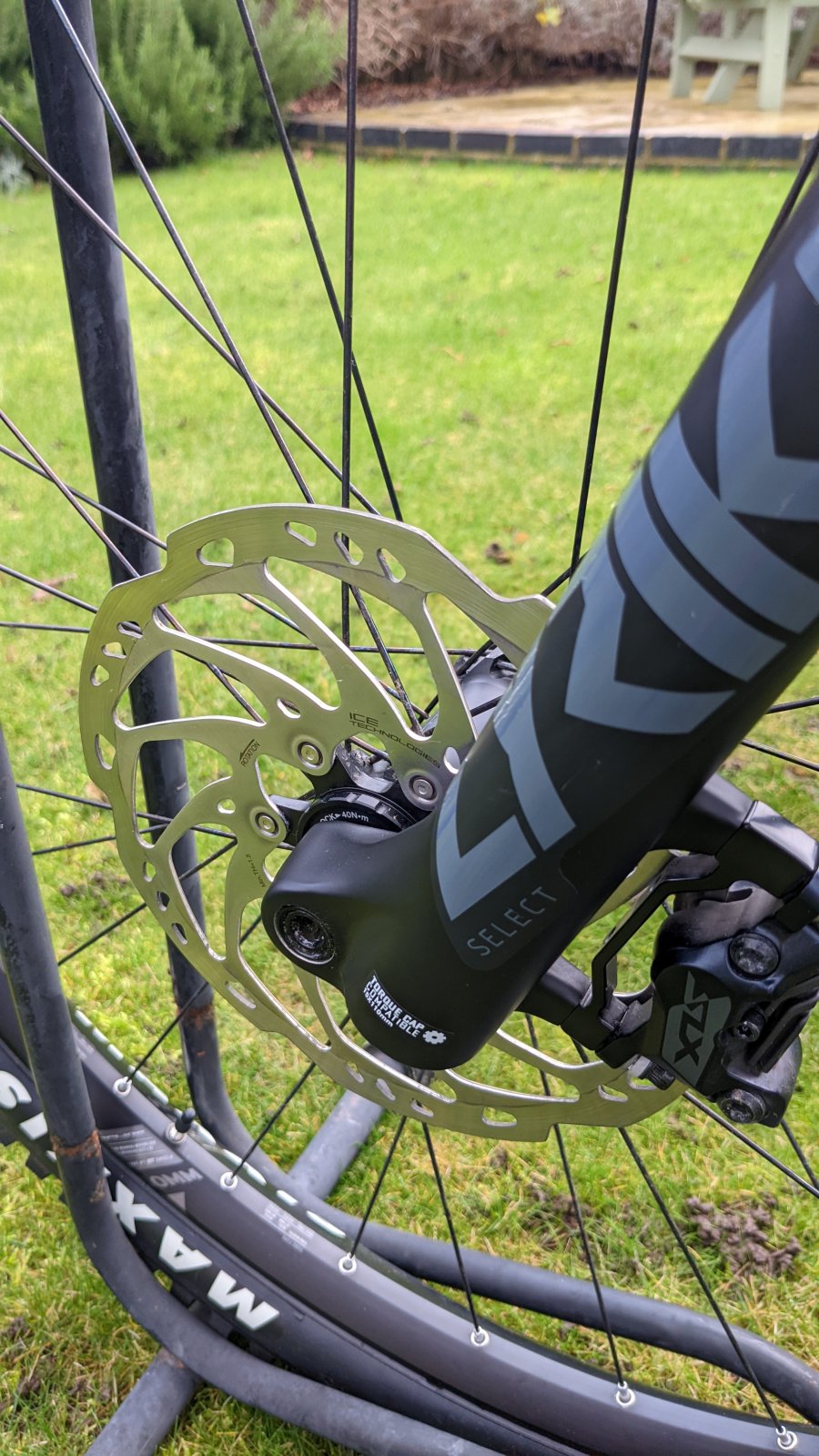

Shimano SLX rotor, 203mm
High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Wheels
Wheel
DT Swiss H-1900 Spline, 29er
Front wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 front hub with Boost 110 spacing, aluminum tubeless-ready DT Swiss 29" rim, 30mm inner width
Wheel
DT Swiss H-1900 Spline, 27.5"
Rear wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 3-pawl hub with steel freehub, Boost 148 spacing, reinforced DT Hybrid 1 spokes, aluminum tubeless-ready DT Swiss 27.5" rim, 35mm inner width

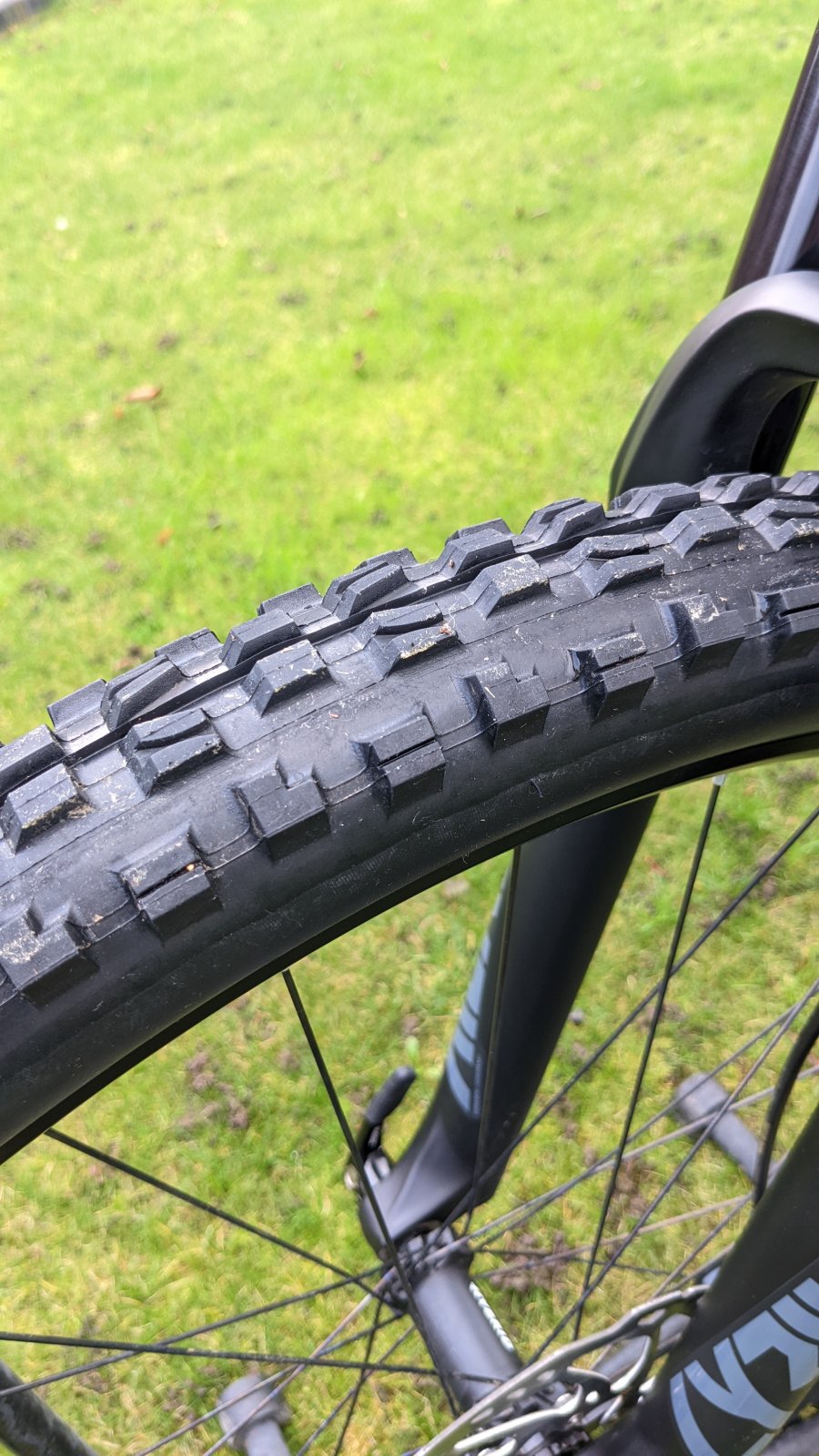

Tyre
Maxxis Minion DHF, 2.5"
EXO casing, Tubeless Ready design
Tyre
Maxxis Minion DHR II, 2.6"
EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Thru Axle
Canyon Quixle Thru Axle
The Canyon Quixle unites the ease-of-use of a quick release with the stiffness of a through axle. Dimensions: 12x148 mm.
Cockpit
Stem

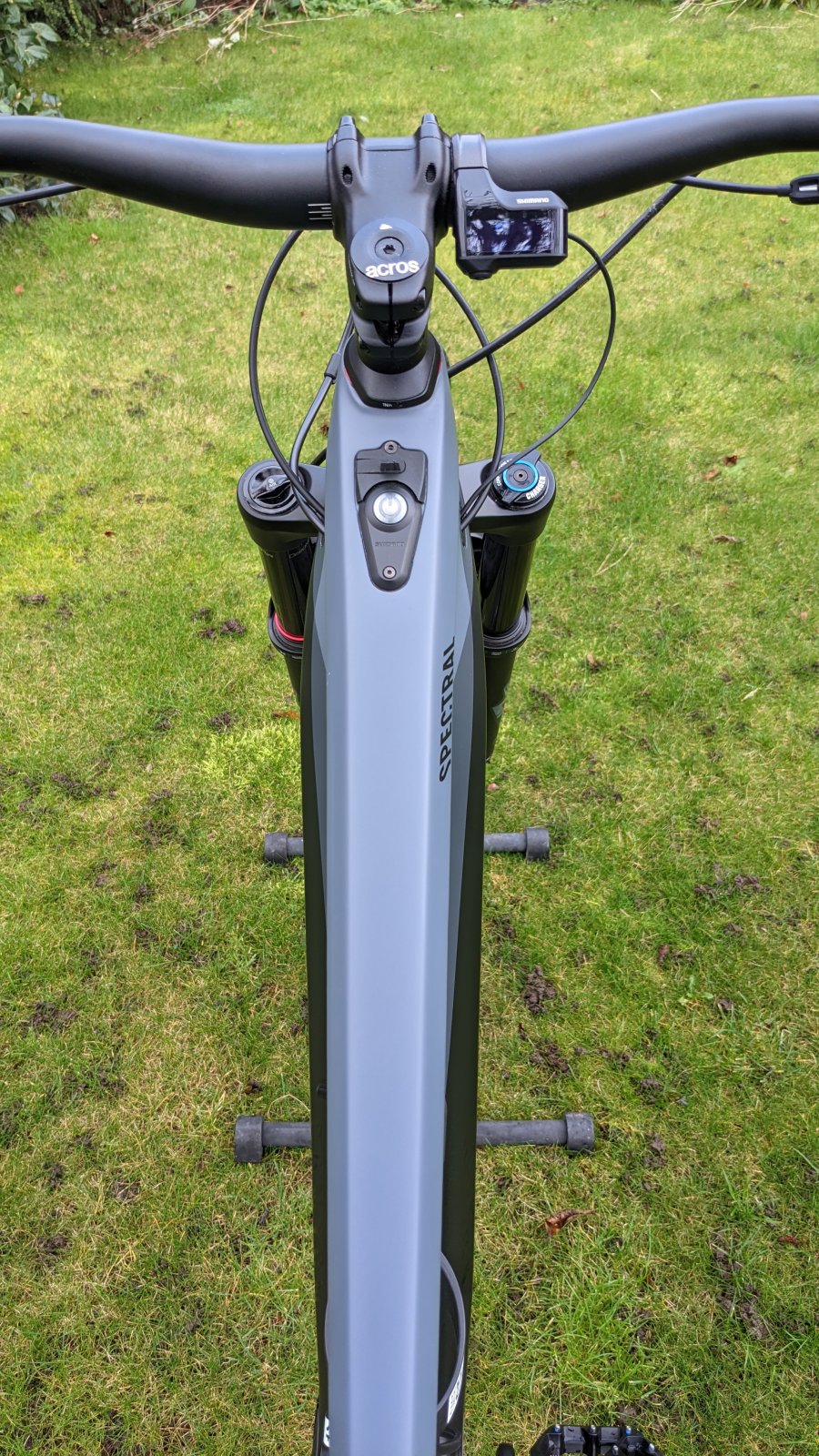

Canyon:ON Stem
35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar
Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Canyon lock-on grips for top grip levels in every situation.
Display

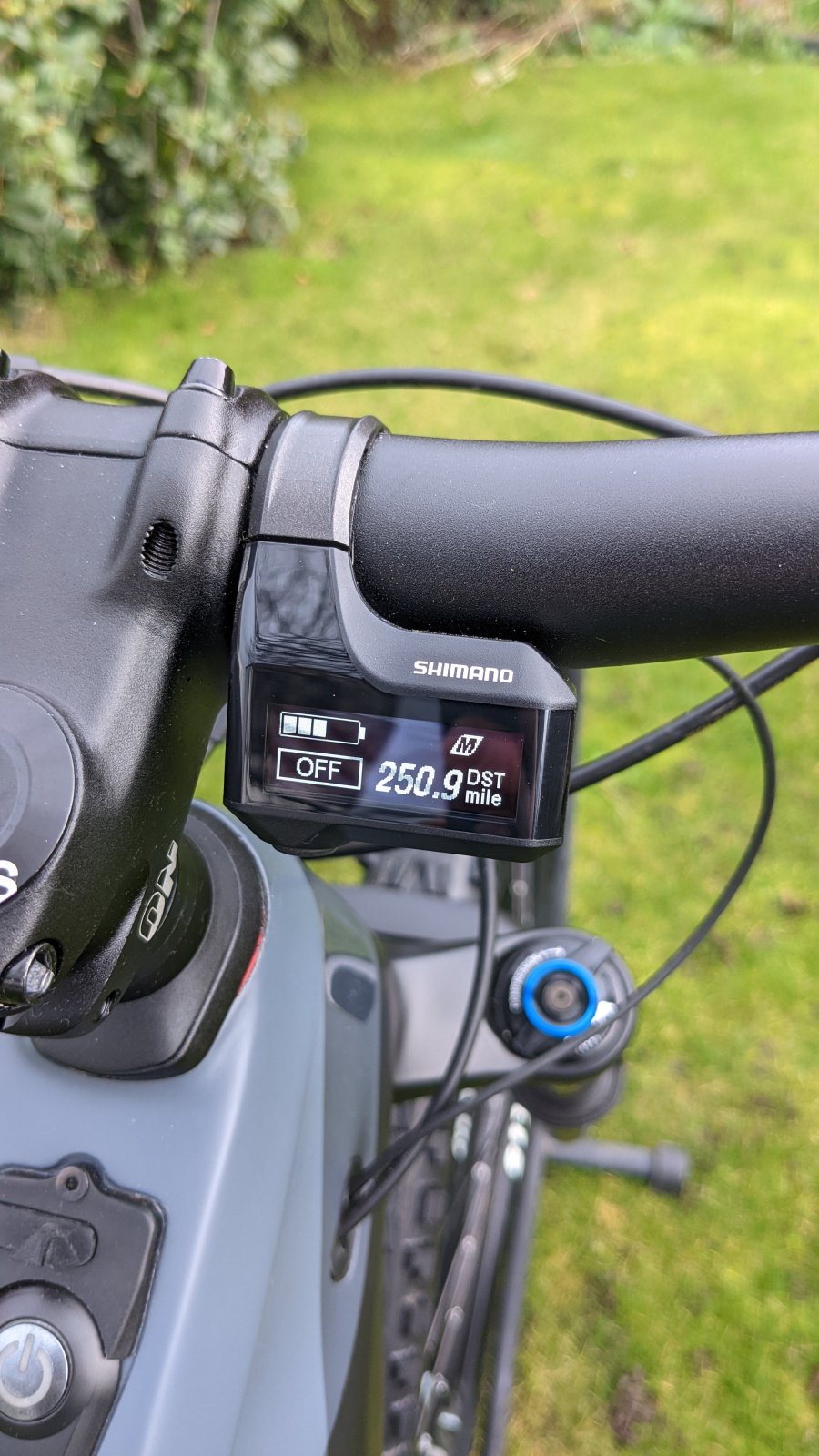

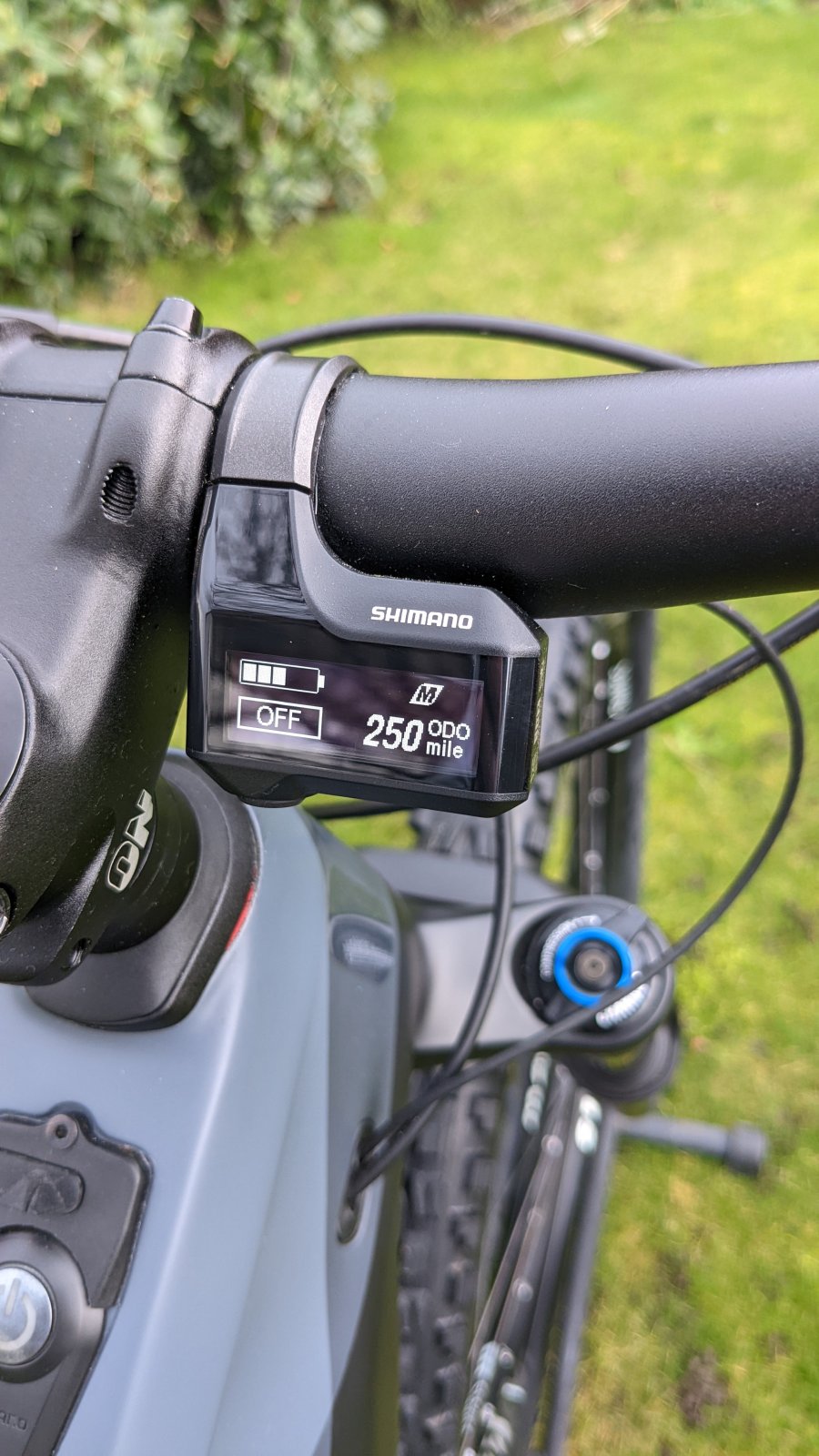

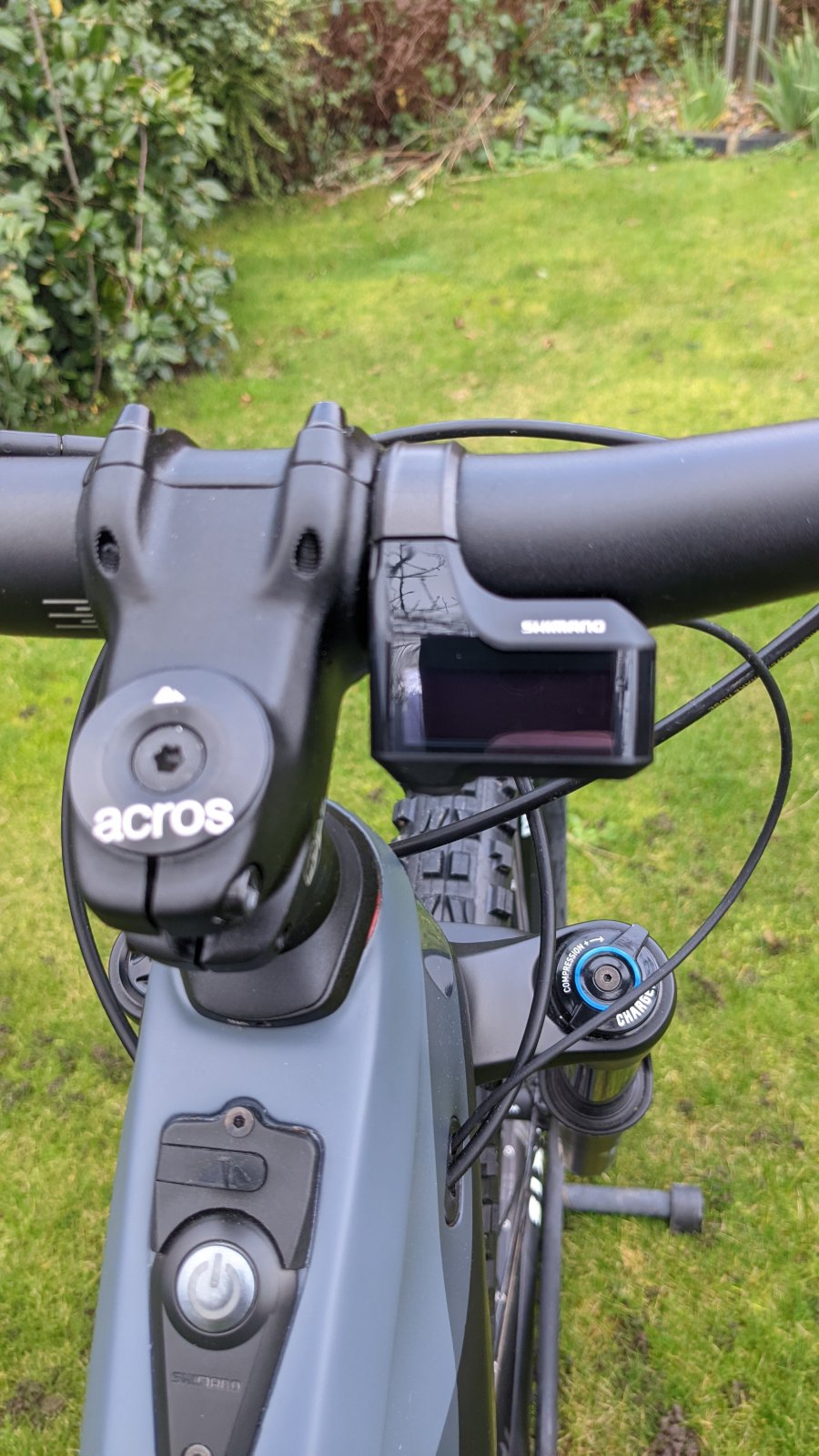

Shimano Steps SC-E7000 Display
Modeswitch
Shimano STEPS power mode switch
Handlebar-mounted unit lets you quickly and easily change power modes or activate walk-assist mode

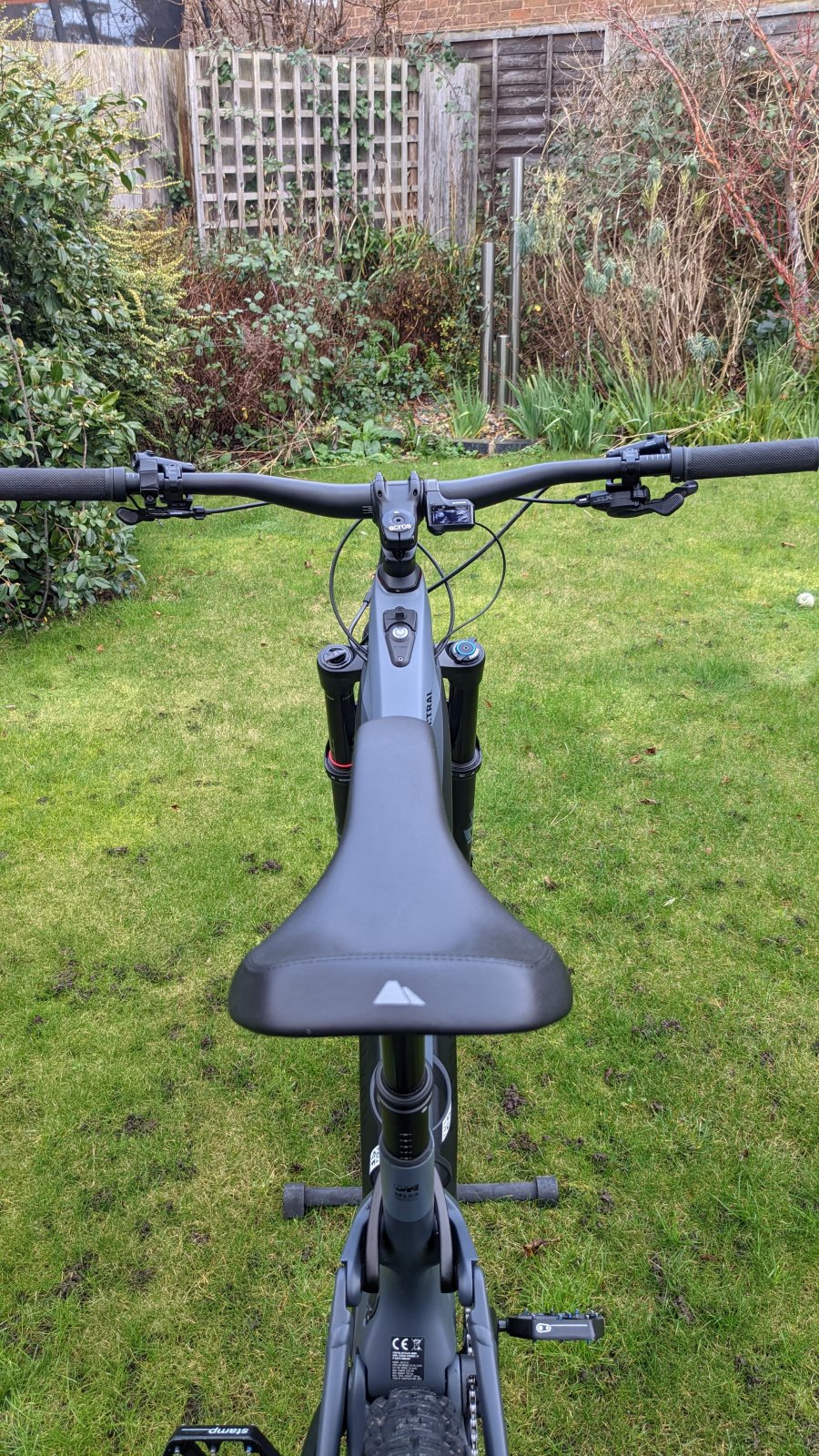

Seat
Saddle

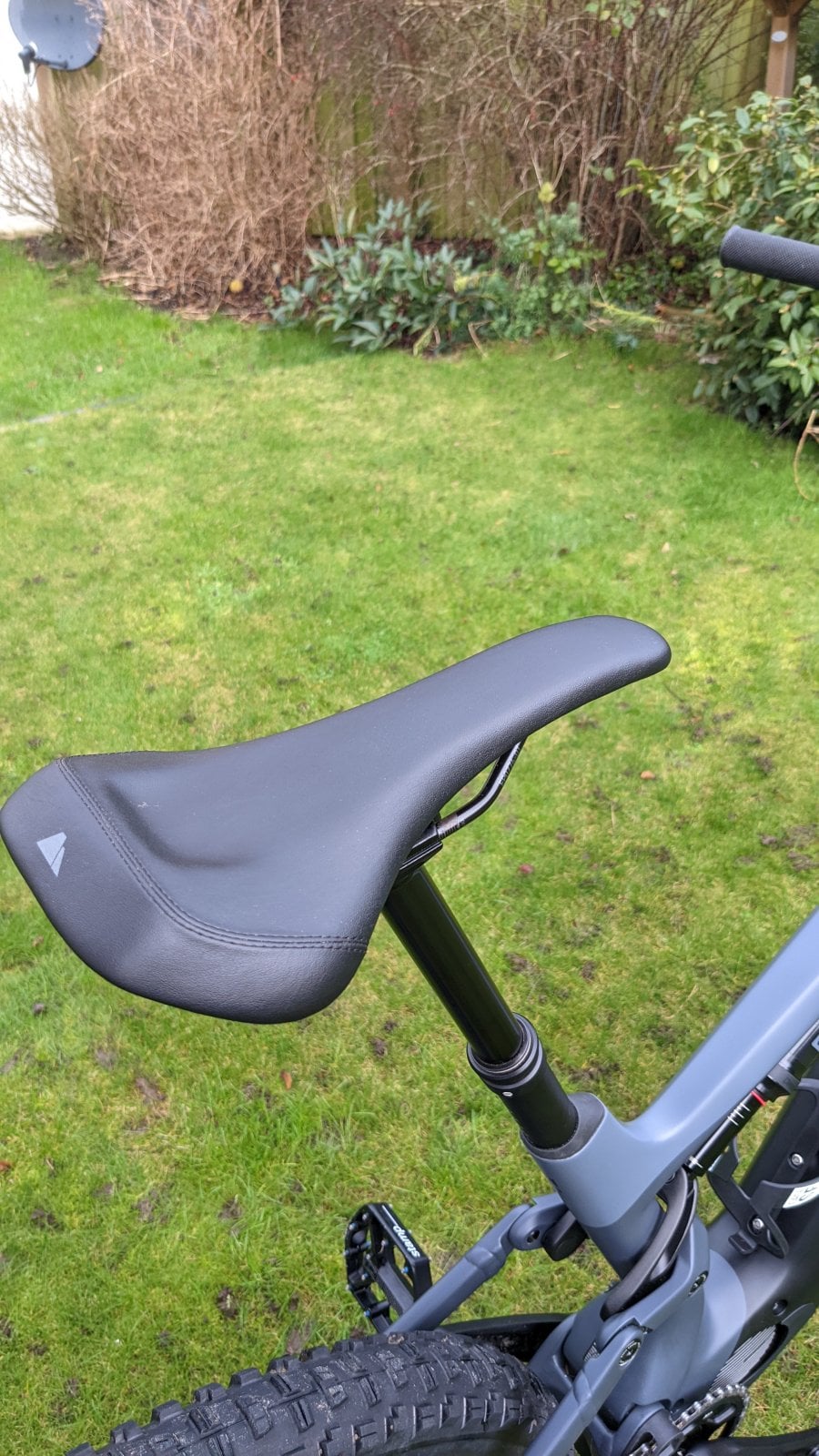

Canyon SD:ON
Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post
Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Accessories
Battery Charger
Shimano STEPS - Battery Charger
Shimano's E6000 charger plugs directly into your Canyon e-bike and charges your SHIMANO STEPS battery. Adapter (available aftermarket) allows you to also charge the battery when removed from bike.
Flat Pedals
Iridium Flat Pedal
Flat pedals made from robust polypropylene plastic.
Manuals and Accessories
Canyon Tool Case
Storage box for tools and replacement parts.
Manuals and Accessories
Wrench Tool 15mm
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
Manuals and Accessories
Quickstartguide Canyon eMTB
